Condenser Fan: Testing and Inspection
CONDENSER FANON-VEHICLE INSPECTION
1. INSPECT CONDENSER FAN OPERATION

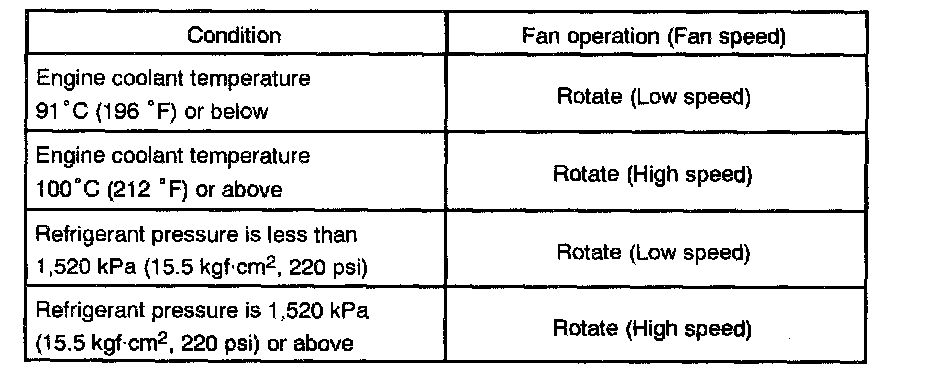

Inspect the fan operation, as shown in the chart below.
Test conditions:
- Ignition switch ON
- Blower speed control switch position "HI"
- Temperature control dial at "MAX. COOL"
- Install manifold gauge set"
- A/C switch ON
If operation is not as specified, proceed to the next inspection.
2. INSPECT CONDENSER FAN MOTOR OPERATION

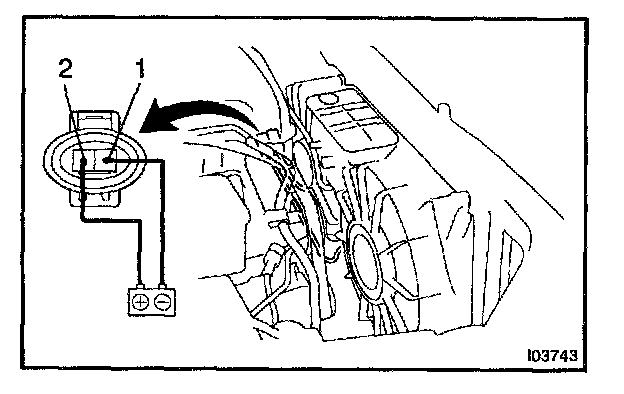

a. Disconnect the fan connector.
b. Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 1 then check that motor operations smoothly.
If operation is not as specified, replace the fan motor.
If operation is as specified, check the pressure switch, cooling fan relays and engine coolant temp. switch.
