Radiator Cooling Fan Motor: Service and Repair

REMOVAL
1. DRAIN ENGINE COOLANT
2. REMOVE AIR CLEANER INLET
3. REMOVE AIR CLEANER AND MAF METER ASSEMBLY
4. REMOVE ELECTRIC COOLING FAN
a. Disconnect the upper radiator hose from the radiator.
b. Disconnect the ECM outlet duct from the ECM box.
c. Disconnect the wire for electric cooling fan from the clamp on the electric cooling fan.
d. Disconnect the 2 electric cooling fan connector.
e. Disconnect the radiator reservoir hose from the radiator.

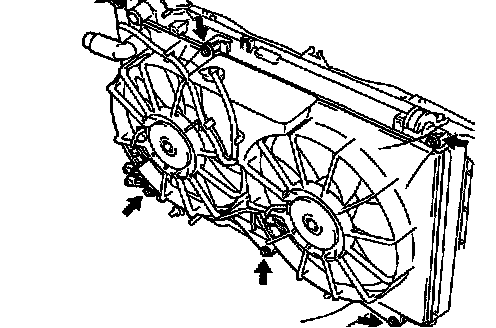

f. Remove the 6 bolts and electric cooling fan.

DISASSEMBLY





1. REMOVE FANS
Remove the nut and fan. Remove the 2 fans.





2. REMOVE FAN MOTORS
a. Disconnect the wires and connector holders from the fan shroud.
b. Remove the 3 screws and fan motor. Remove the 2 fan motors.

REASSEMBLY
1. INSTALL FAN MOTORS





a. Install the fan motor with the 3 screws. Install the 2 fan motors.





b. Install the wires and connector holders to the fan shroud.





2. INSTALL FANS
Install the fan with the nut. Install the 2 fans.

INSTALLATION





1. INSTALL ELECTRIC COOLING FAN
a. install the electric cooling fan with the 6 bolts.
Torque: 5.0 Nm (50 kgf-cm, 44 inch lbs.)
b. Connect the upper radiator hose to the radiator.
c. Connect the ECM outlet duct to the ECM box.
d. Connect the wire for electric cooling fan to clamp on the electric cooling fan.
e. Connect the 2 electric cooling fan connectors.
f. Connect the radiator reservoir hose to the radiator.
2. INSTALL AIR CLEANER AND MAP METER ASSEMBLY
3. INSTALL AIR CLEANER INLET
4. FILL WITH ENGINE COOLANT
5. START ENGINE AND CHECK FOR COOLANT LEAKS
