Emission Control Systems
Emission Control Systems

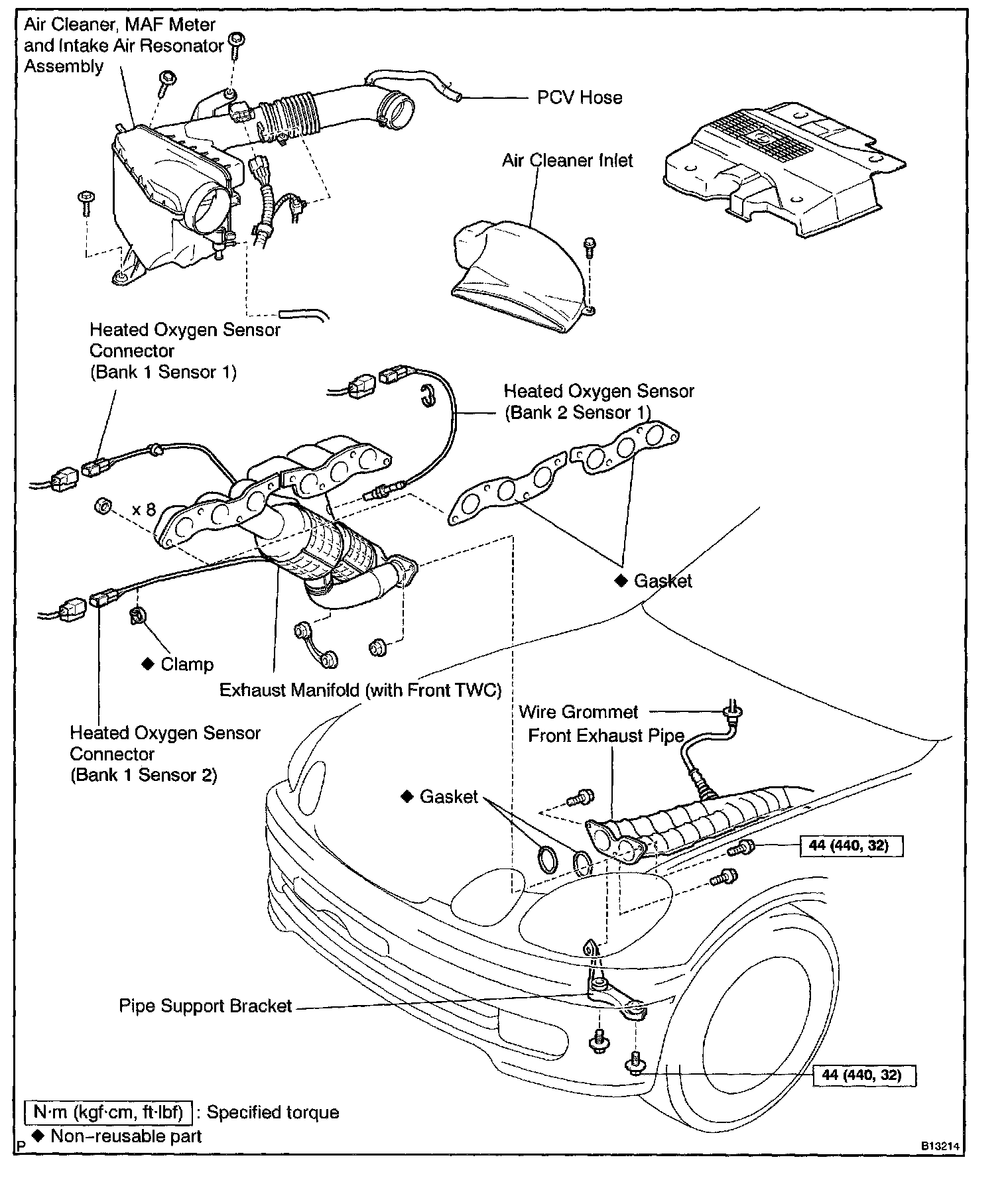

Three-way Catalytic Converter (TWC) System (Part 1):

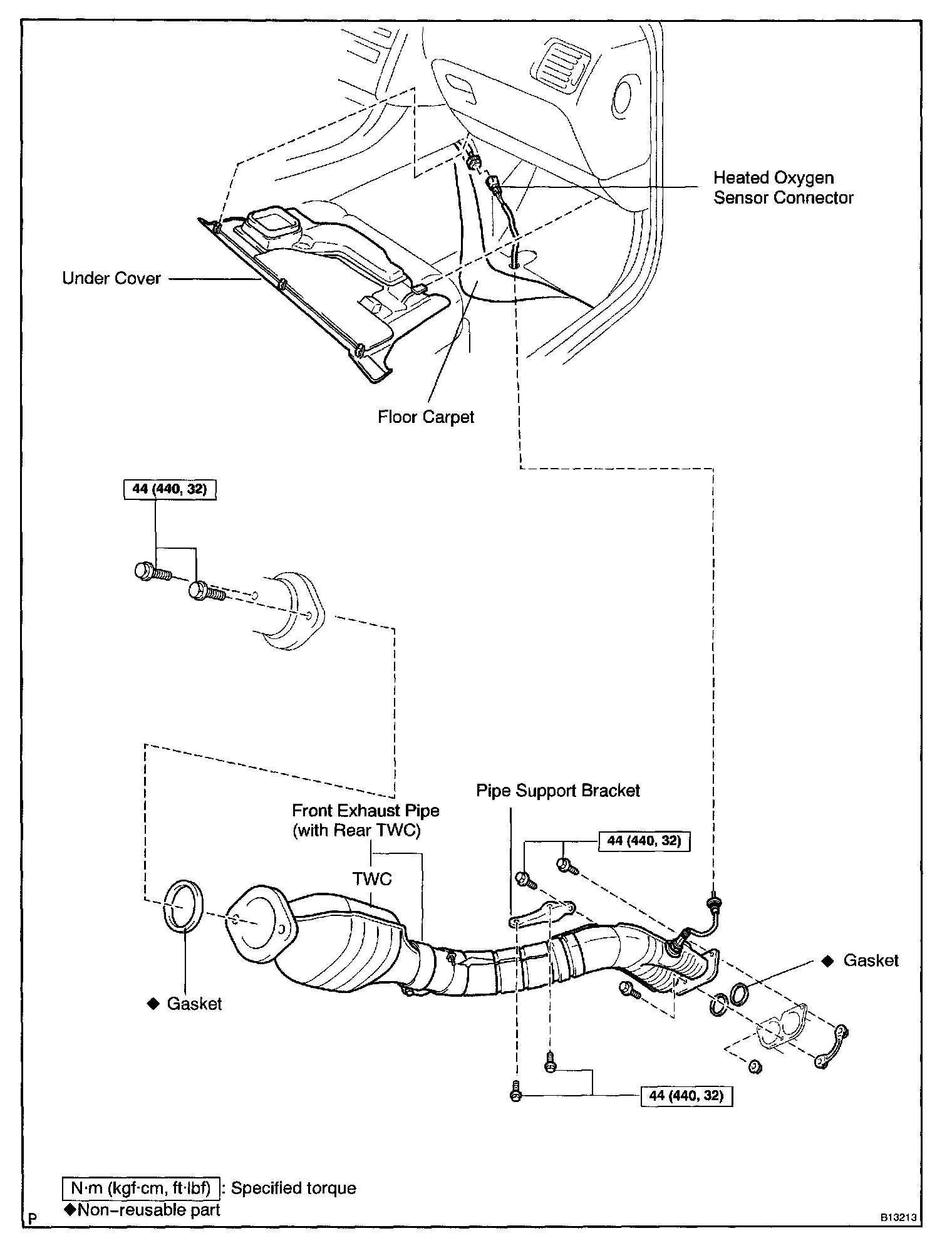

Three-way Catalytic Converter (TWC) System (Part 2):
