Home >> Lexus >> 2001 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Shifter A/T

Shifter A/T

FLOOR SHIFT ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

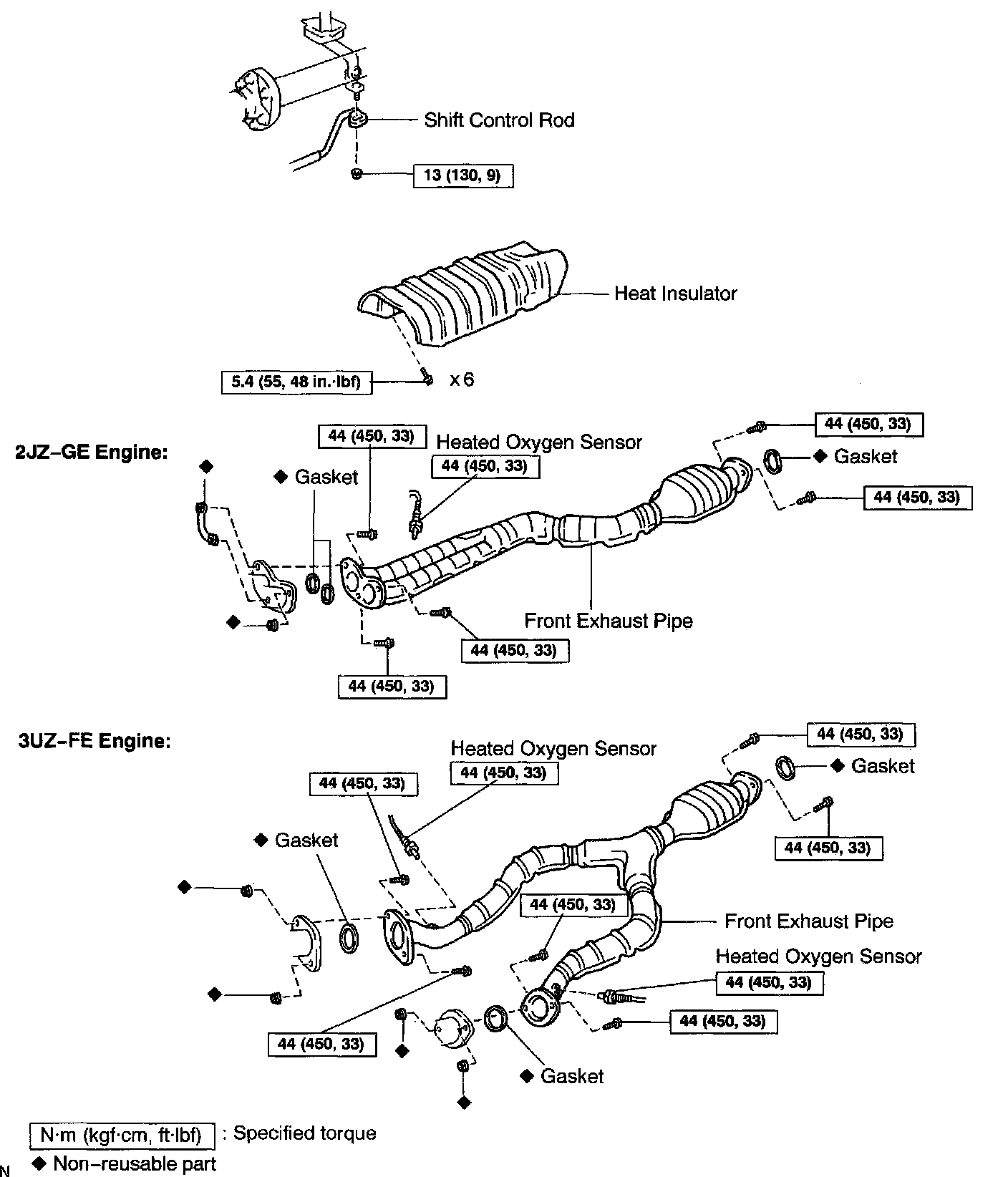

Part 1 of 3

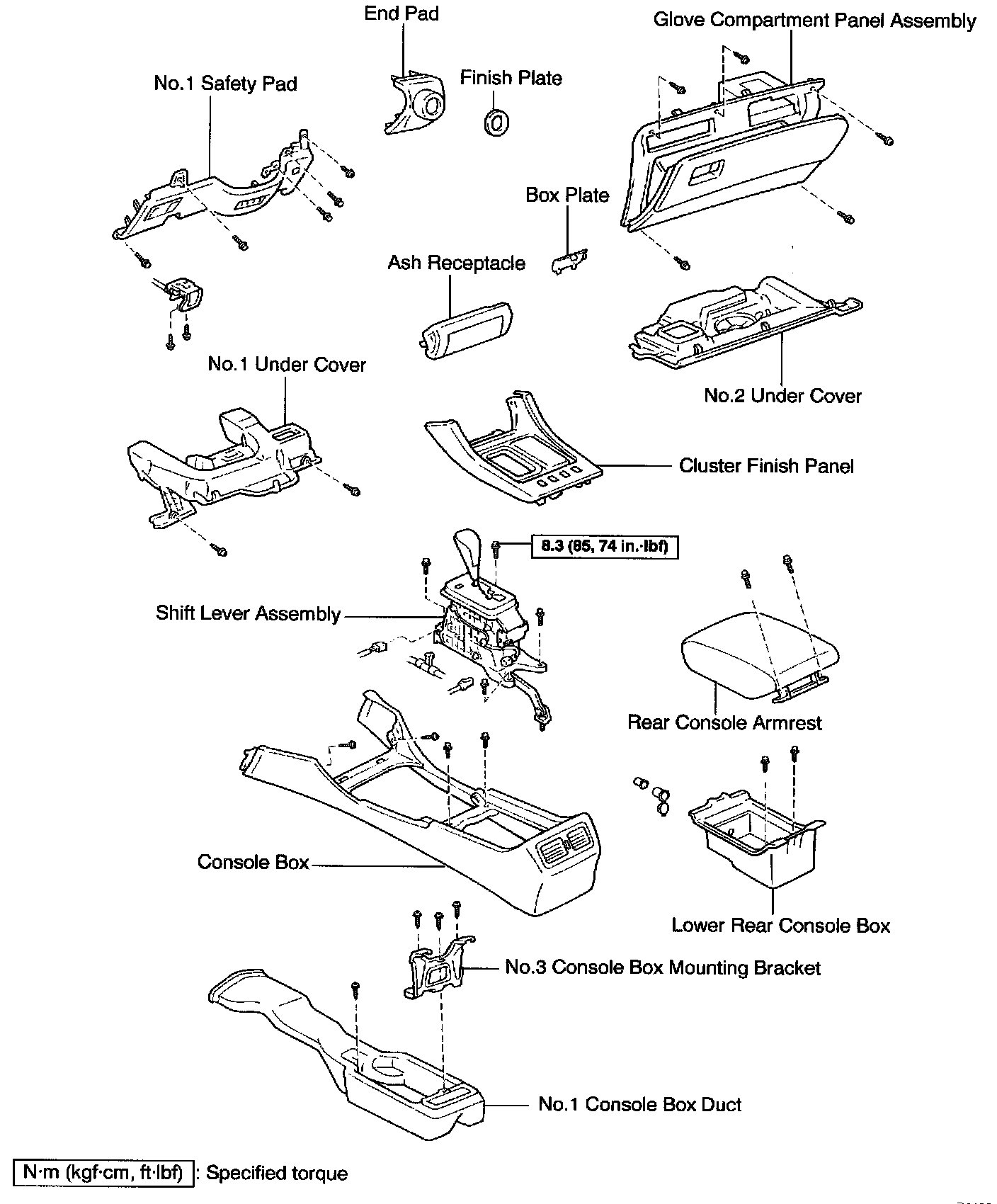

Part 2 of 3





Part 3 of 3
