Power Source

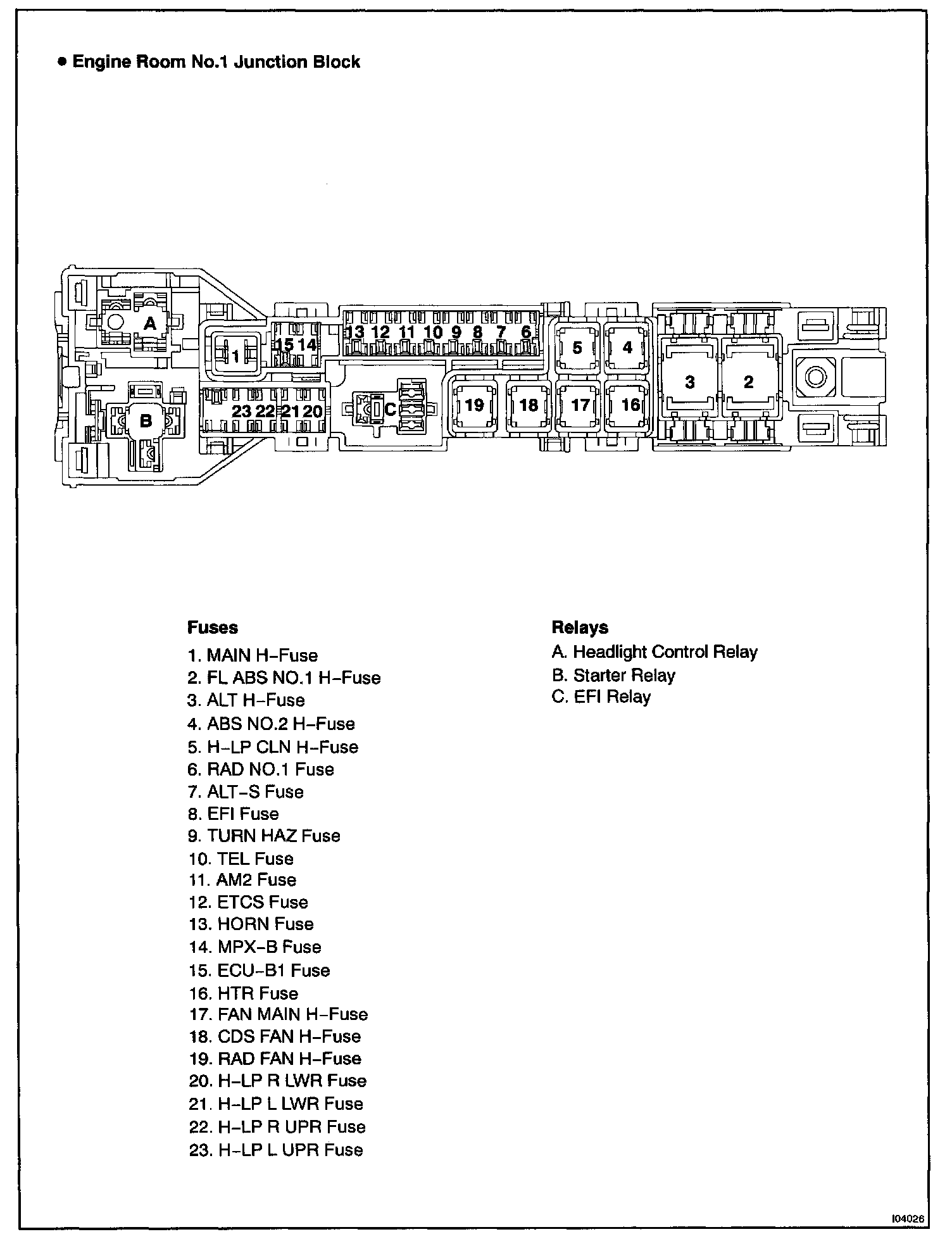

Power Source (Part 1):

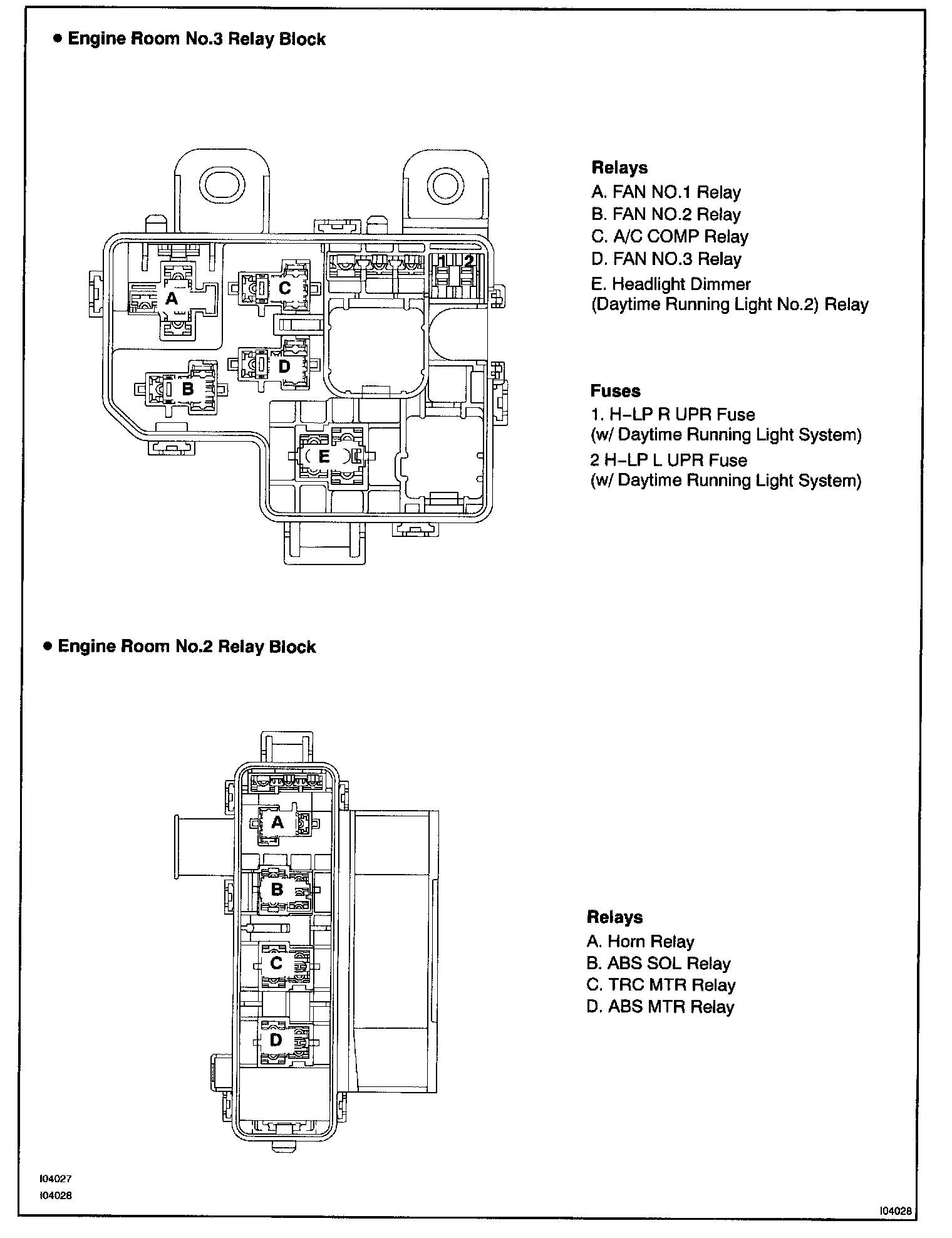

Power Source (Part 2):



Power Source (Part 3):



Power Source (Part 4):
