ABS W/BA, TRAC, & VSC System
>>
Standard Values of ECU Terminals
Standard Values of ECU Terminals

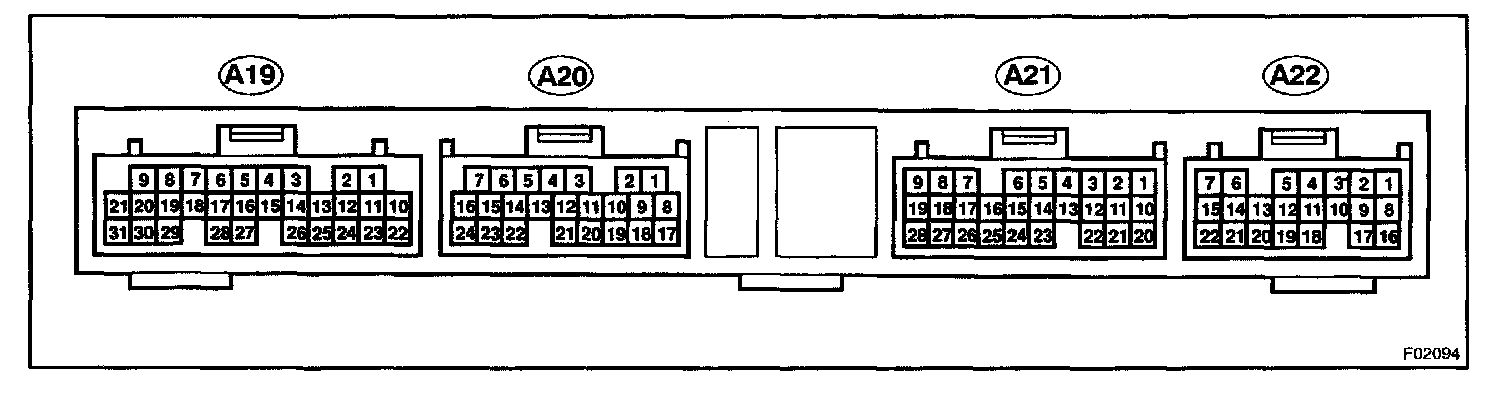

Terminals Of ECU - Connector View:

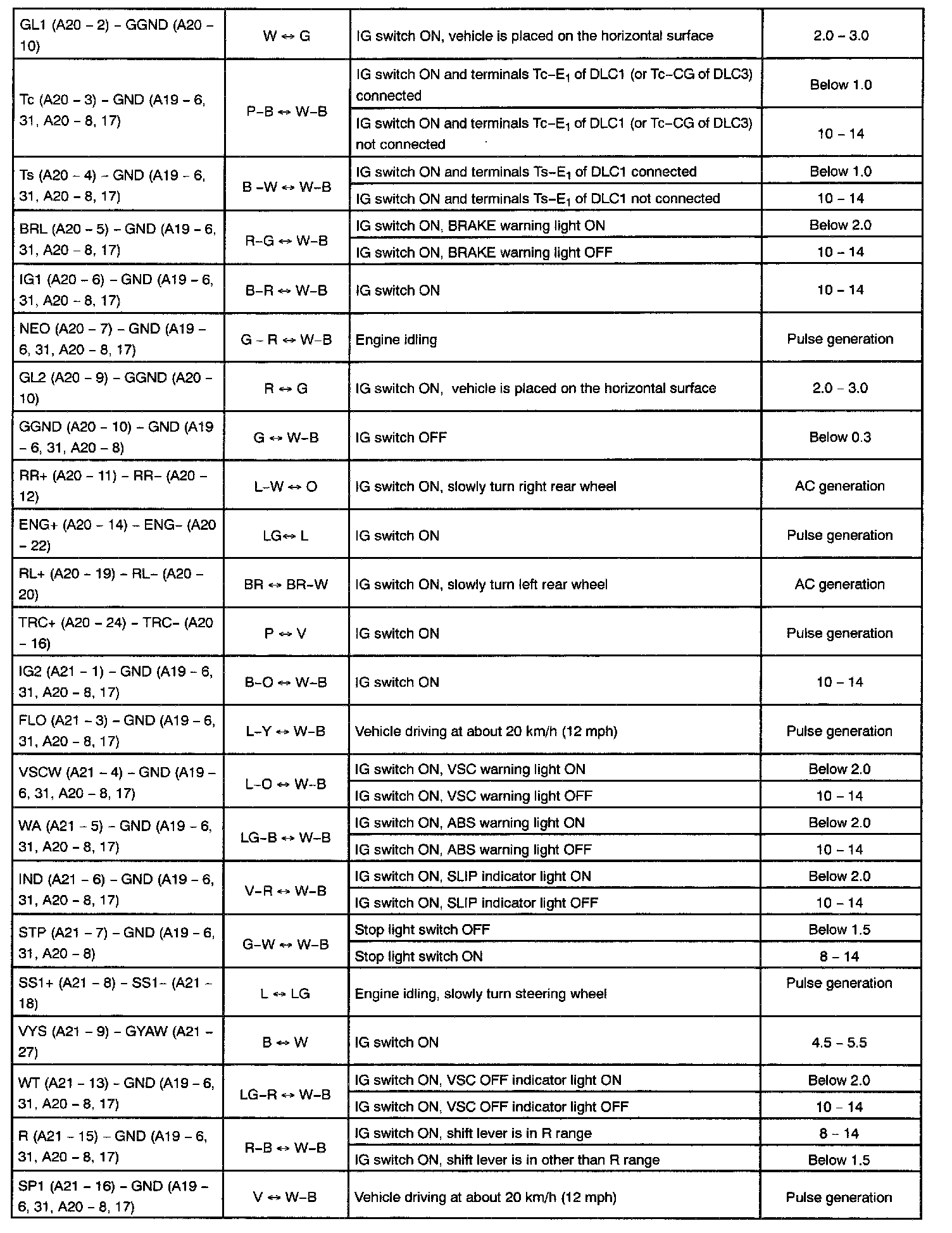

Terminals Of ECU - Connector Pinouts (Part 1):
Terminals Of ECU - Connector Pinouts (Part 2):

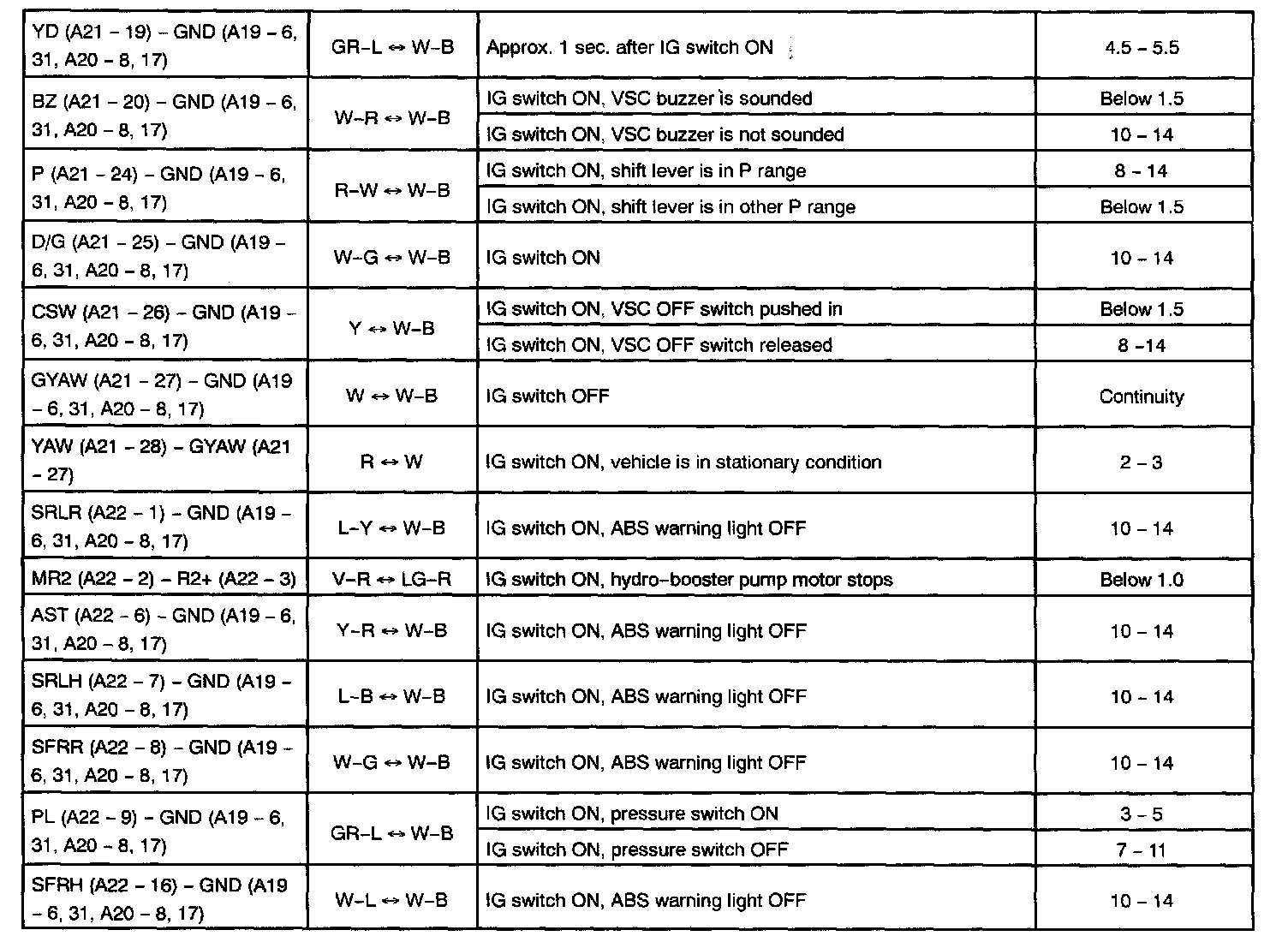

Terminals Of ECU - Connector Pinouts (Part 3):
