Tc Terminal Circuit
TC Terminal CircuitCIRCUIT DESCRIPTION
Connecting terminals Tc and E1 of DLC1 (or Tc and CG of DLC3) causes the ECU to display the DTC by flashing the ABS warning light.

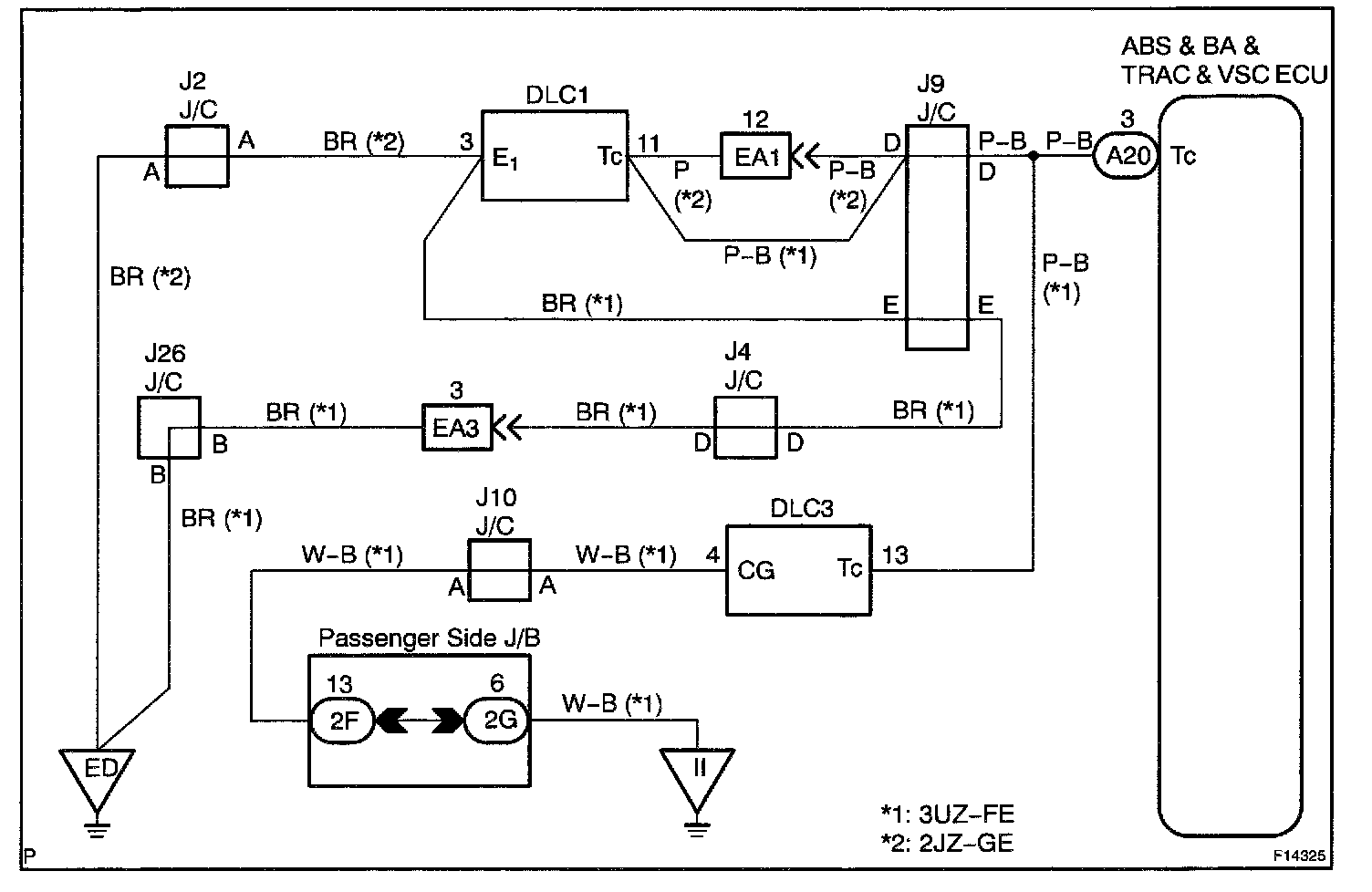

Wiring Diagram:

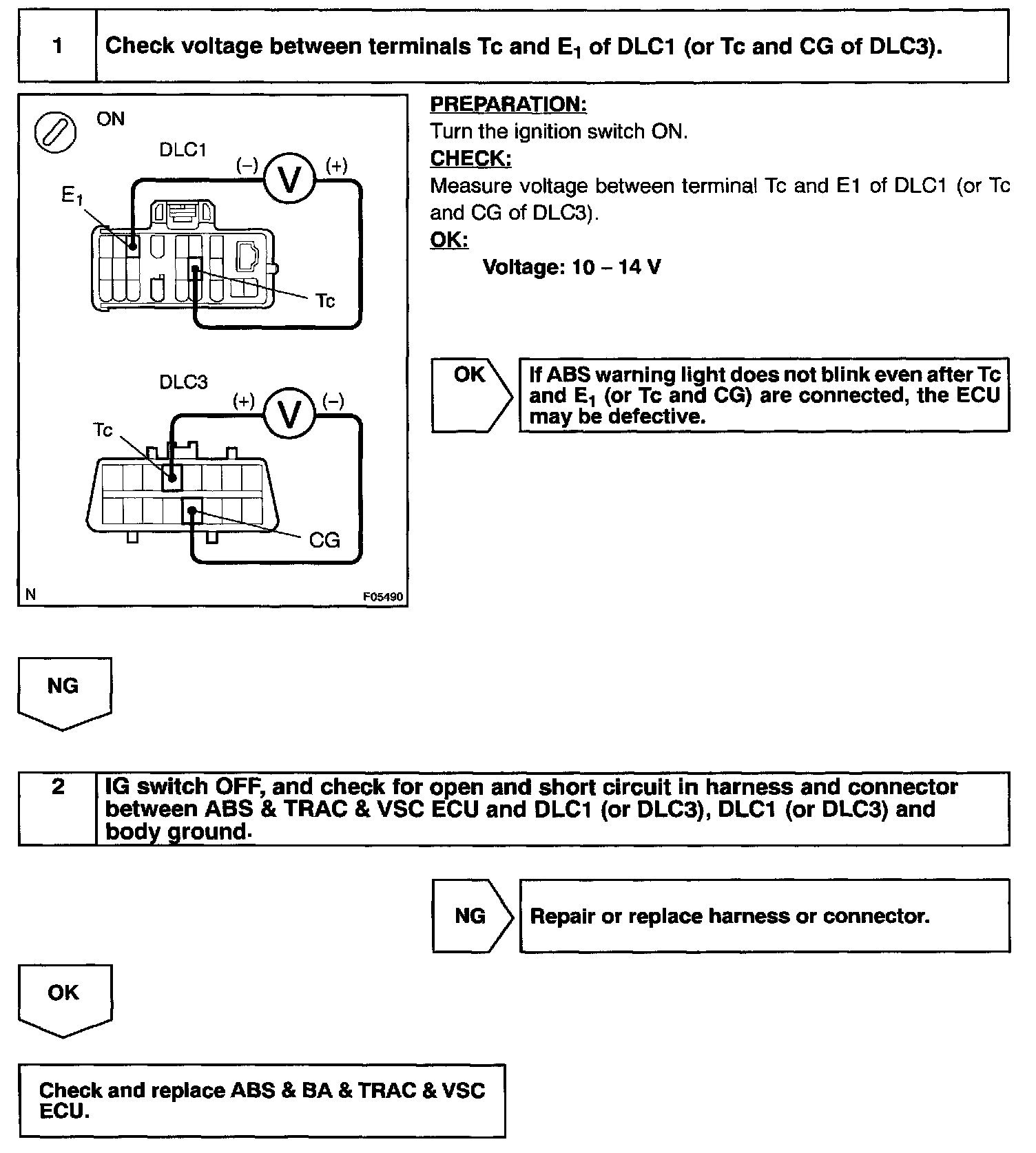

Steps 1 - 2:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
Connecting terminals Tc and E1 of DLC1 (or Tc and CG of DLC3) causes the ECU to display the DTC by flashing the ABS warning light.
INSPECTION PROCEDURE
