Tilt and Telescopic Manual Switch Circuit

Tilt and Telescopic Manual Switch Circuit

CIRCUIT DESCRIPTION
The different voltage signals which are occurred by operating the manual switch are sent to the tilt and telescopic ECU.

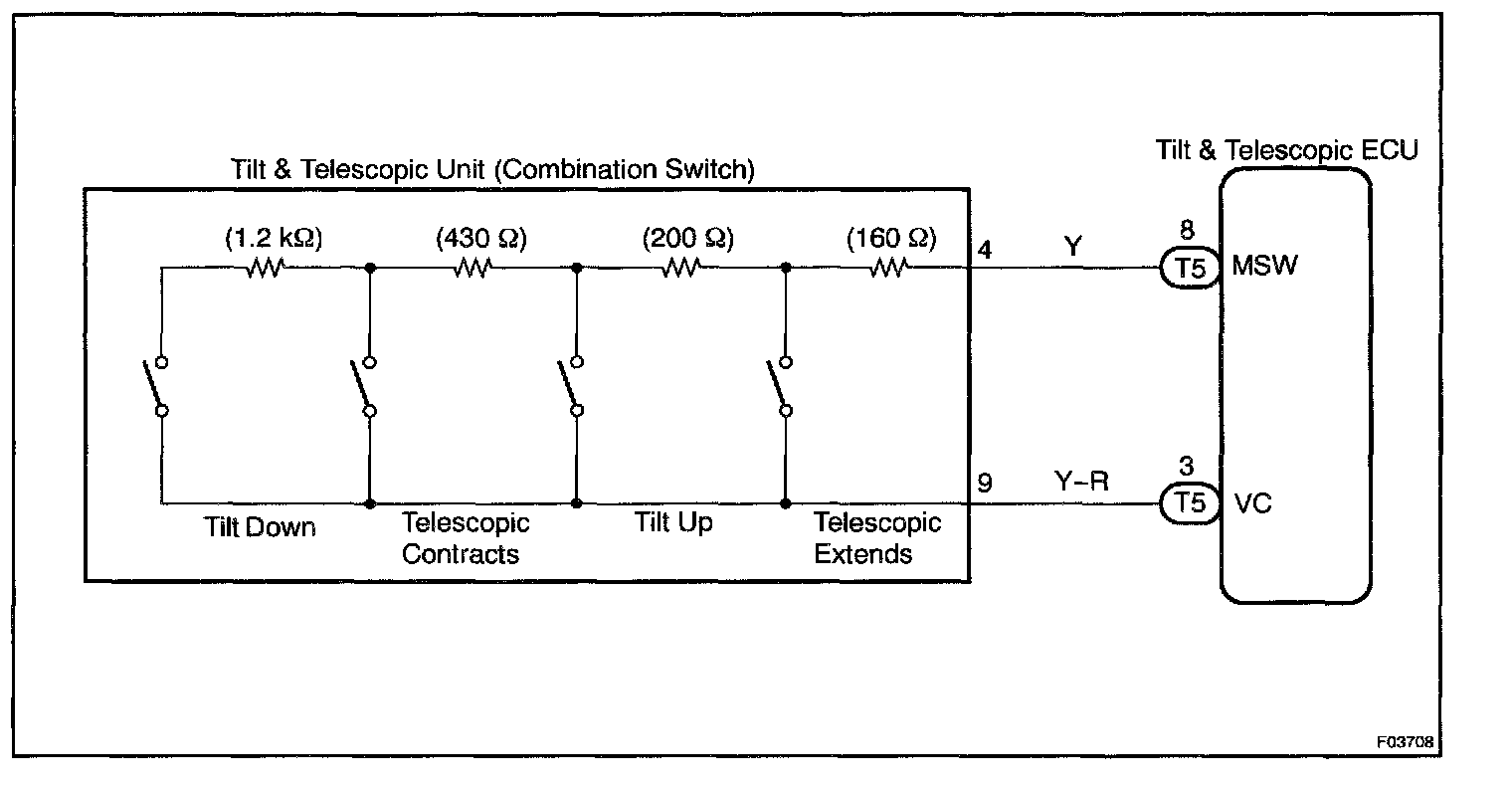

Wiring Diagram:

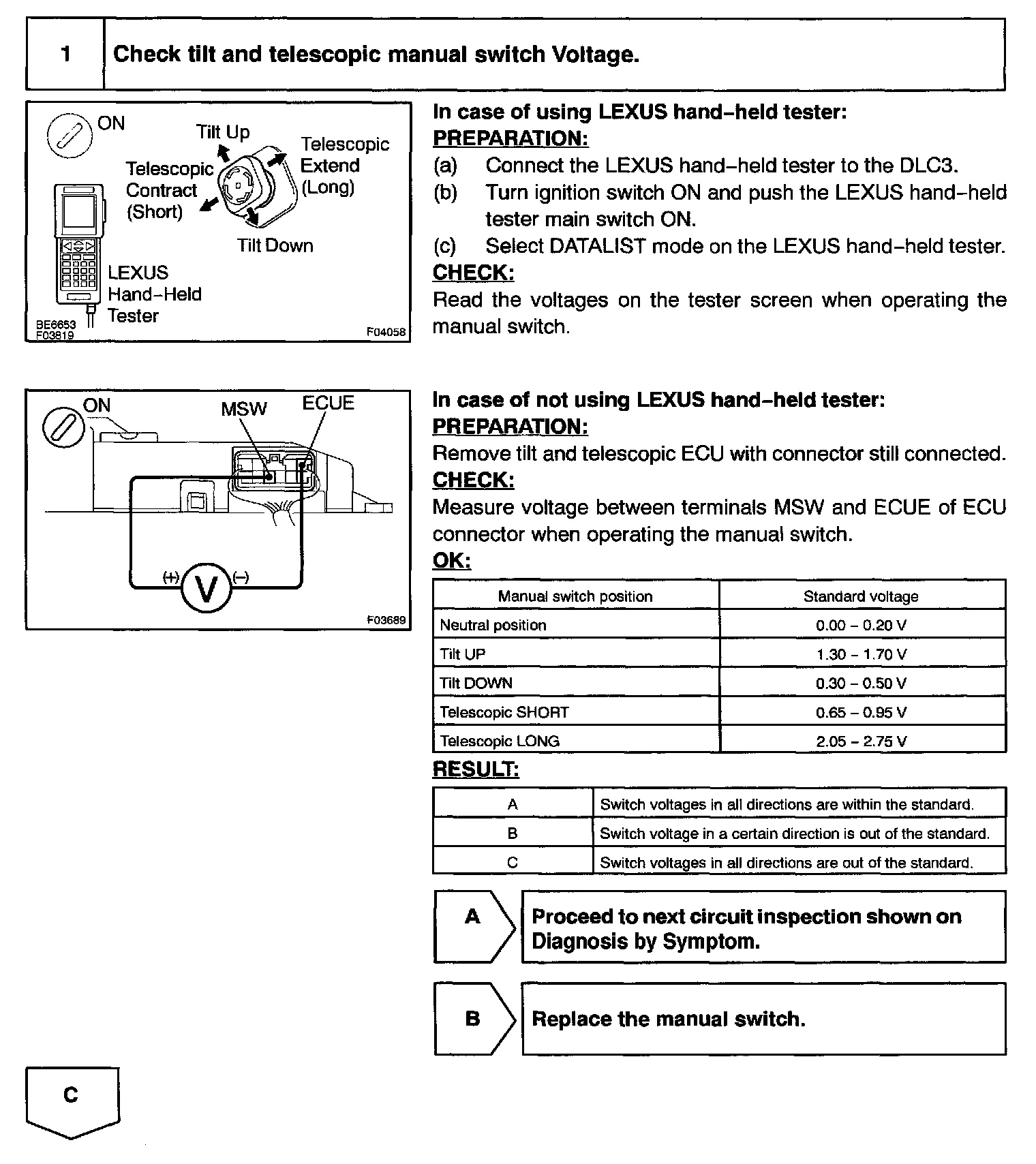

Step 1:

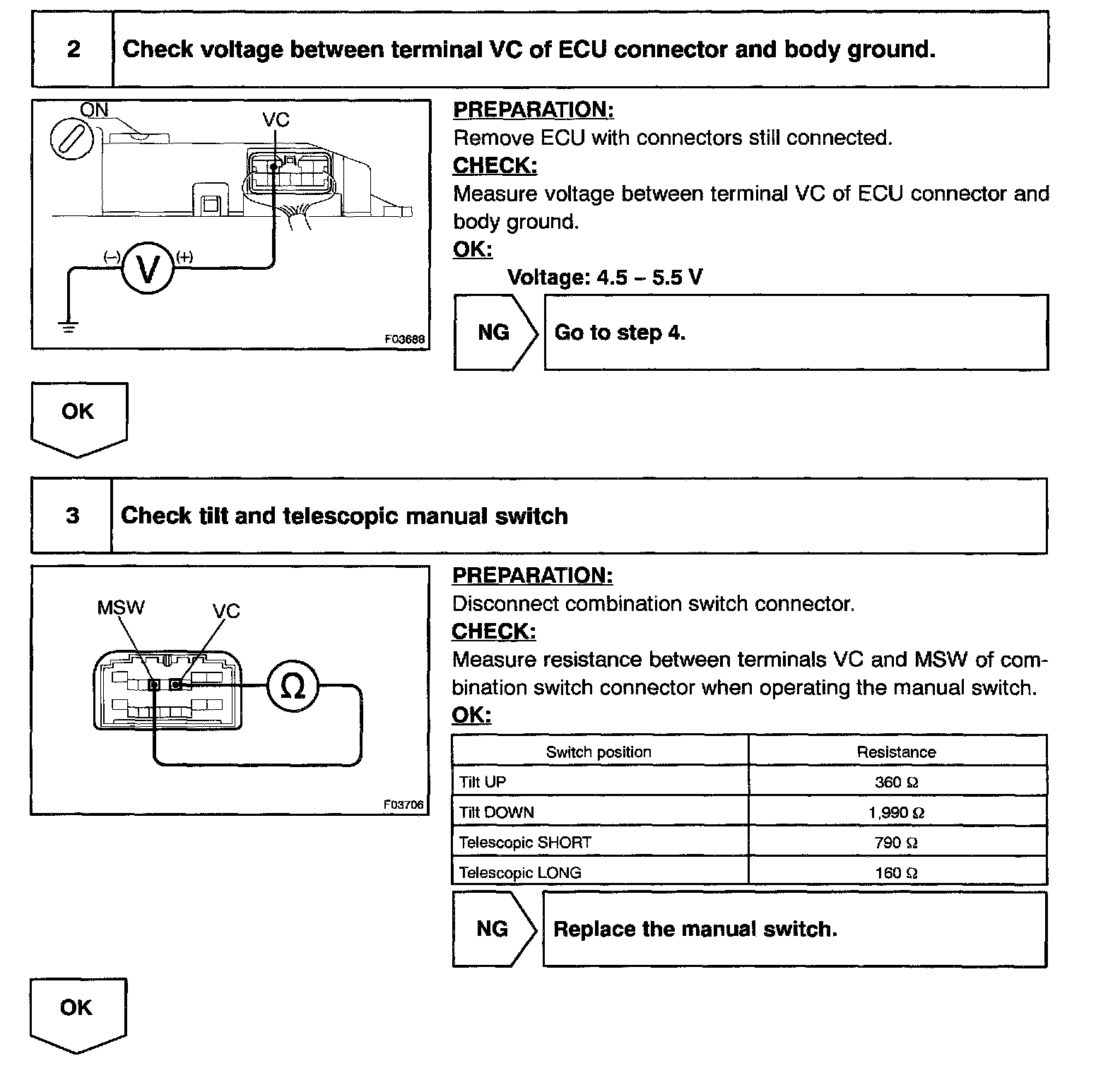

Steps 2 - 3:

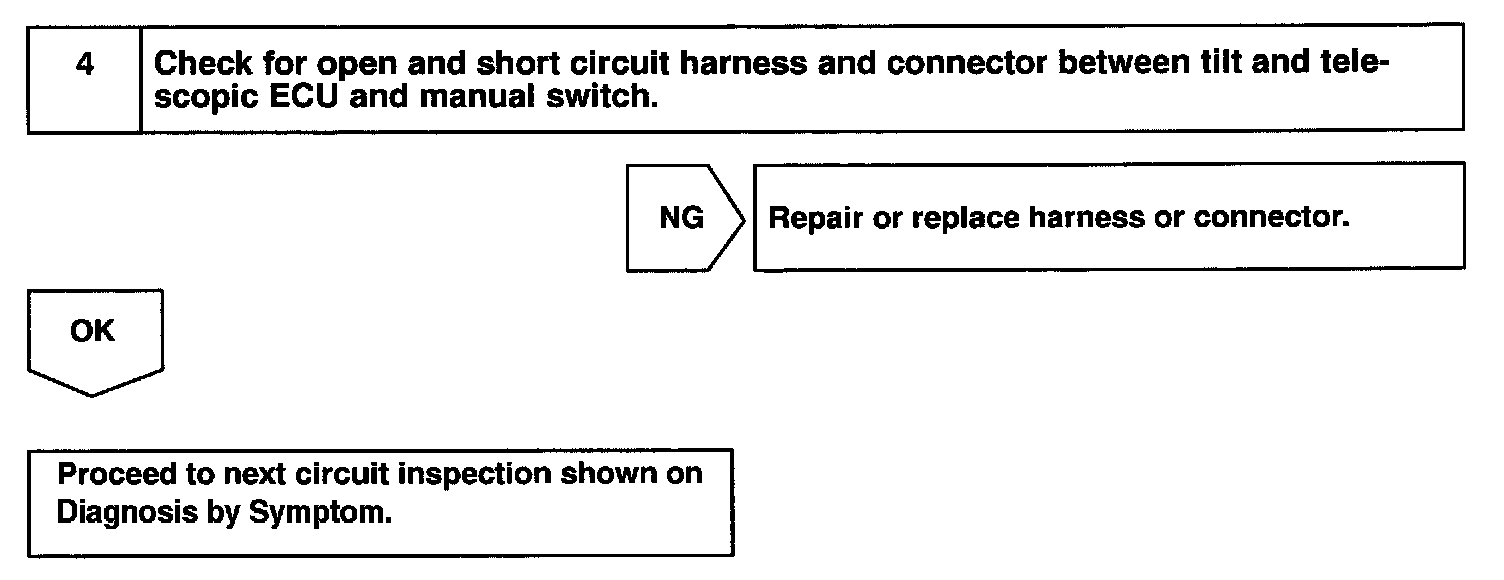

Step 4:




INSPECTION PROCEDURE
