Actuator Power Source Circuit

Actuator Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for the motors.

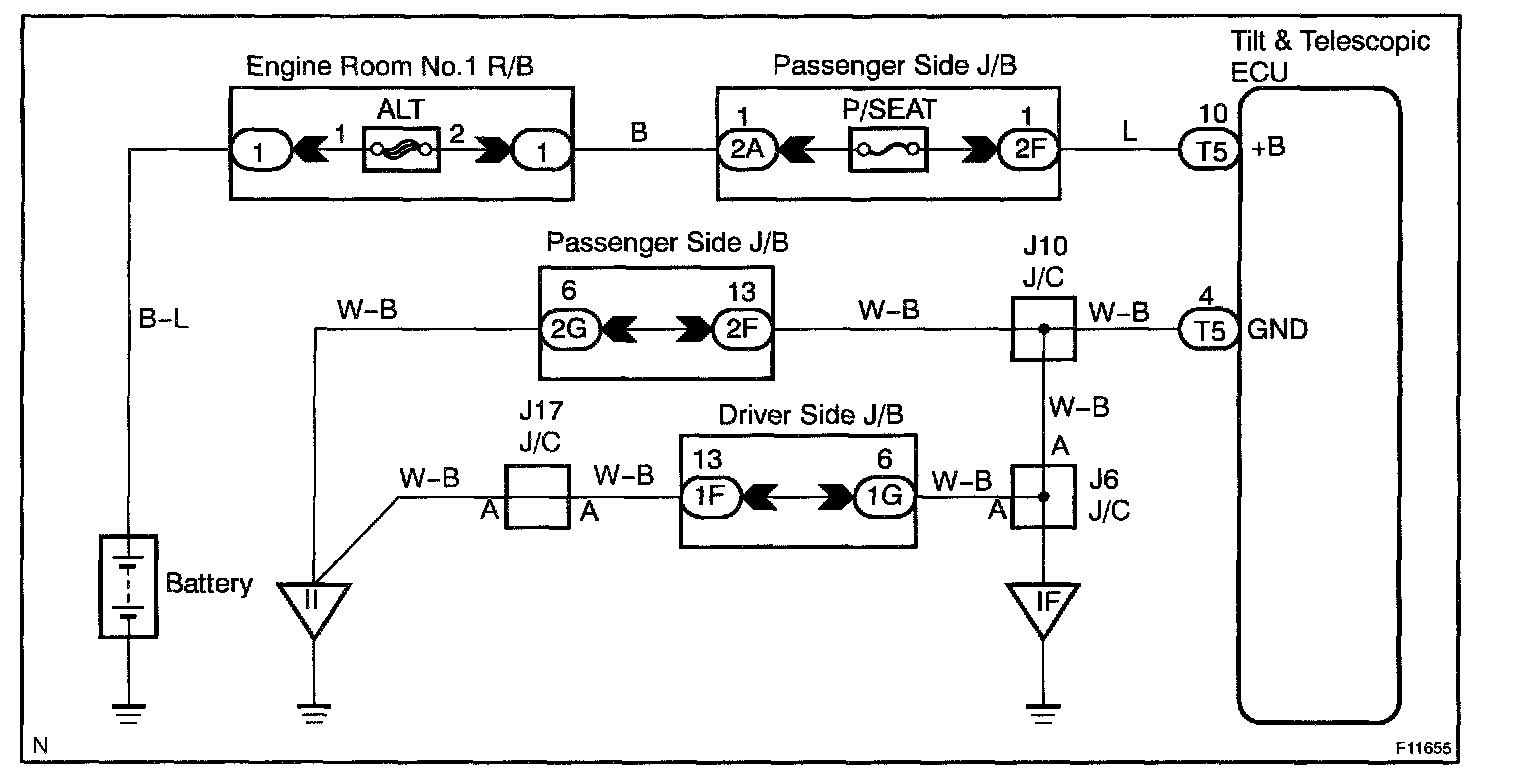

Wiring Diagram:

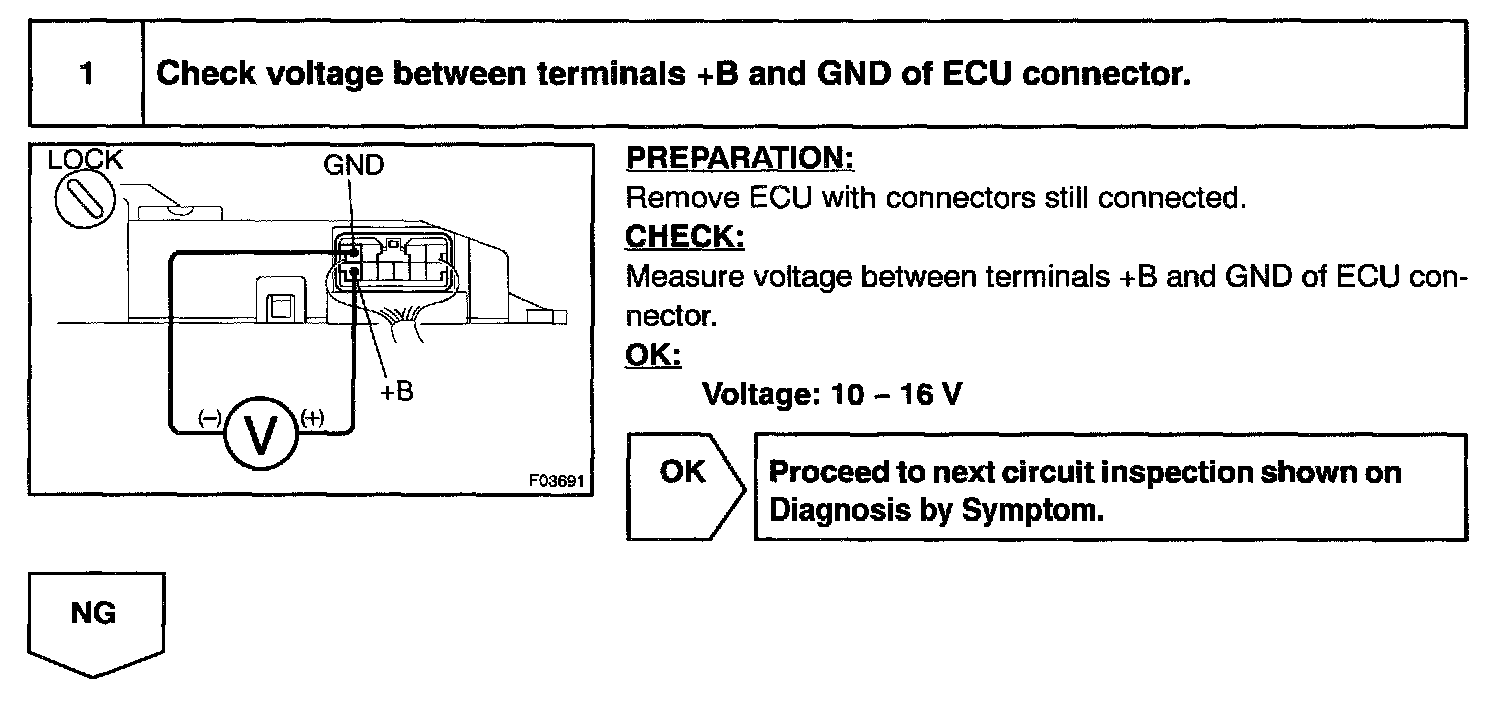

Step 1:

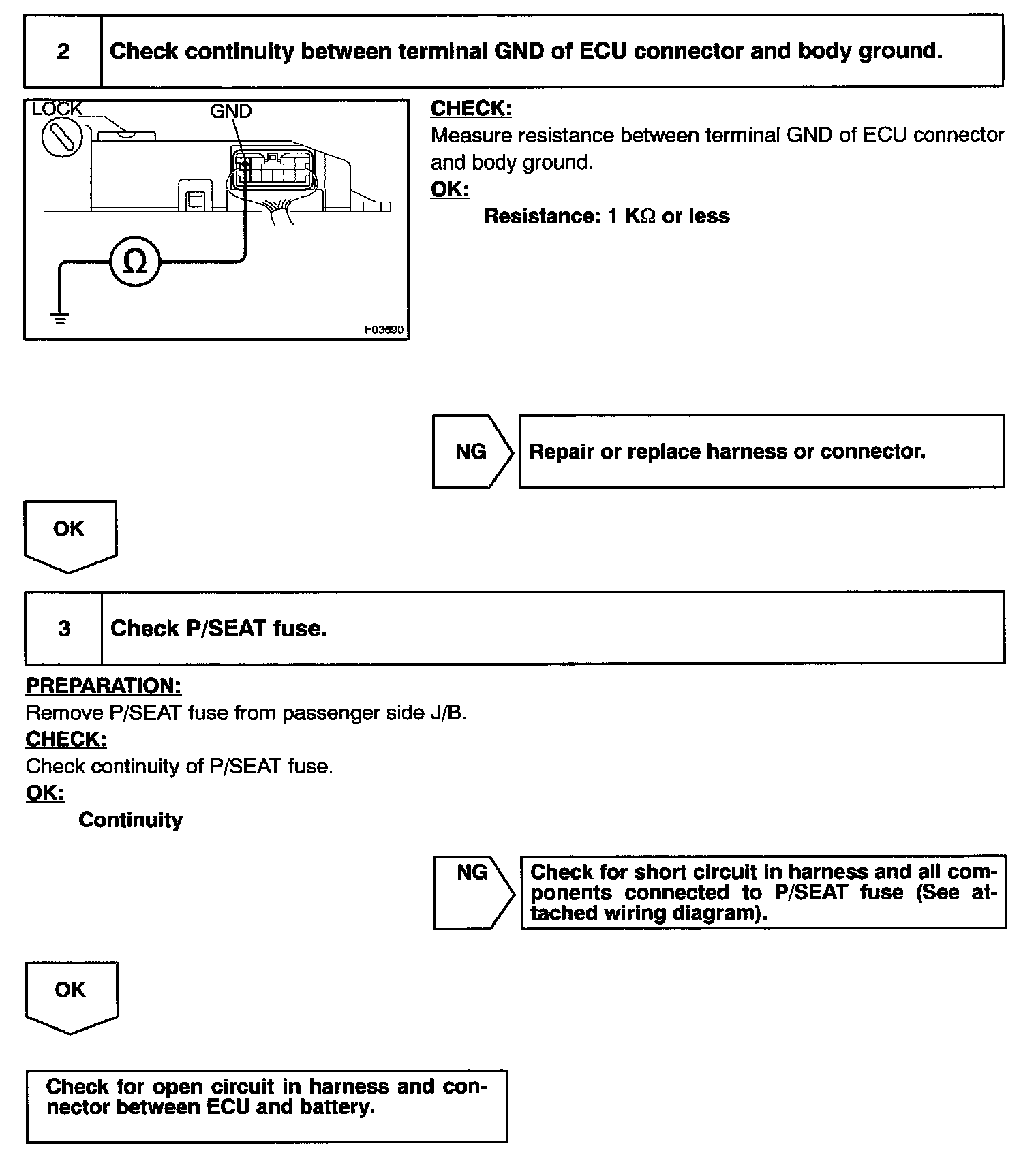

Steps 2 - 3:




INSPECTION PROCEDURE
