GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Memory Positioning Systems
>>
Testing and Inspection
>>
Power Seat Control System
>>
Component Tests and General Diagnostics
>>
Position Sensor Circuit
Position Sensor Circuit

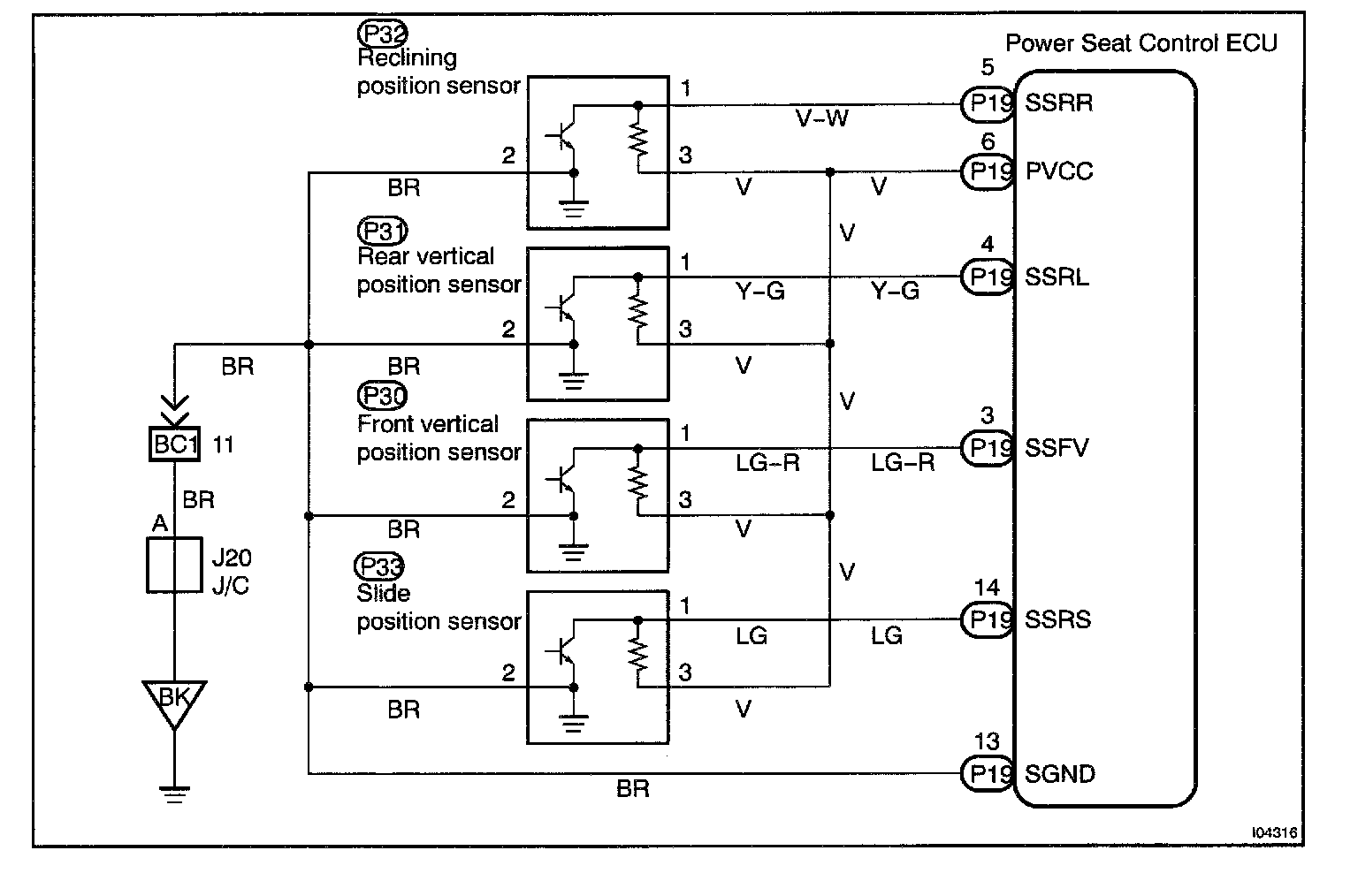

Wiring Diagram:

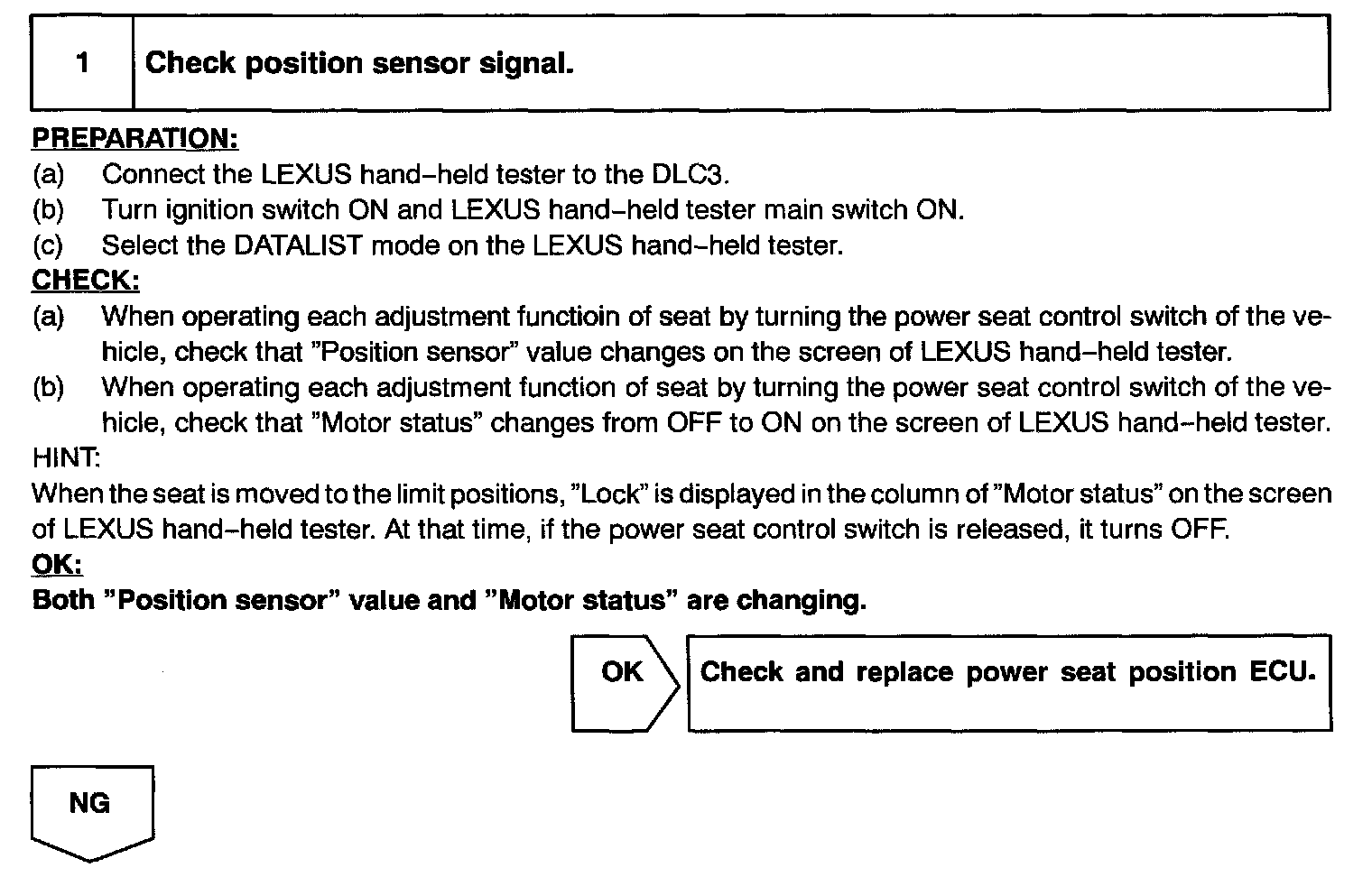

Step 1:

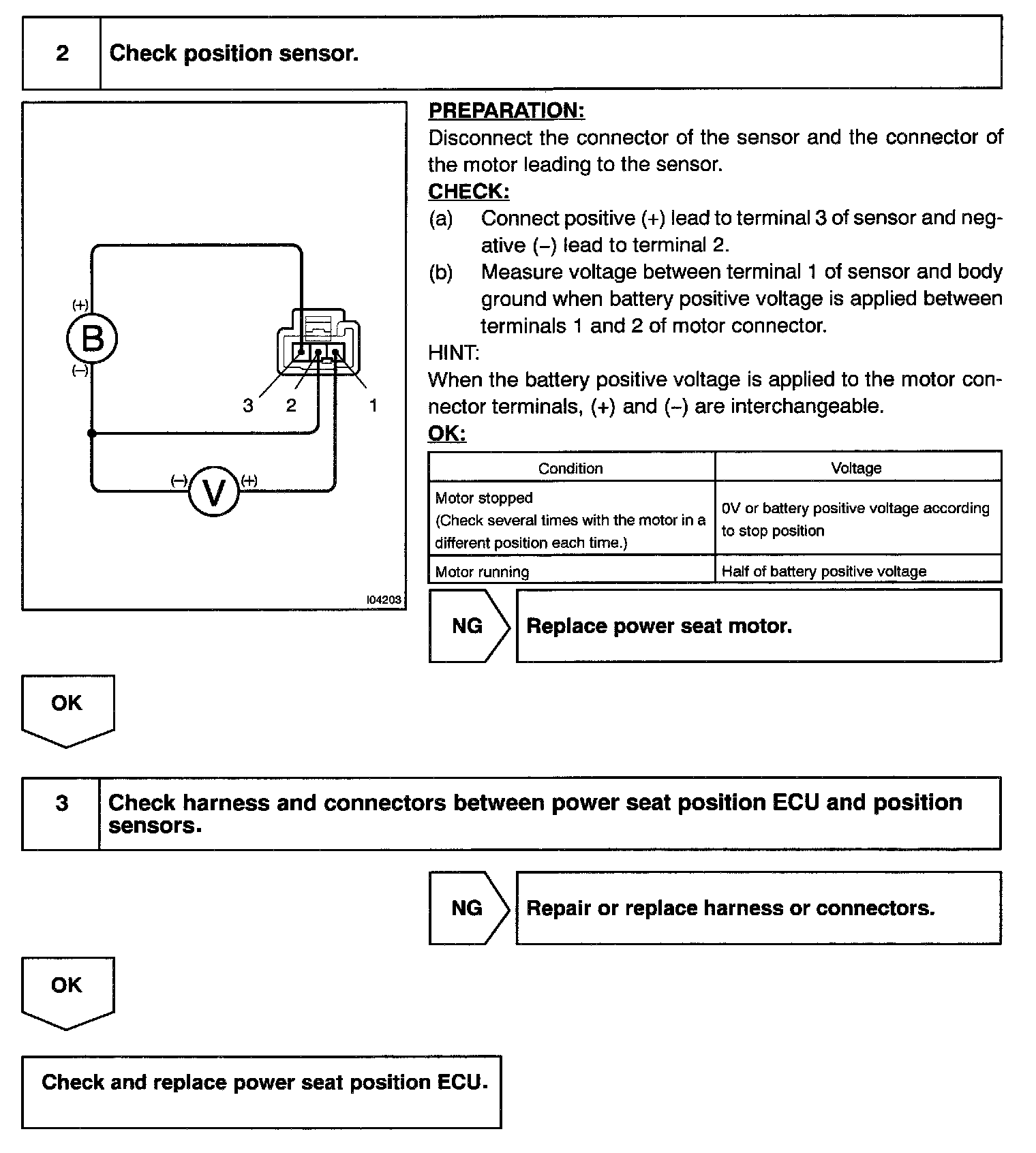

Steps 2 - 3:
INSPECTION PROCEDURE
HINT:
If there is not the LEXUS hand-held tester, begin with STEP 2.
