Paint - Color Codes
PAINTPA004-00
November 3, 2001
Title:
2001 PAINT COLOR INFORMATION
Models:
All '01 Models
Introduction
The information outlines the single two-tone paint schemes used on 2001 model year Lexus vehicles.
Applicable Vehicles
^ All 2001 model year Lexus vehicles.
Painting Method
Single Color:

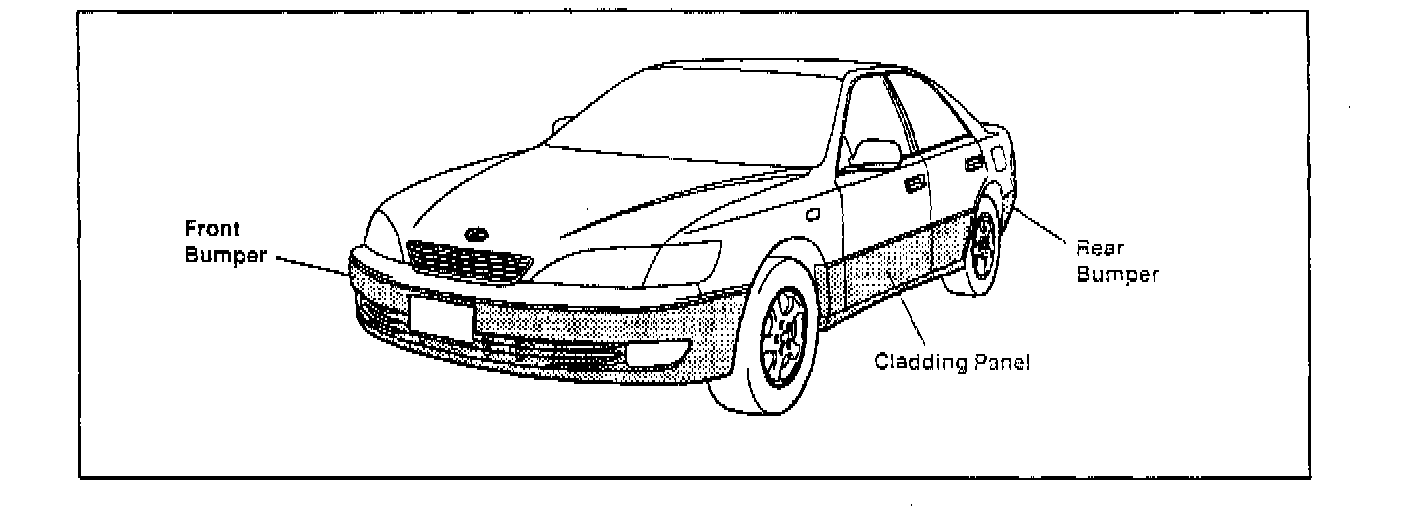

The cladding and bumpers are painted the same as the body color.
Two-Tone Color:
The cladding and bumpers are painted alike and are a different color than the body color.
Repair Procedure
Since heat deformation of the cladding occurs more easily than with bumpers, repair and refinishing of cladding panels is not recommended. If original parts are to be refinished,
1. To prevent cladding warpage, hold the cladding panels firmly in place and keep the drying temperature below 50°C (122°F).
2. Since the cladding and bumpers are made of flexible plastic urethane material use a two-part urethane finish paint system with plasticizer for all bumper/cladding repairs.

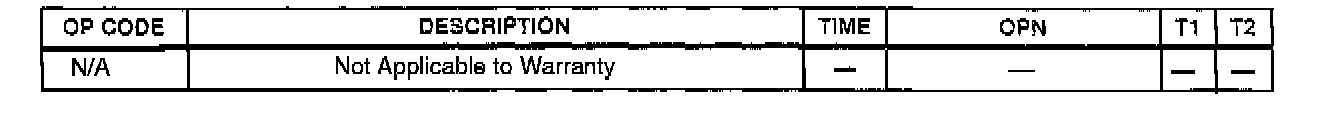

Warranty Information

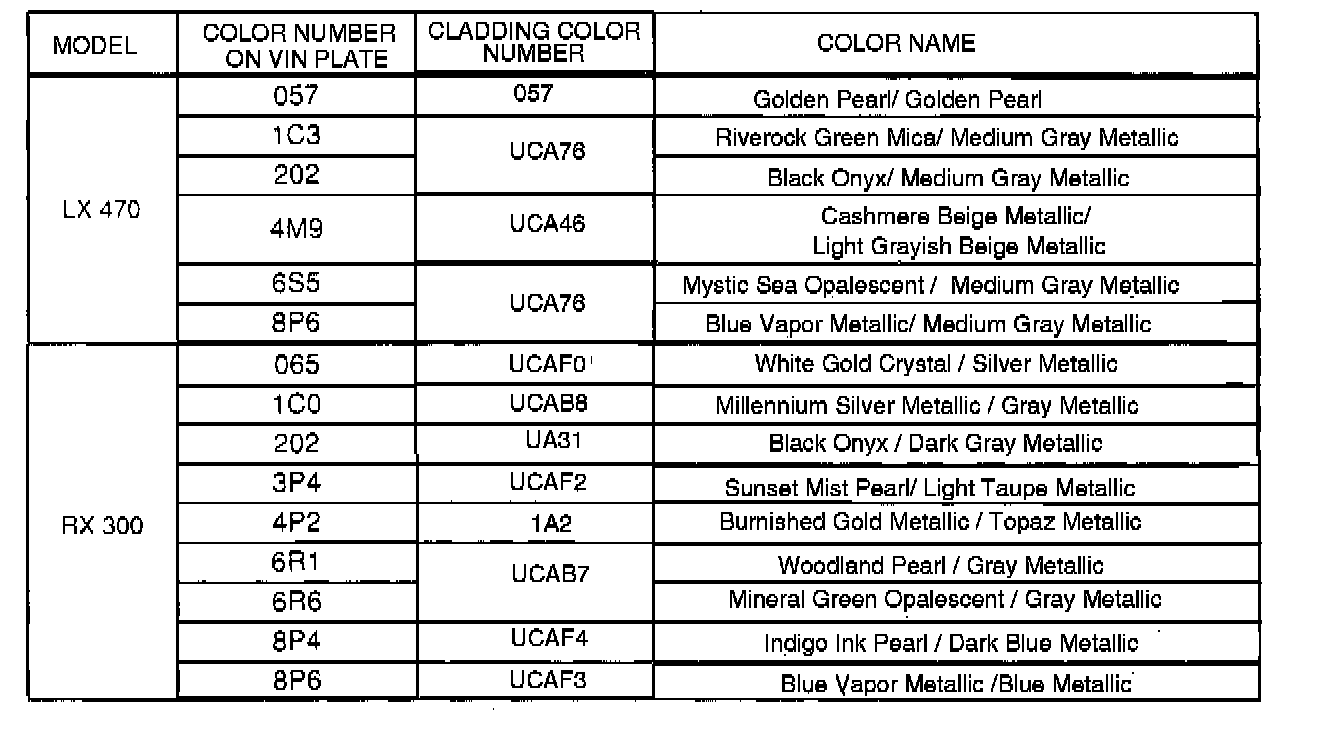

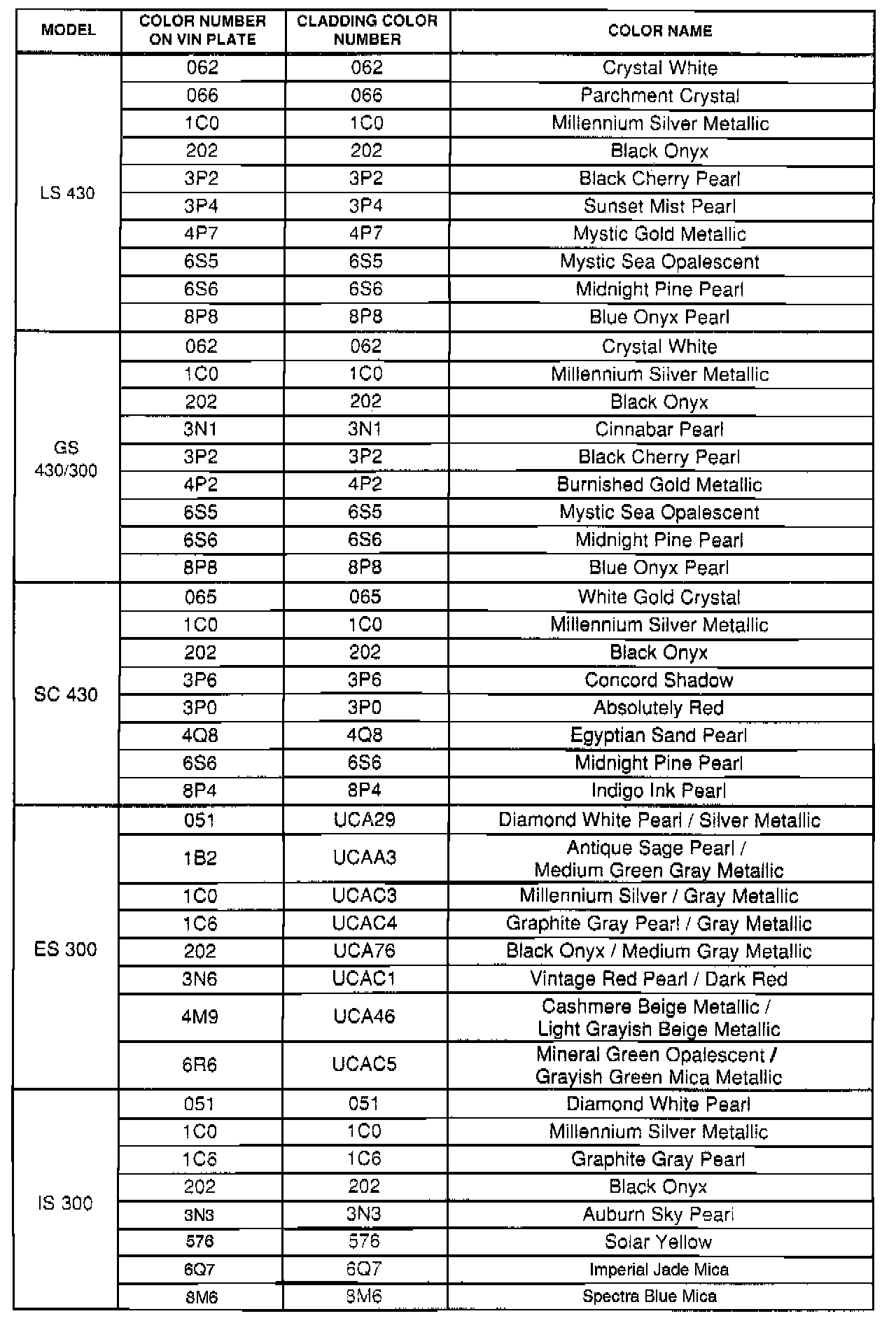

Paint Colors
