Power Mirror Control System

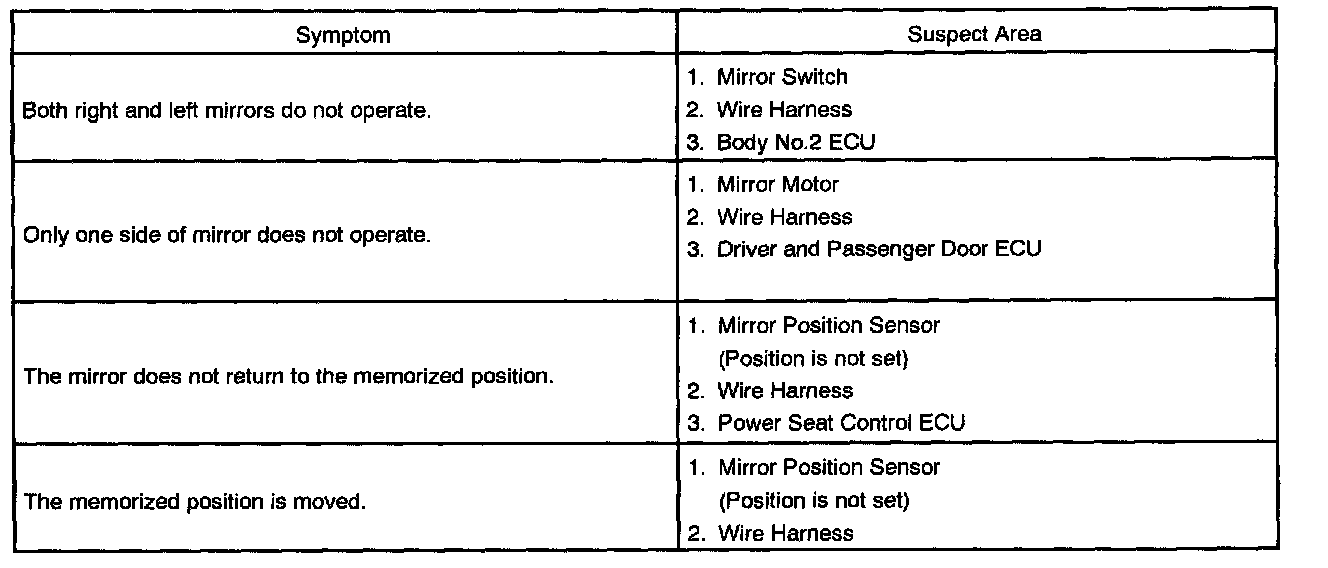

Problem Symptoms Table - W/ Driving Position Memory System - Power Mirror Control System:

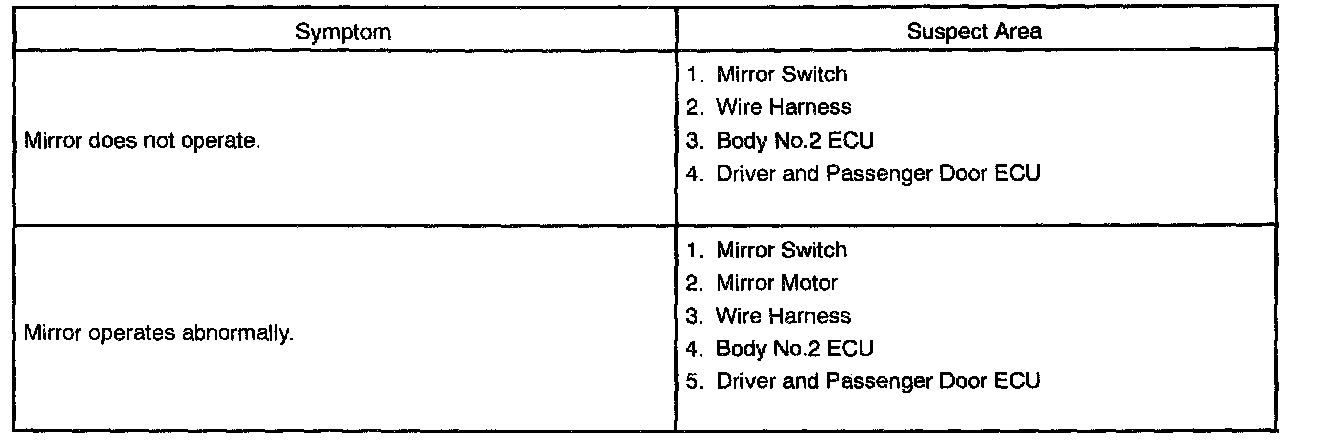

Problem Symptoms Table - W/O Driving Position Memory System - Power Mirror Control System:

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
