Telescopic Motor Circuit

Telescopic Motor Circuit

CIRCUIT DESCRIPTION
The ECU provides both +B and ground for the telescopic motor.
Reversing polarity of the applied voltage reverses the motor.

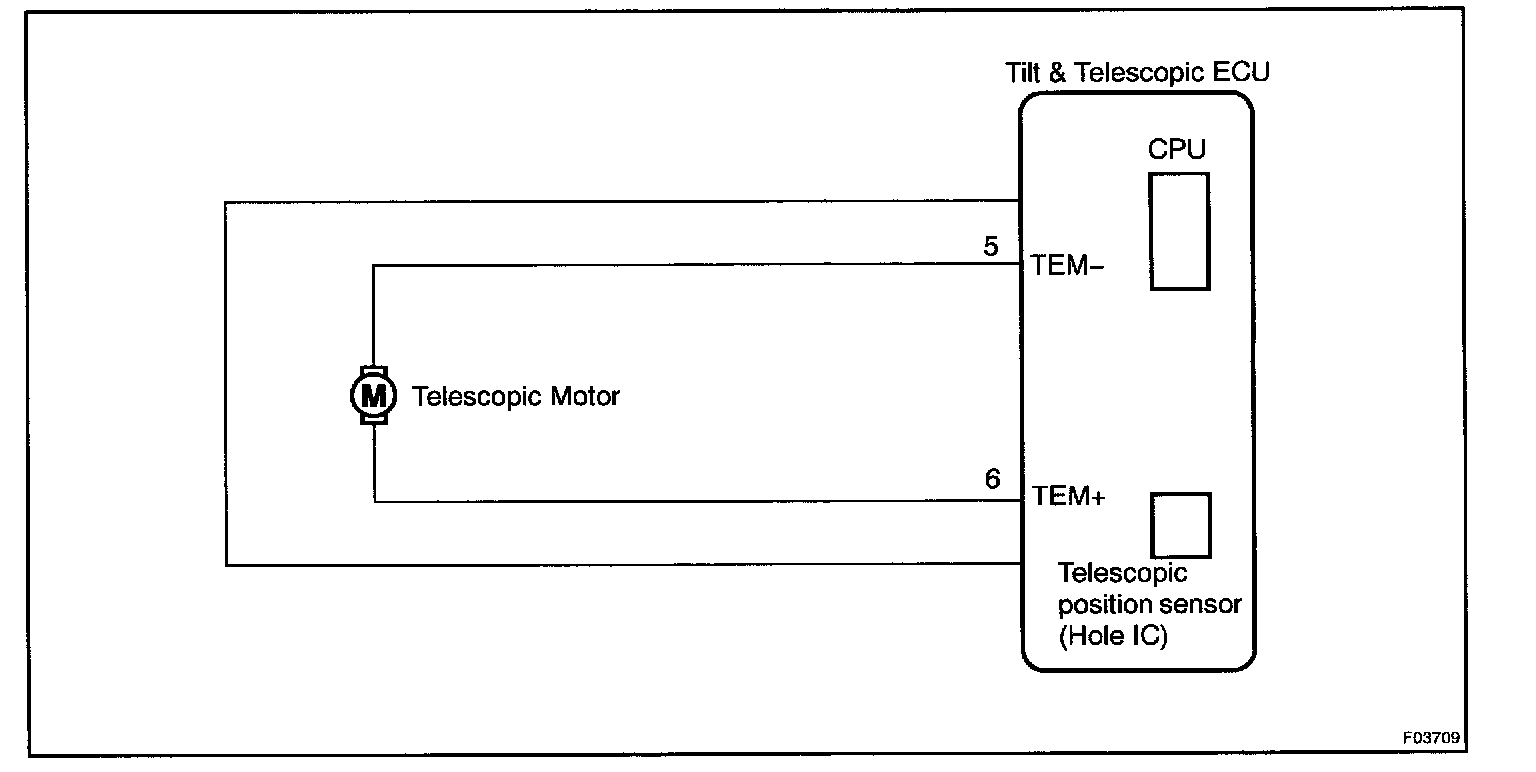

Wiring Diagram:

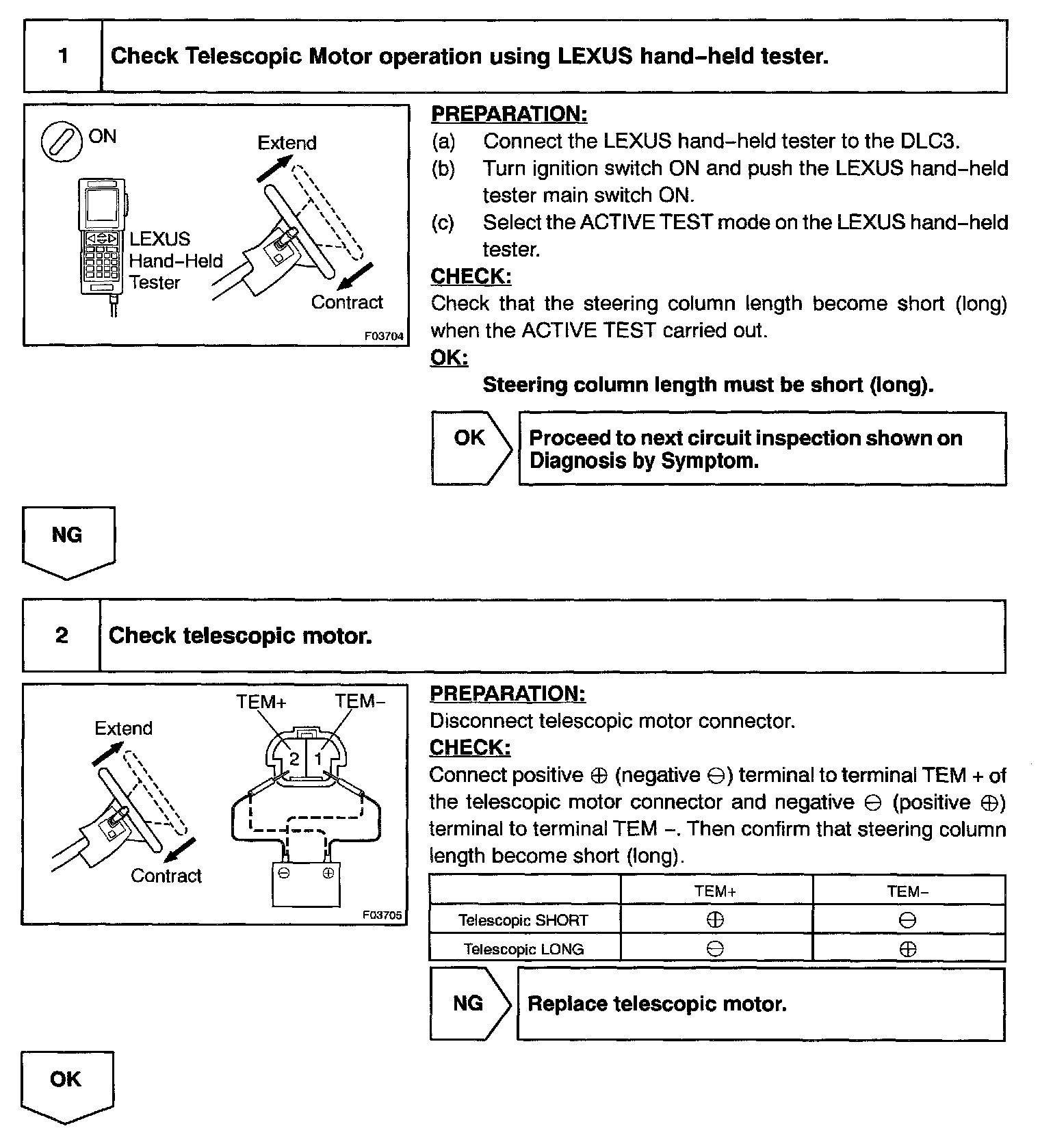

Steps 1 - 2:

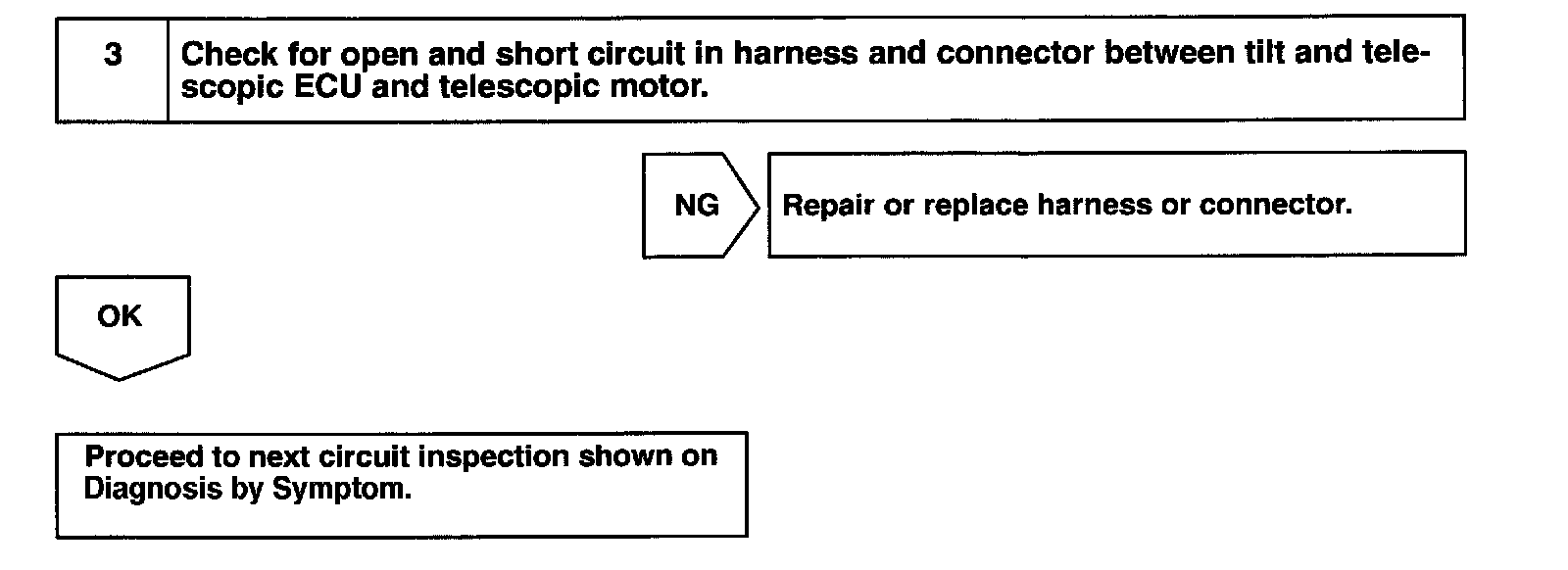

Step 3:




INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
