Roof Drip Side Finish Center Moulding

Roof Drip Side Finish Center Moulding:




REMOVAL

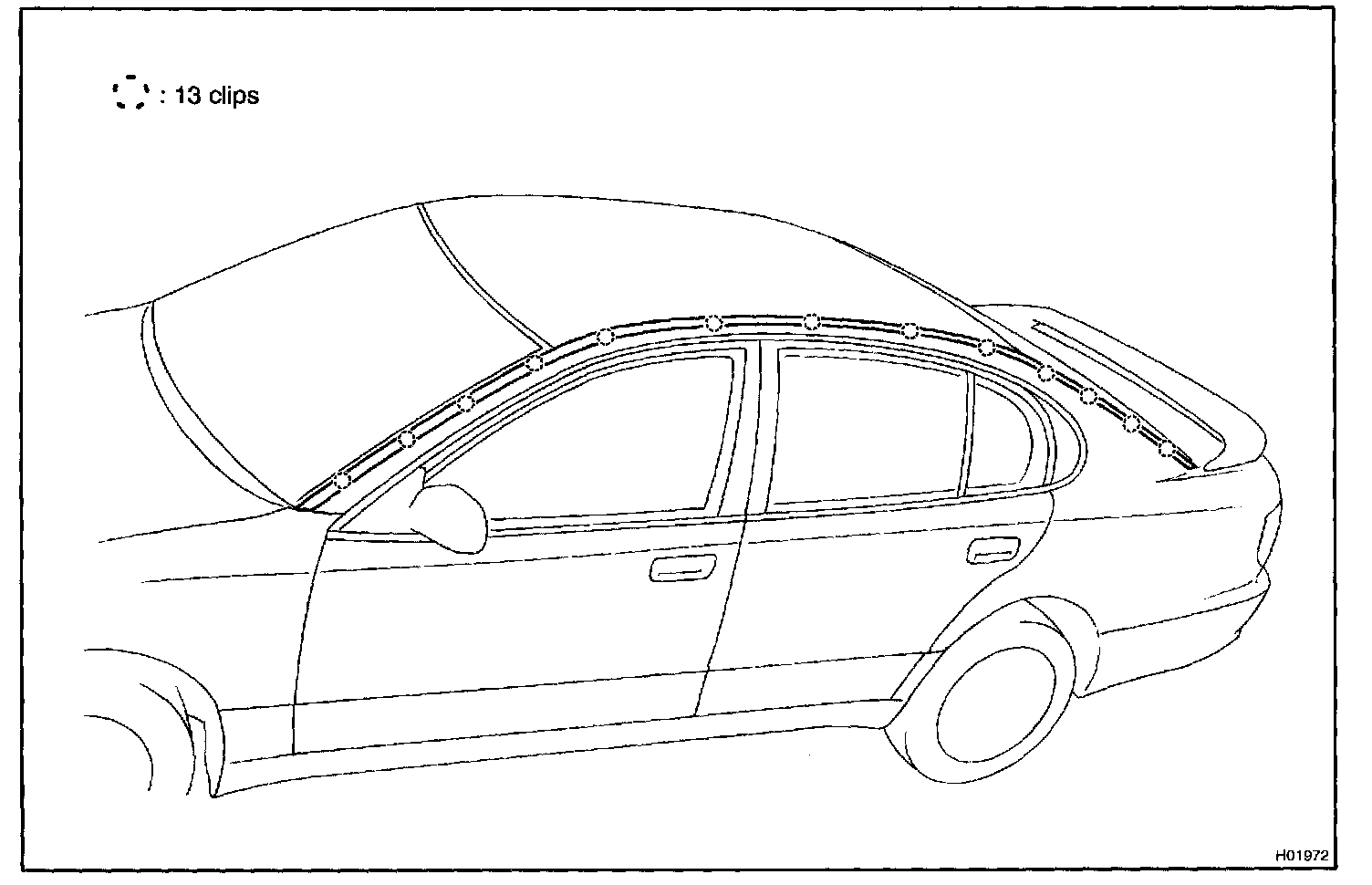

Roof Drip Side Finish Center Moulding (Part 1):




REMOVE ROOF DRIP SIDE FINISH CENTER MOULDING
Pull off the moulding from front ends.

Roof Drip Side Finish Center Moulding Part 2:




INSTALLATION
INSTALL ROOF DRIP SIDE FINISH CENTER MOULDING
