Rocker Panel Moulding

Rocker Panel Moulding:

REMOVAL

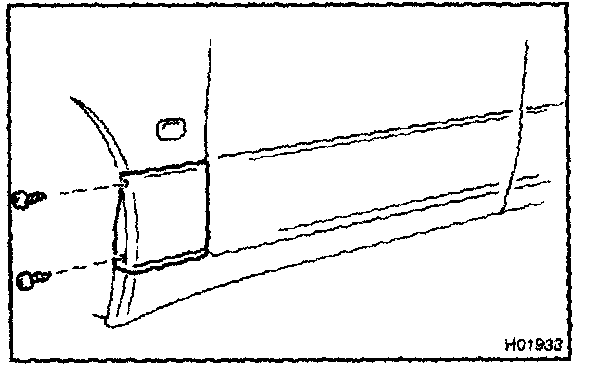

1. REMOVE FRONT FENDER MOULDING
a. Using a hexagon wrench, remove the 2 screws.
b. Using a moulding remover, pry out the moulding.
c. Remove the moulding.

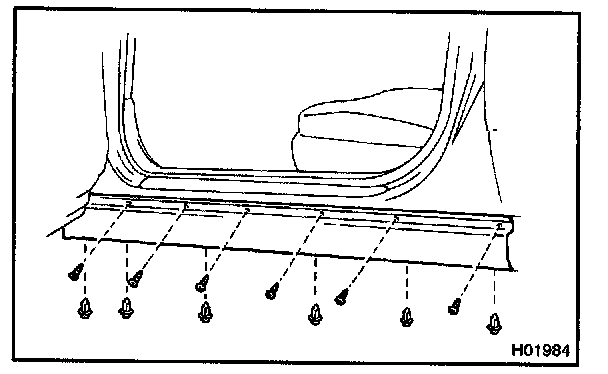

2. REMOVE FRONT ROCKER PANEL MOULDING
a. Remove the 6 screws.
b. Using a clip remover, remove the 6 clips.
c. Using a moulding remover, remove the moulding.

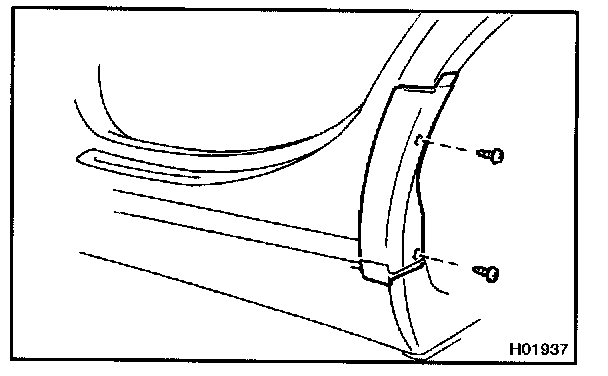

3. REMOVE QUARTER OUTSIDE MOULDING
a. Remove the 2 screws.
b. Using a moulding remover, pry out the moulding.
c. Remove the moulding.




4. REMOVE REAR ROCKER PANEL MOULDING
a. Remove the screw.
b. Using a clip remover, remover the 2 clips.
c. Using a moulding remover, remove the moulding.

INSTALLATION
Installation is in the reverse order of removal
