Rear Left Door Control System
Rear Left Door Control System

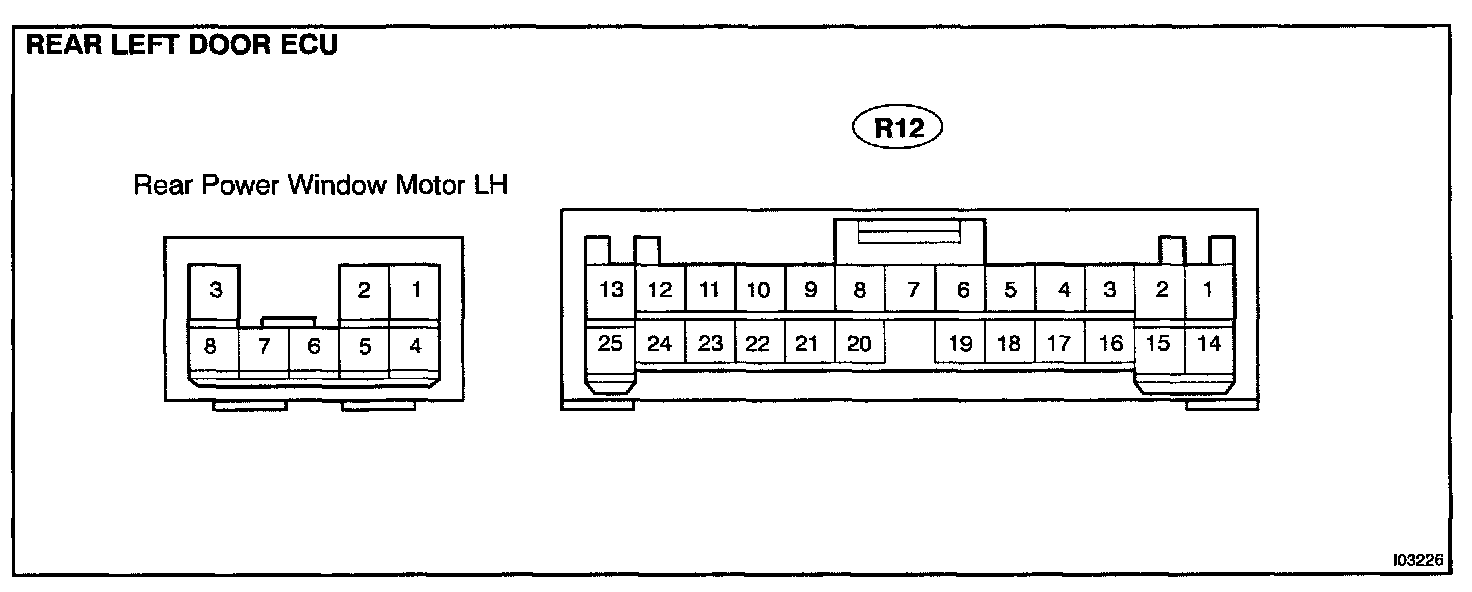

Terminals Of ECU - Connector View:

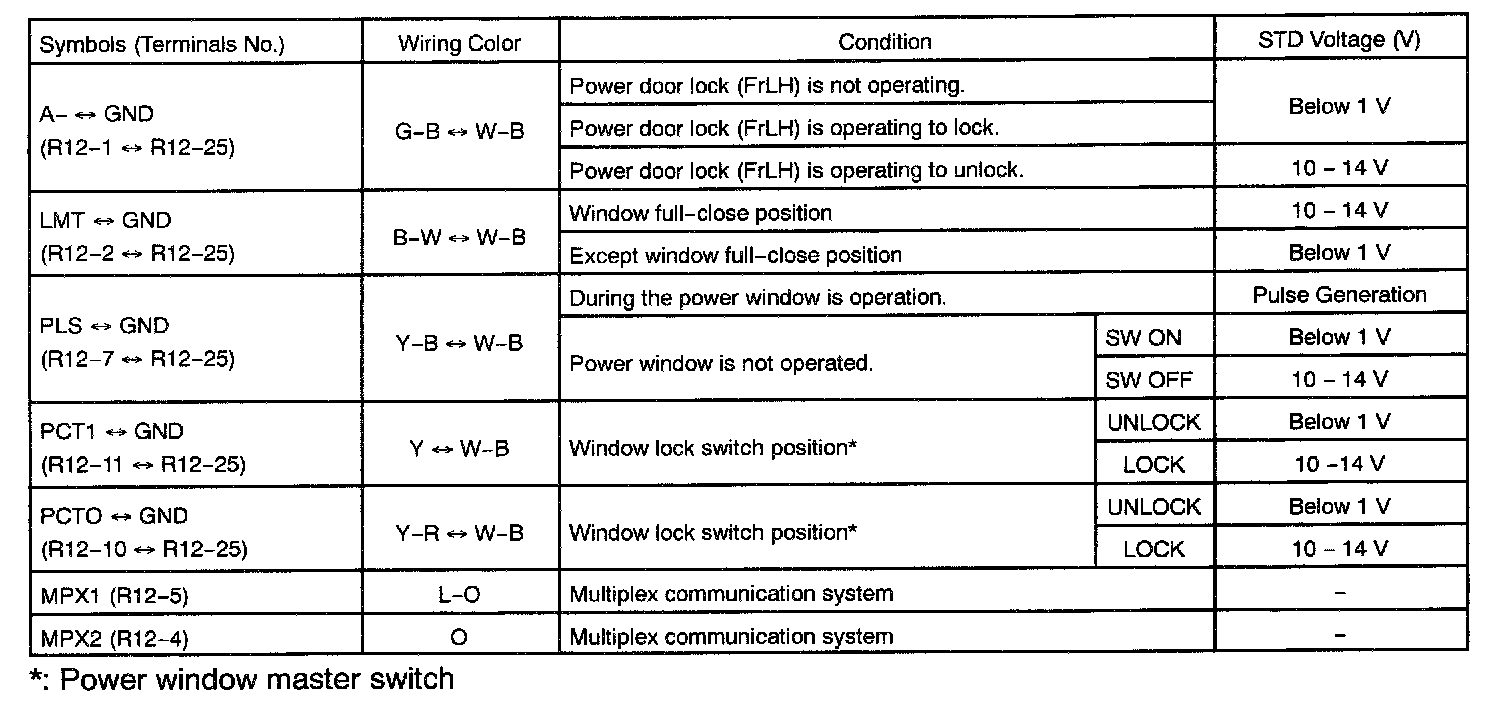

Terminals Of ECU - Connector Pinouts (Part 1):
Terminals Of ECU - Connector Pinouts (Part 2):
