Driver Door Control System
Driver Door Control System

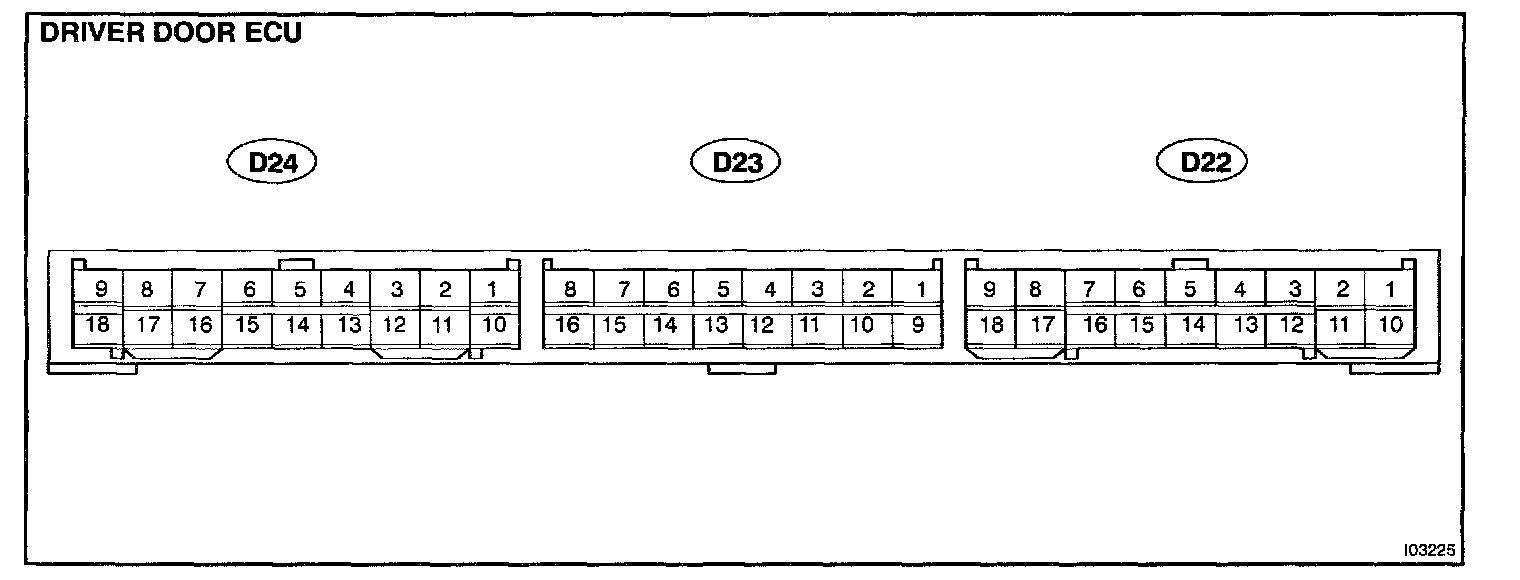

Driver Door ECU - Connector View:

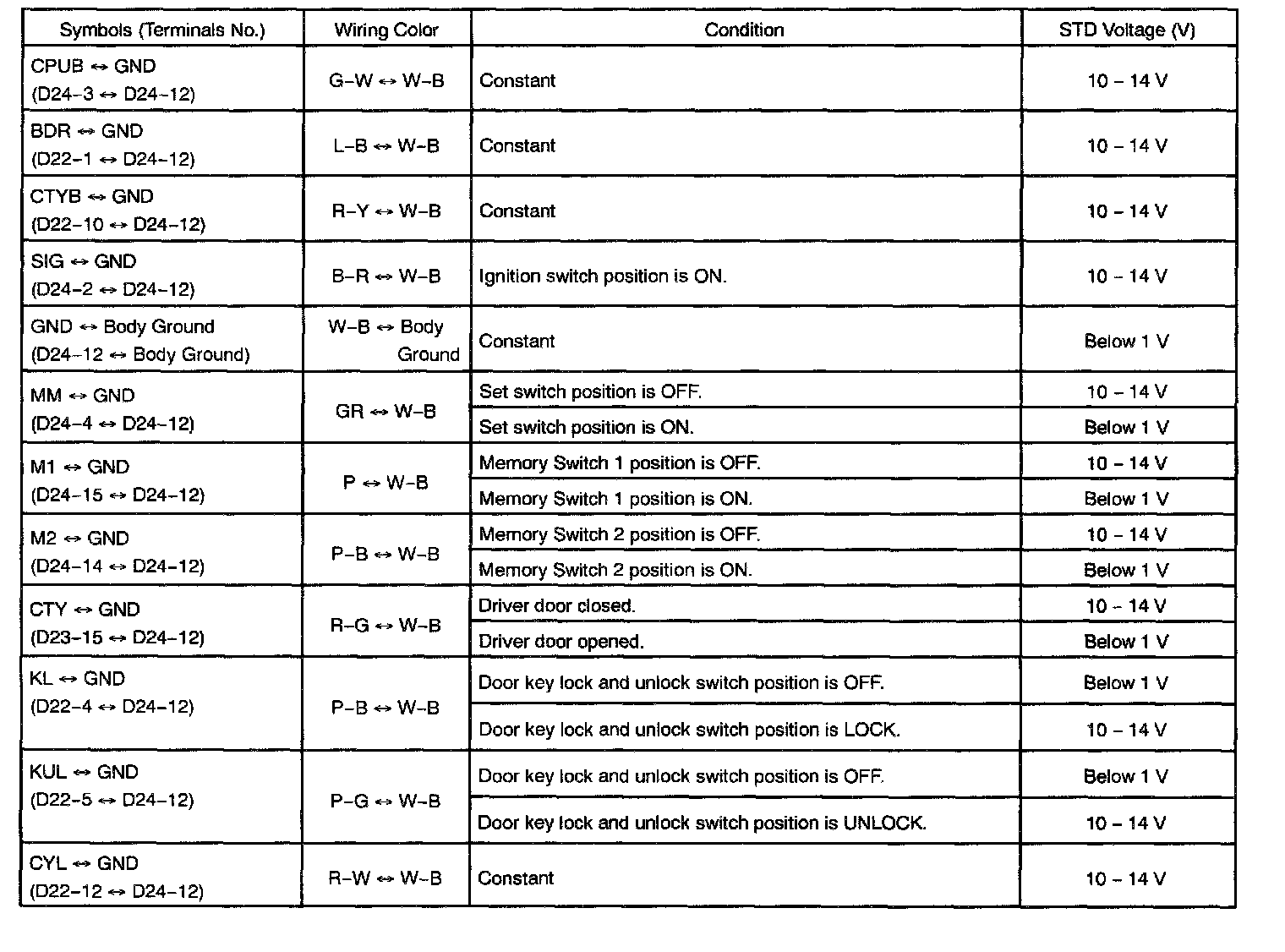

Driver Door ECU - Connector Pinouts (Part 1):

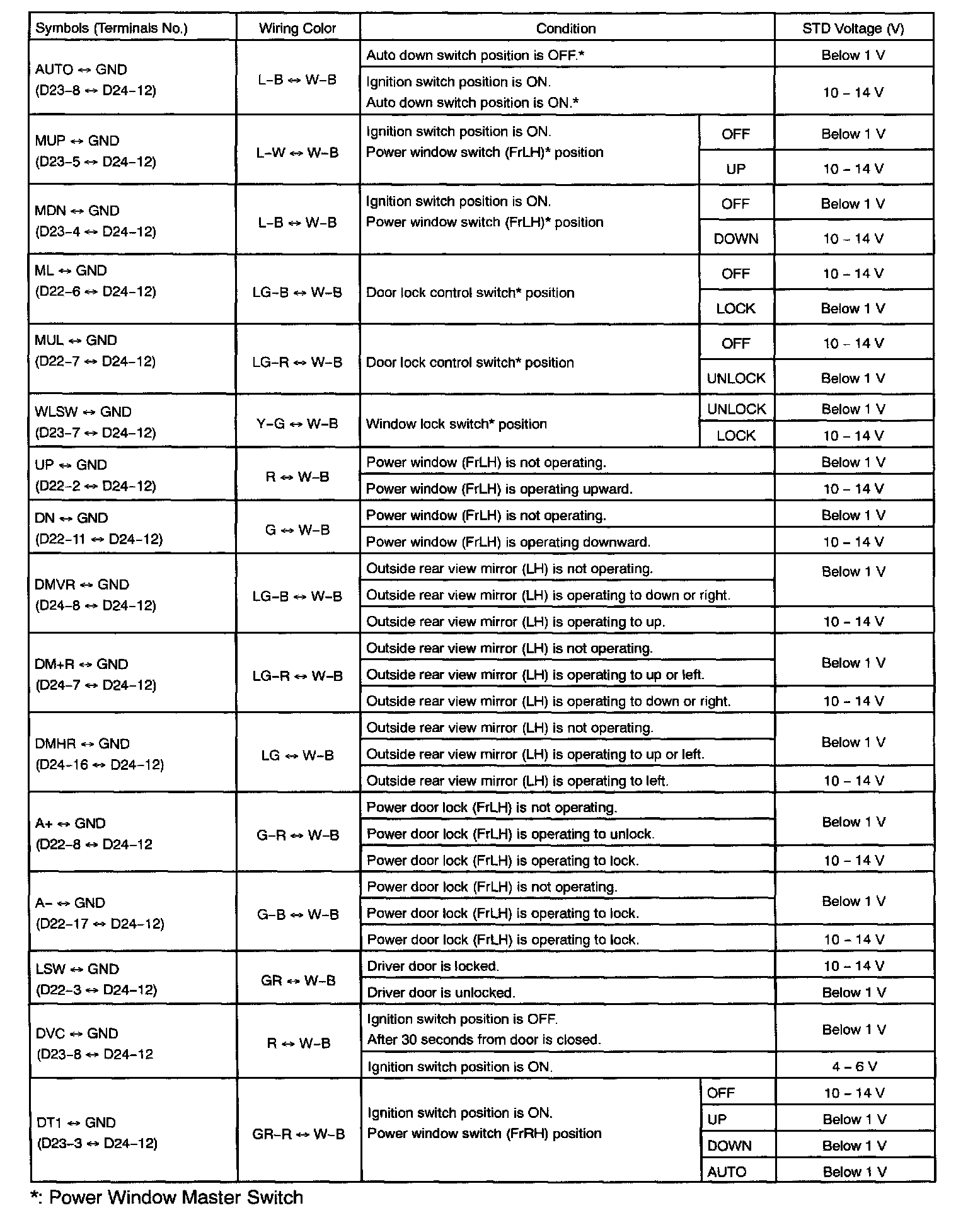

Driver Door ECU - Connector Pinouts (Part 2):

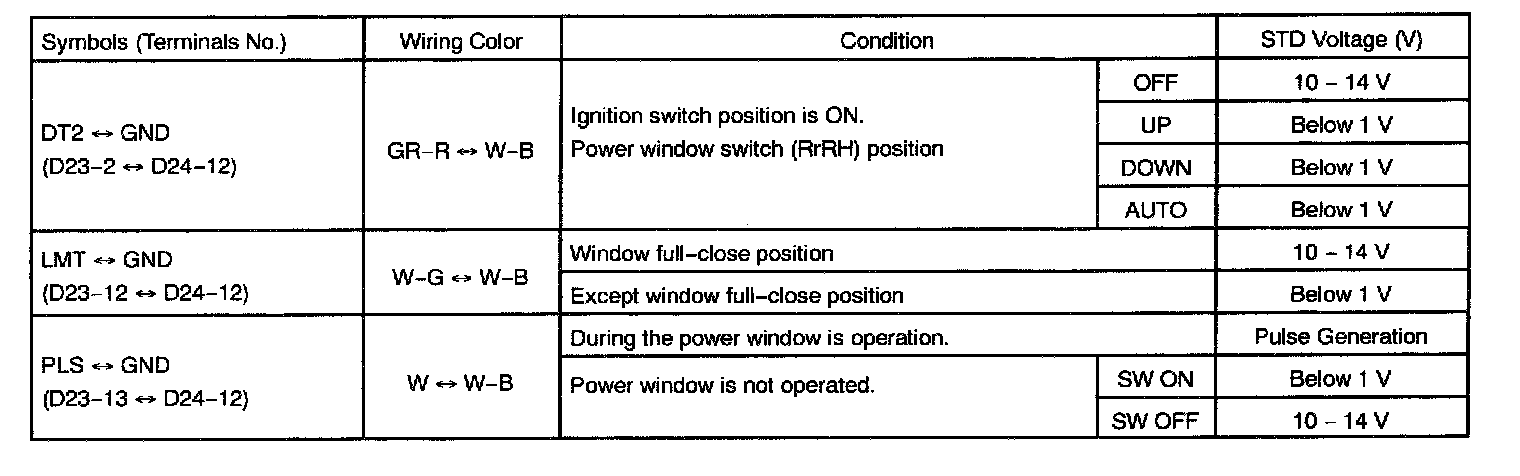

Driver Door ECU - Connector Pinouts (Part 3):
