Door Lock Motor Circuit

Door Lock Motor Circuit / Right Side

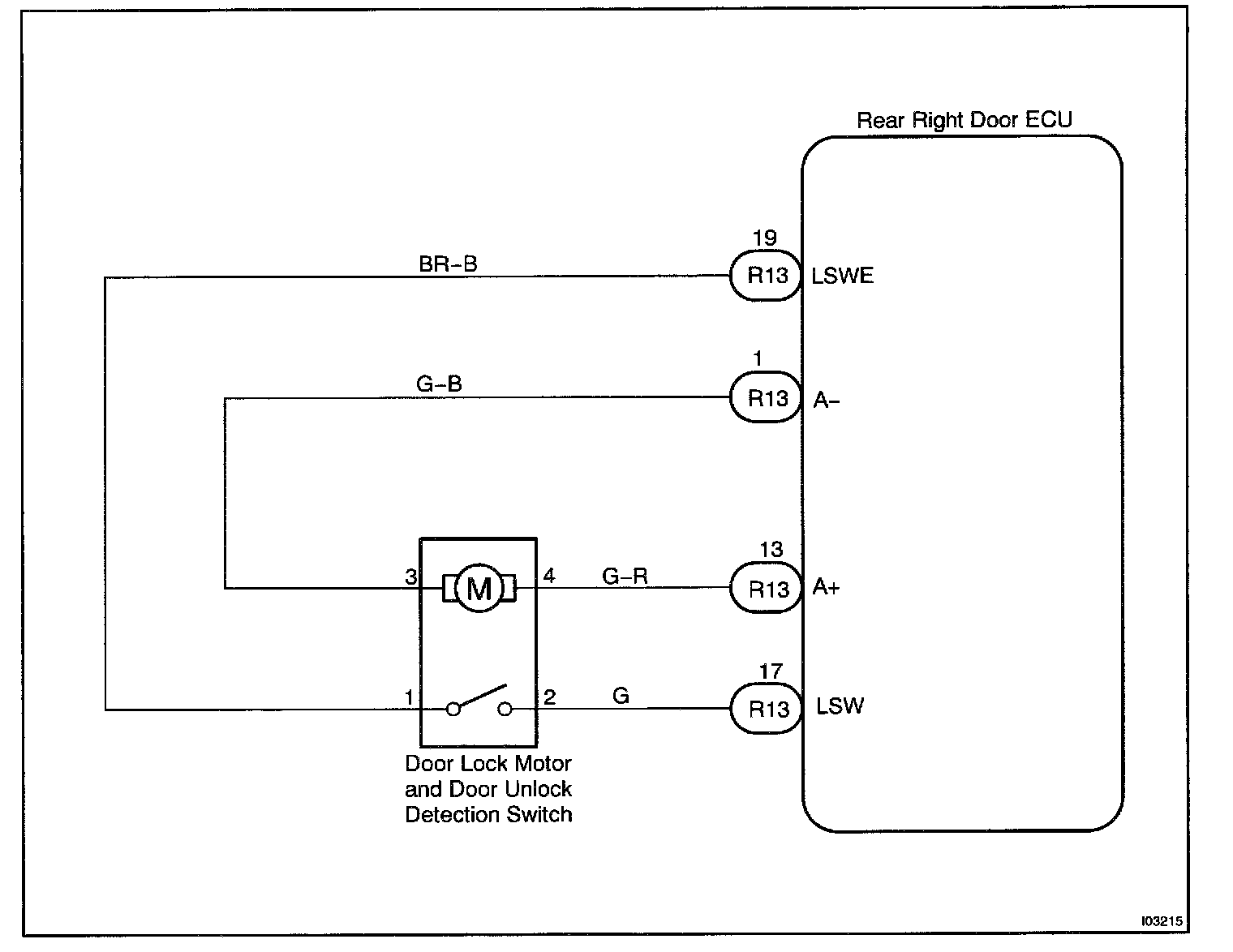

Wiring Diagram:

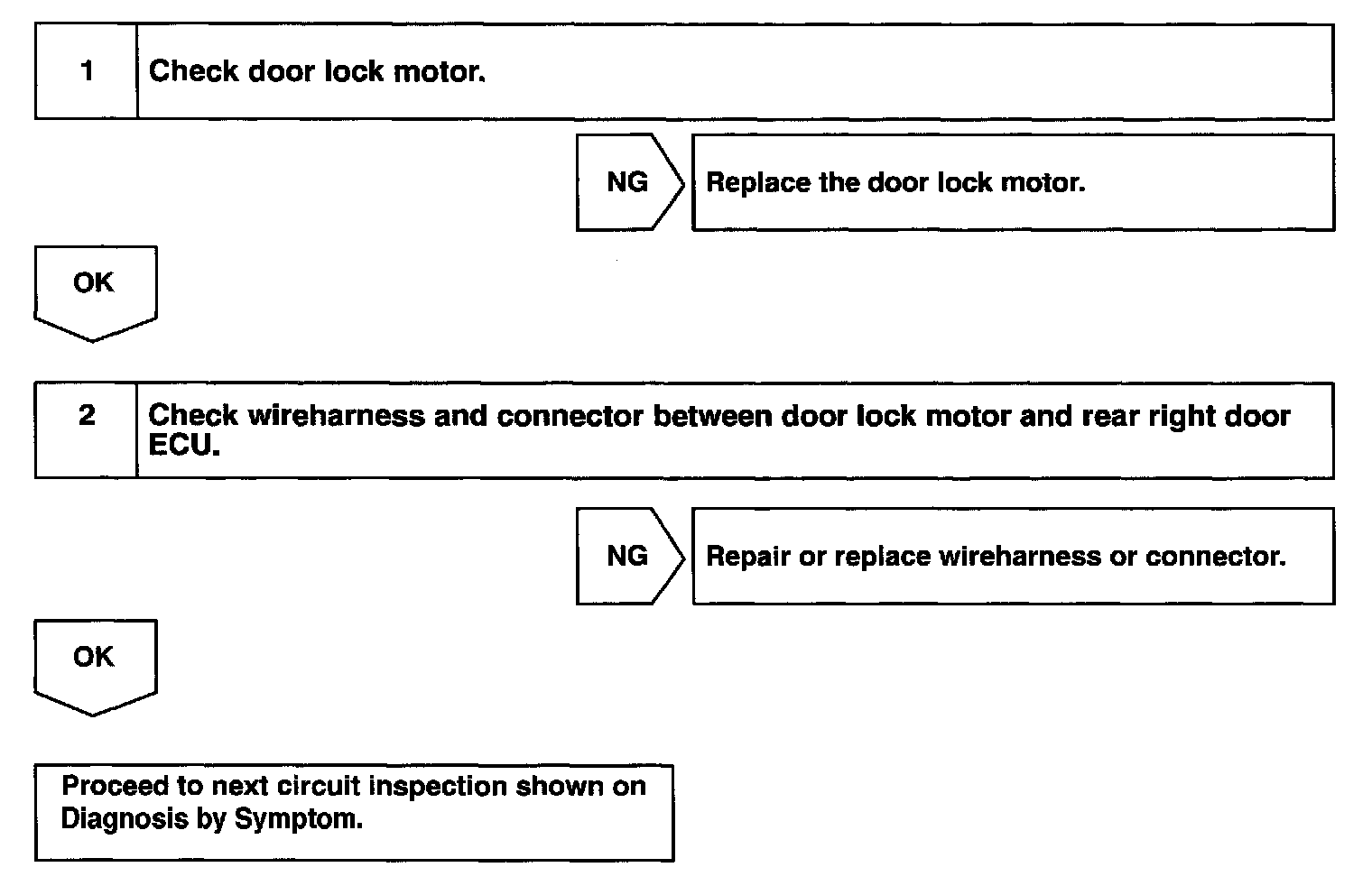

Steps 1 - 2:




INSPECTION PROCEDURE
