Door Lock Motor Circuit


Door Lock Motor Circuit / Left Side

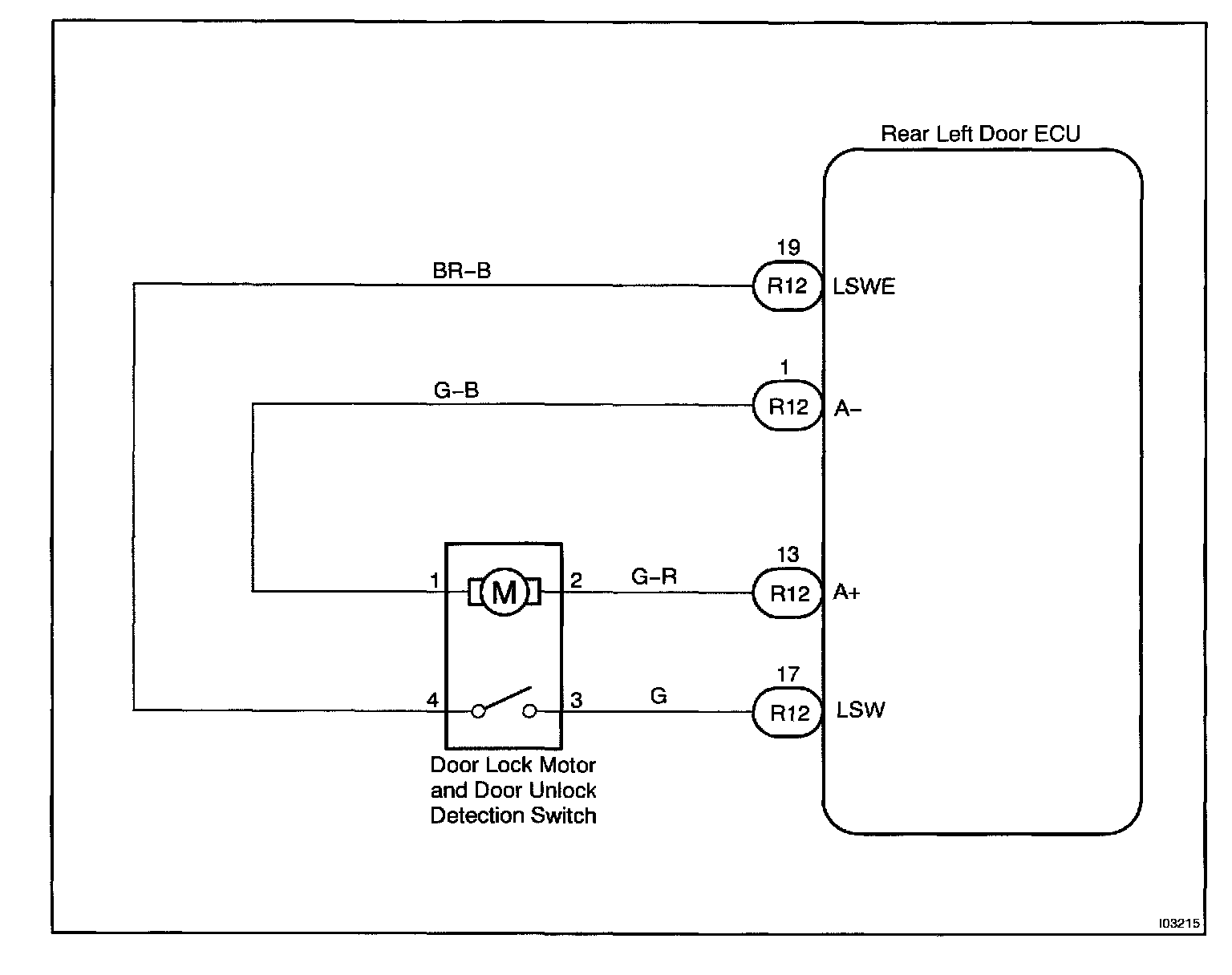

Wiring Diagram:

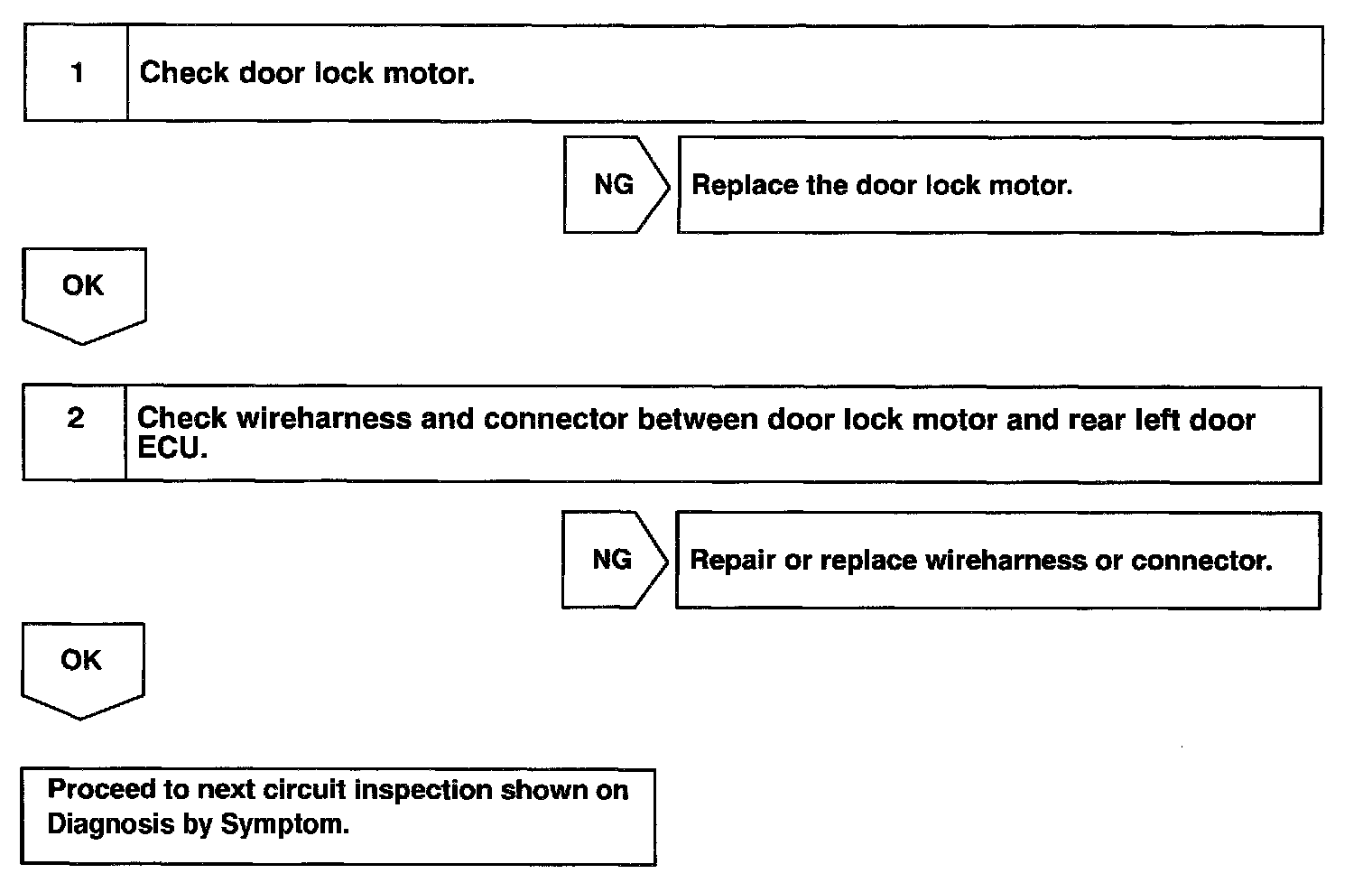

Steps 1 - 2:




INSPECTION PROCEDURE
