Door Courtesy Light and Courtesy Switch Circuit

Door Courtesy Light and Courtesy Switch Circuit / Left Side

CIRCUIT DESCRIPTION
The door courtesy switch goes on when the door is opened and goes off when door is closed.

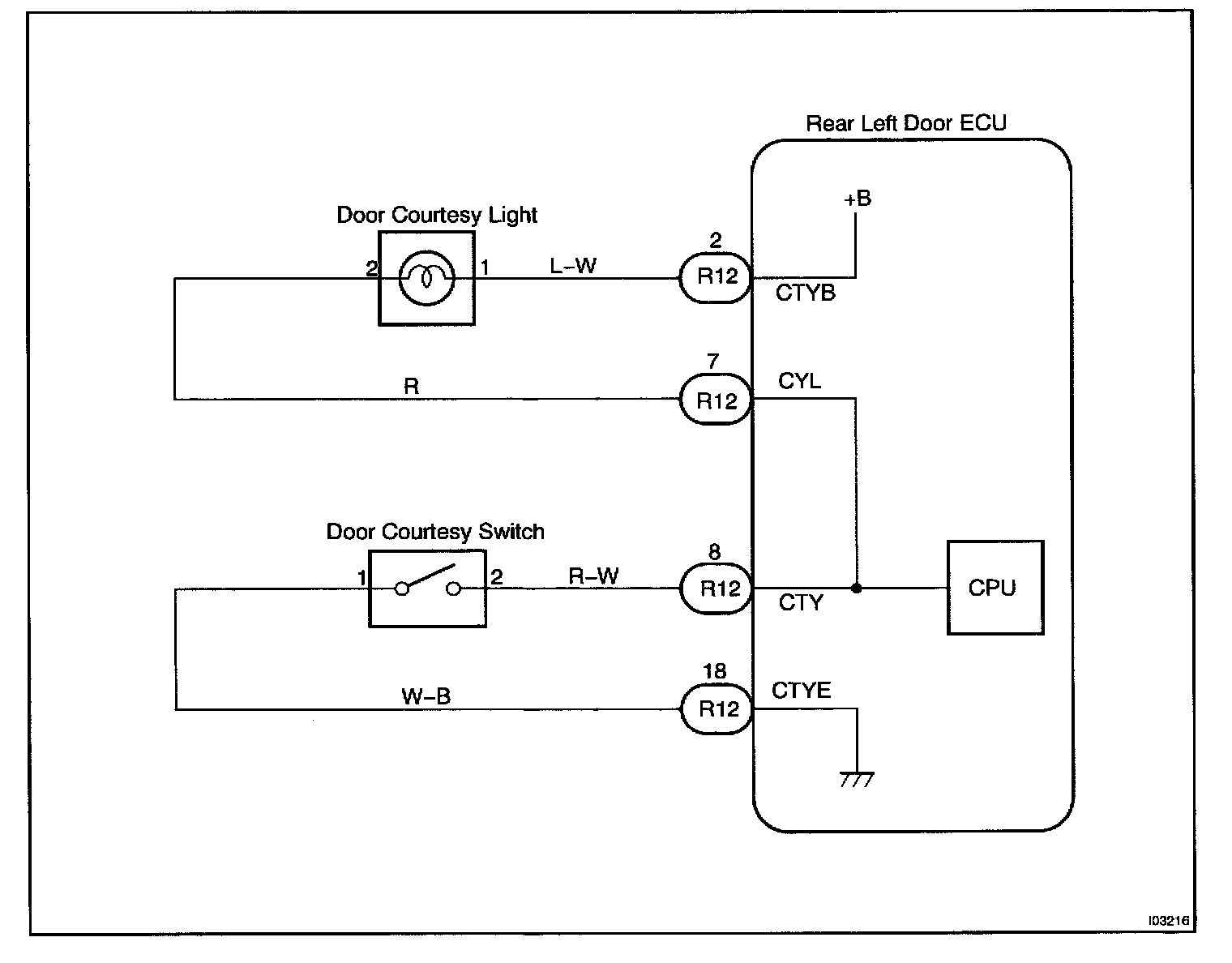

Wiring Diagram:

Steps 1 - 4:

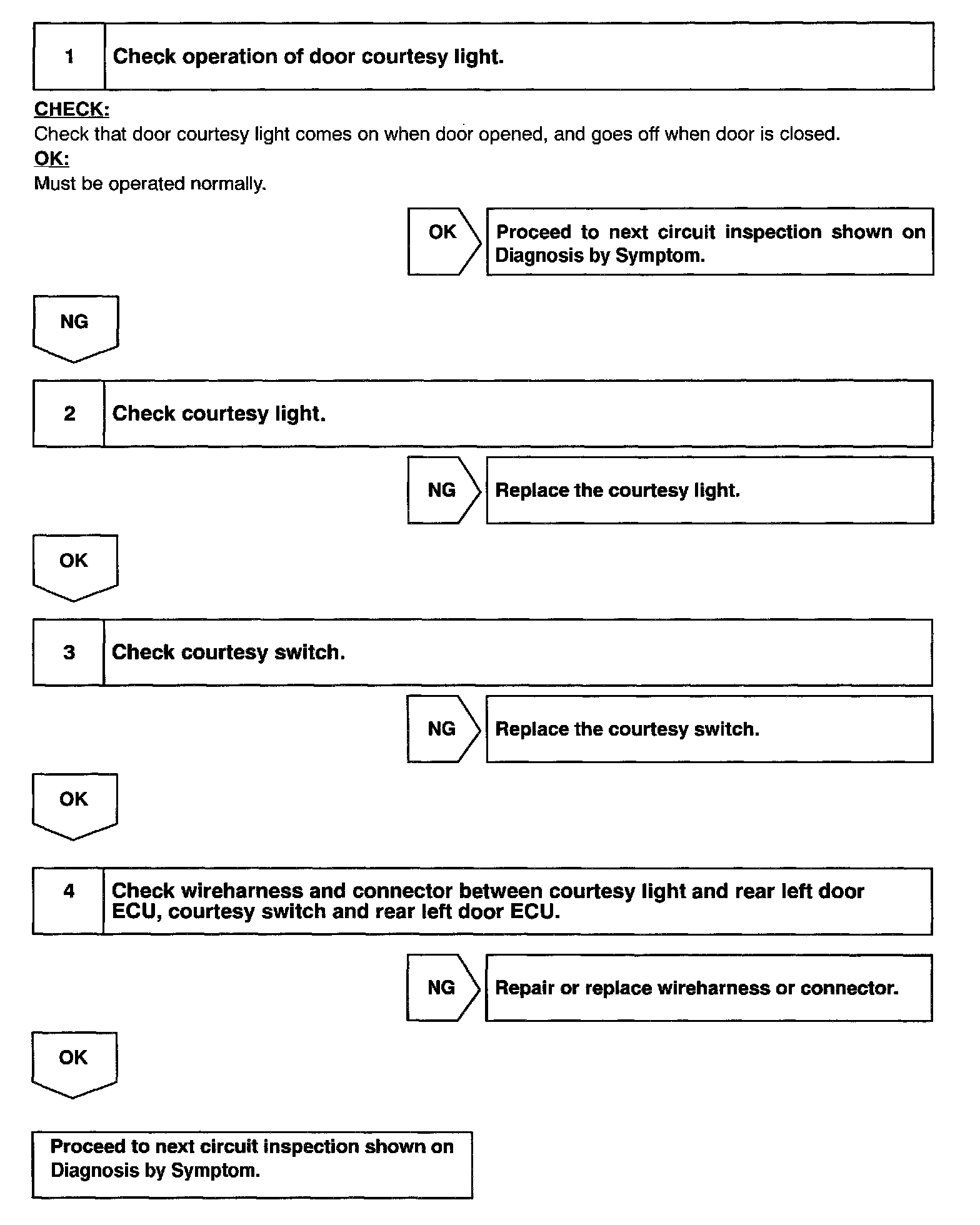

INSPECTION PROCEDURE
