Power Source Circuit

Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the driver door ECU.

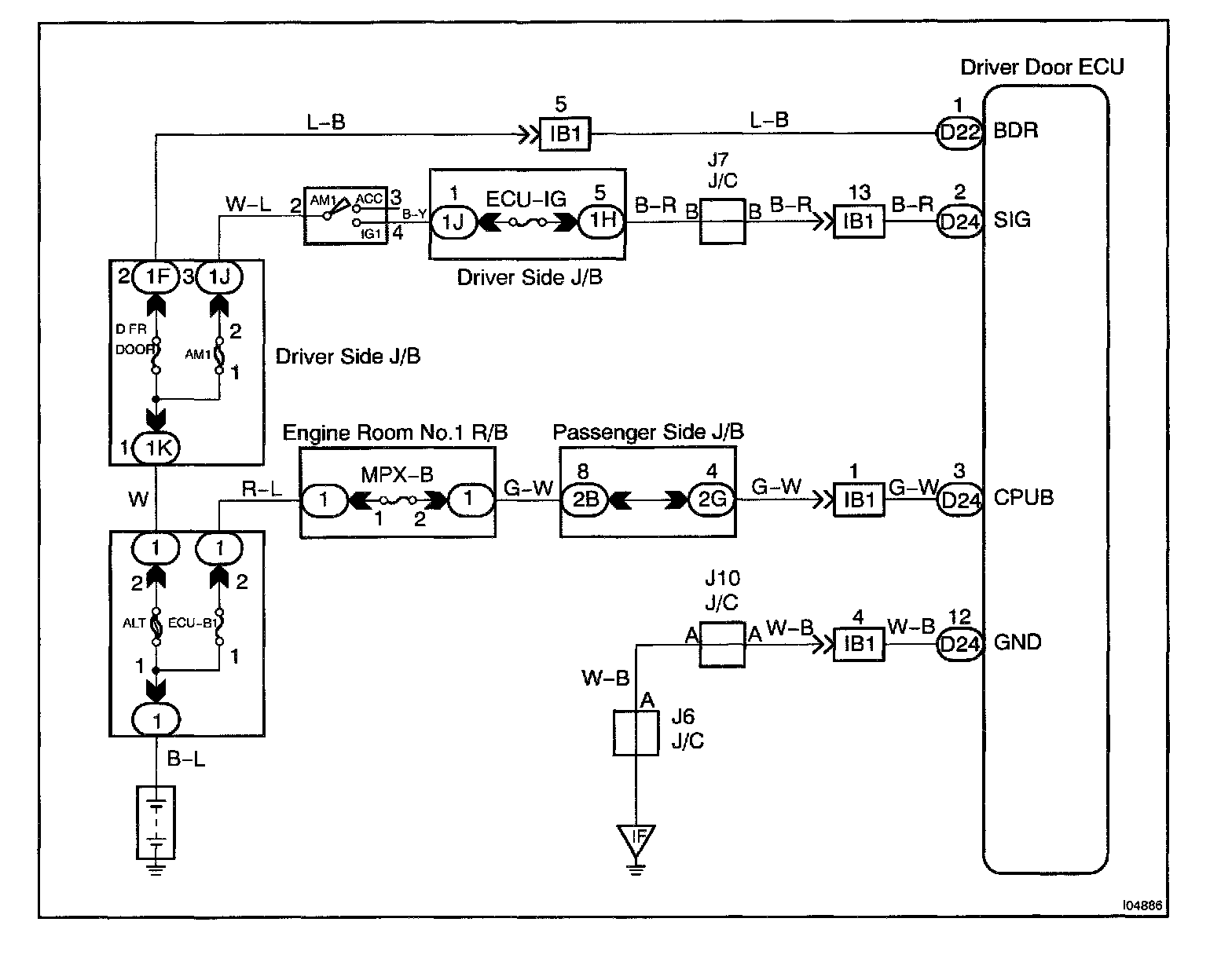

Wiring Diagram:

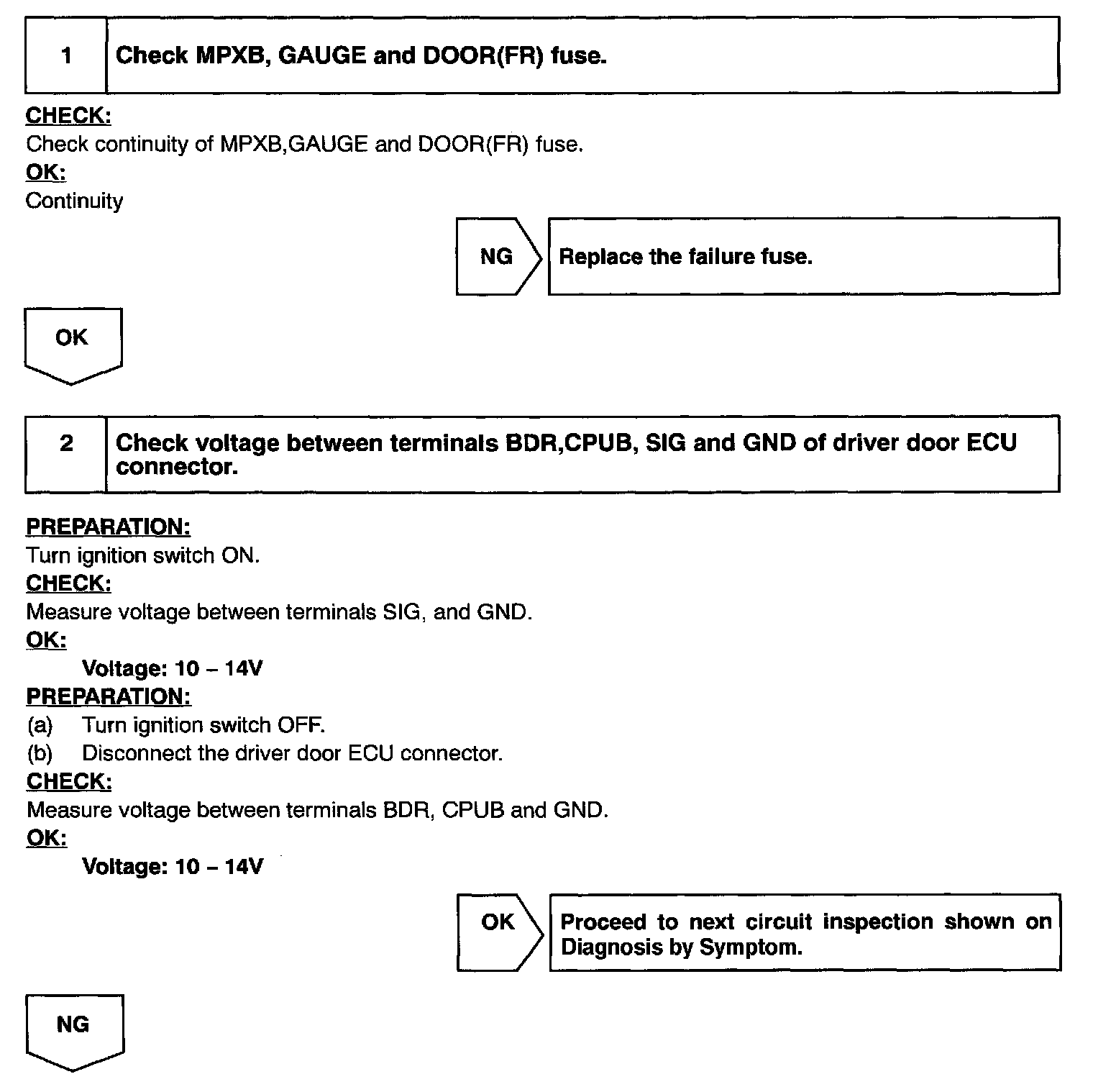

Steps 1 - 2:

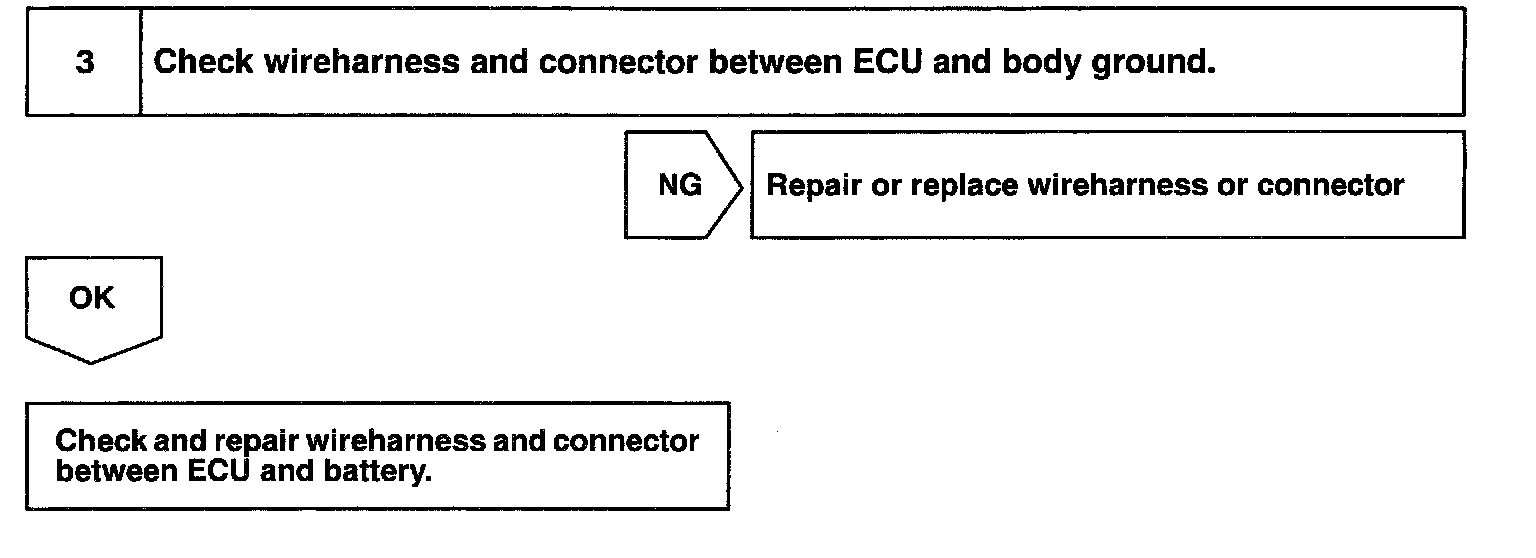

Step 3:

INSPECTION PROCEDURE
