Mirror Retract Motor Circuit

Mirror Retract Motor Circuit (TAIWAN Only)

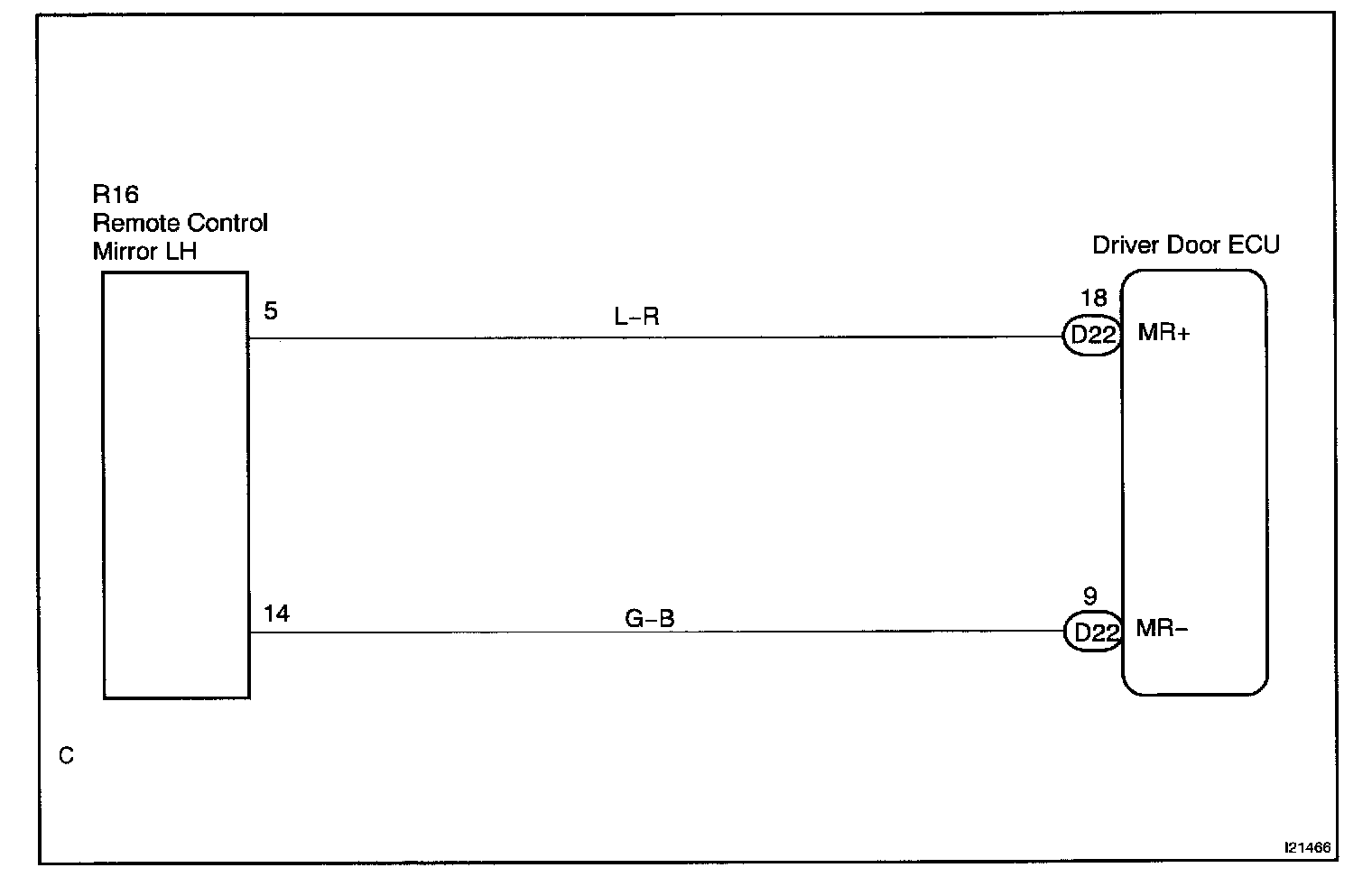

Wiring Diagram:

Step 1:

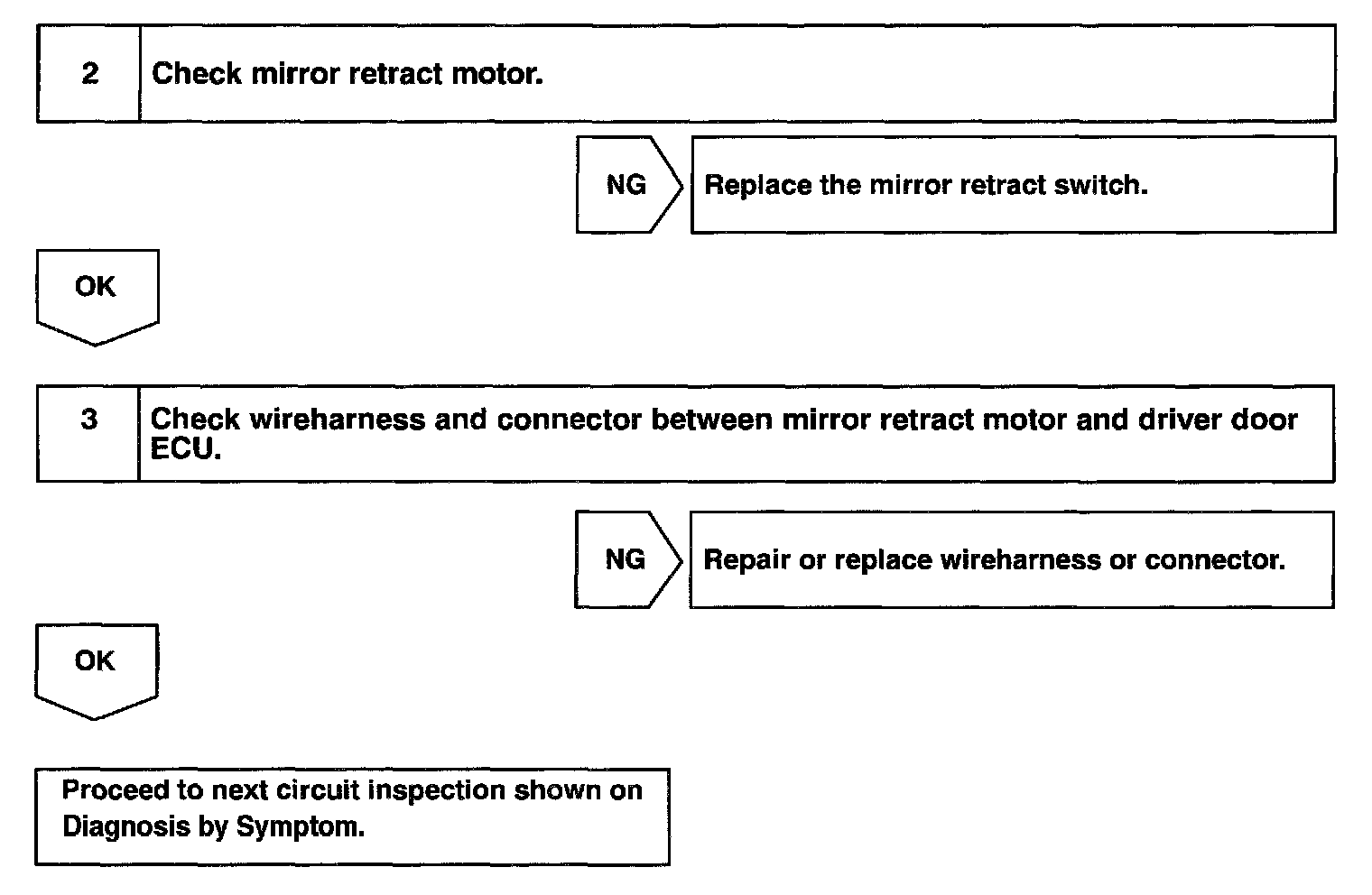

Steps 2 - 3:

INSPECTION PROCEDURE

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
