29 - CD Cannot Be Inserted

29. CD Magazine Cannot be Inserted

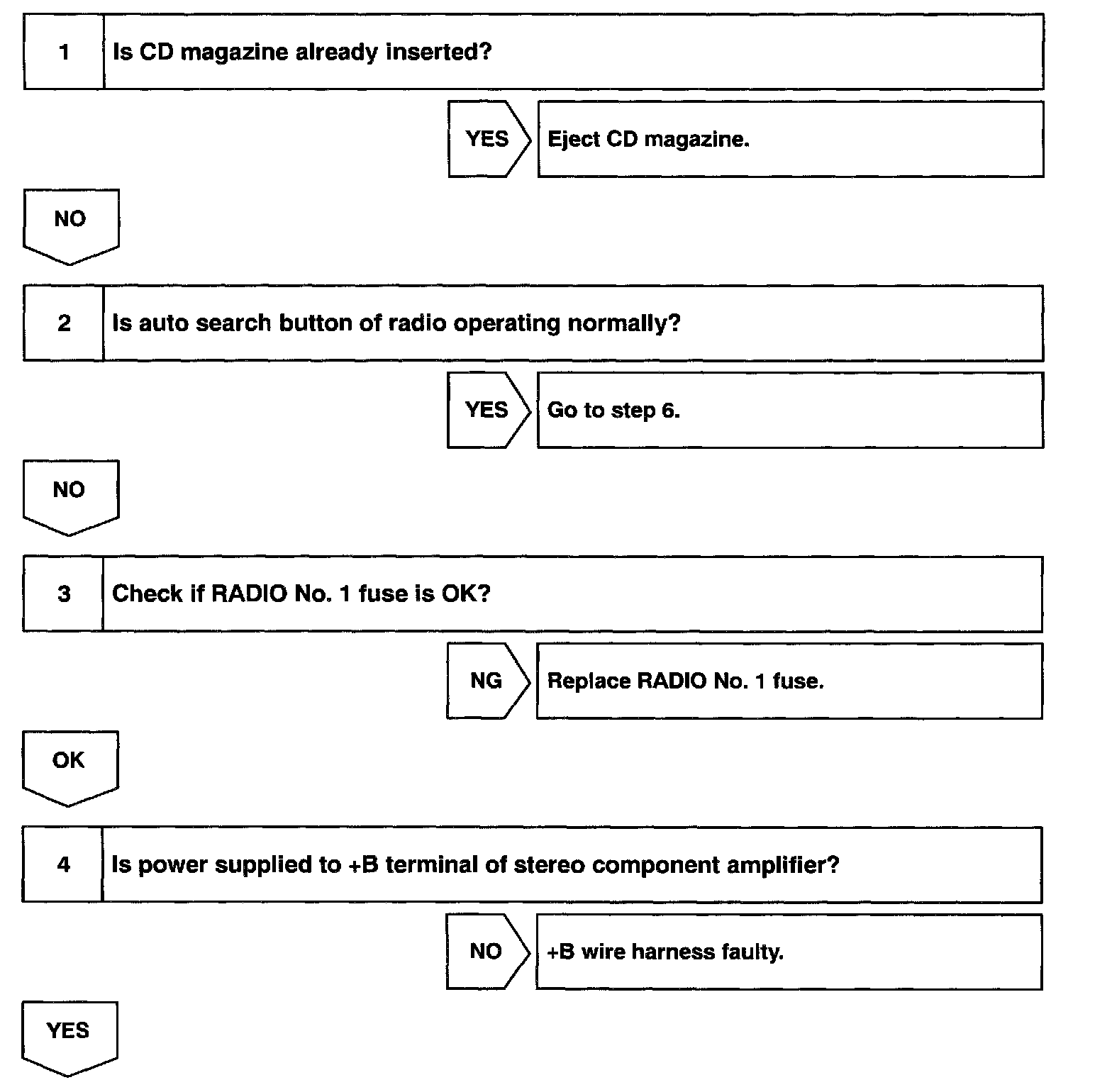

Steps 1 - 4:

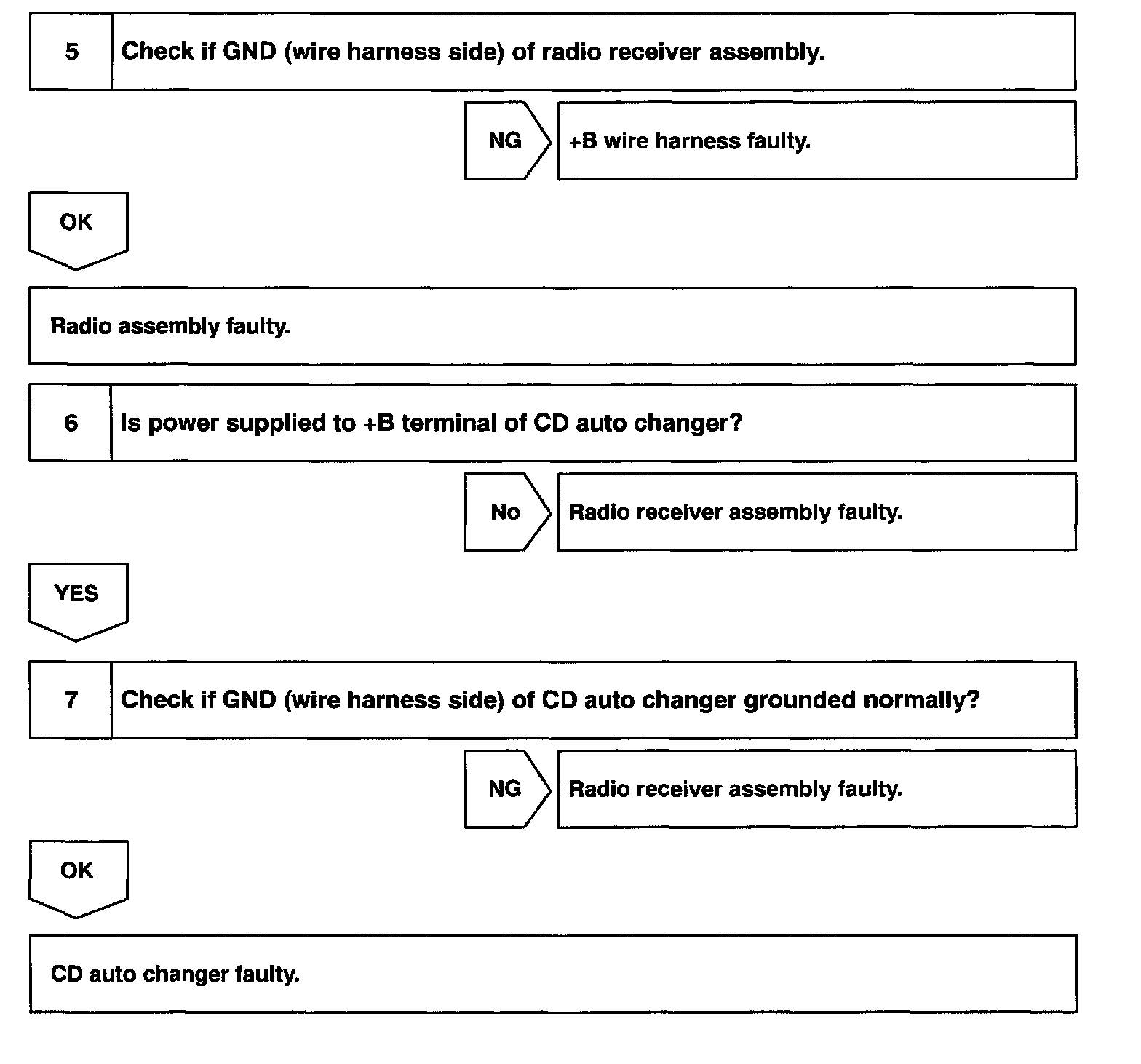

Steps 5 - 7:




INSPECTION PROCEDURE
