23. Vehicle Position Rotates Without Control (MAP Rotates Without Control)

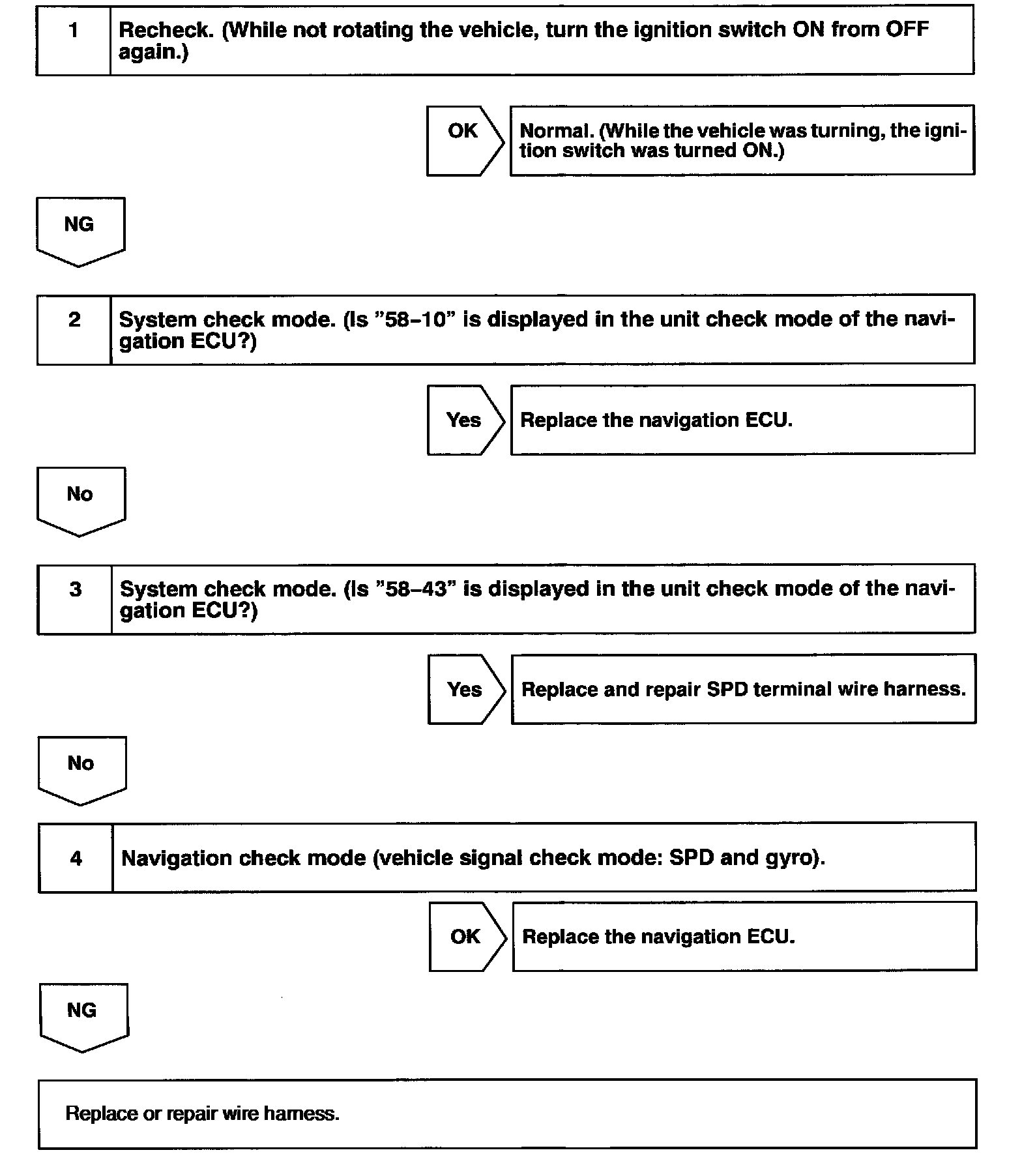

Steps 1 - 4:
INSPECTION PROCEDURE
