Home >> Lexus >> 2001 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 20 - Vehicle Position Is Deviated From Correct Point Badly

20 - Vehicle Position Is Deviated From Correct Point Badly

20. Vehicle Position is Deviated From Correct Point Badly

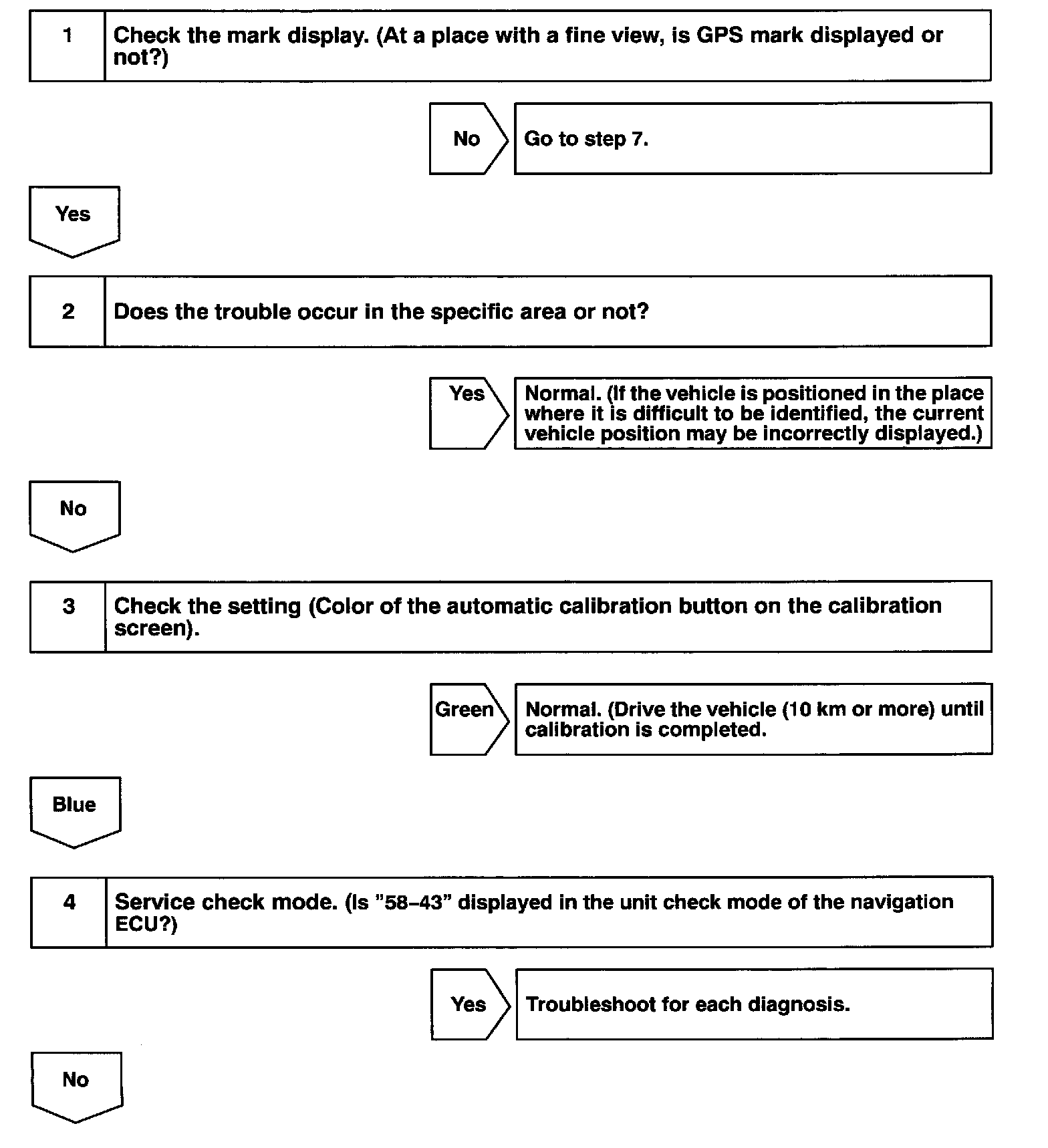

Steps 1 - 4:

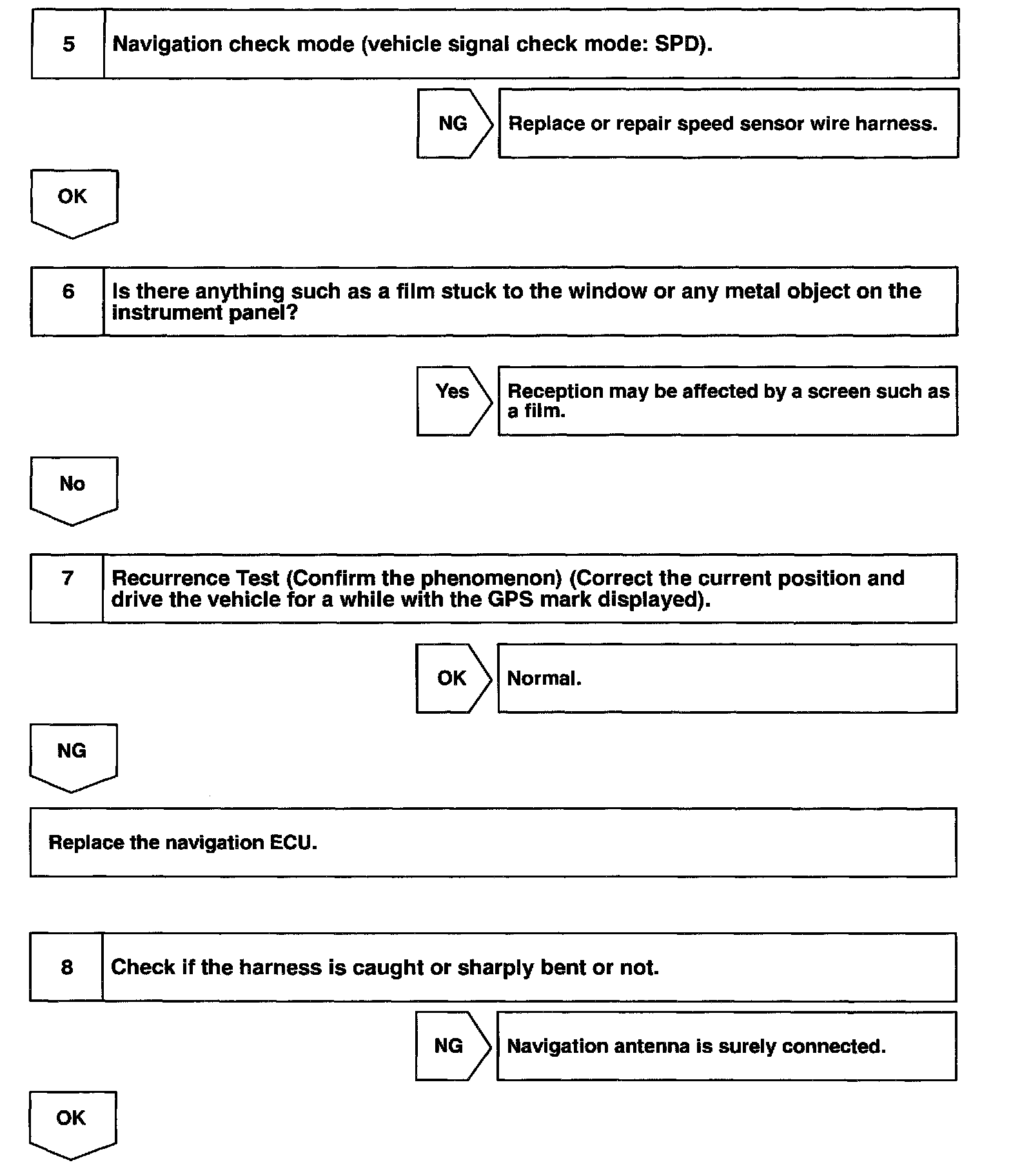

Steps 5 - 8:

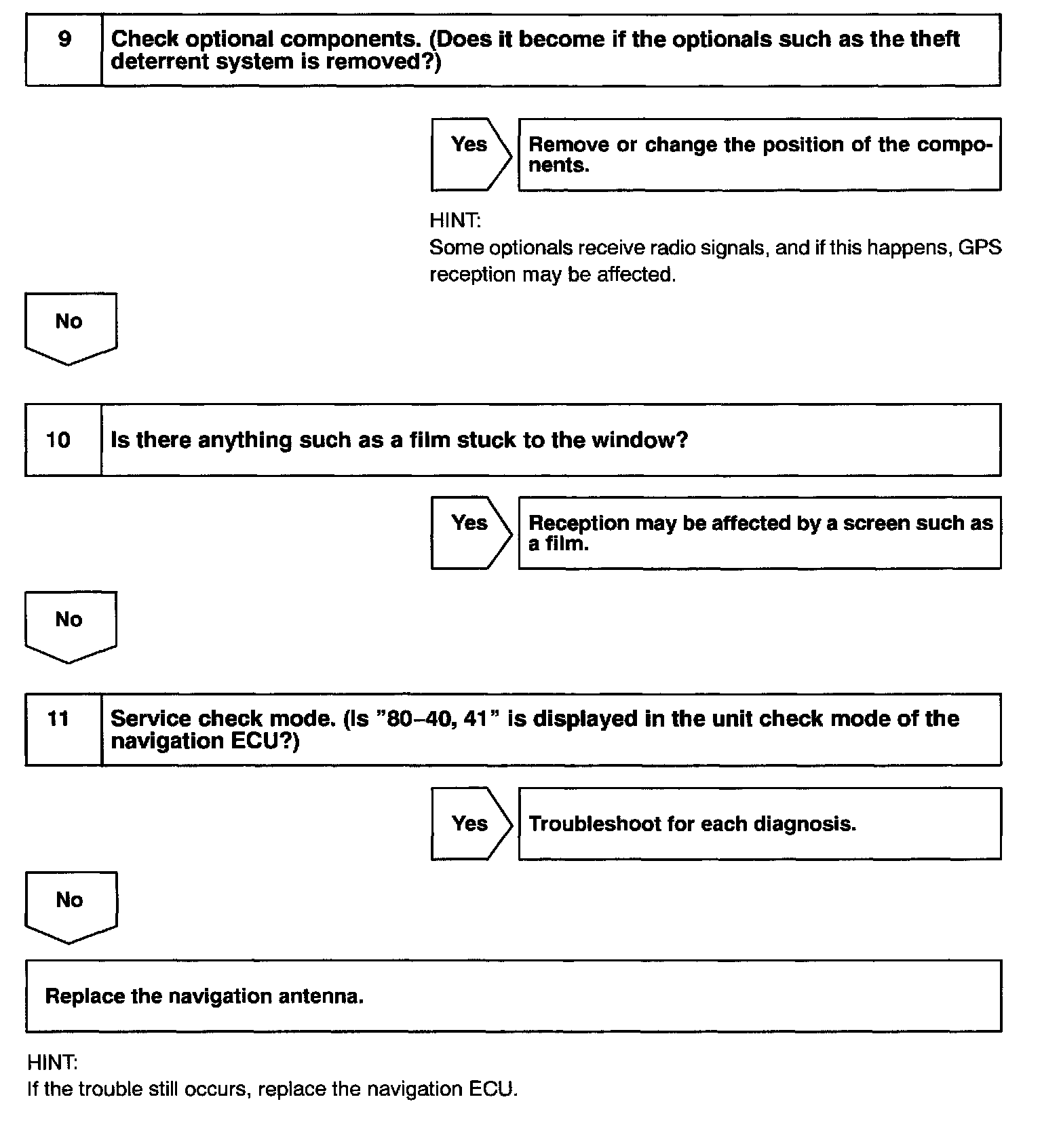

Steps 9 - 11:




INSPECTION PROCEDURE
