11 - No Sound / Driver Side Door Speaker
11 - No Sound / Driver Side Door Speaker
11. No Sound (Radio, Cassette Tape, CD) can be Heard From Driver Side Door Speaker Only

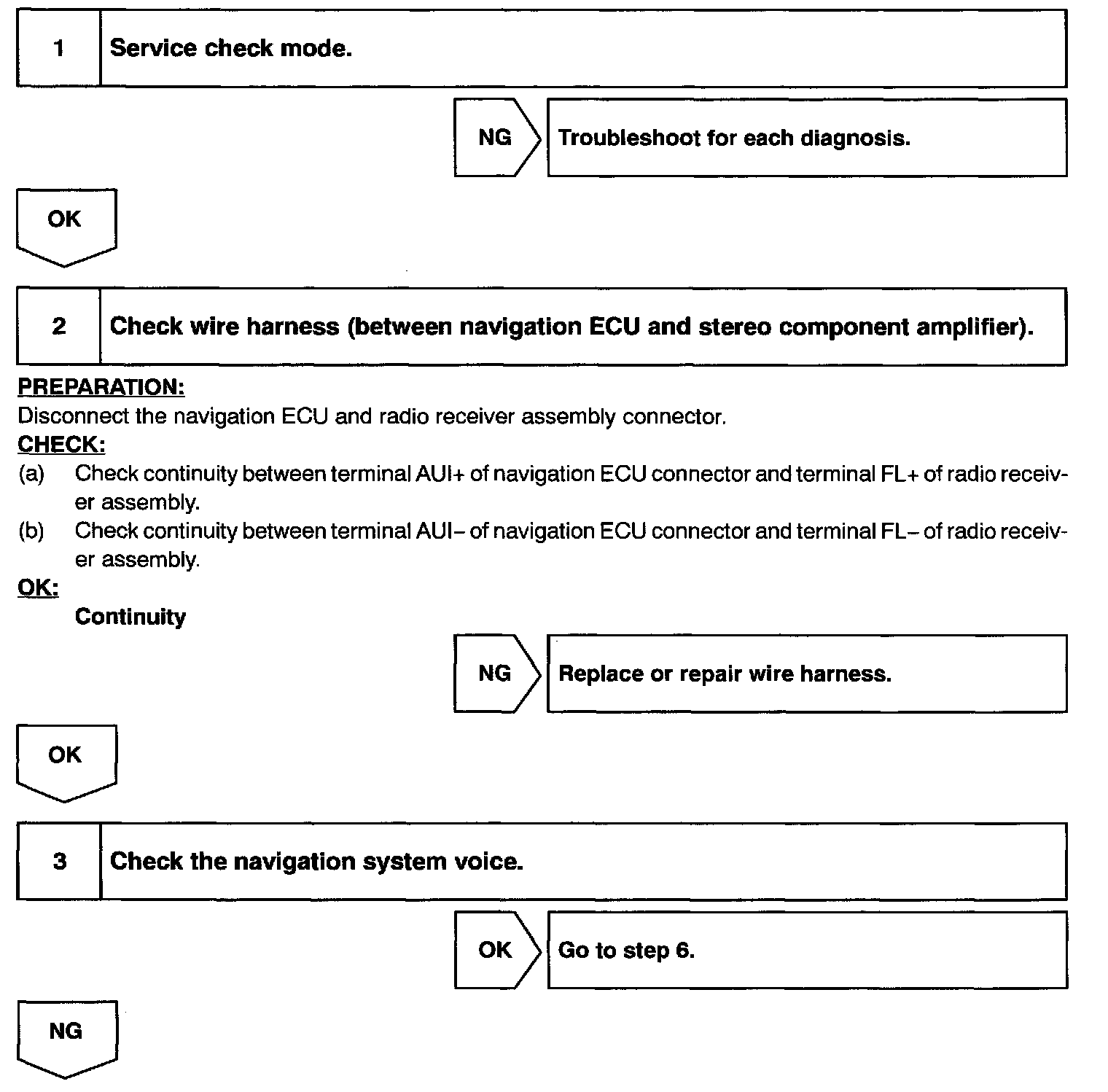

Steps 1 - 3:

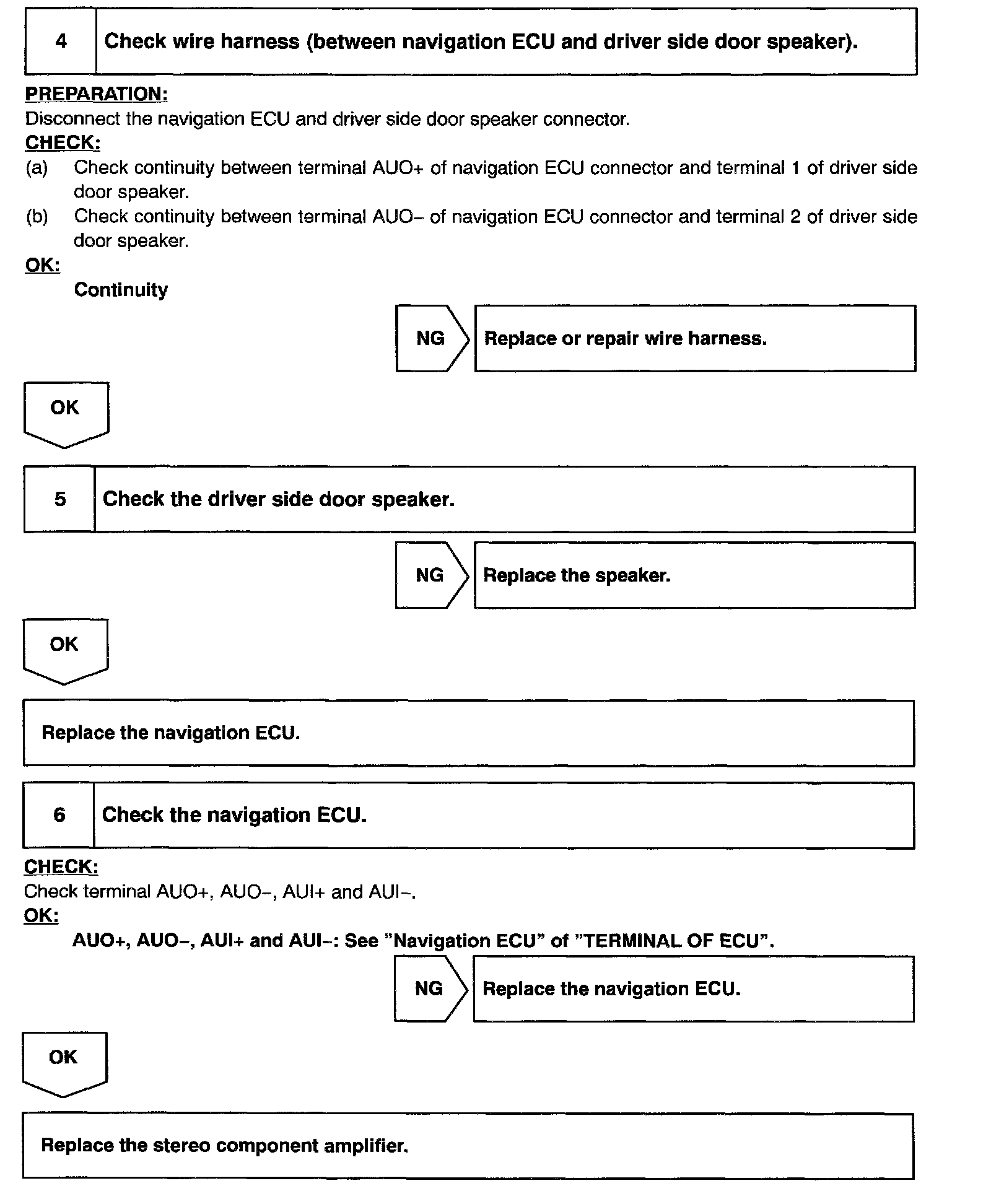

Steps 4 - 6:
INSPECTION PROCEDURE
