09 - Black Screen When MAP, MENU or DEST Switch Pressed
09 - Black Screen When MAP, MENU or DEST Switch Pressed
9. Black Screen Appears When "MAP", "Menu" or "DESTINATION" Switch Pressed
Step 1:

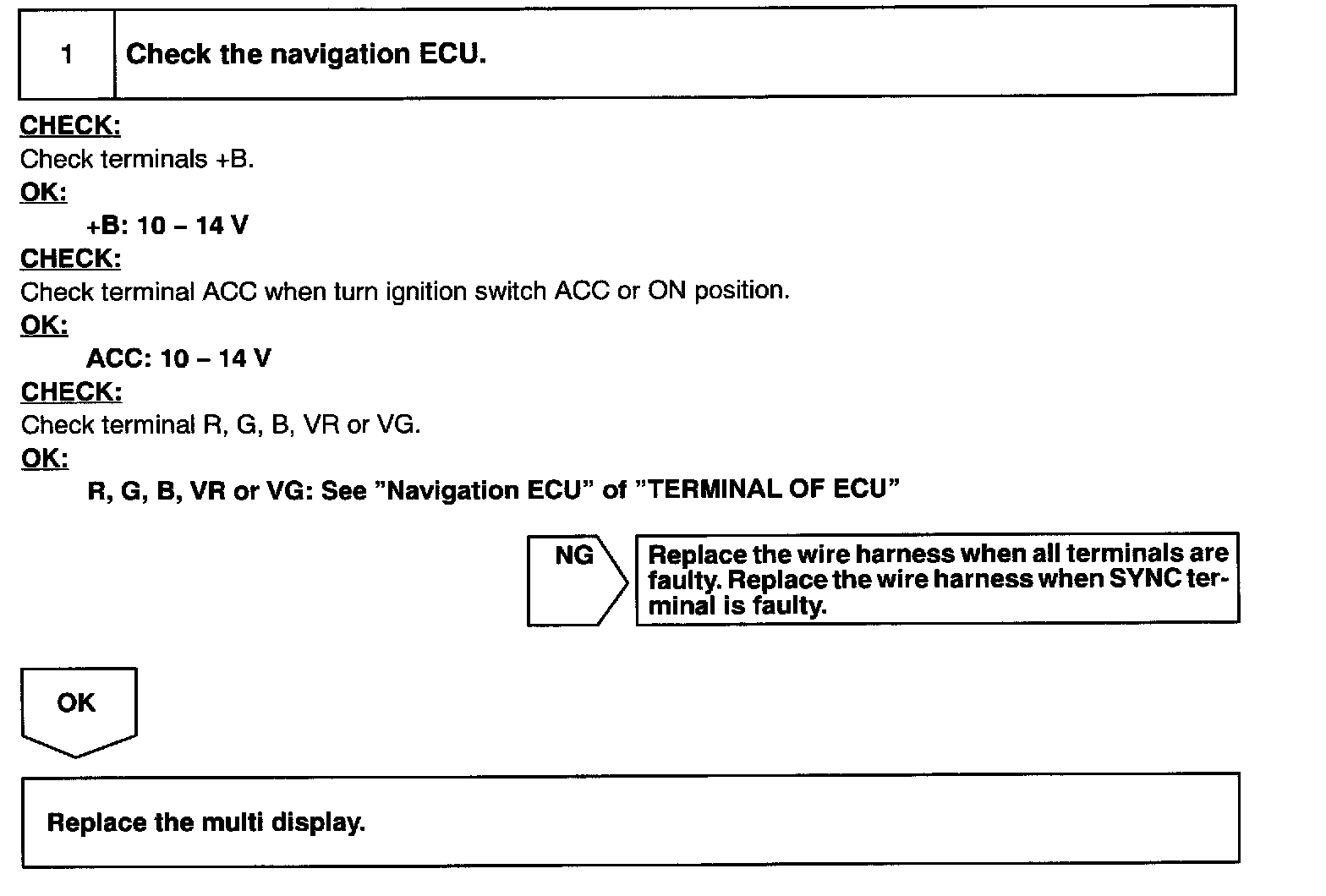

INSPECTION PROCEDURE
