05 - No Navigation Displayed AUDIO OFF on Screen & No Audio
05 - No Navigation Displayed AUDIO OFF on Screen & No Audio
5. No Navigation Displayed, "Audio OFF" on Audio Screen and No Audio Sound

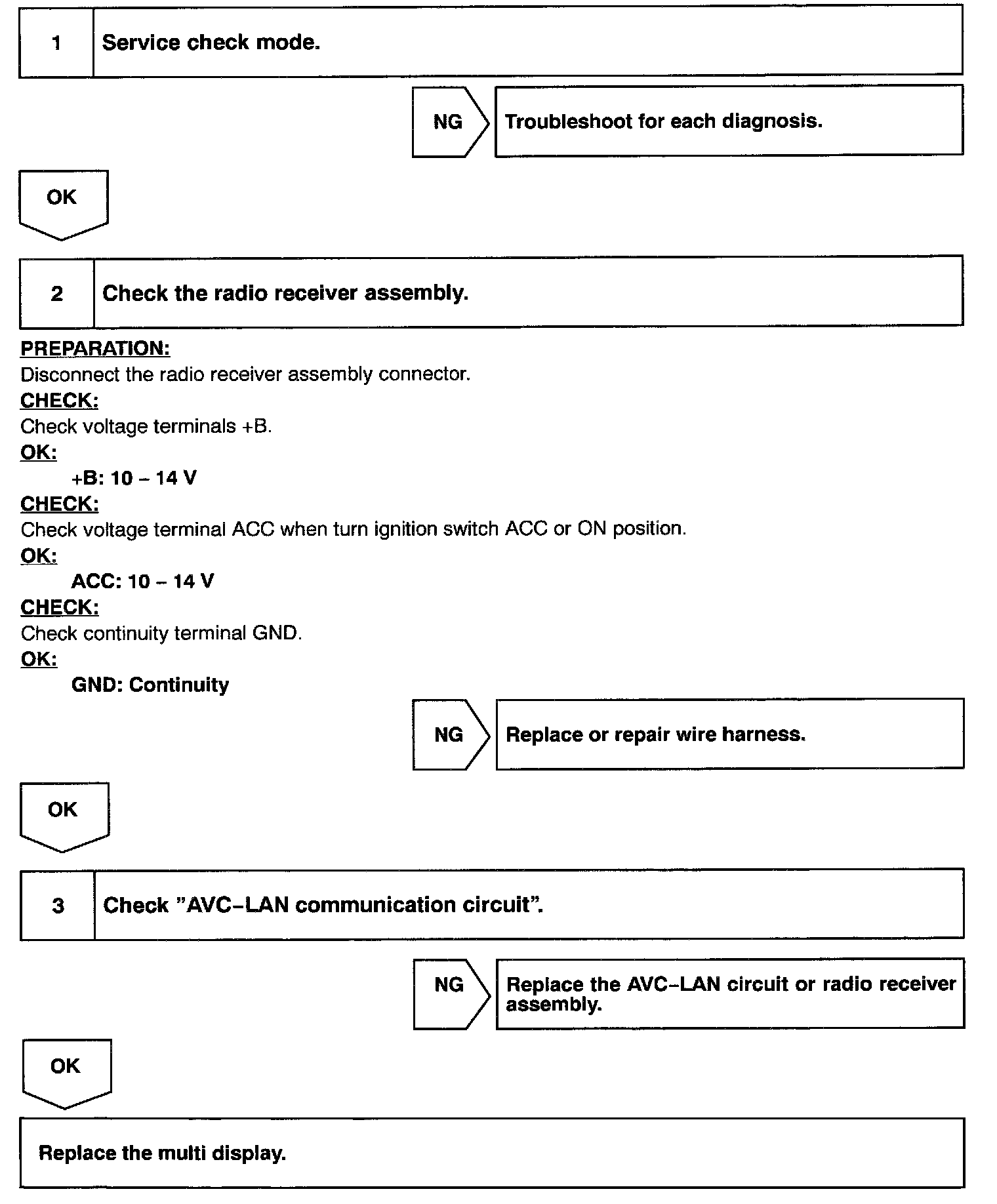

Steps 1 - 3:
INSPECTION PROCEDURE
