03 - No Navigation Screen Displayed MAP, MENU, or DEST Pressed

3. No Navigation Screen Displayed When "MAP", "Menu", or "DEST" Switch Pressed (Screen Cannot be Switched)

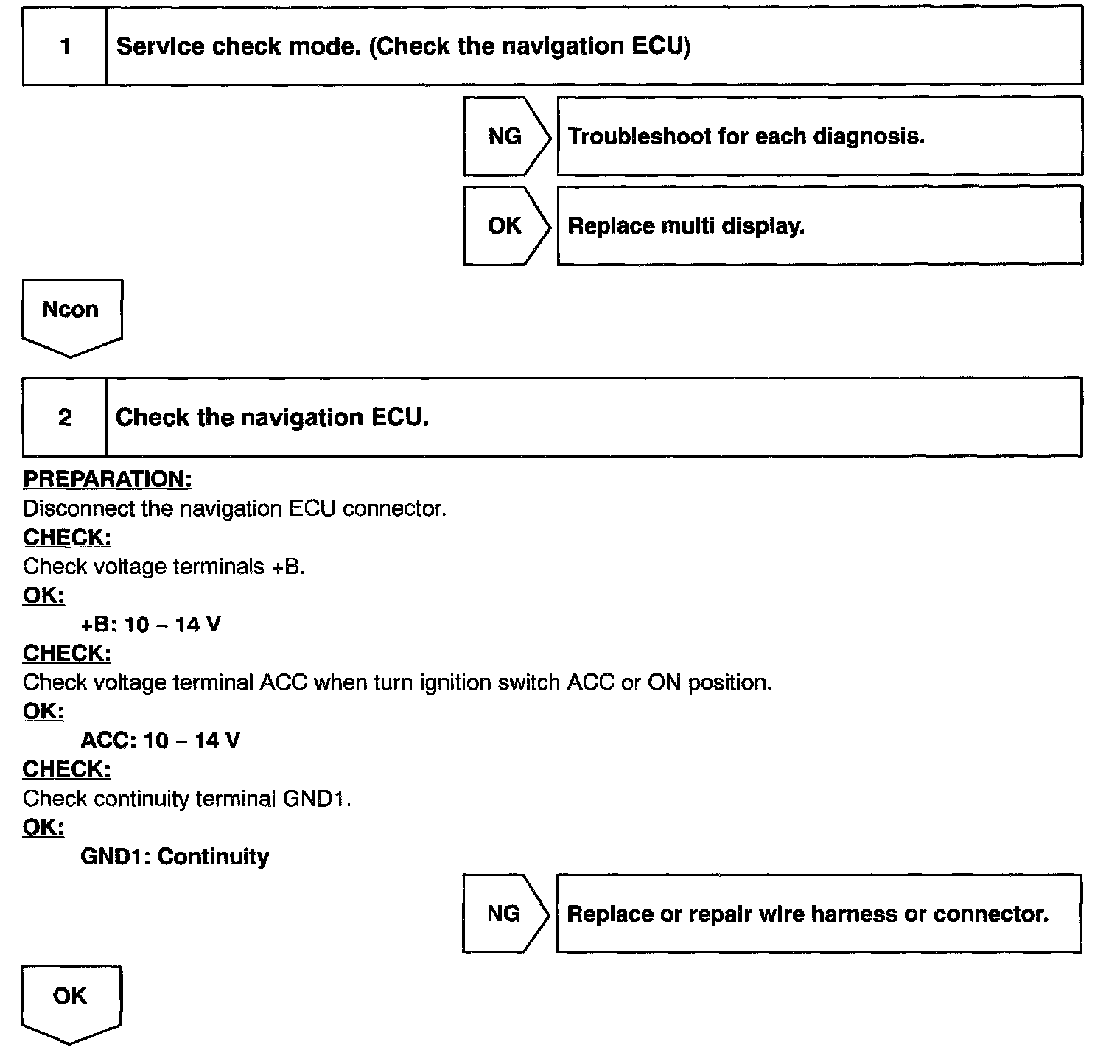

Steps 1 - 2:

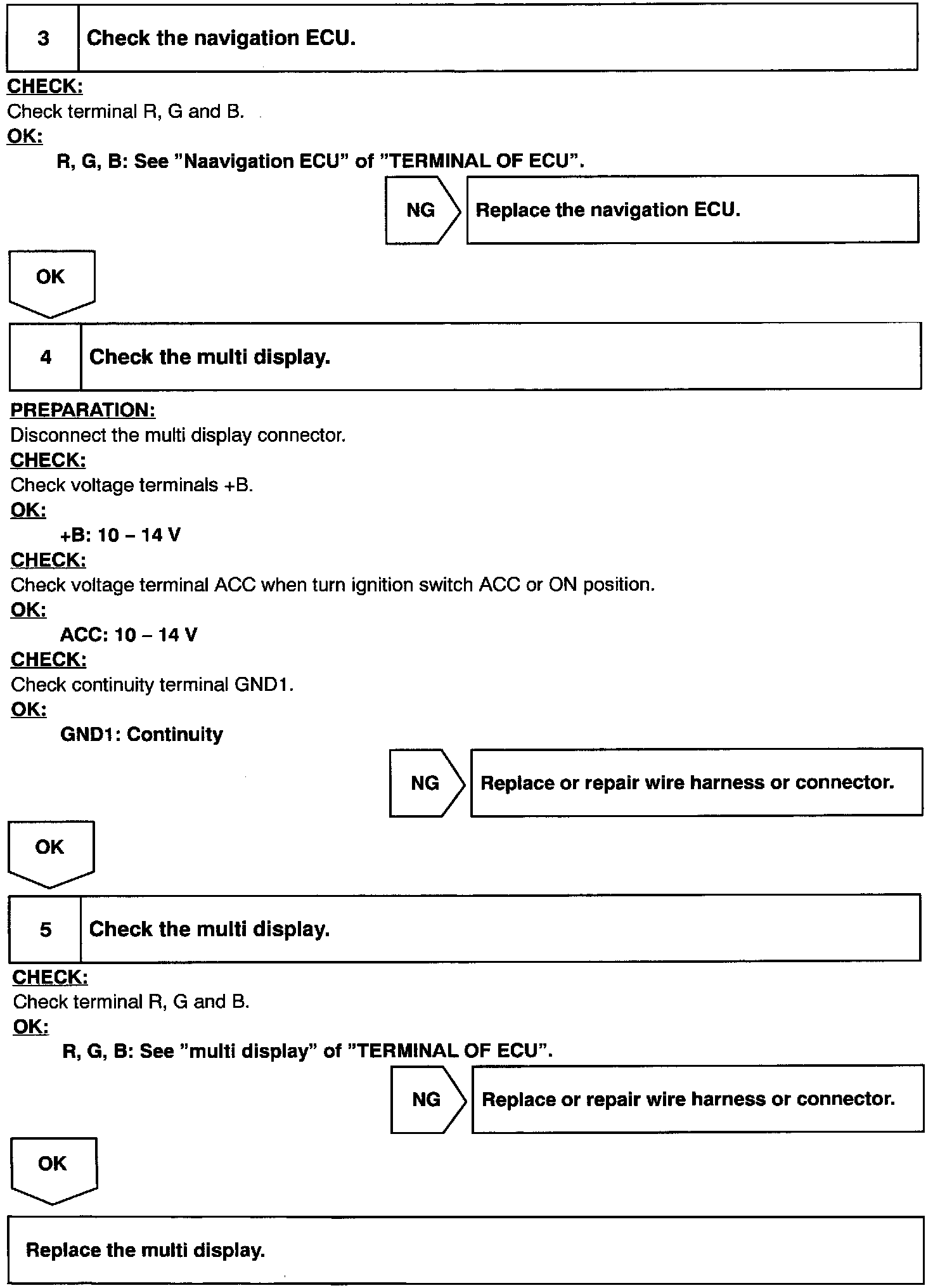

Steps 3 - 5:




INSPECTION PROCEDURE
