02 - No Sound With Power Switch Pressed
02 - No Sound With Power Switch Pressed

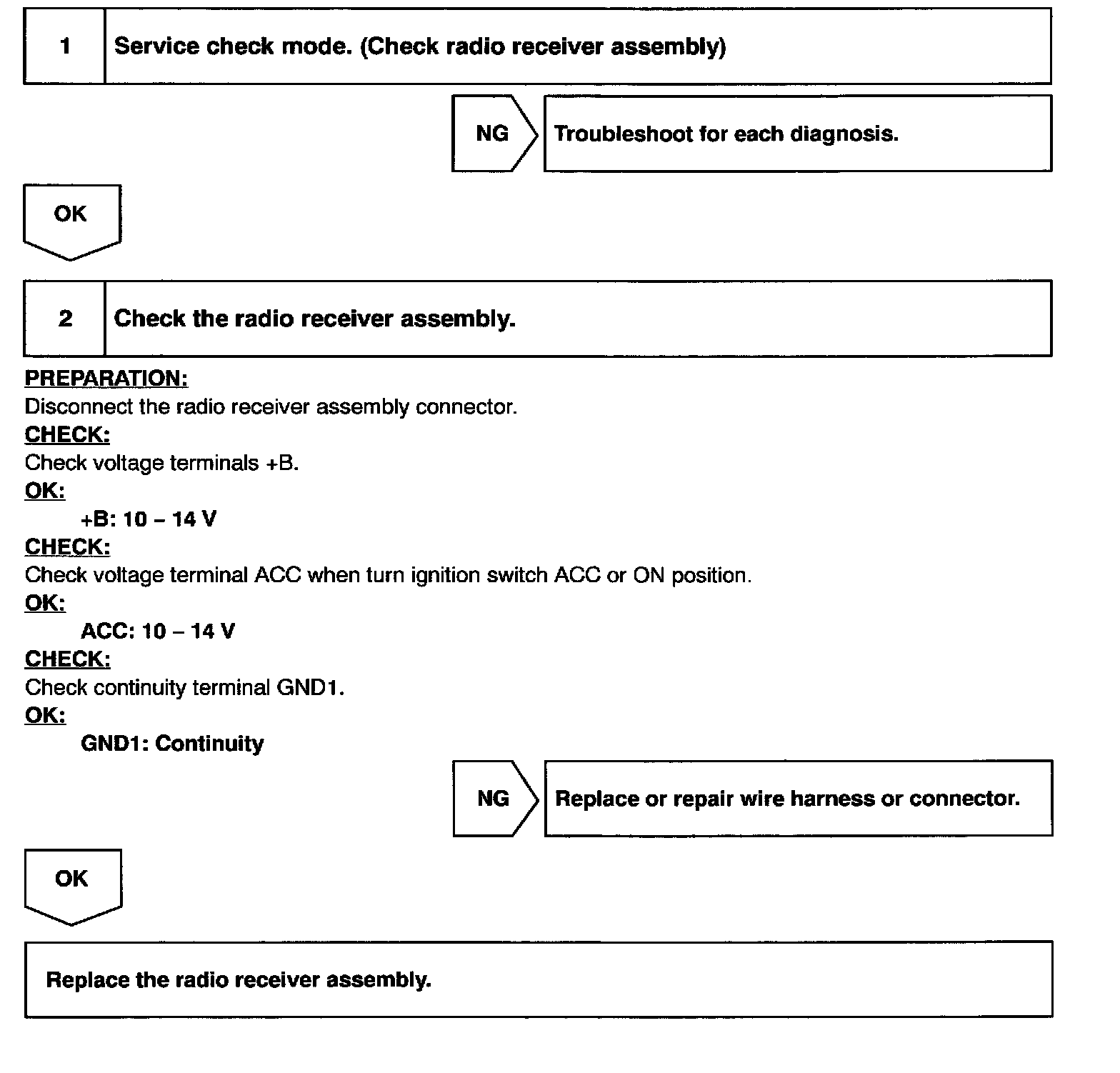

2. No Sound With Power Switch Pressed ("Audio OFF" on Audio Screen)
Steps 1 - 2:
INSPECTION PROCEDURE
