Home >> Lexus >> 2001 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 01 - Black Screen (Nothing Displayed)

01 - Black Screen (Nothing Displayed)

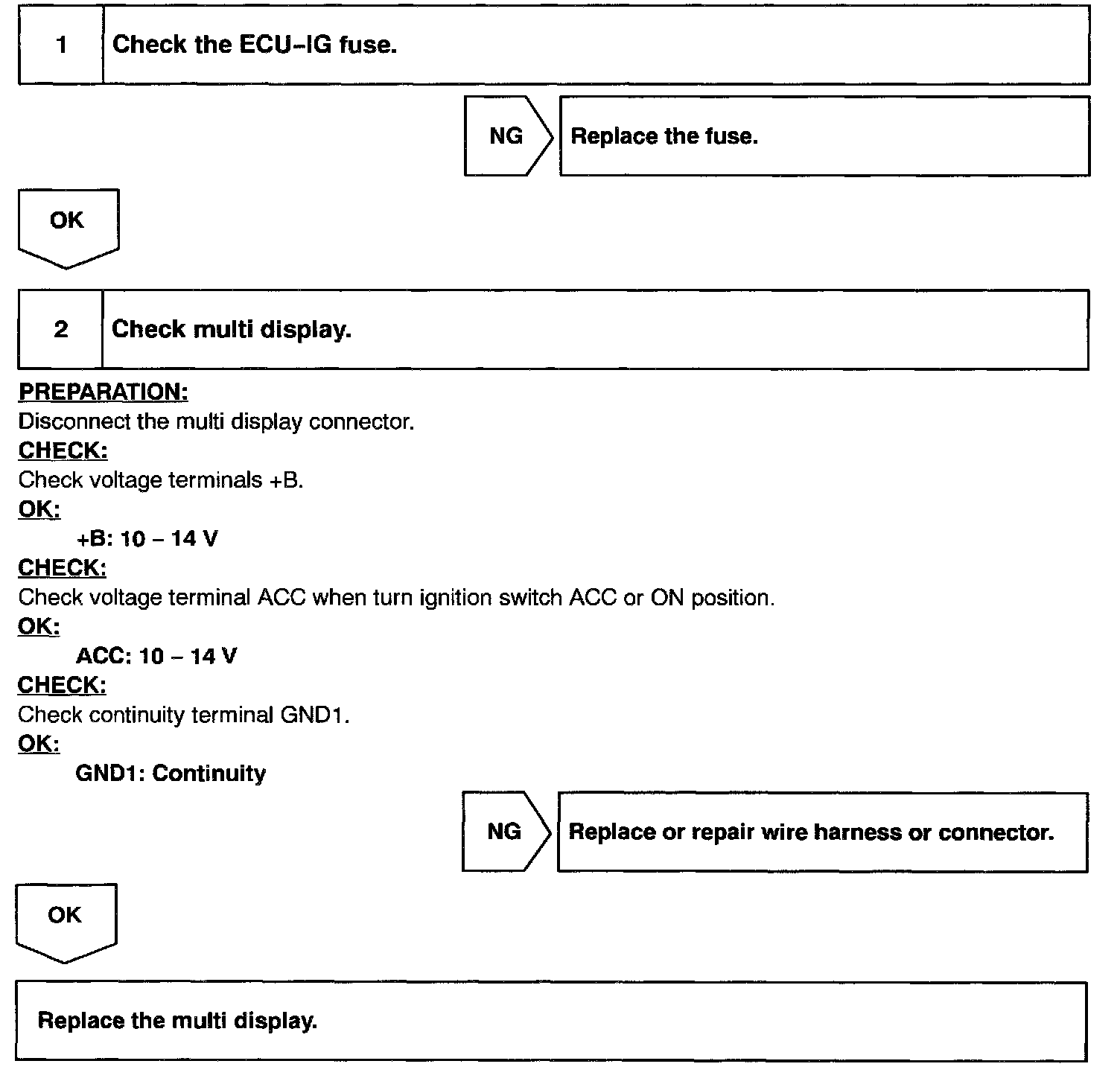

1. Black Screen (Nothing Displayed)

Steps 1 - 2:




INSPECTION PROCEDURE
