4. Display Check Mode

NOTE: This is the only information provided by the manufacturer for reading Diagnostic Trouble Codes for this system.


DISPLAY CHECK MODE

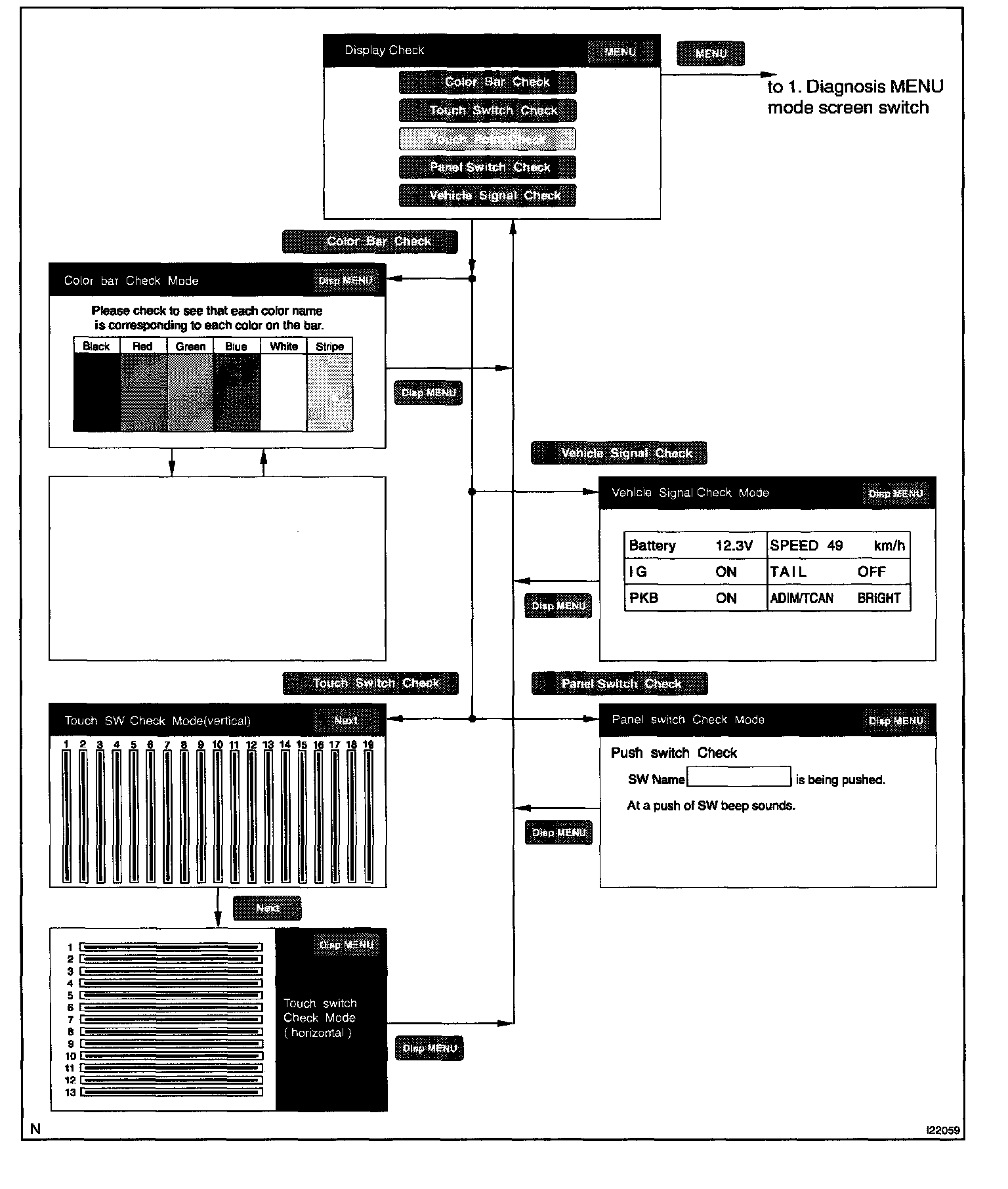

HINT: Display Check Mode is operated as given in the flow chart.

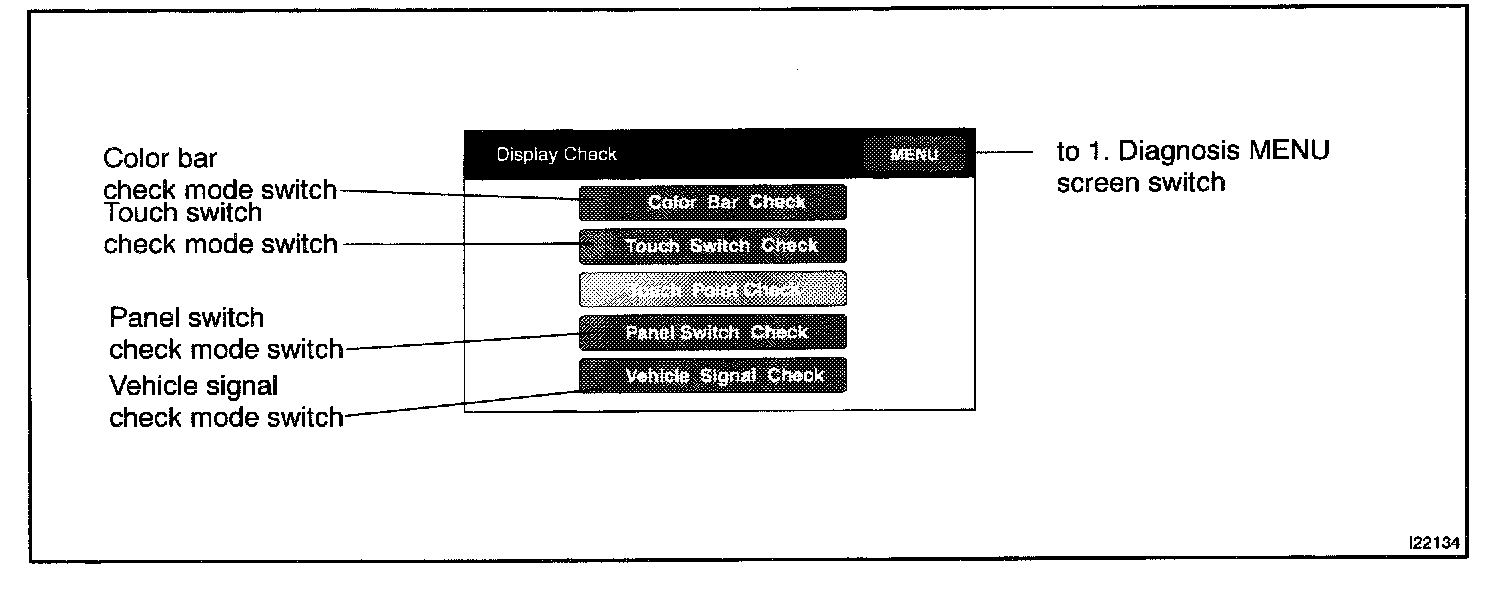

a. DISPLAY CHECK MENU SCREEN
1. Various screens to check the display are started from this screen.
2. Color Bar Check Mode Switch
Pressing this switch activates the Color Bar Check Mode screen.

3. Touch Switch Check Mode Switch
Pressing this switch activates the Touch Switch Check Mode screen.

4. Touch Point Check Mode Switch
Pressing this switch activates the Touch Point Check Mode screen.

5. Vehicle Signal Check Mode Switch
Pressing this switch activates the Vehicle Signal Check Mode screen.

6. Diagnosis MENU Screen Switch
Pressing this switch activates the Diagnosis MENU screen.

7. Panel Switch Check Mode Switch
Pressing this switch activates the Panel Switch Check Mode Screen.

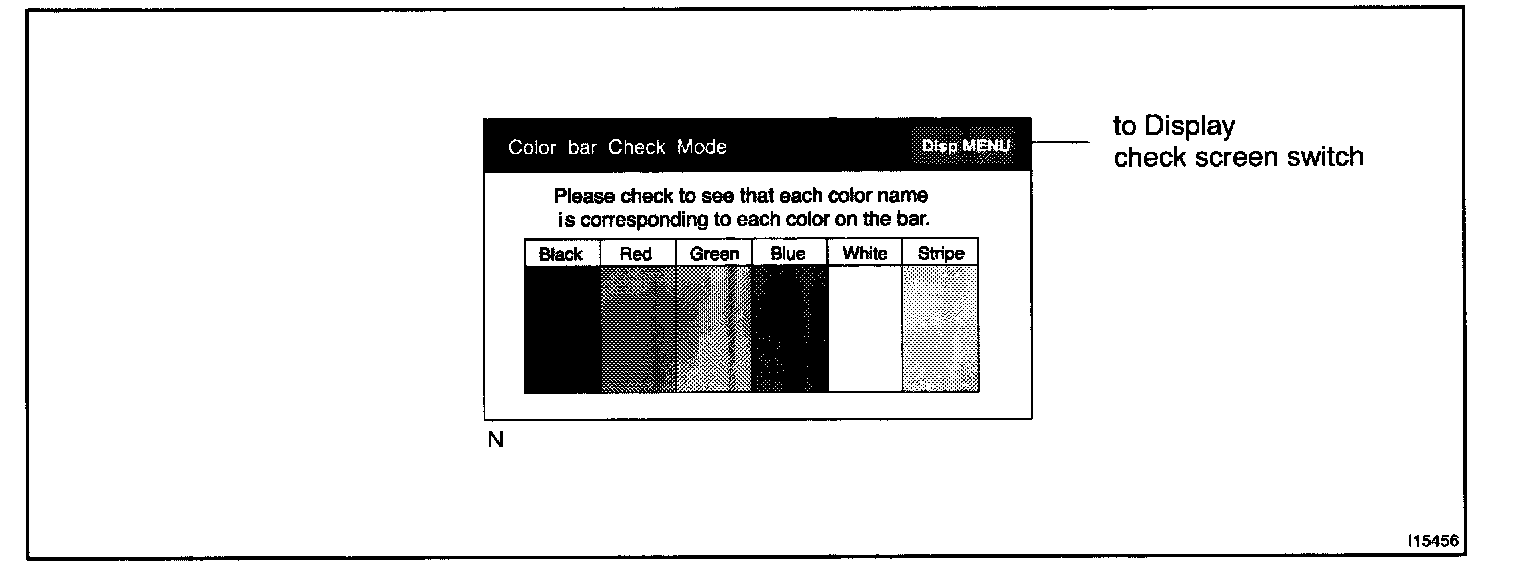

b. COLOR BAR CHECK MODE SCREEN

1. Color display is checked in this screen.
2. Color Bar:
Black, Red, Green, Blue, White and Stripe is displayed in bars.

If a bar is touched, color or stripe of the bar is appeared all over the screen. When touched again, it returns to the previous screen.

3. Display Check Screen Switch
Pressing this switch activates the Display Check Mode screen.

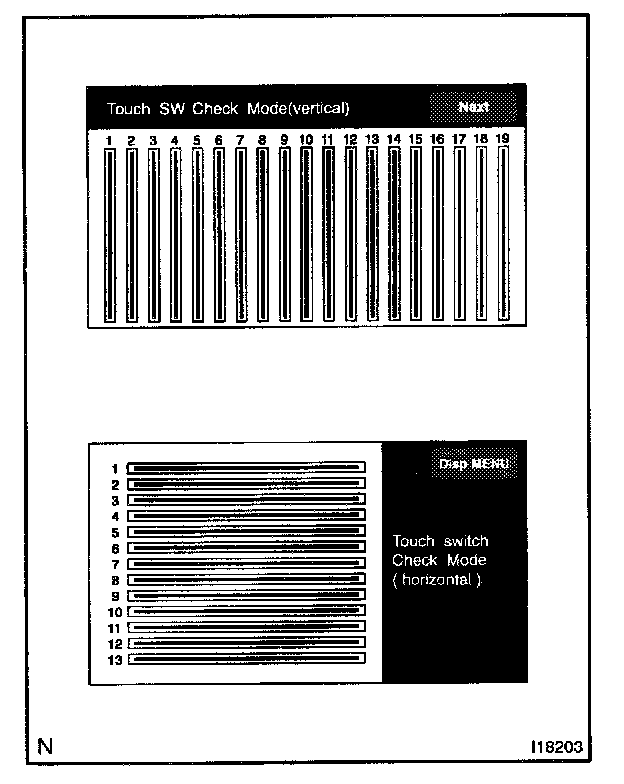

c. TOUCH SWITCH CHECK MODE SCREEN

1. Operating condition is checked line by line in the Touch Switch Check Mode screen.
2. Check Line:
Lines are displayed by using infrared beams in this screen.

Once a beam is blocked off by touching the screen with a fingertip, the blocked part of the line is deleted.

3. Horizontal Line Check Screen Switch:
Pressing this switch activates a screen in which beams of horizontal lines are checked.

4. Display Check Mode Switch
Pressing this switch activates the Display Check Mode screen.

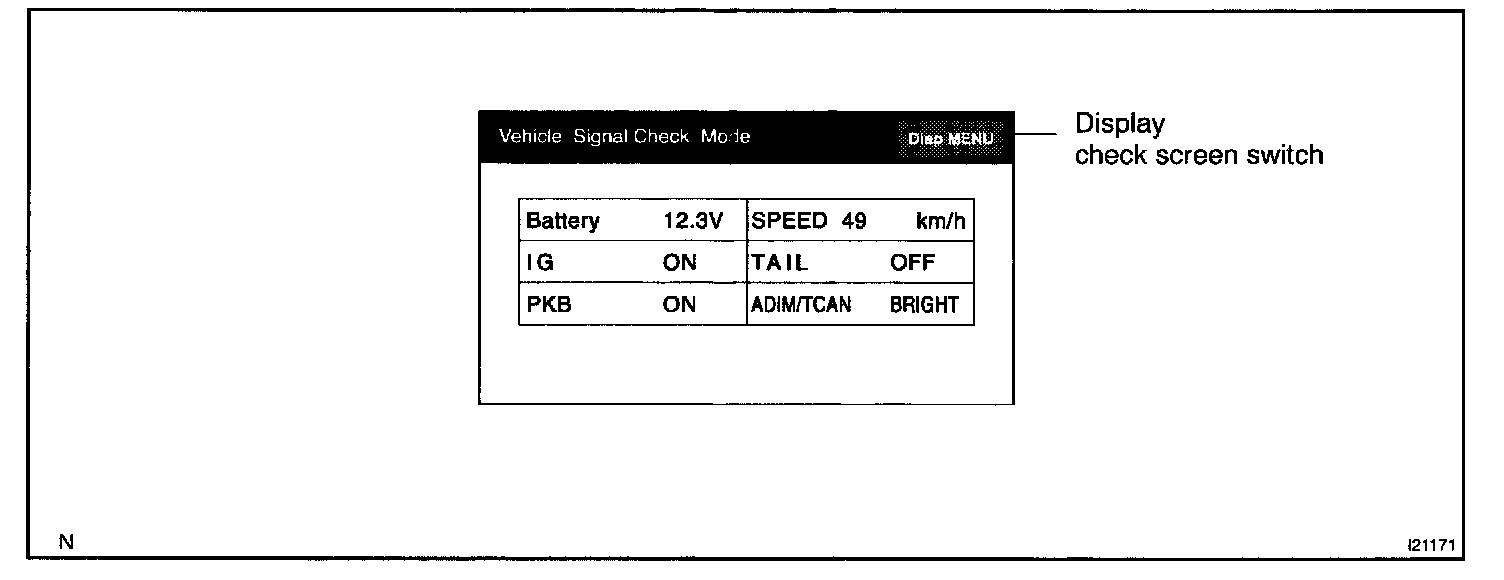

d. VEHICLE SIGNAL CHECK MODE SCREEN

1. Status of the Vehicle Signal which has been loaded into the display is checked in this screen.
2. Signal Description

Battery: Displays battery voltage in V.
IG: Displays ON or OFF of the ignition switch.
PKB: Displays ON (applied) or OFF (released) of the parking brake.
SPEED: Displays the vehicle speed in km/h.
TAIL: Displays ON or OFF of the tail light switch.
ADIM/TCAN: Displays DIM or BRIGHT of the ADIM signal information.

3. Display Check Screen Switch
Pressing this switch activates the Display Check Mode screen.

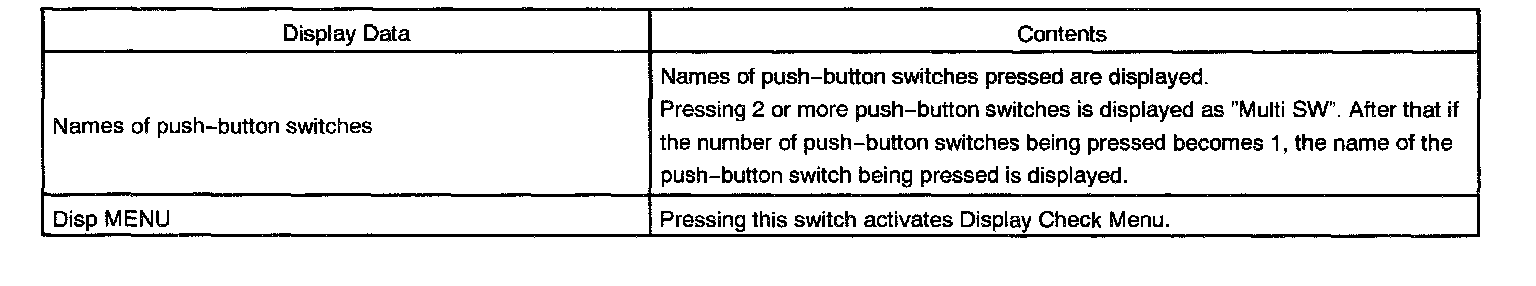

e. PANEL SWITCH CHECK MODE SCREEN




1. Start the Diagnosis system.
2. Select "MENU".
3. Select "Display Check"
4. Select "Panel Switch Check".





5. Press each switch and make sure that it corresponds to the display on the screen.
