1. Diagnosis System Mode

NOTE: This is the only information provided by the manufacturer for reading Diagnostic Trouble Codes for this system.


DIAGNOSIS SYSTEM MODE

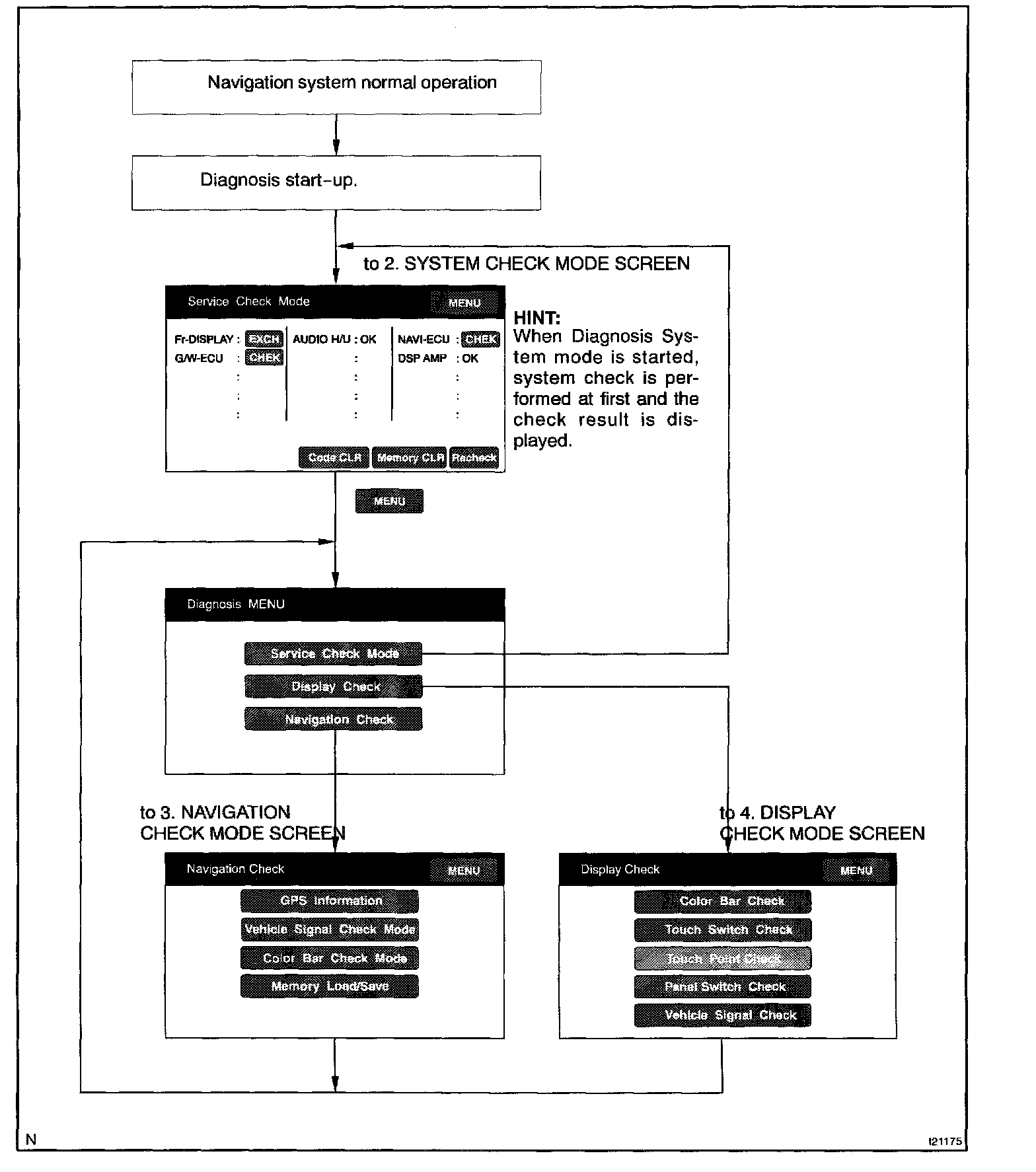

HINT: Diagnosis System Mode is operated as given in the flow chart.

a. DIAGNOSIS START-UP
To start the diagnosis menu, there are 2 ways: using a diagnosis check wire and using a switch.





b. START-UP BY SWITCH OPERATION (light control switch)
1. Vehicle speed is 0 km/h (0 mph).
2. Parking brake switch is pressed.
3. While pressing "INFO" switch, by turning the light control switch to OFF, TAIL, OFF, TAIL, OFF, TAIL and OFF the system is started up.

c. START-UP BY SWITCH OPERATION (touch panel)
1. Vehicle speed is 0 km/h (0 mph).
2. Parking brake switch is pressed.
3. Press the "INFO" switch to display the Screen Adjustment screen.

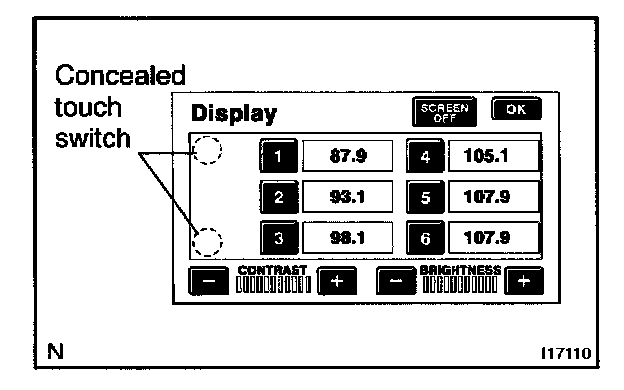

4. Repeatedly touch the upper and lower bottom parts of the left end of the screen 3 times.

d. FINISHING DIAGNOSIS SYSTEM MODE
Turn the ignition switch from ACC to OFF to finish the mode. If it is started by switch operation.
