Pinout Values and Diagnostic Parameters

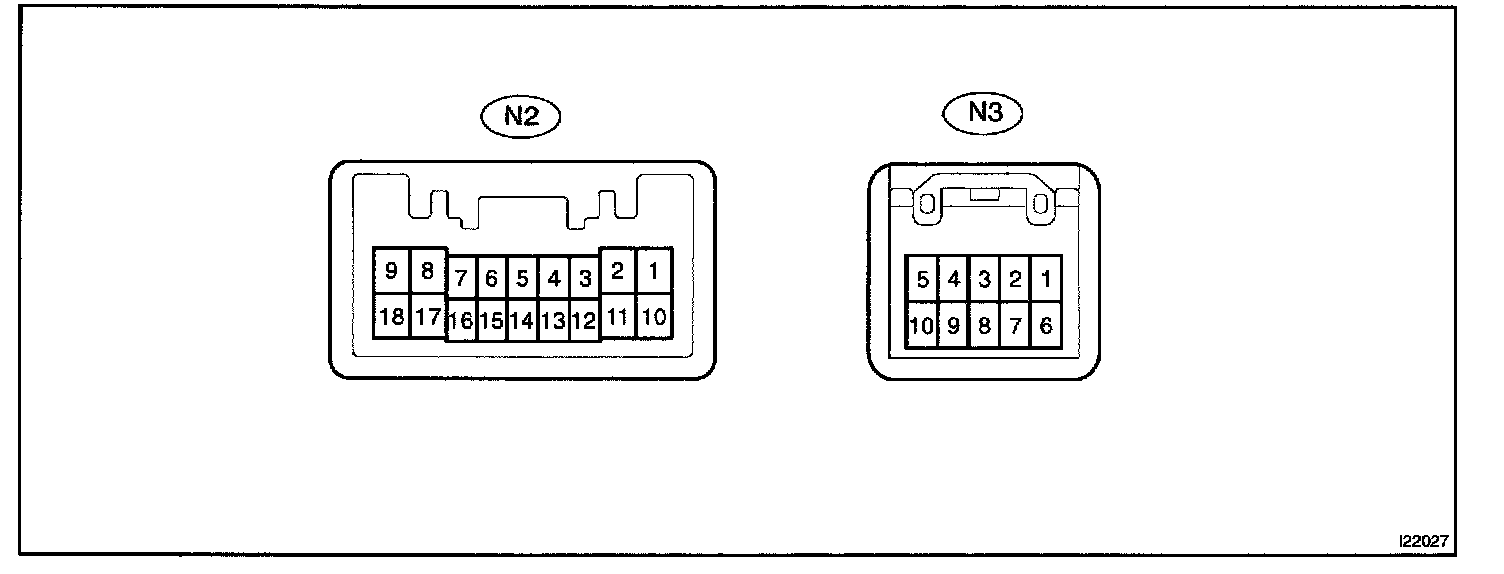

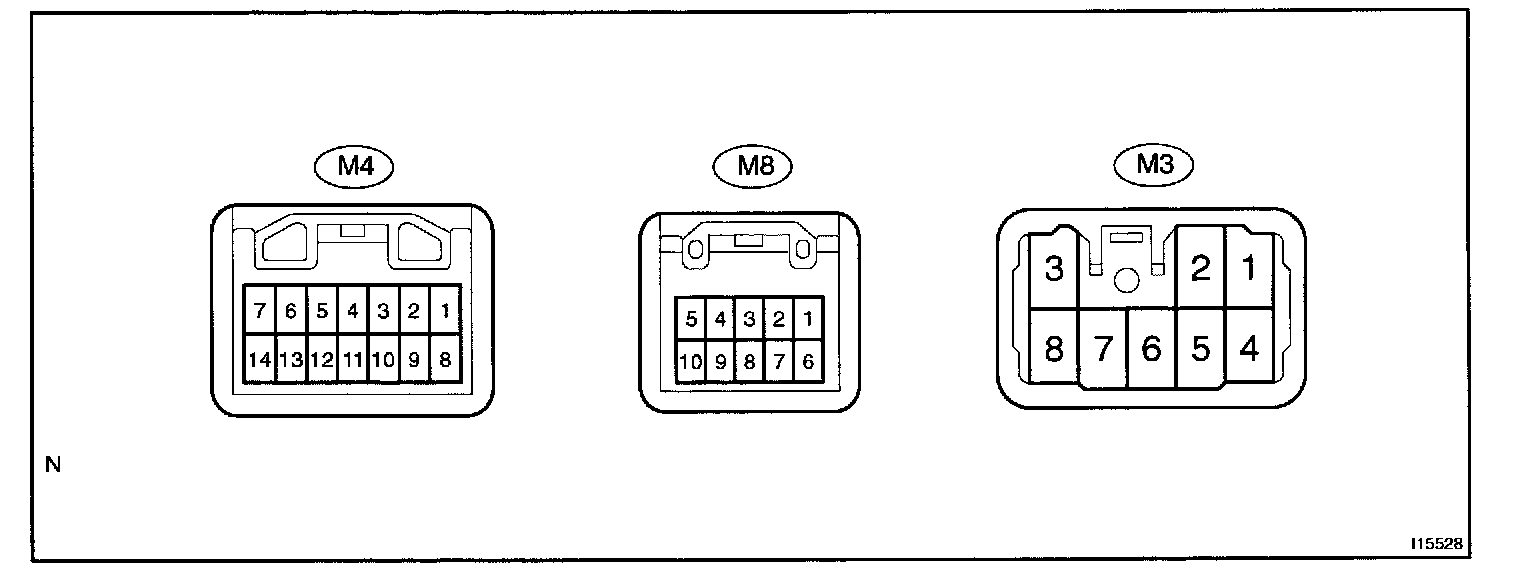

Terminals Of ECU (Multi Display) - Connector View:

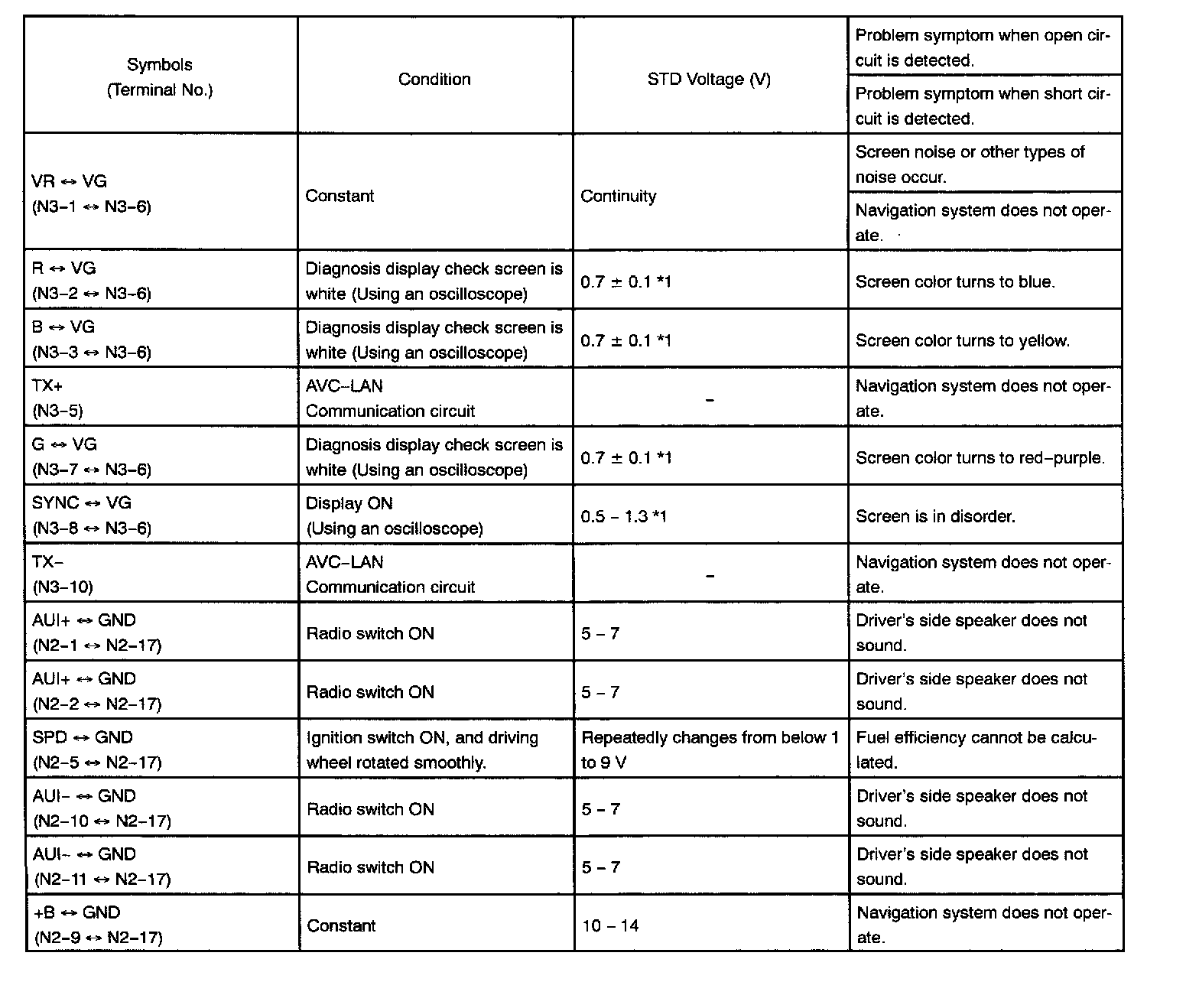

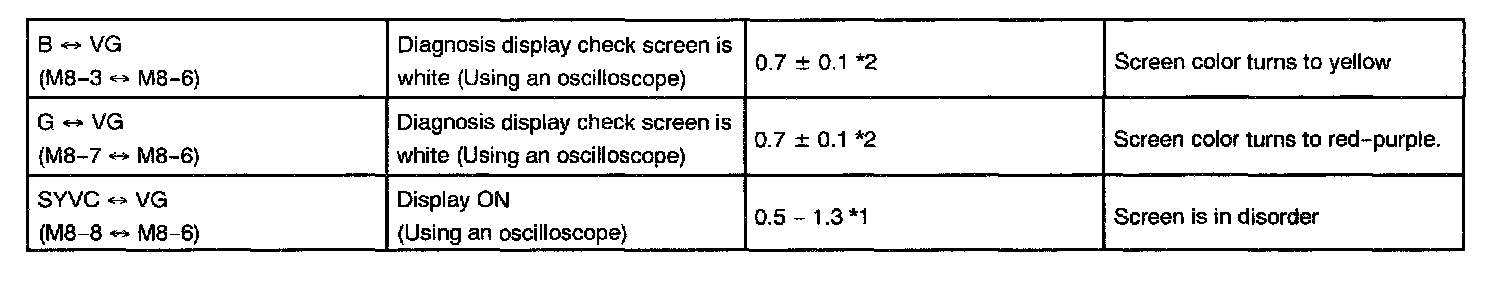

Terminals Of ECU (Multi Display) - Connector Pinouts (Part 1):

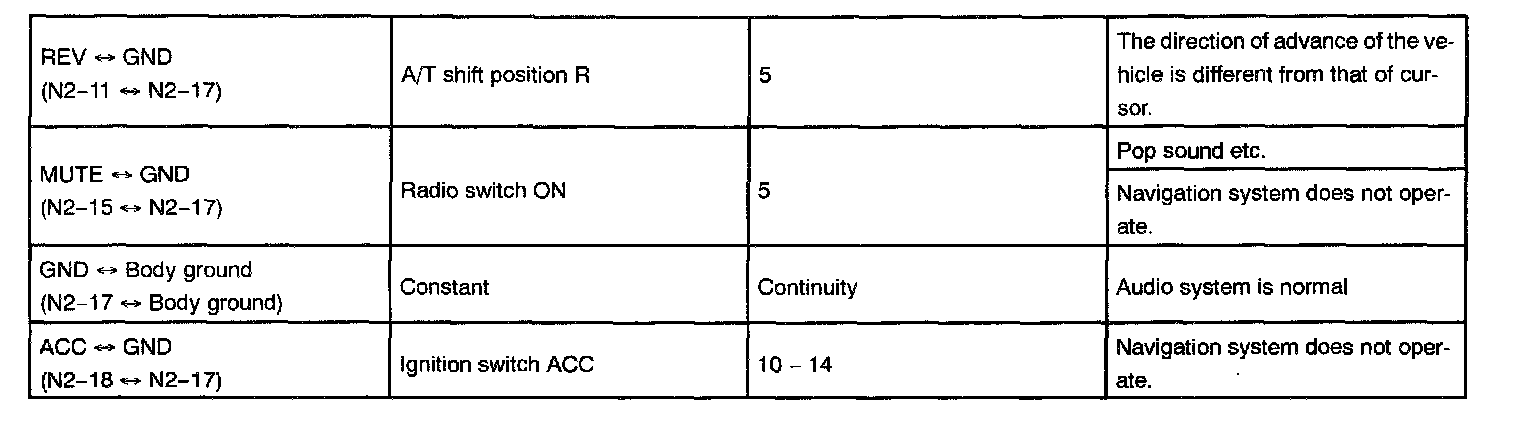

Terminals Of ECU (Multi Display) - Connector Pinouts (Part 2):

Navigation ECU - Connector View:

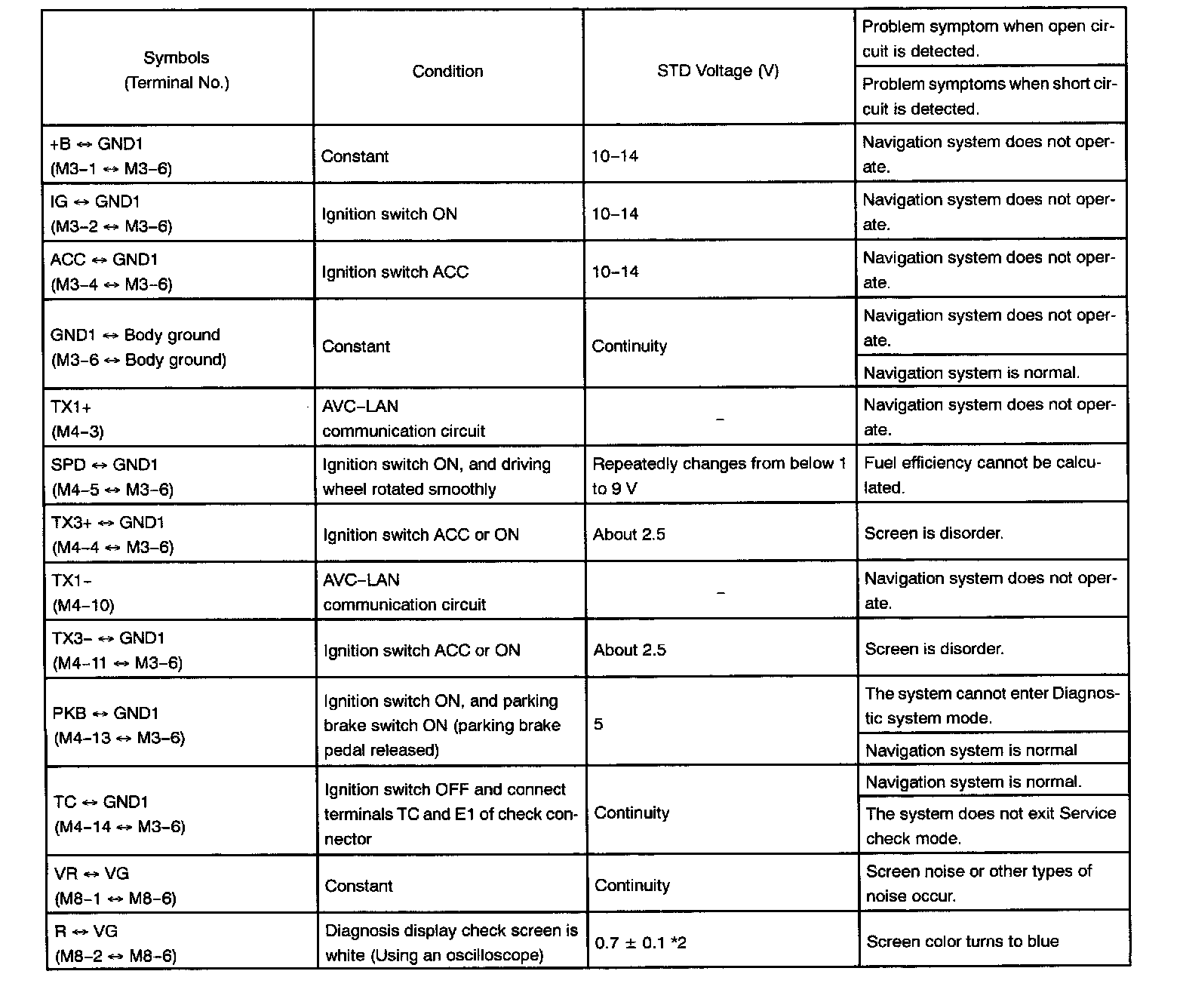

Navigation ECU - Connector Pinouts (Part 1):

Navigation ECU - Connector Pinouts (Part 2):

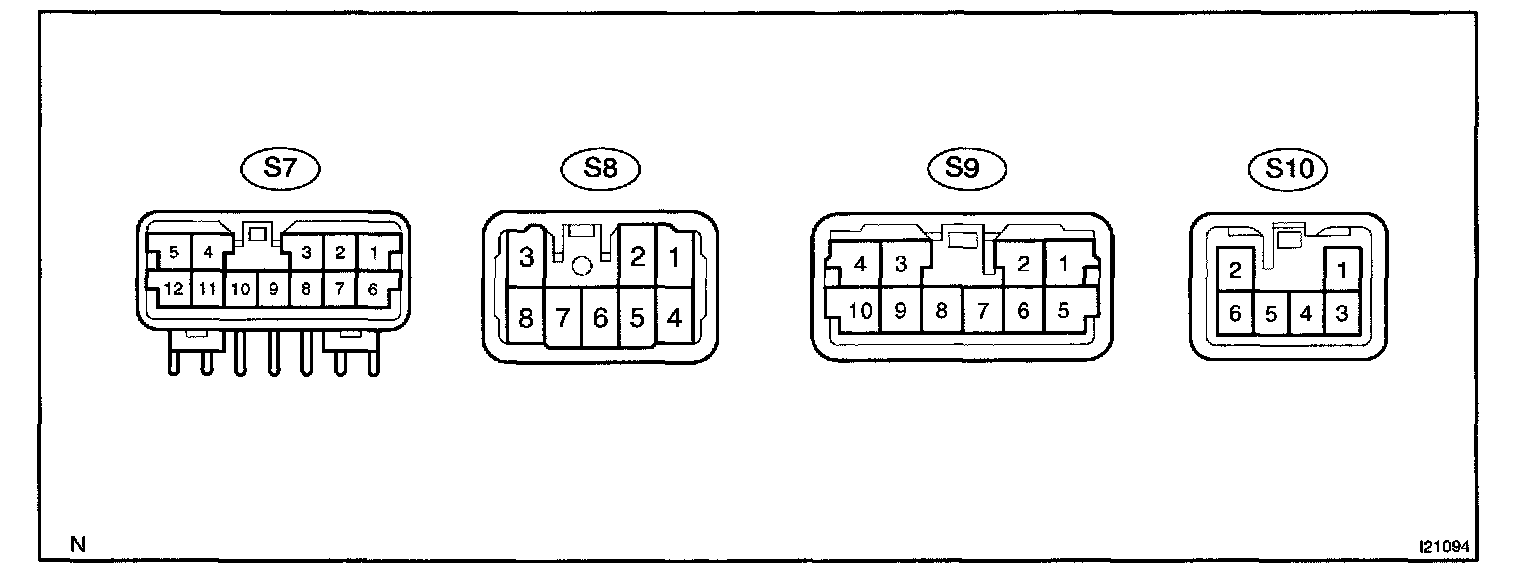

Audio Head Unit - Connector View:

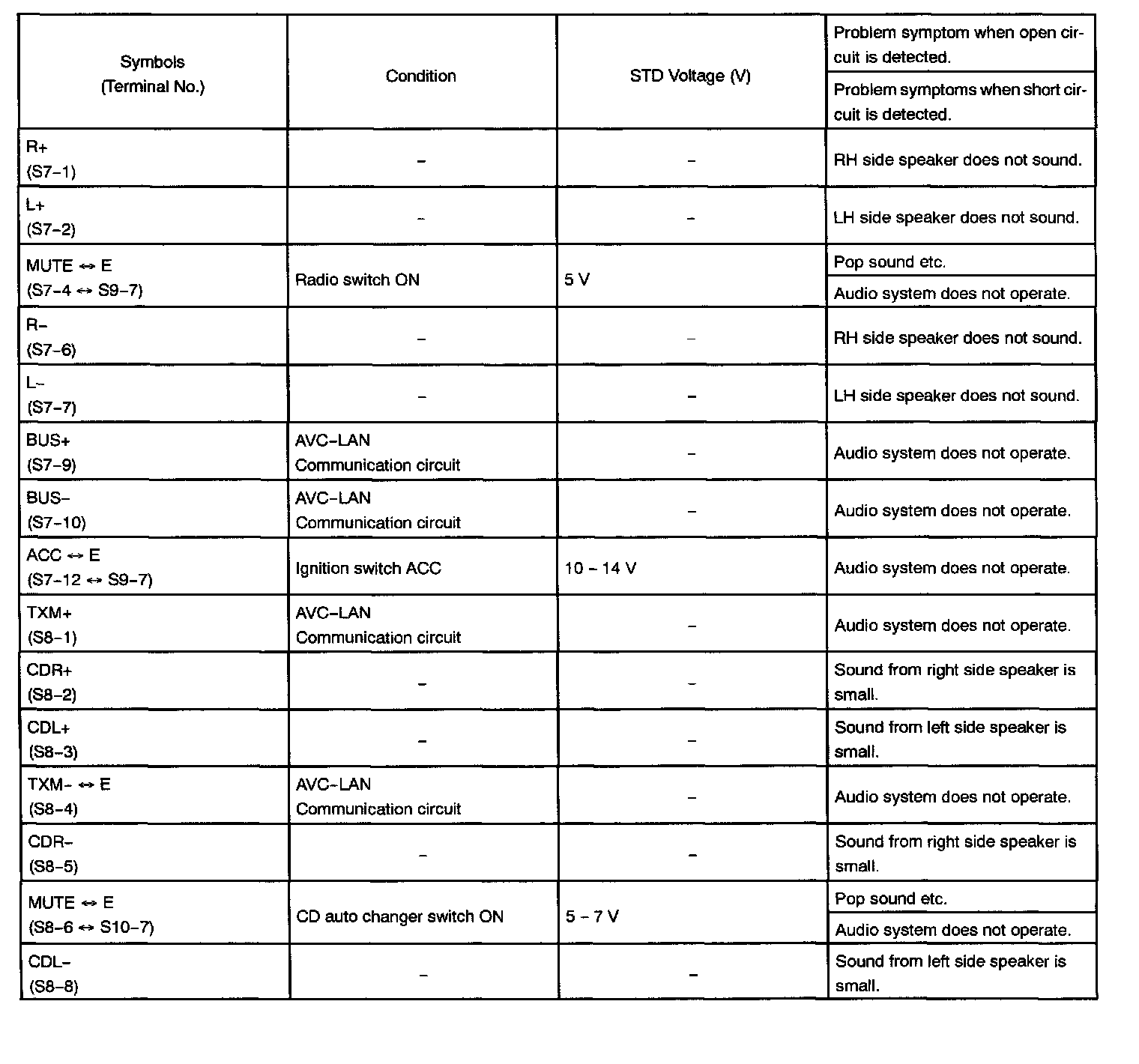

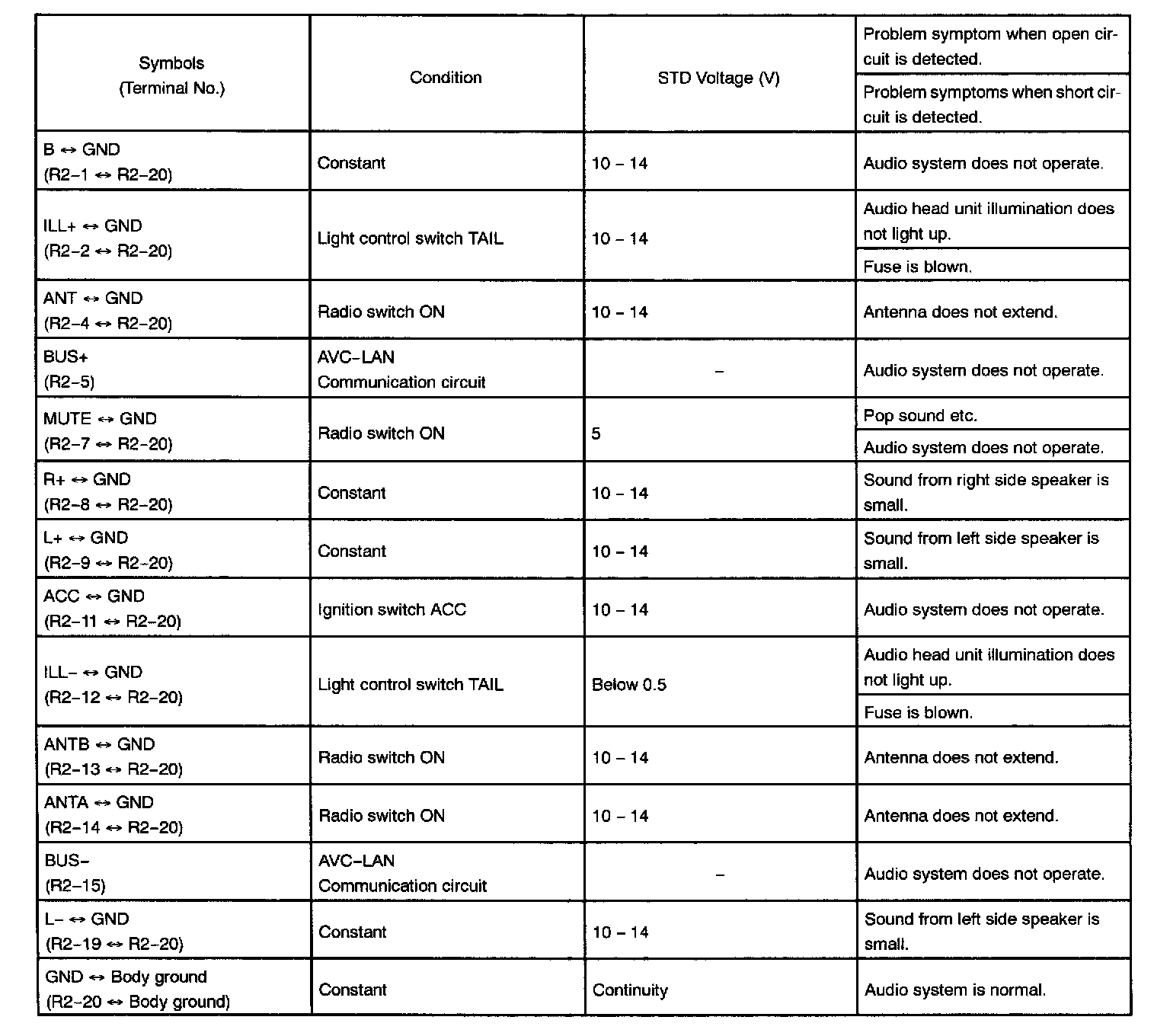

Audio Head Unit - Connector Pinouts (Part 1):

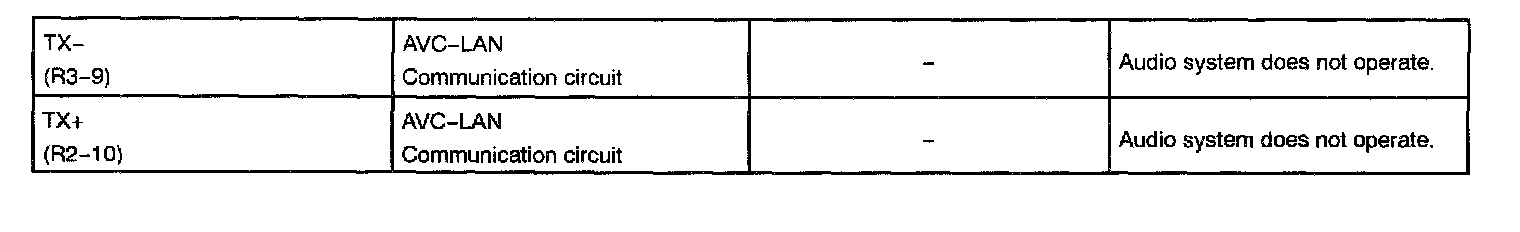

Audio Head Unit - Connector Pinouts (Part 2):

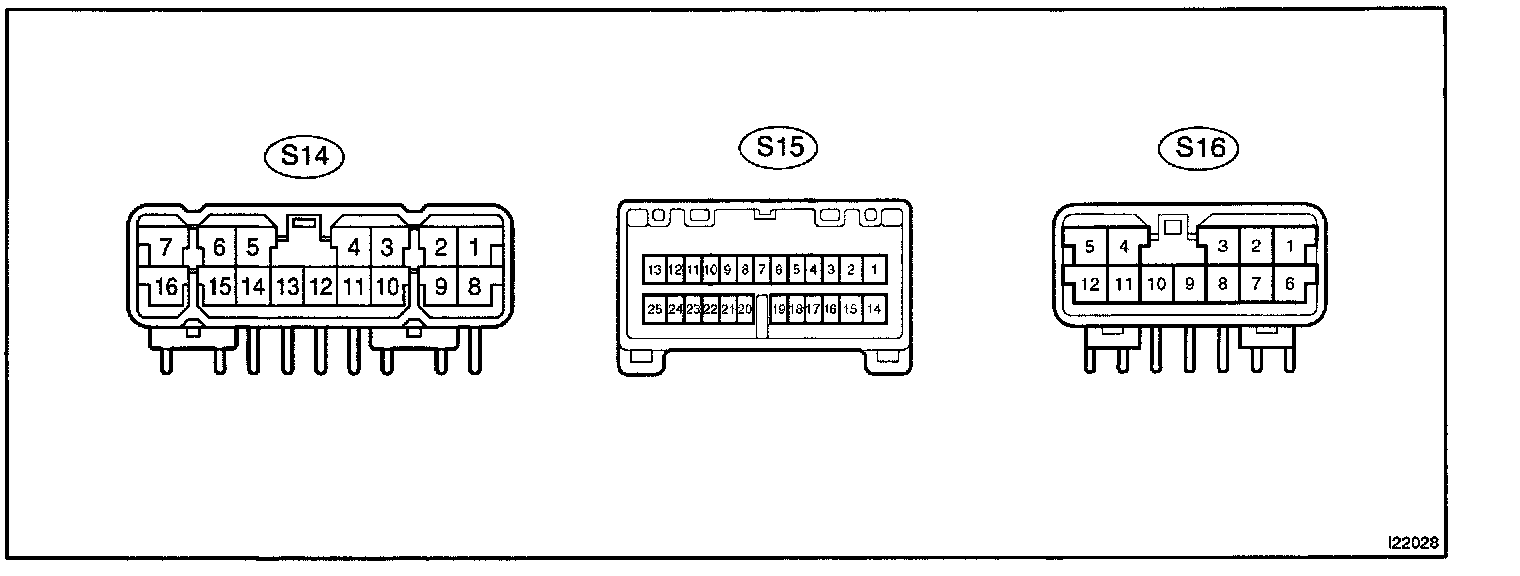

Stereo Component Amplifier (Pioneer Made) - Connector View:

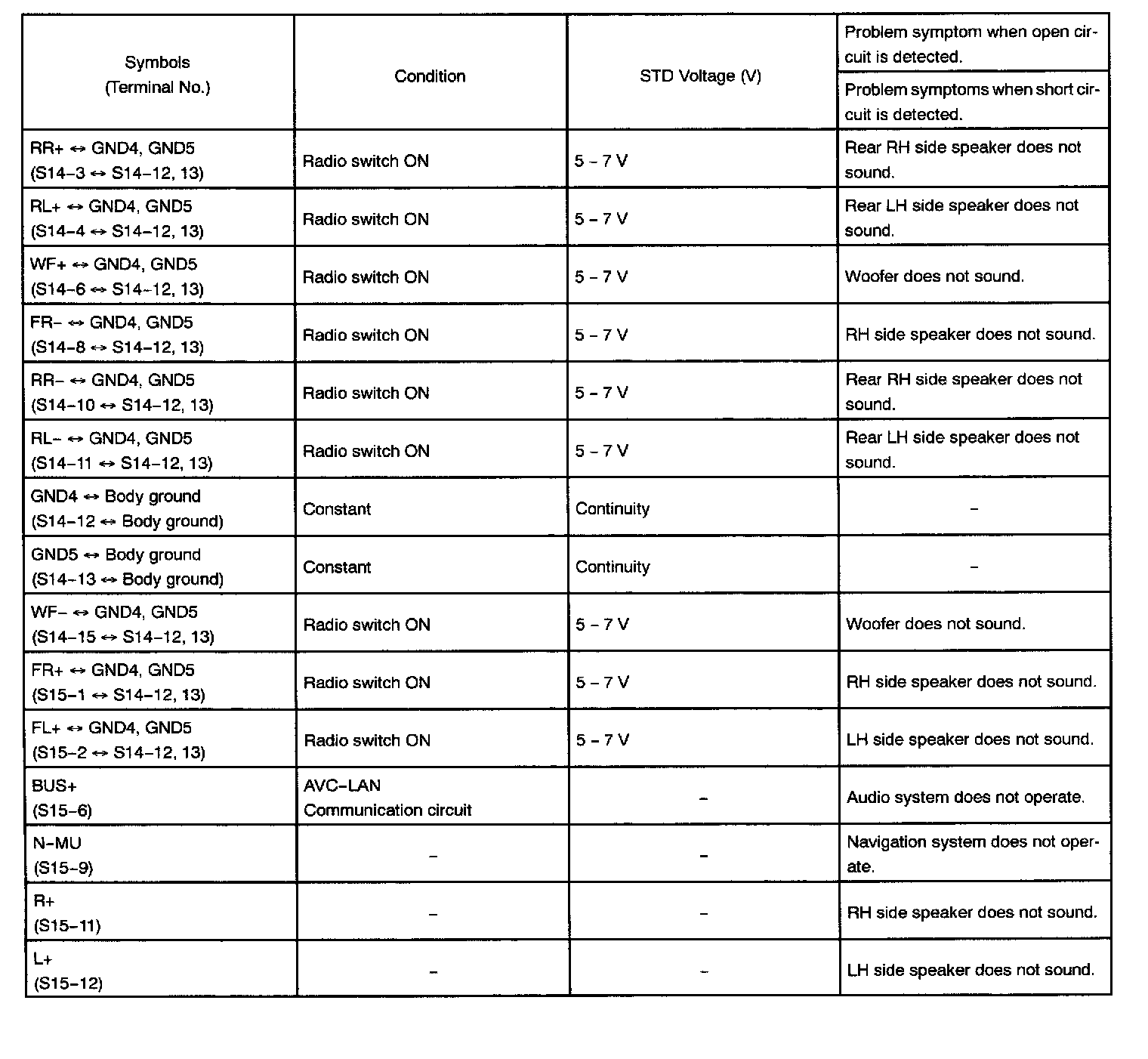

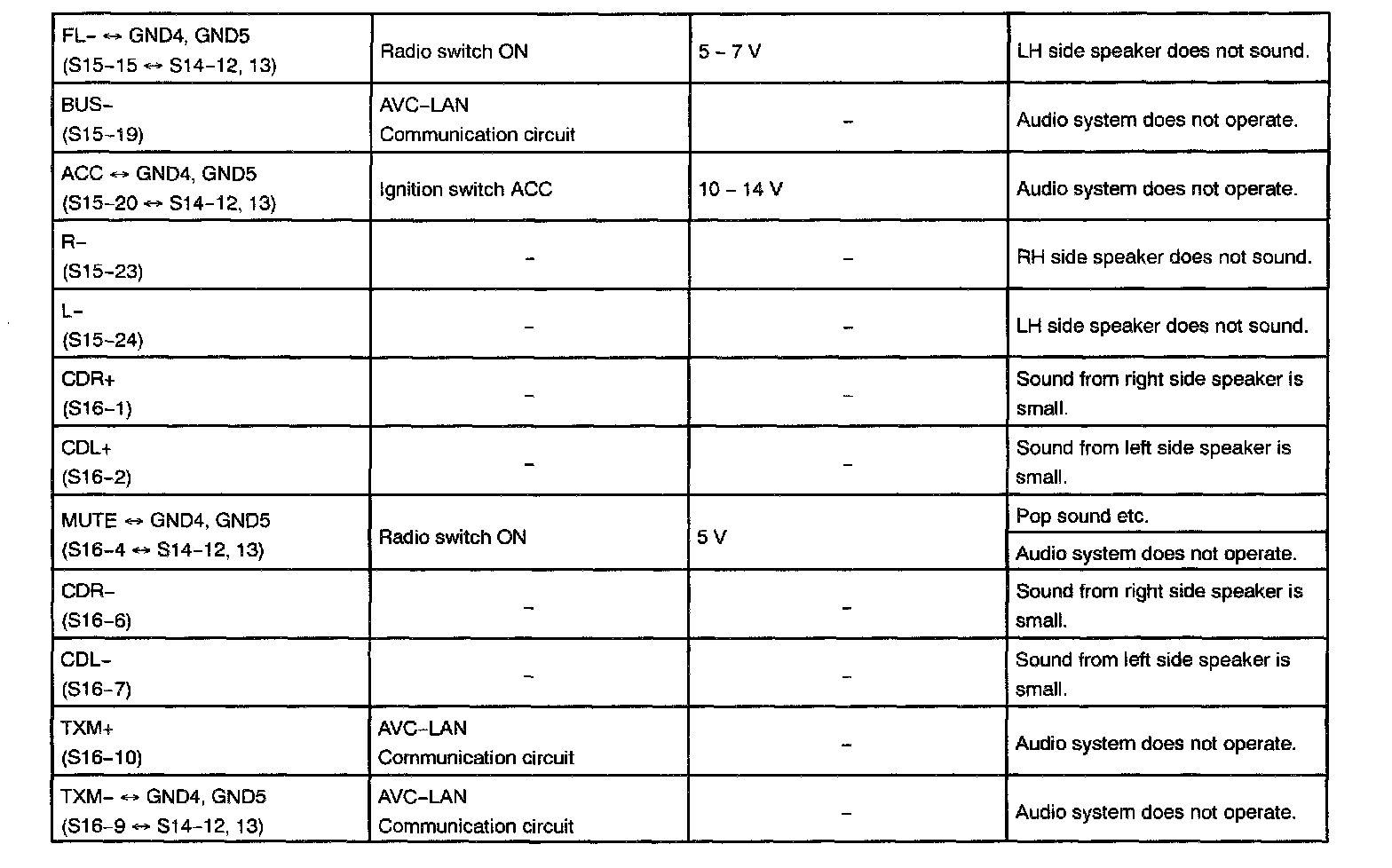

Stereo Component Amplifier (Pioneer Made) - Connector Pinouts (Part 1):

Stereo Component Amplifier (Pioneer Made) - Connector Pinouts (Part 2):

Stereo Components Amplifier (Mark Levinson Made) - Connector View:

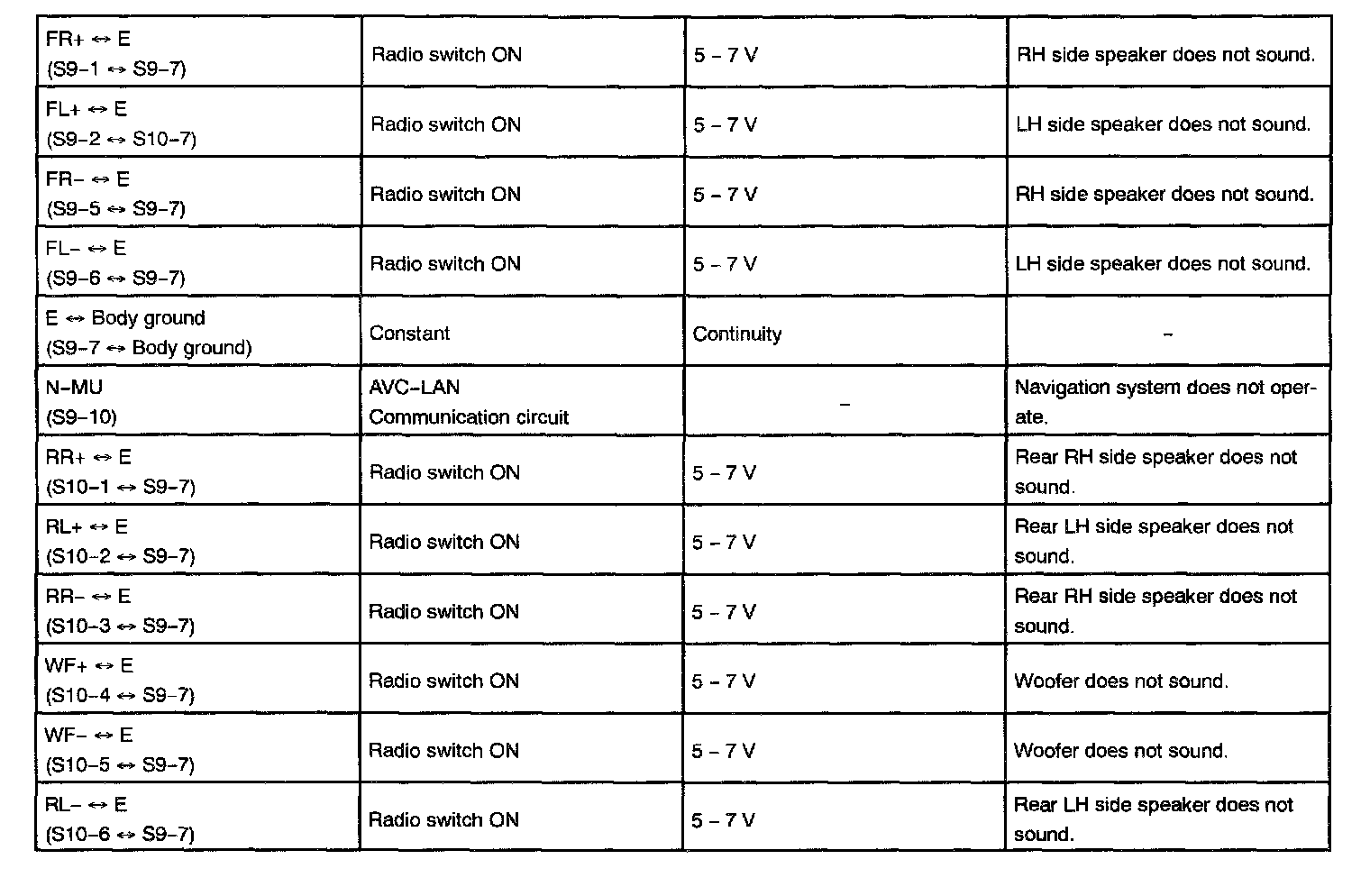

Stereo Component Amplifier (Mark Levinson Made) - Connector Pinouts (Part 1):

Stereo Component Amplifier (Mark Levinson Made) - Connector Pinouts (Part 2):

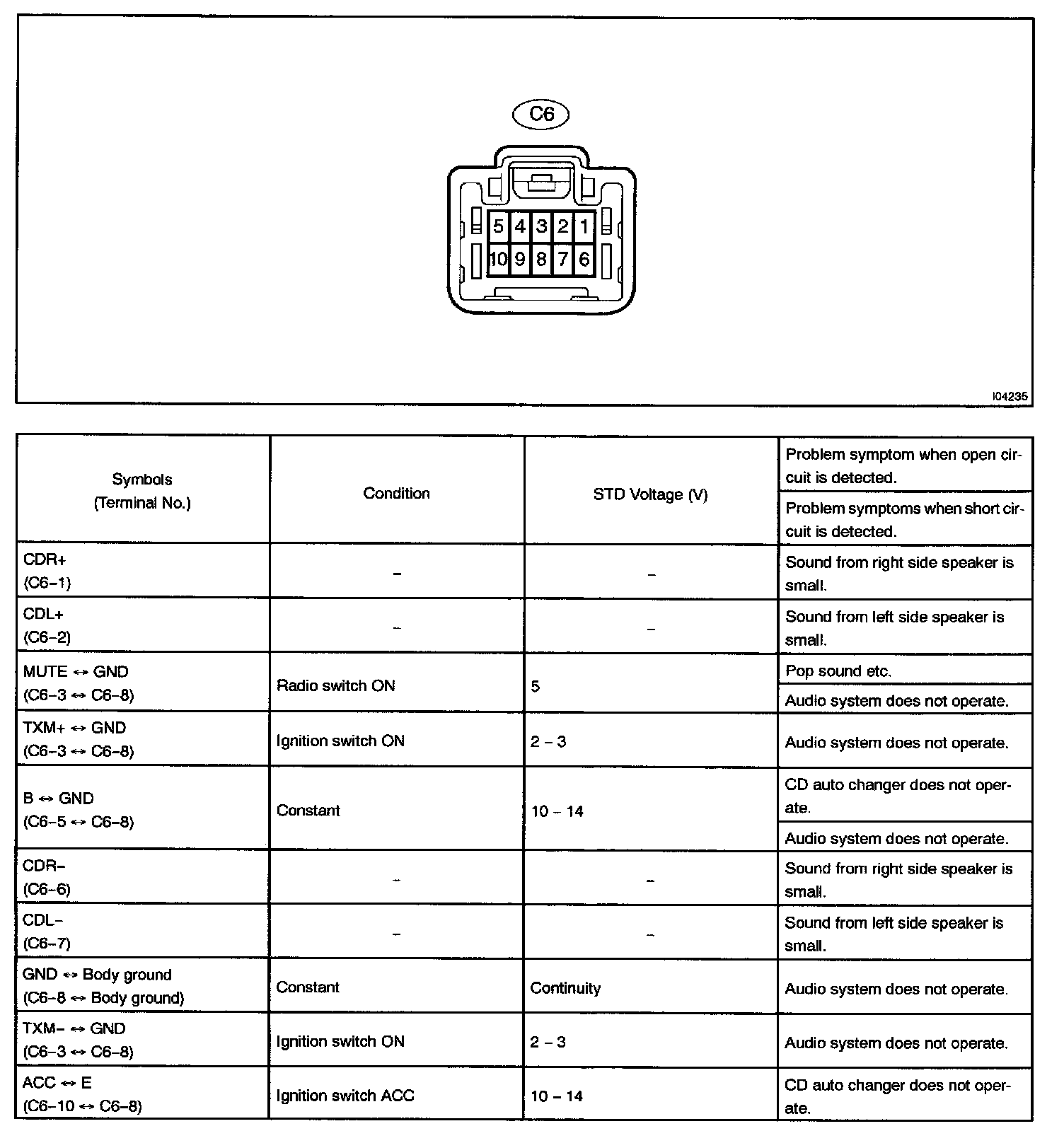

CD Auto Changer - View/Pinouts:

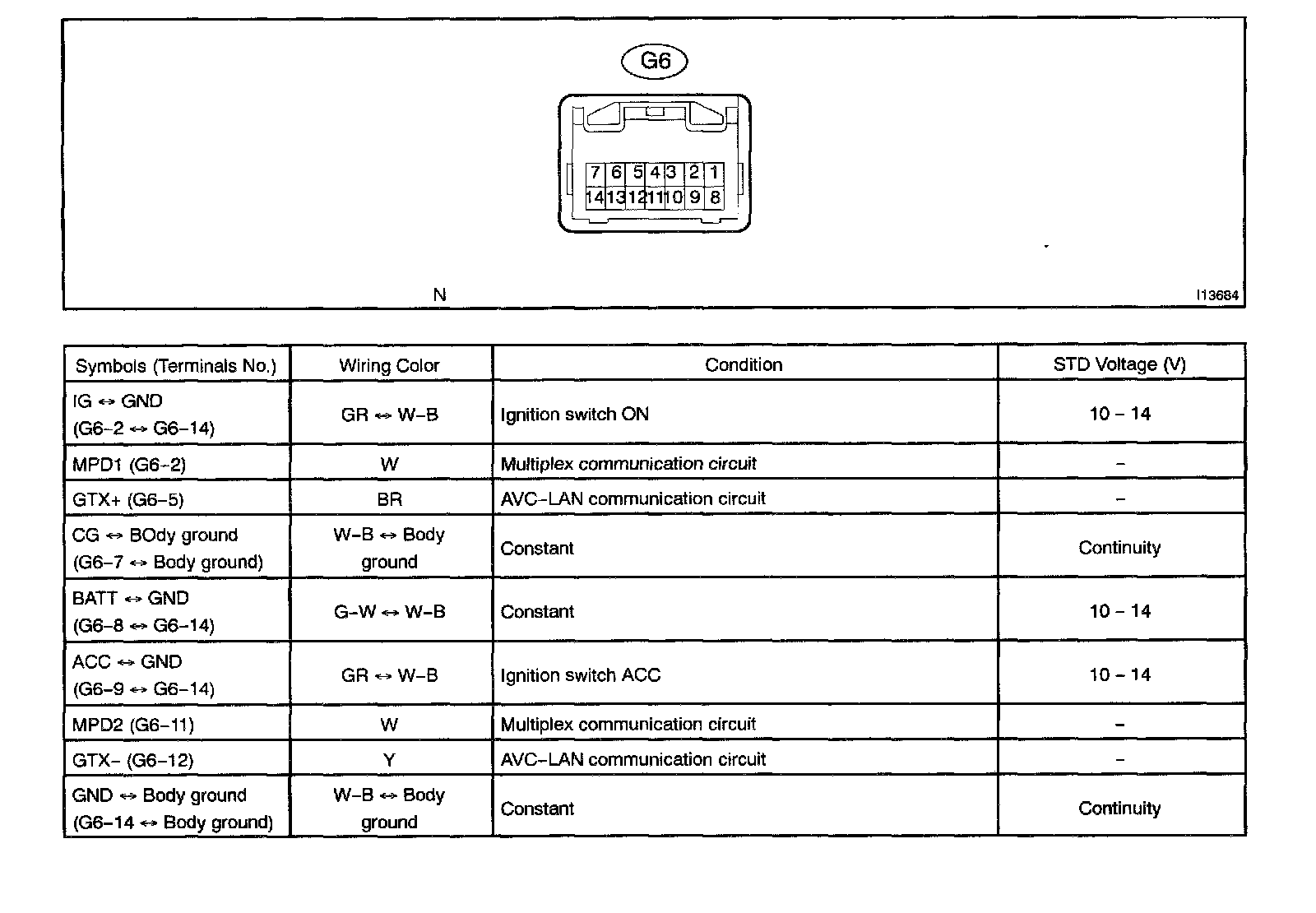

Gateway ECU - View/Pinouts:

Gateway ECU - Oscilloscope Wave:
