Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

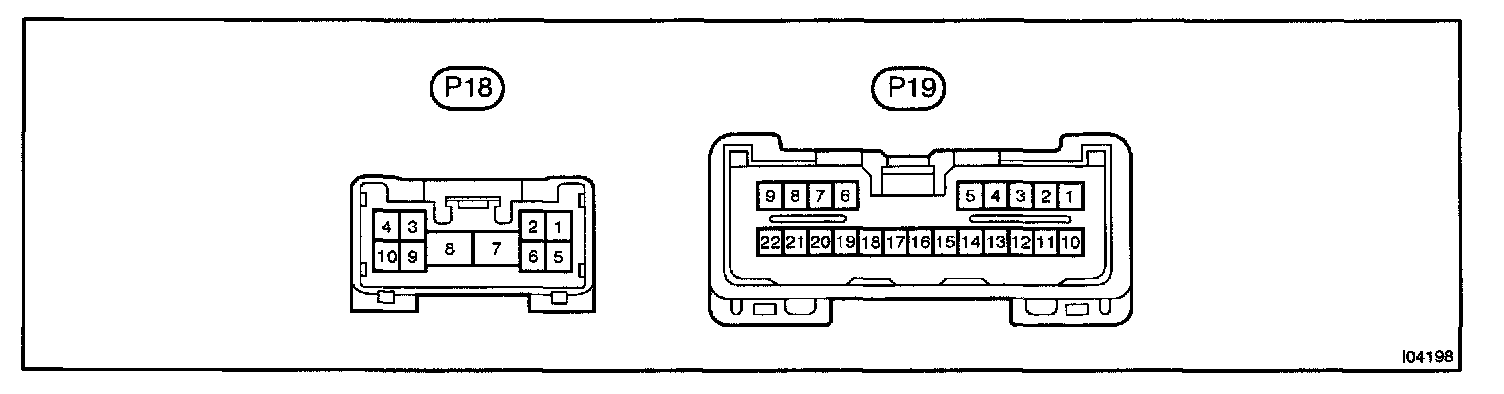

Terminals Of ECU - Connector View:

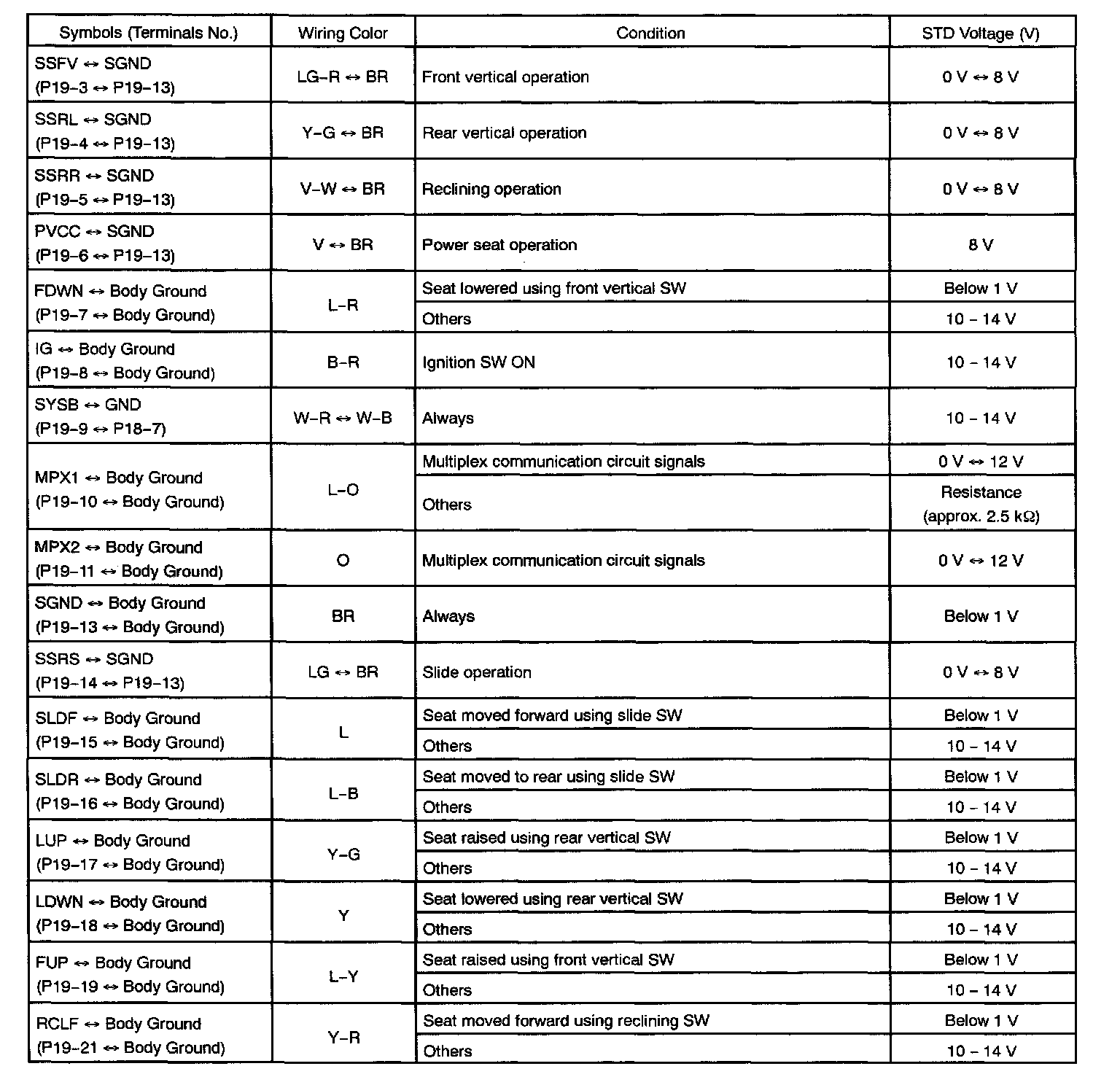

Terminals Of ECU - Connector Pinouts (Part 1):

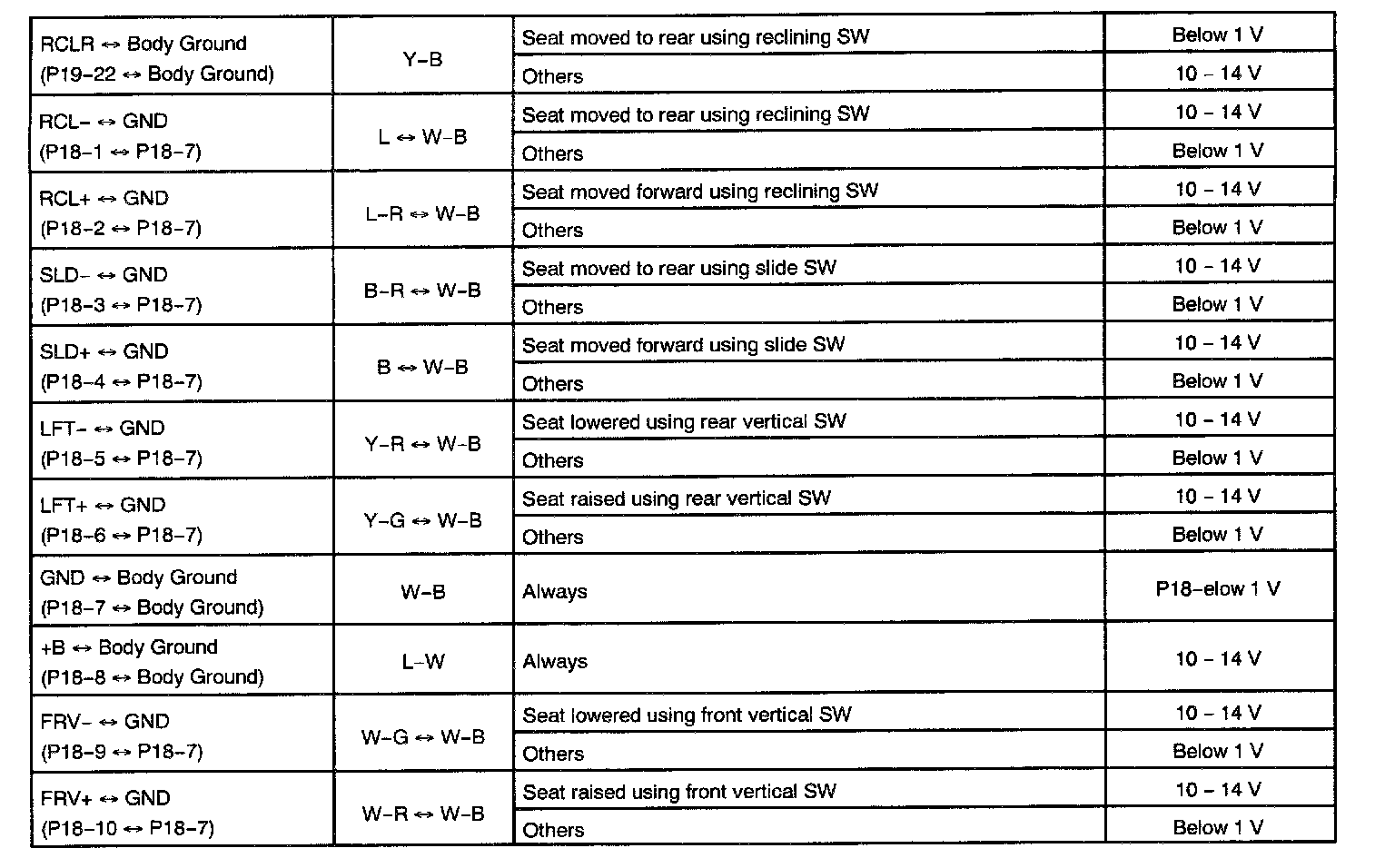

Terminals Of ECU - Connector Pinouts (Part 2):
