P1656 - OCV Circuit Malfunction (Bank 1)
CIRCUIT DESCRIPTION

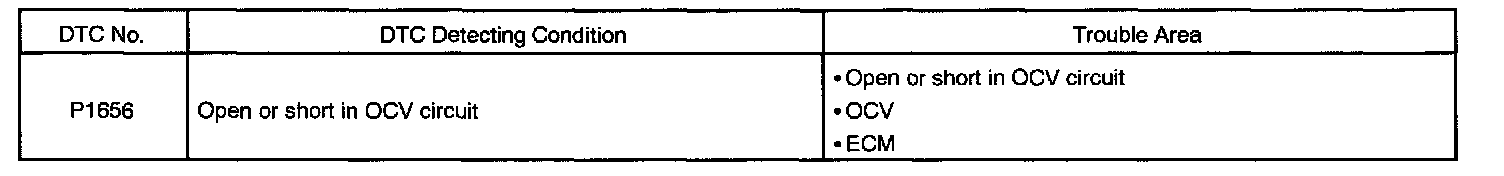

DTC Detecting Condition:

The VVT system controls the intake valve timing to proper timing in response to driving condition. The ECM controls the Oil Control Valve (OCV) to make the intake valve timing properly, and oil pressure controlled with OCV is supplied to the VVT controller, and then VVT controller changes relative position between the camshaft and the crankshaft.

Wiring Diagram:

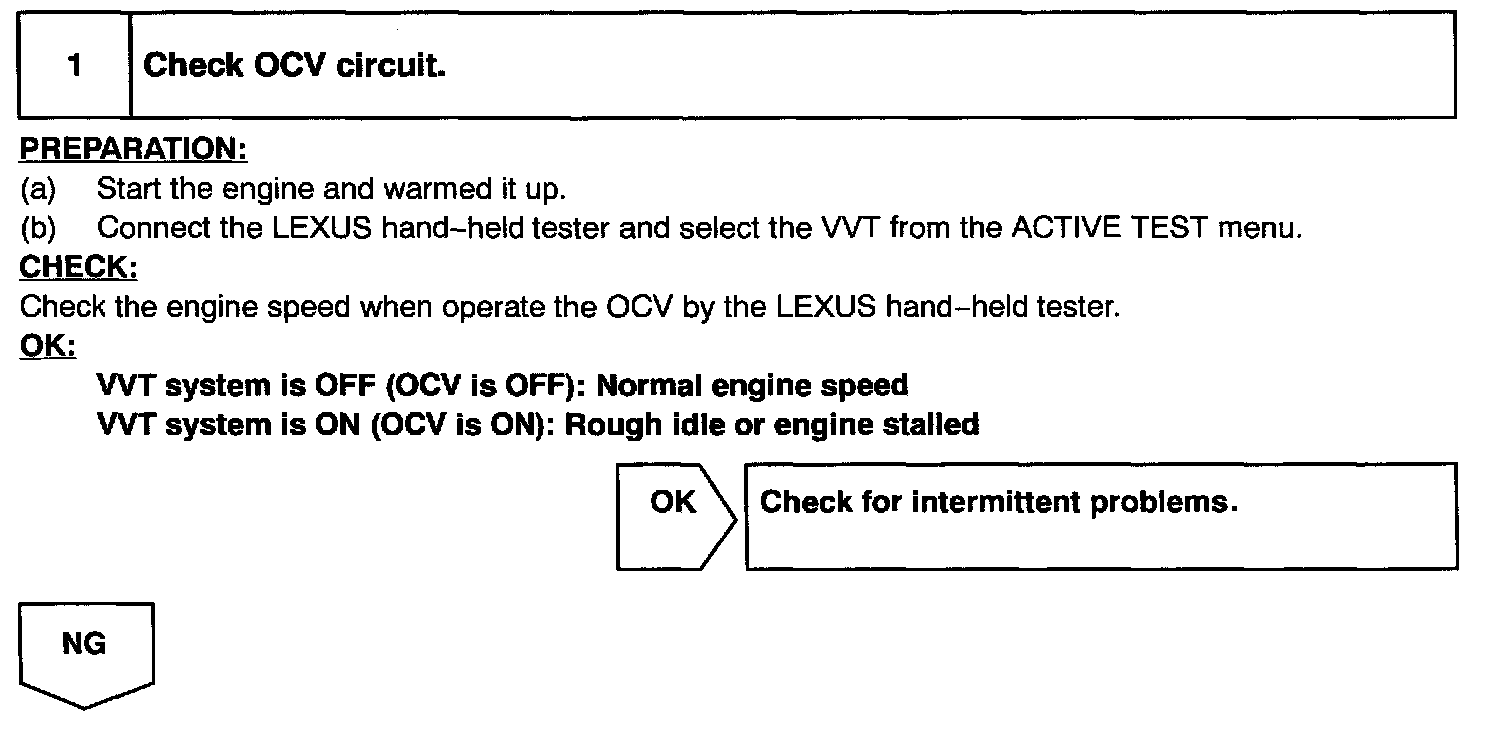

INSPECTION PROCEDURE

HINT: Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

Step 1:

Steps 2 - 4:

LEXUS hand-held tester

Steps 1 - 3:

OBD II scan tool (excluding LEXUS hand-held tester)

CHECK FOR INTERMITTENT PROBLEMS

LEXUS hand-held tester only:
By putting the vehicle's ECM in the check mode, 1 trip detection logic is possible instead of 2 trip detection logic and sensitivity to detect open circuits is increased. This makes it easier to detect intermittent problems.

1. Clear the DTCs.
2. Set the check mode.
3. Perform a simulation test.
4. Check the connector and terminal.
5. Handle the connector.
