Troubleshooting

P0768 - Shift Solenoid "D" Electrical Malfunction (Shift Solenoid Valve No.4)

CIRCUIT DESCRIPTION

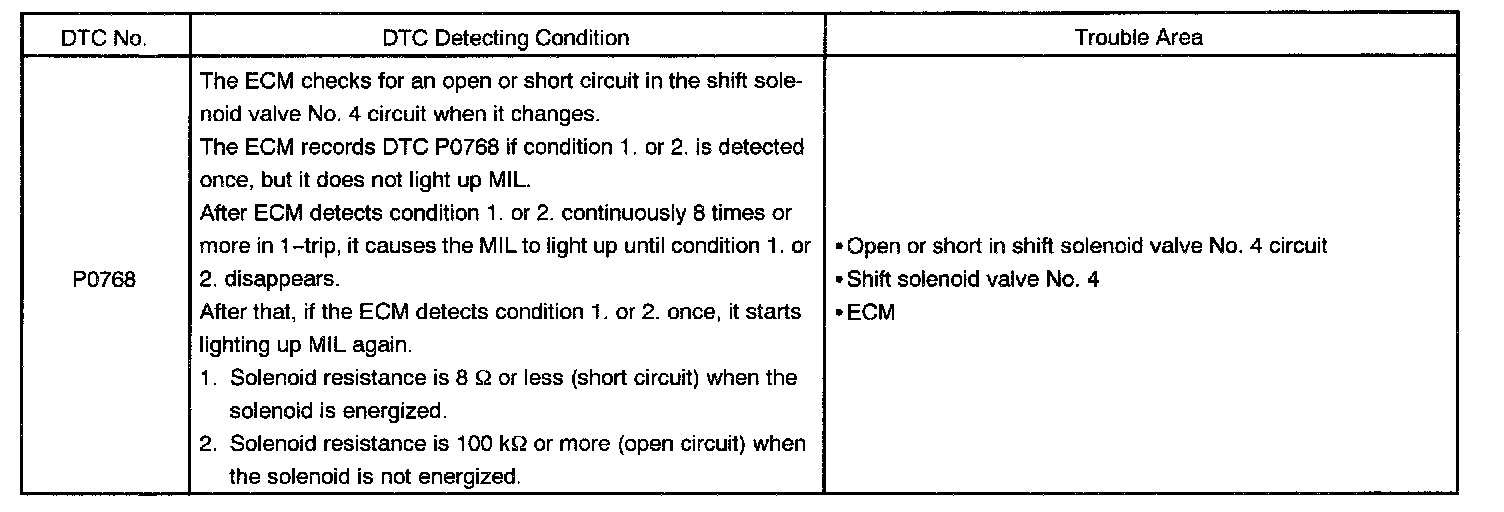

DTC Detecting Condition:

Shift solenoid valve No.4 is controlled by ECM and it switches ON and OFF of the O/D direct switch.

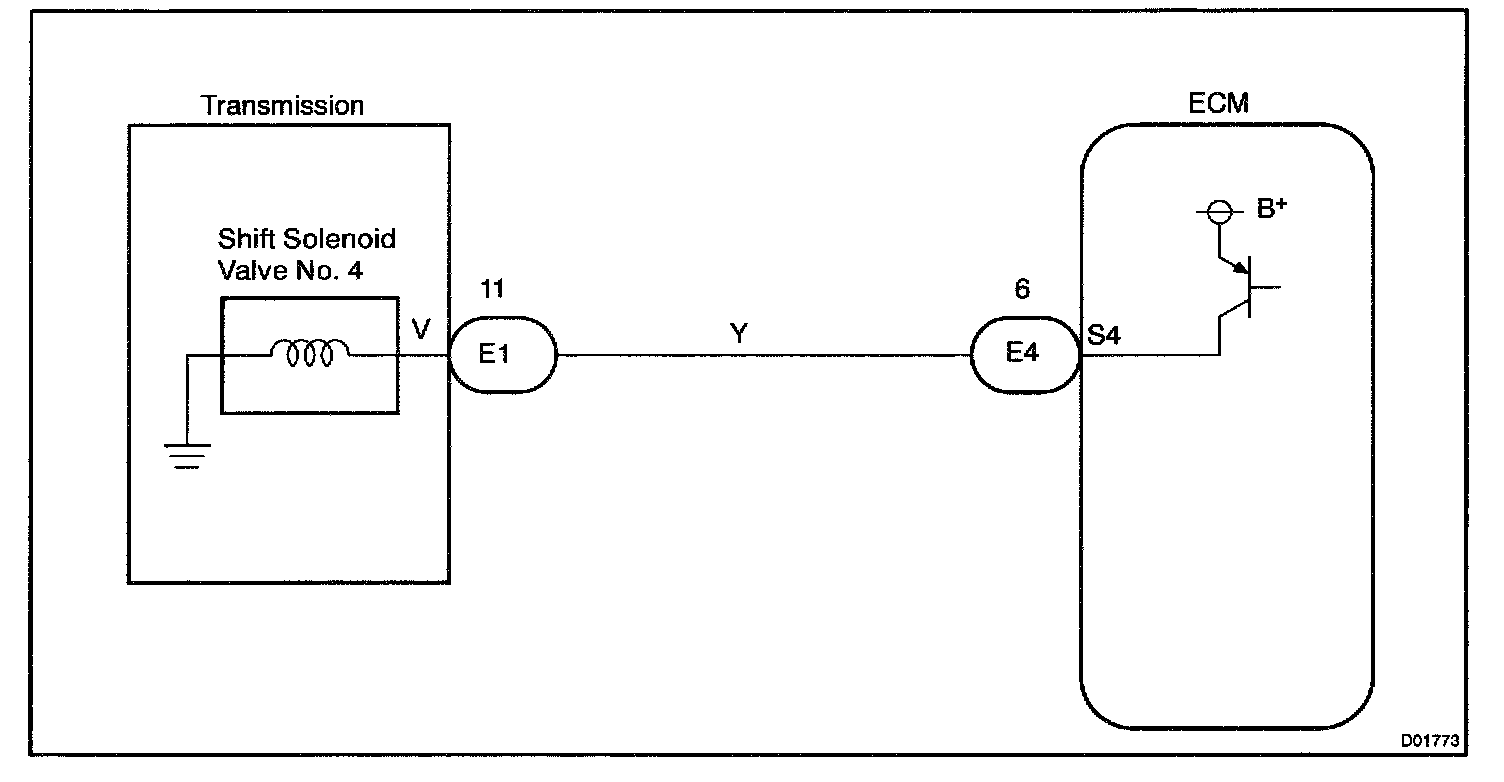

Wiring Diagram:

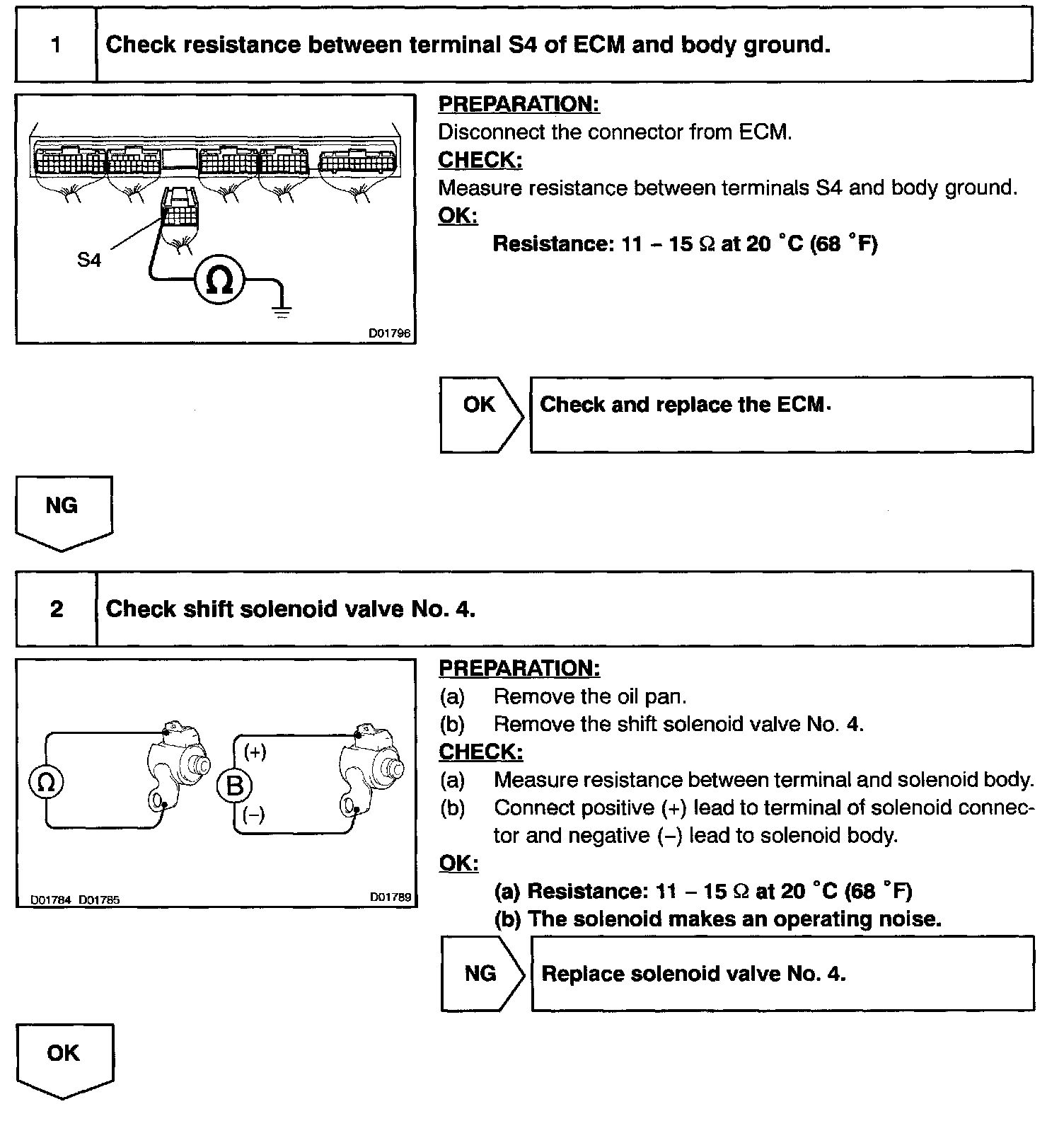

Steps 1 - 2:

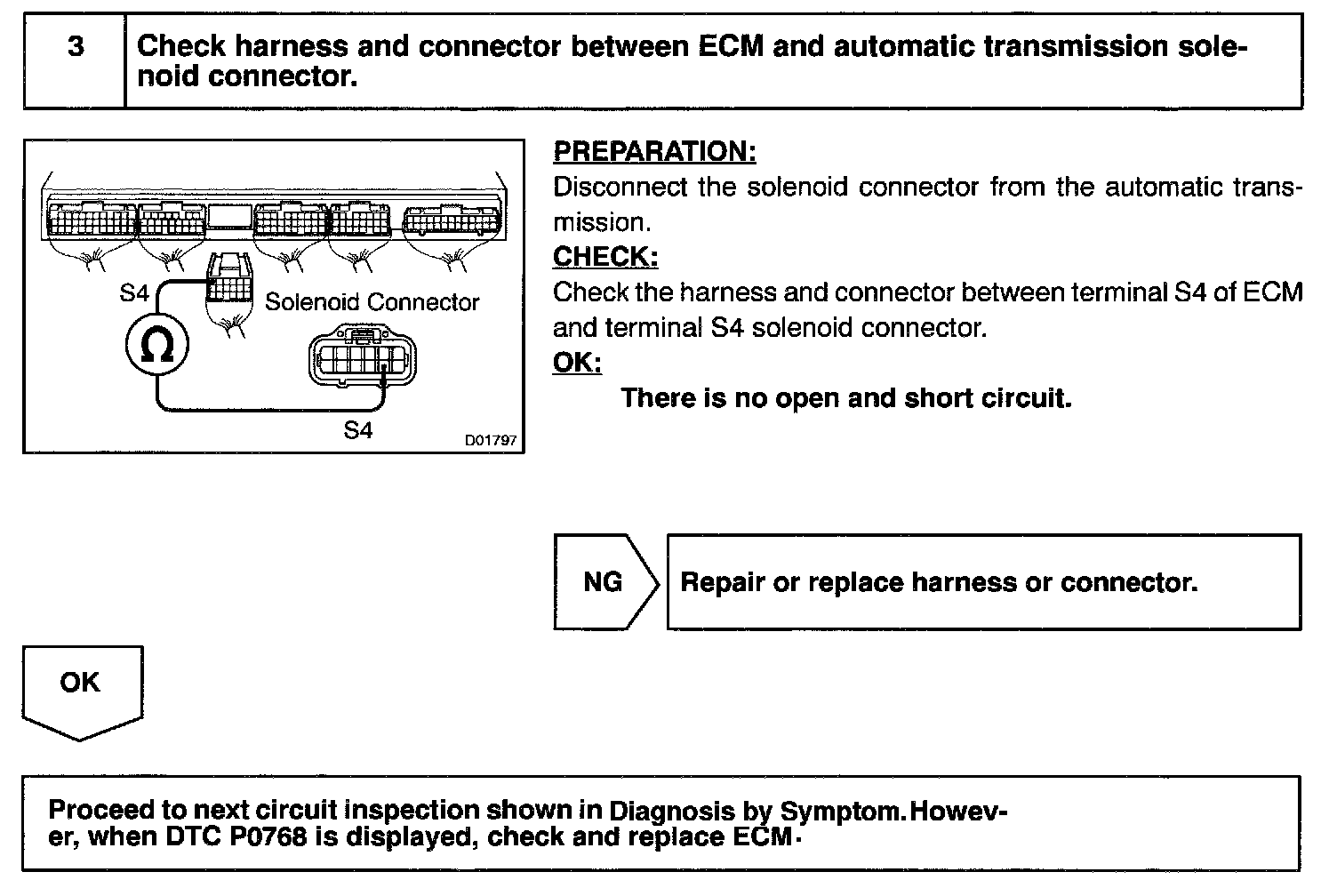

Step 3:

INSPECTION PROCEDURE
