P0550

P0550 - Power Steering Pressure Sensor Circuit Malfunction

CIRCUIT DESCRIPTION

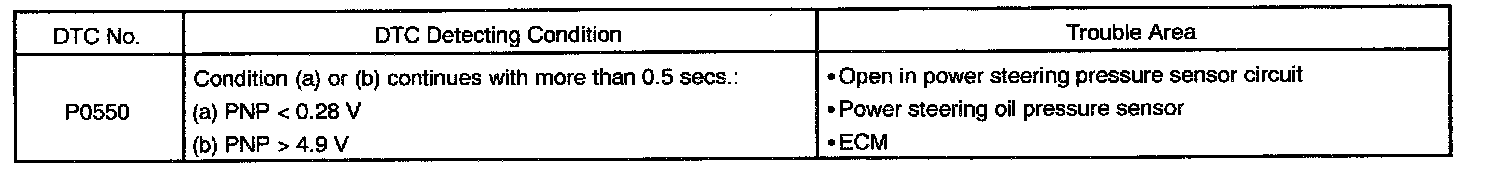

DTC Detecting Condition:

ECM controls the idle speed the most appropriate according to the signal from the power steering pressure sensor.

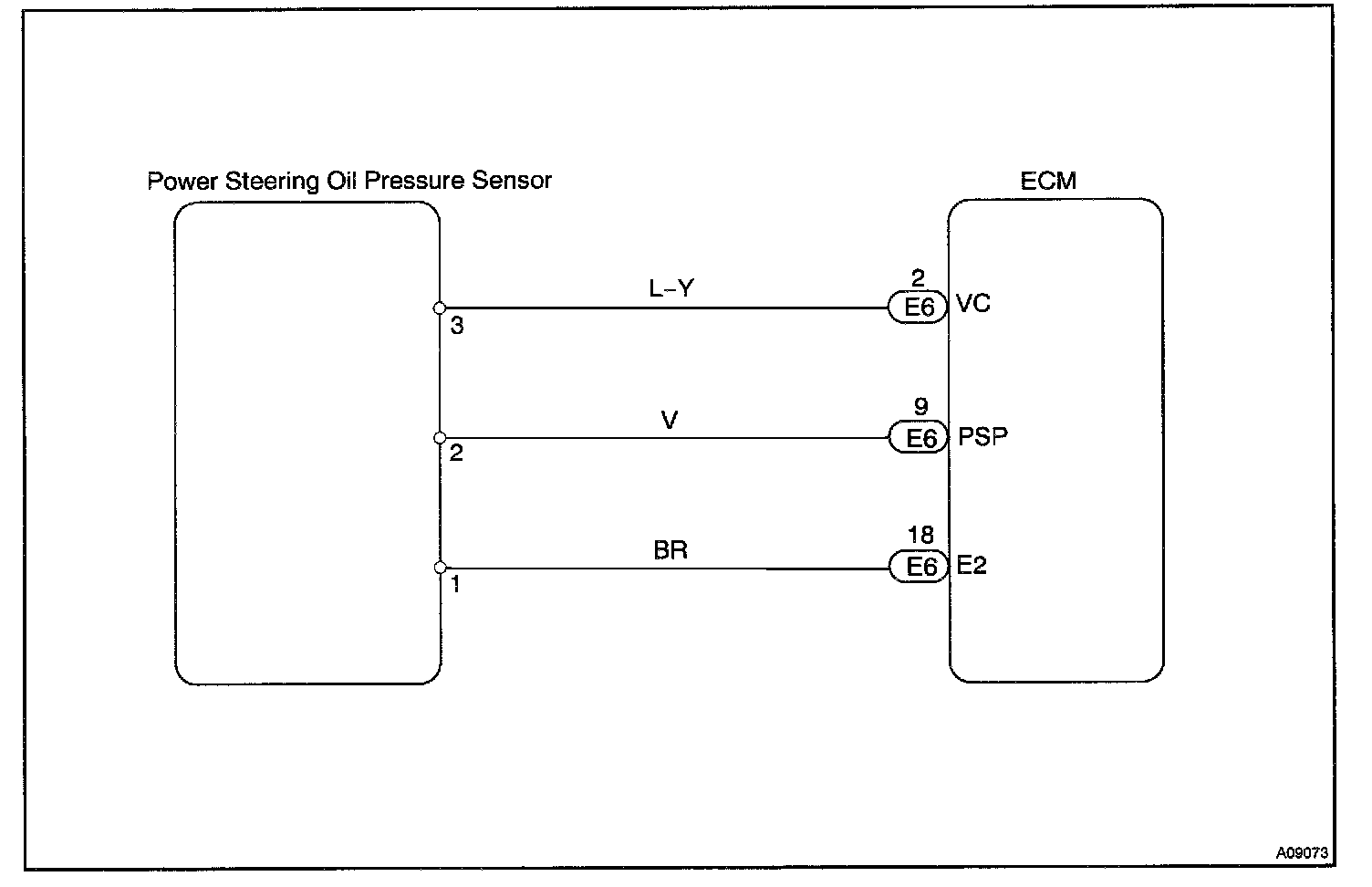

Wiring Diagram:

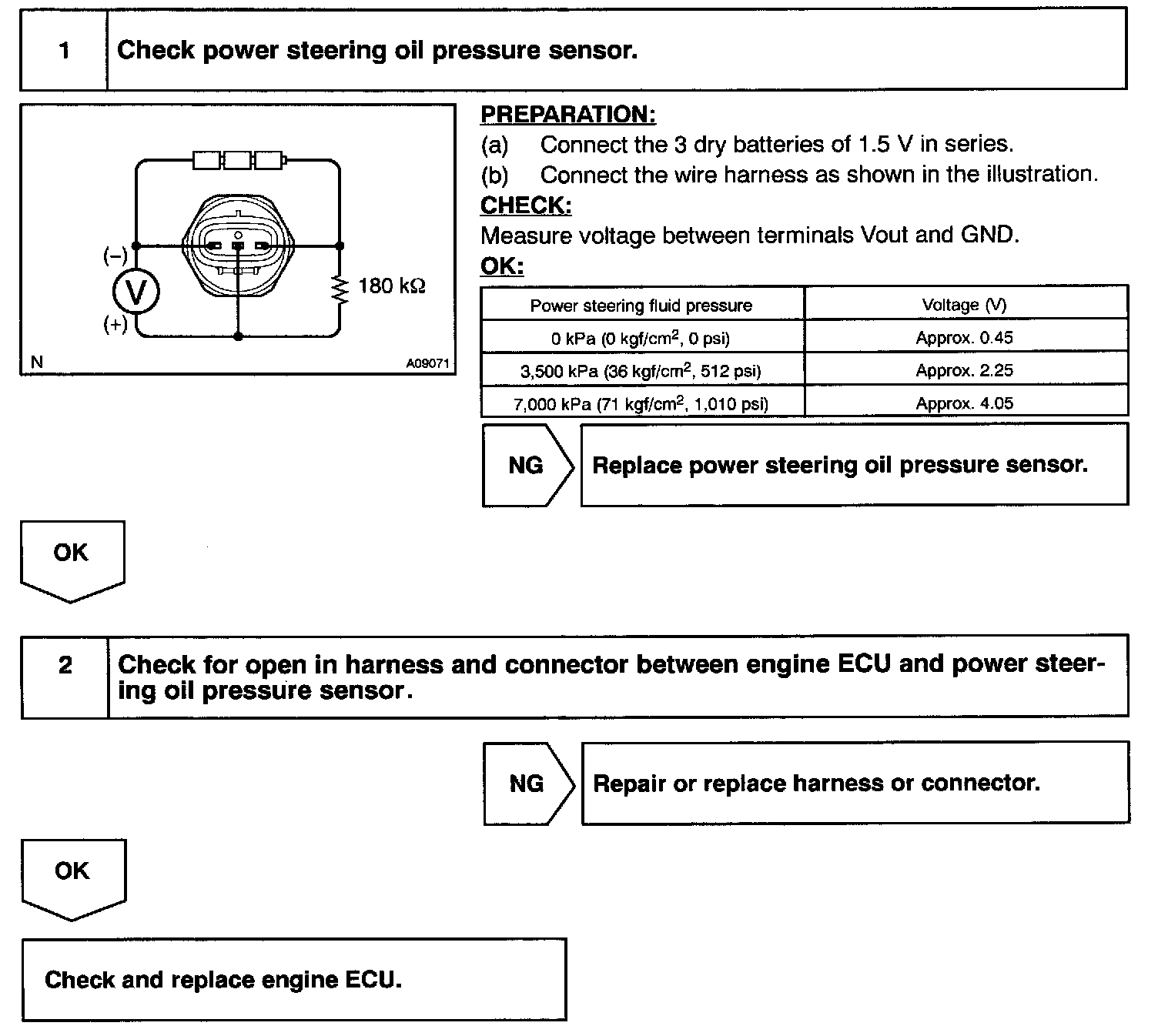

Steps 1 - 2:

INSPECTION PROCEDURE
