P0446 - Evaporative Emission Control System Vent Control Malfunction

CIRCUIT DESCRIPTION

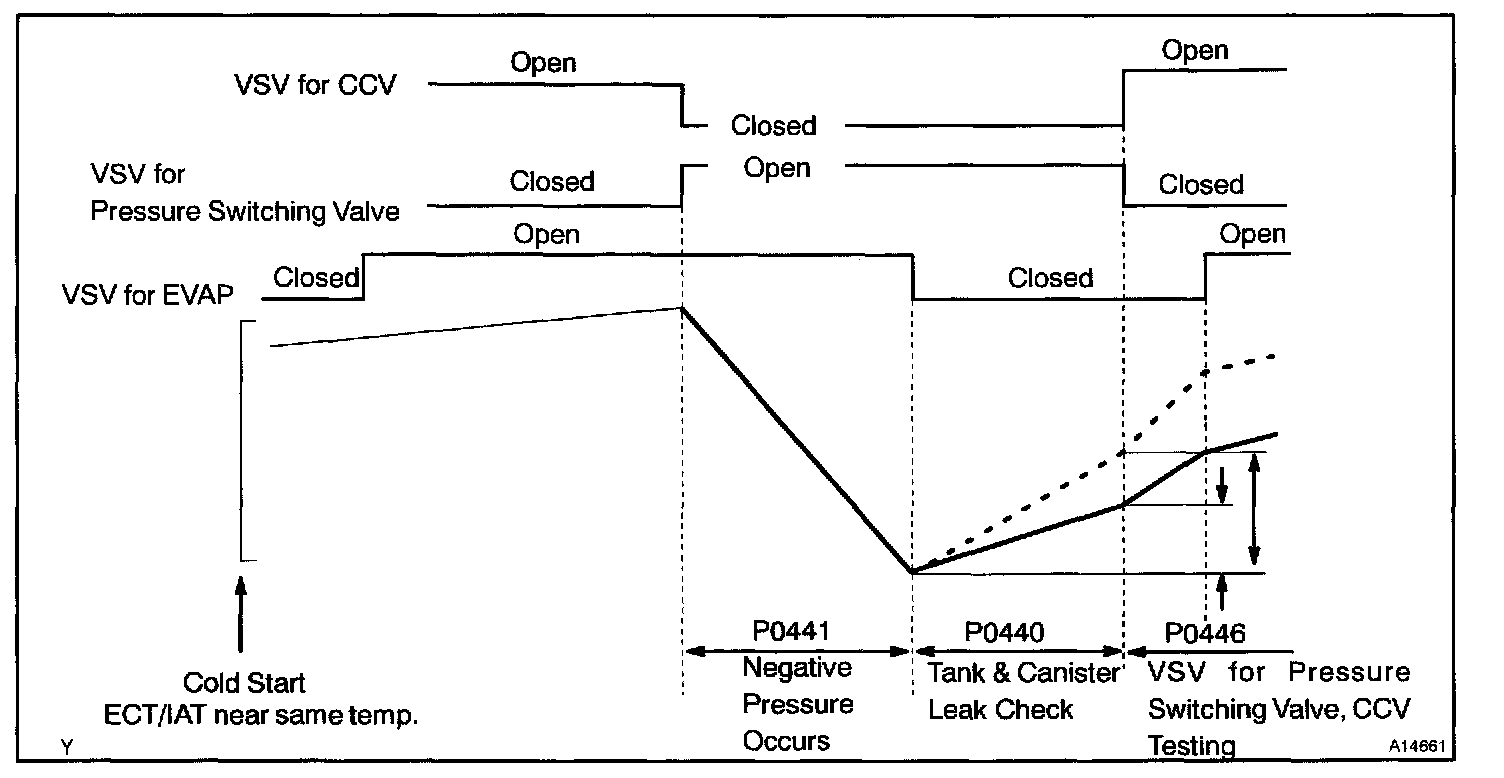

The vapor pressure sensor, VSV for canister closed valve (CCV), VSV for pressure switching valve are used to detect abnormalities in the evaporative emission control system.

The ECM decides whether there is an abnormality in the evaporative emission control system based on the vapor pressure sensor signal.

DTC Detecting Condition:

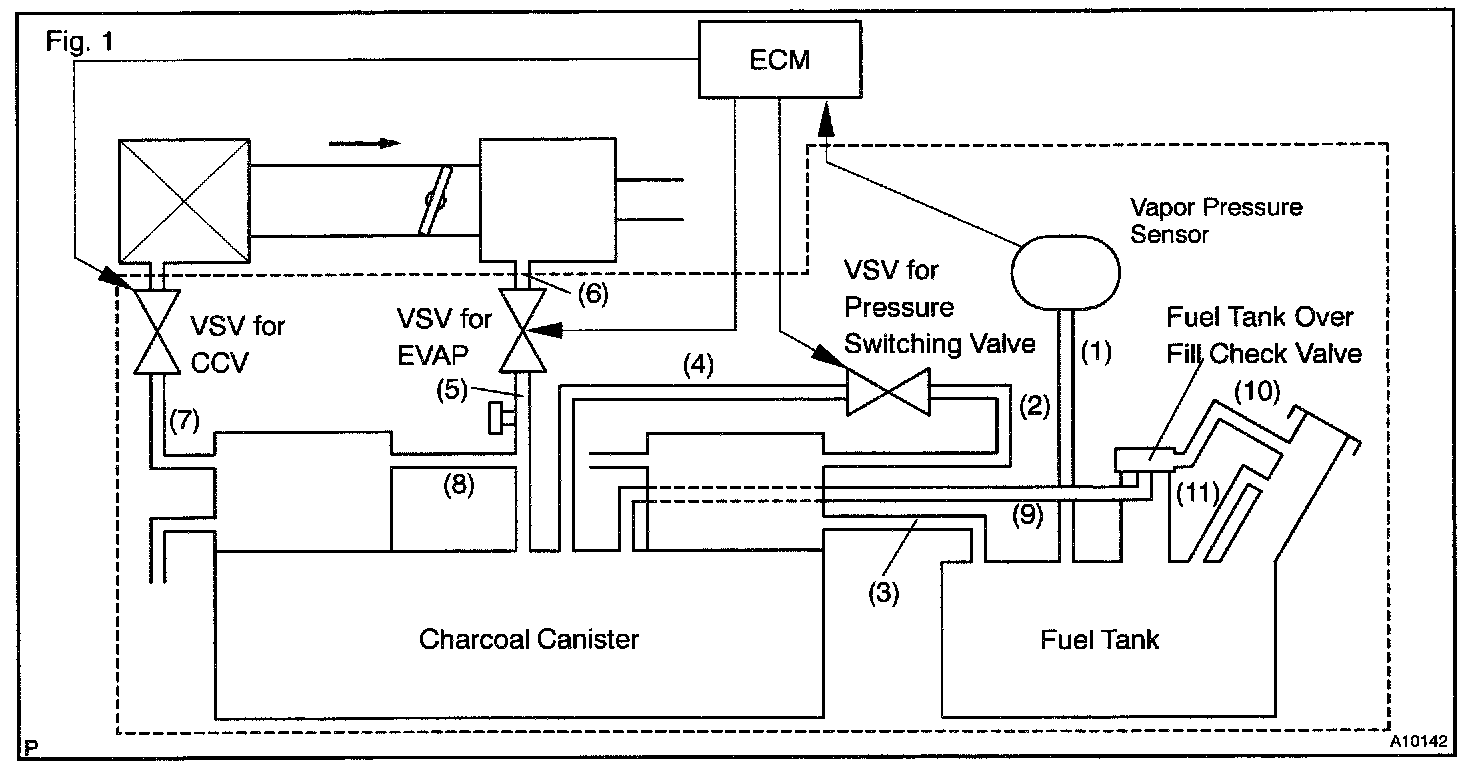

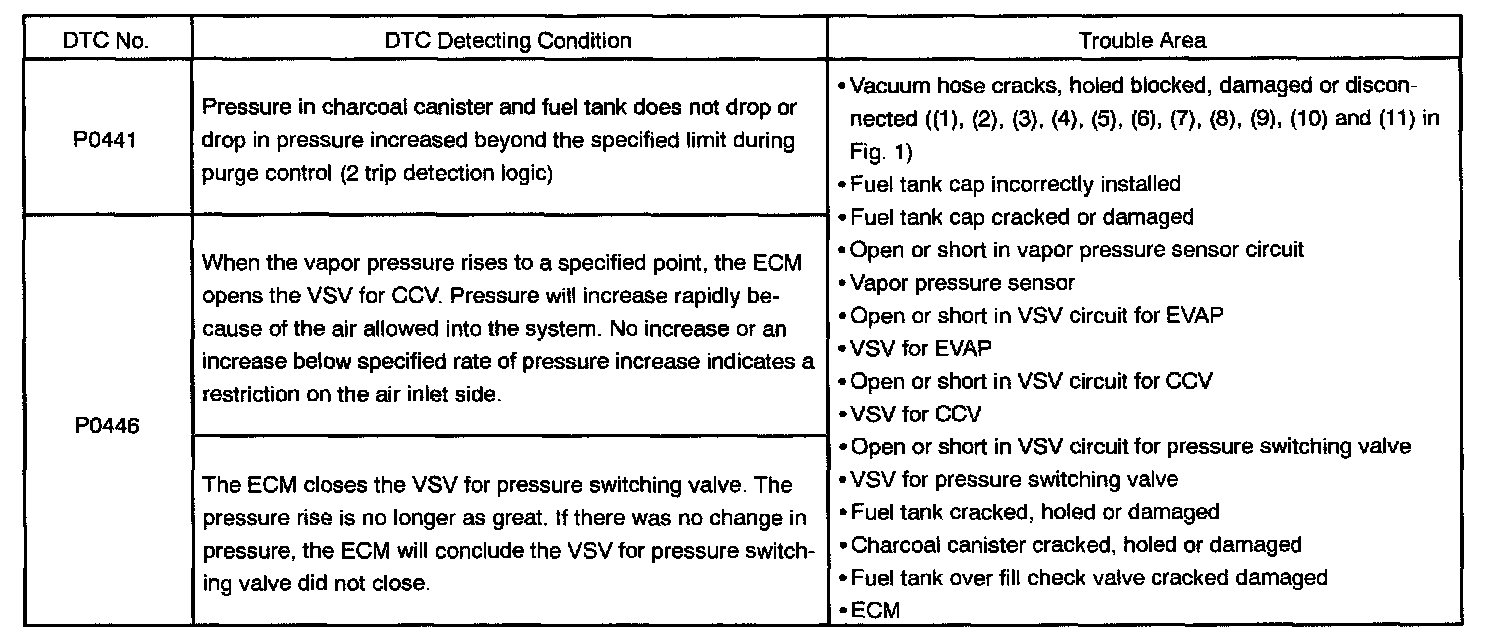

DTCs P0441 and P0446 are recorded by the ECM when evaporative emissions leak from the components within the dotted line in Fig.1, or when there is a malfunction in either the VSV for EVAP, the VSV for pressure switching valve, or in the vapor pressure sensor itself.

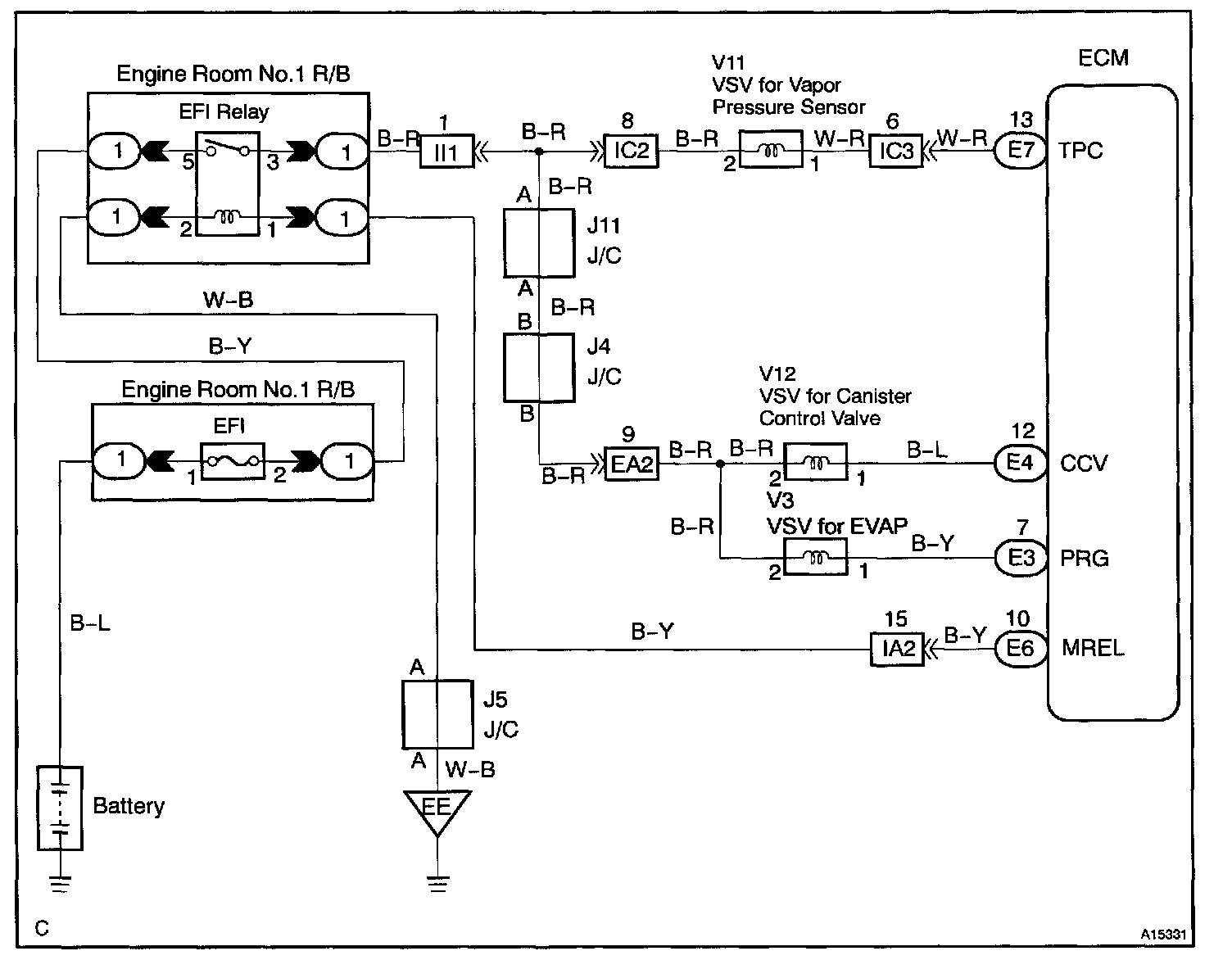

Wiring Diagram:

INSPECTION PROCEDURE

HINT:
- If DTC P0441, P0446, P0450 or P0451 is output after DTC P0440 first troubleshoot DTC P0441, P0446, P0450 or P0451. If no malfunction is detected, troubleshoot DTC P0440 next.
- Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
- When the ENGINE RUN TIME in the freeze frame data is less than 200 seconds, carefully check the vapor pressure sensor.

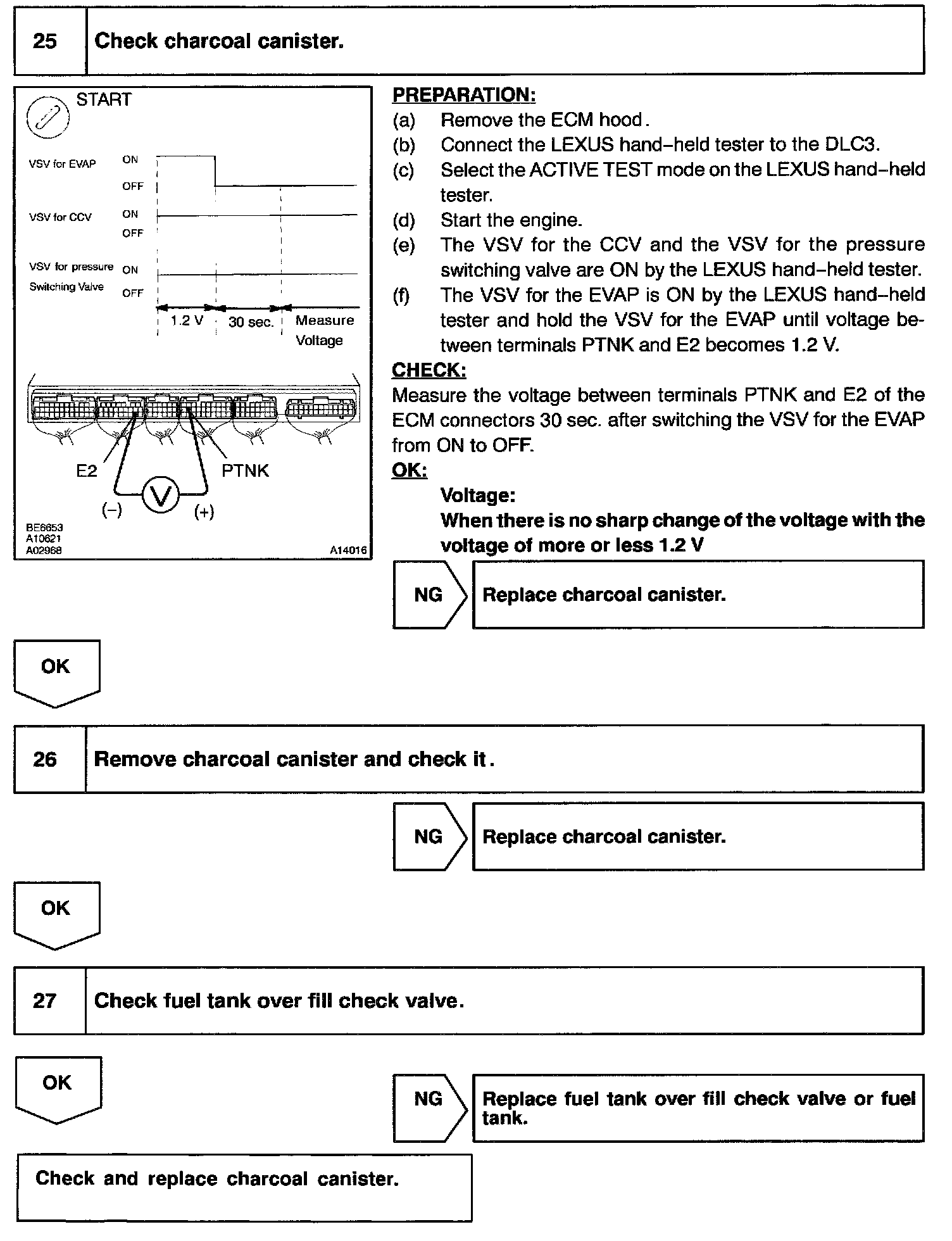

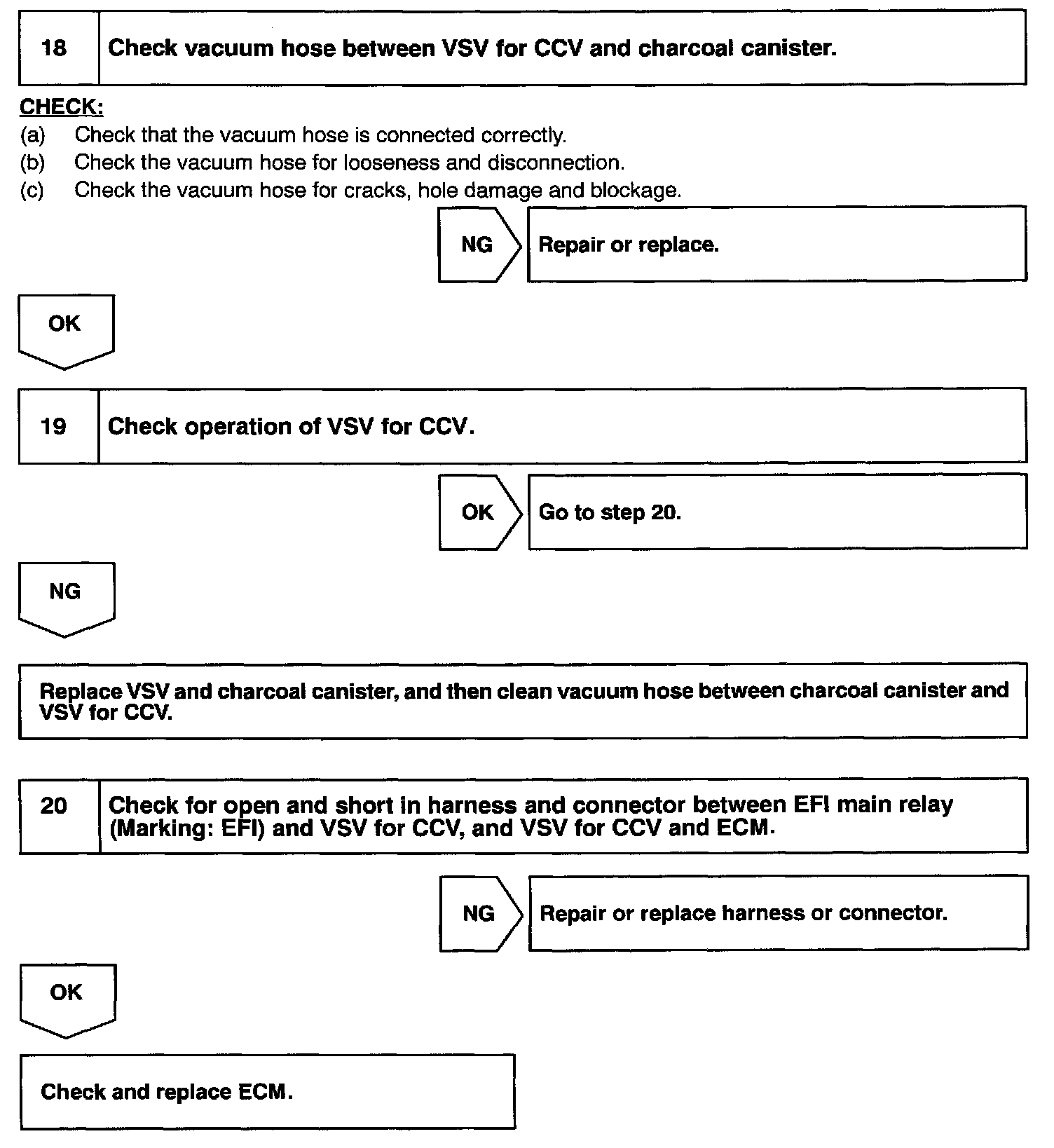

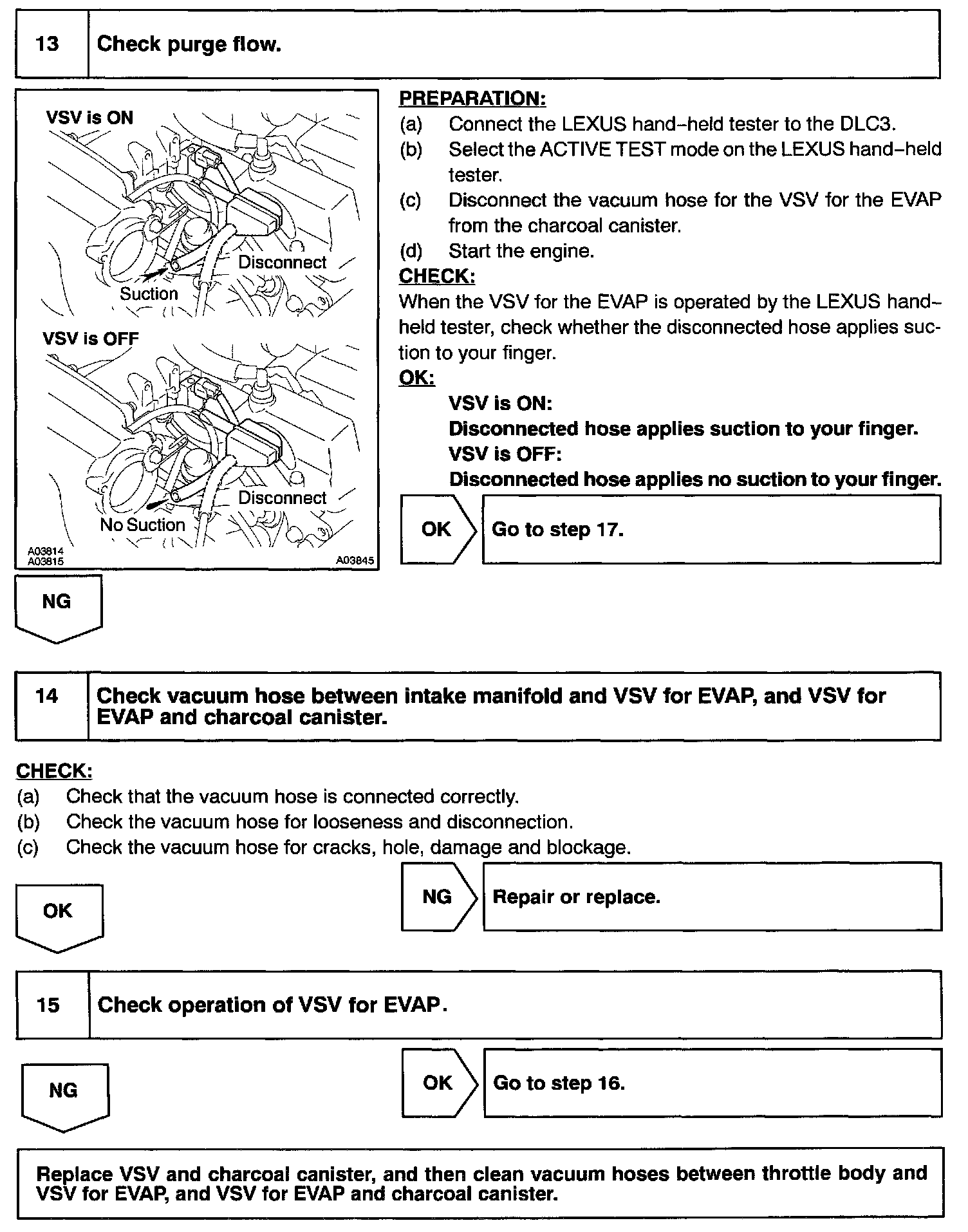

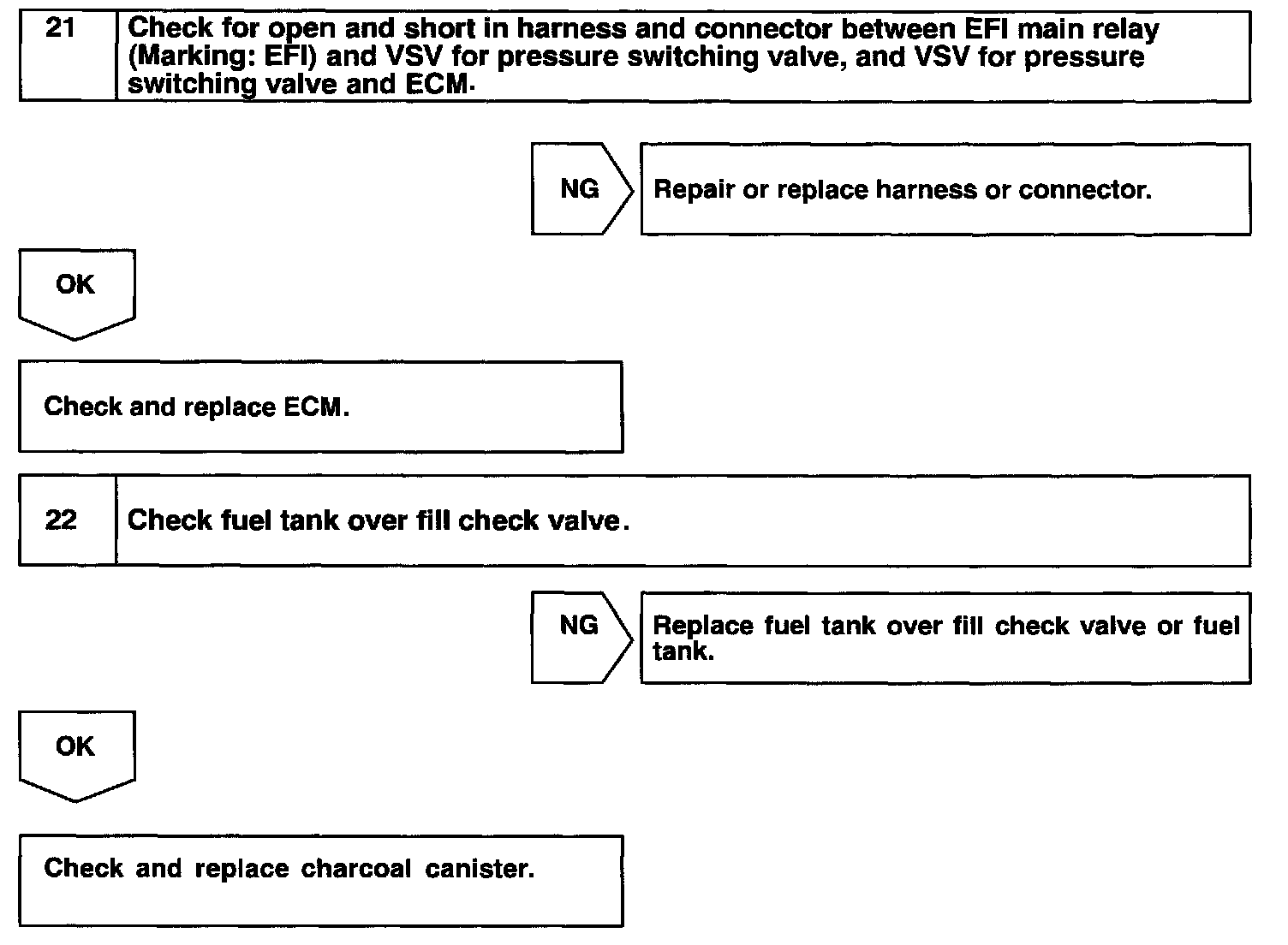

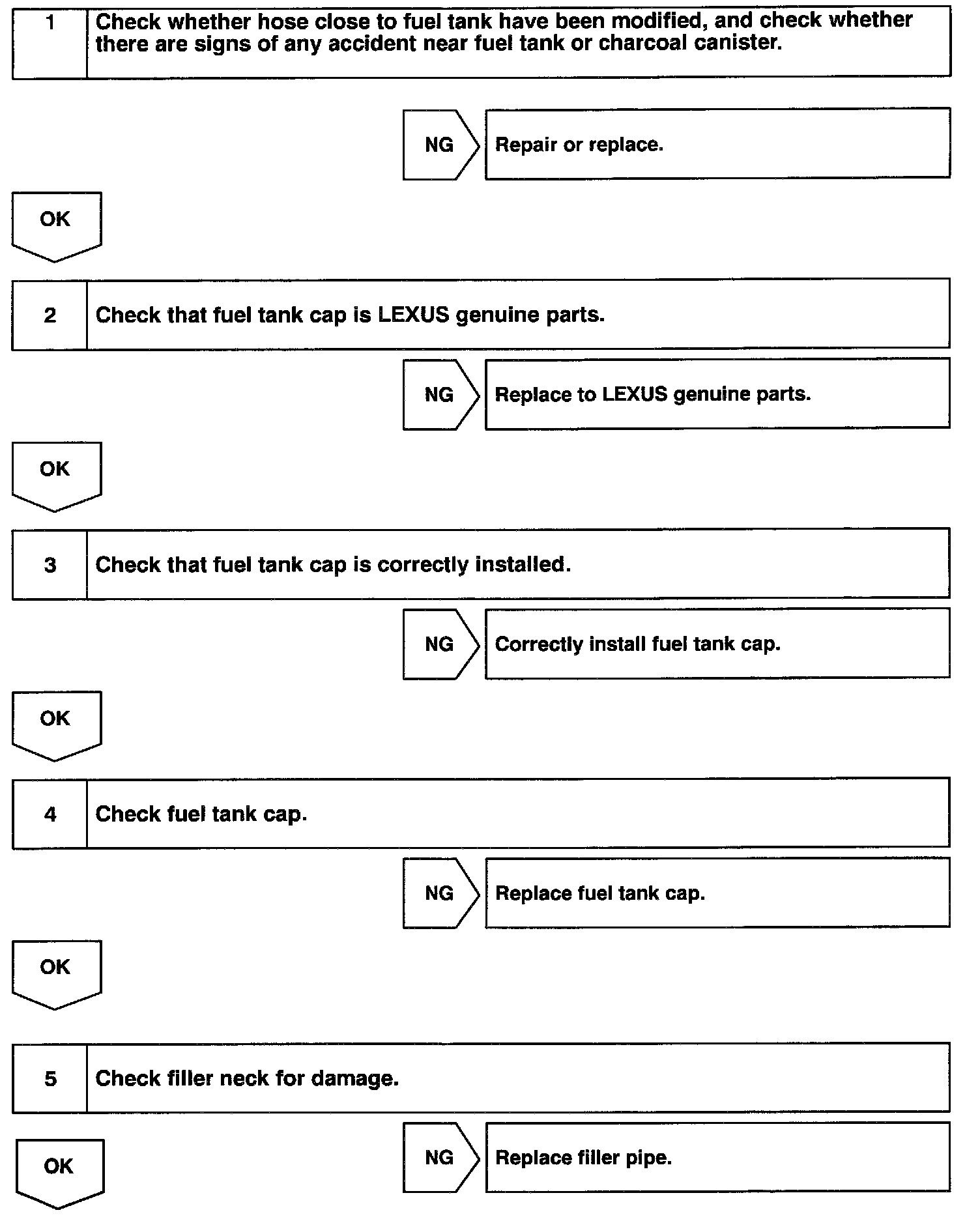

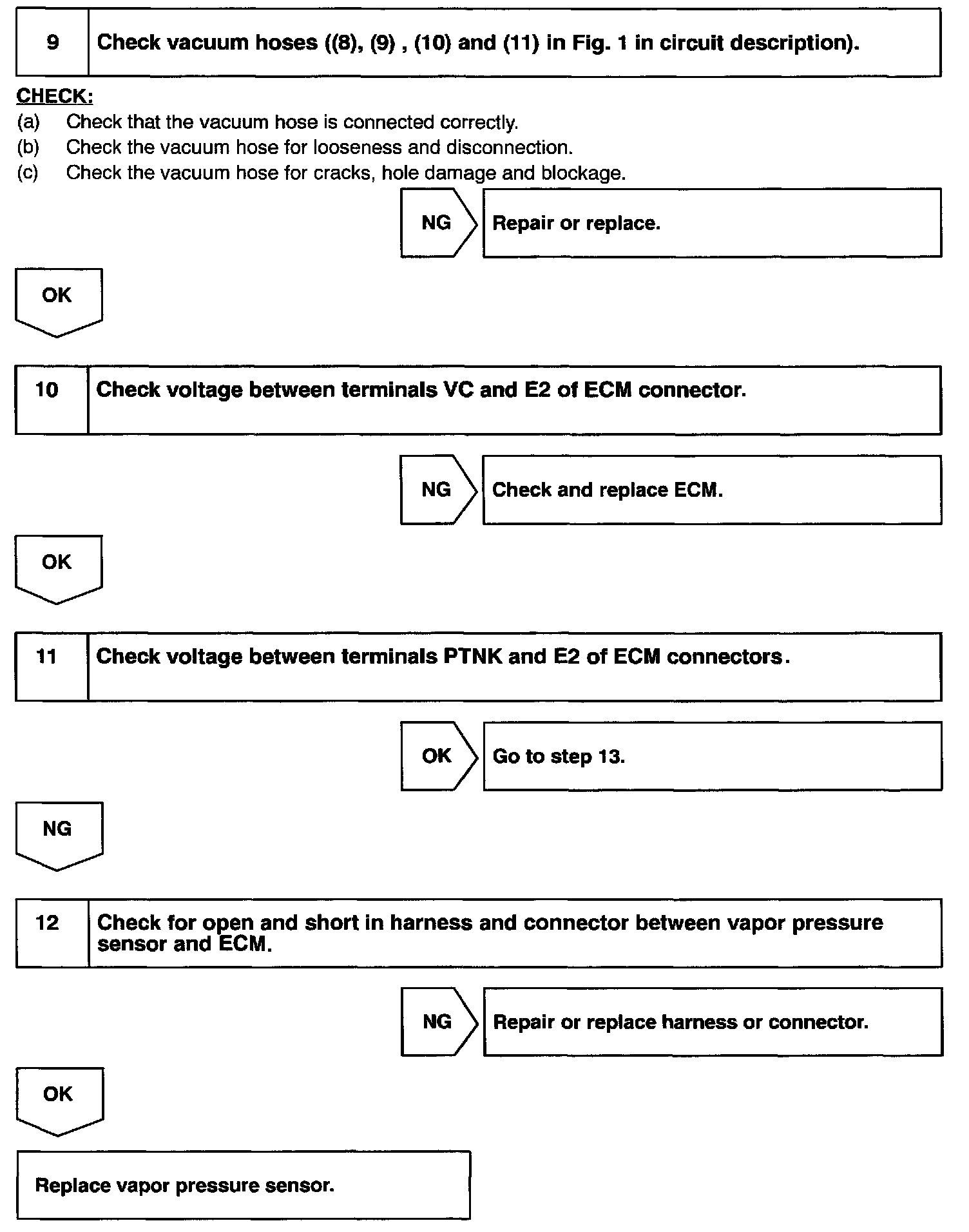

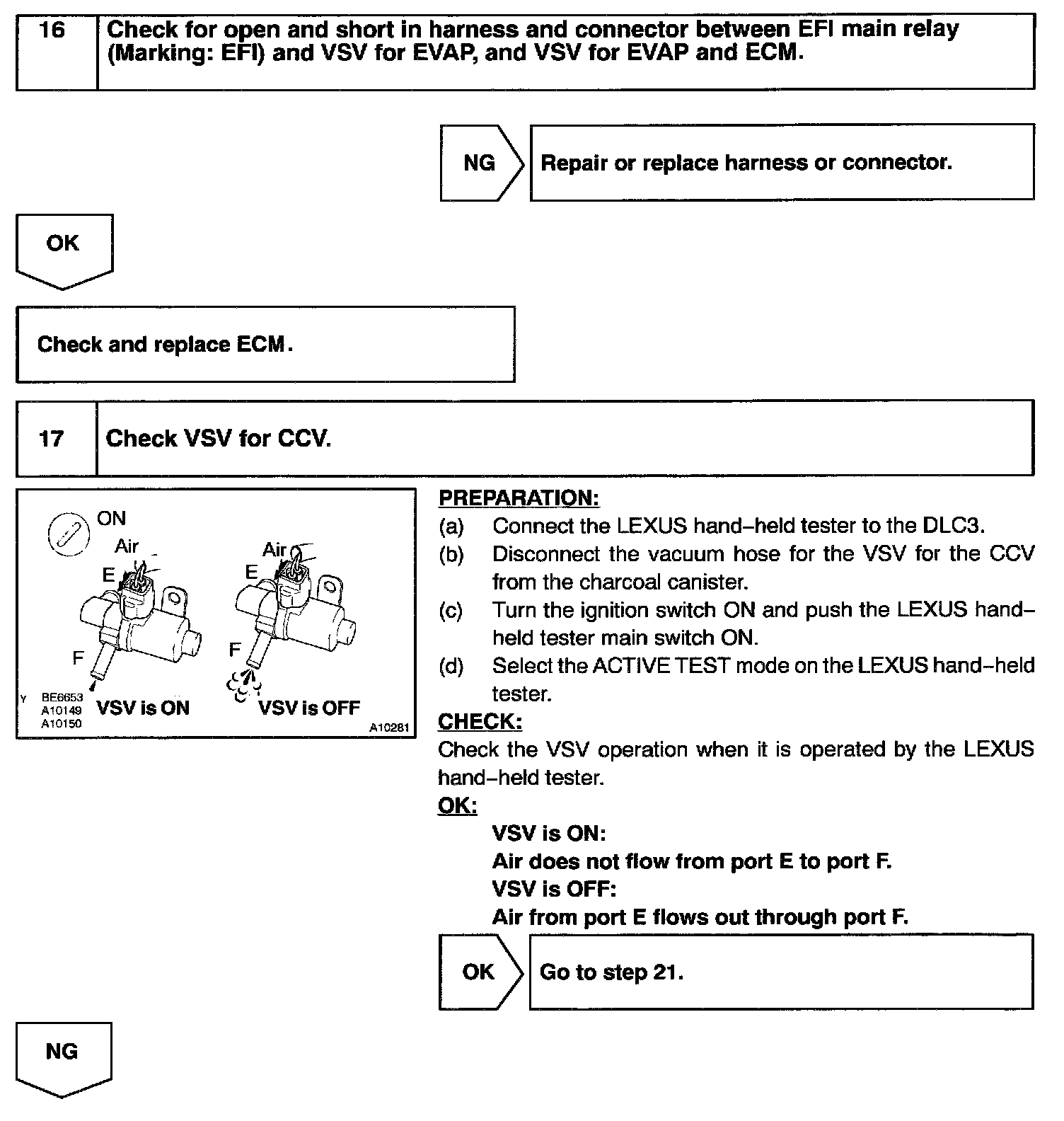

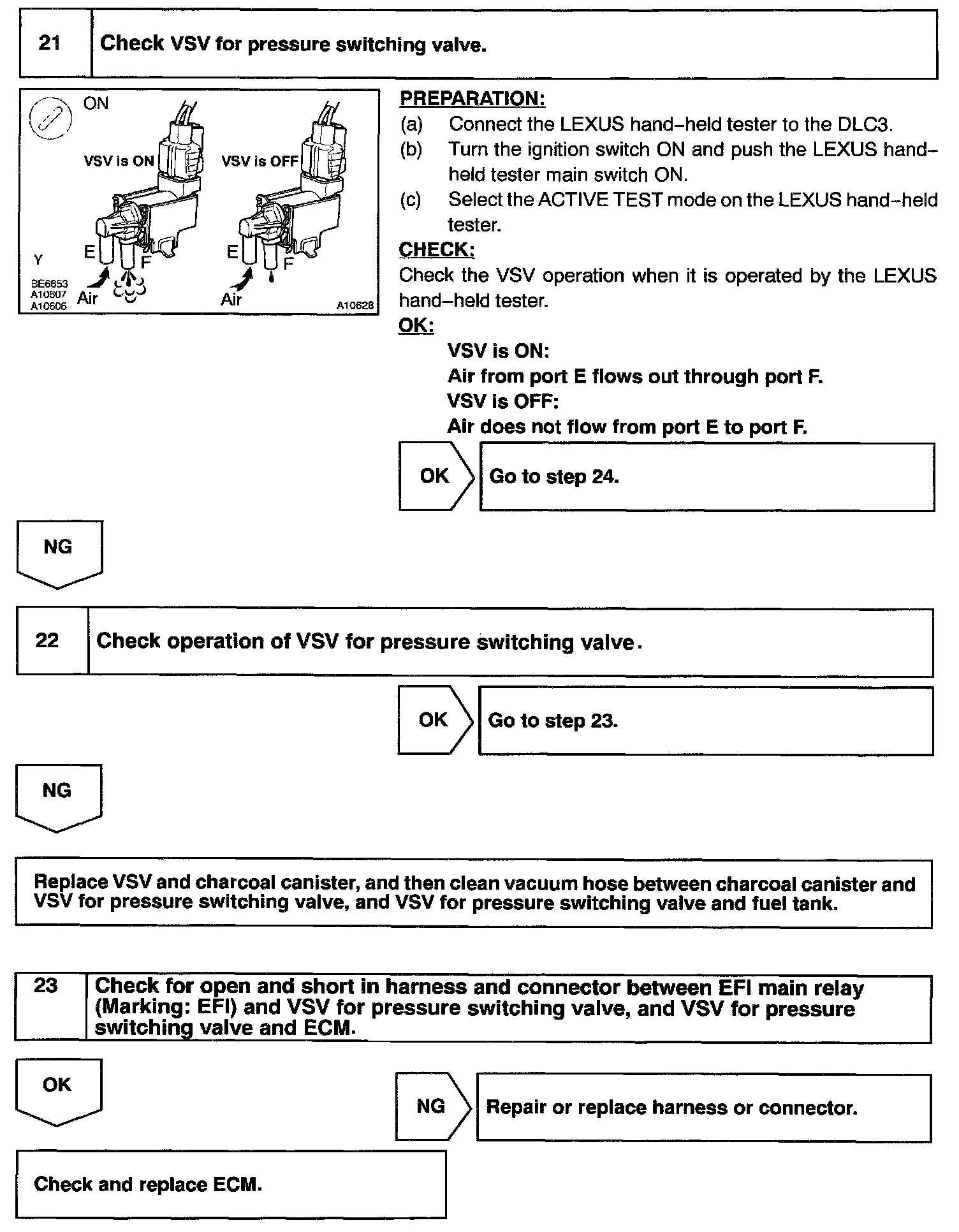

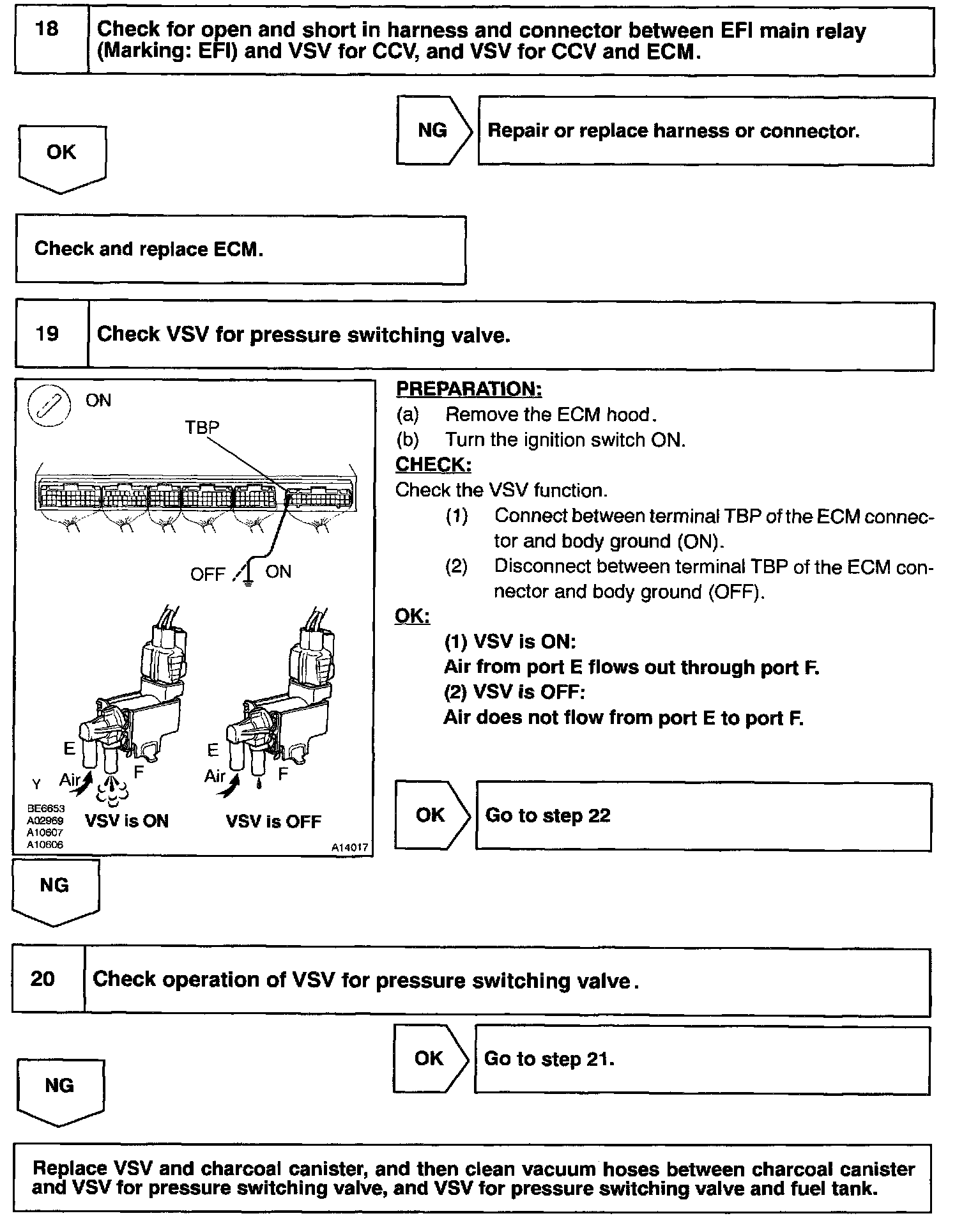

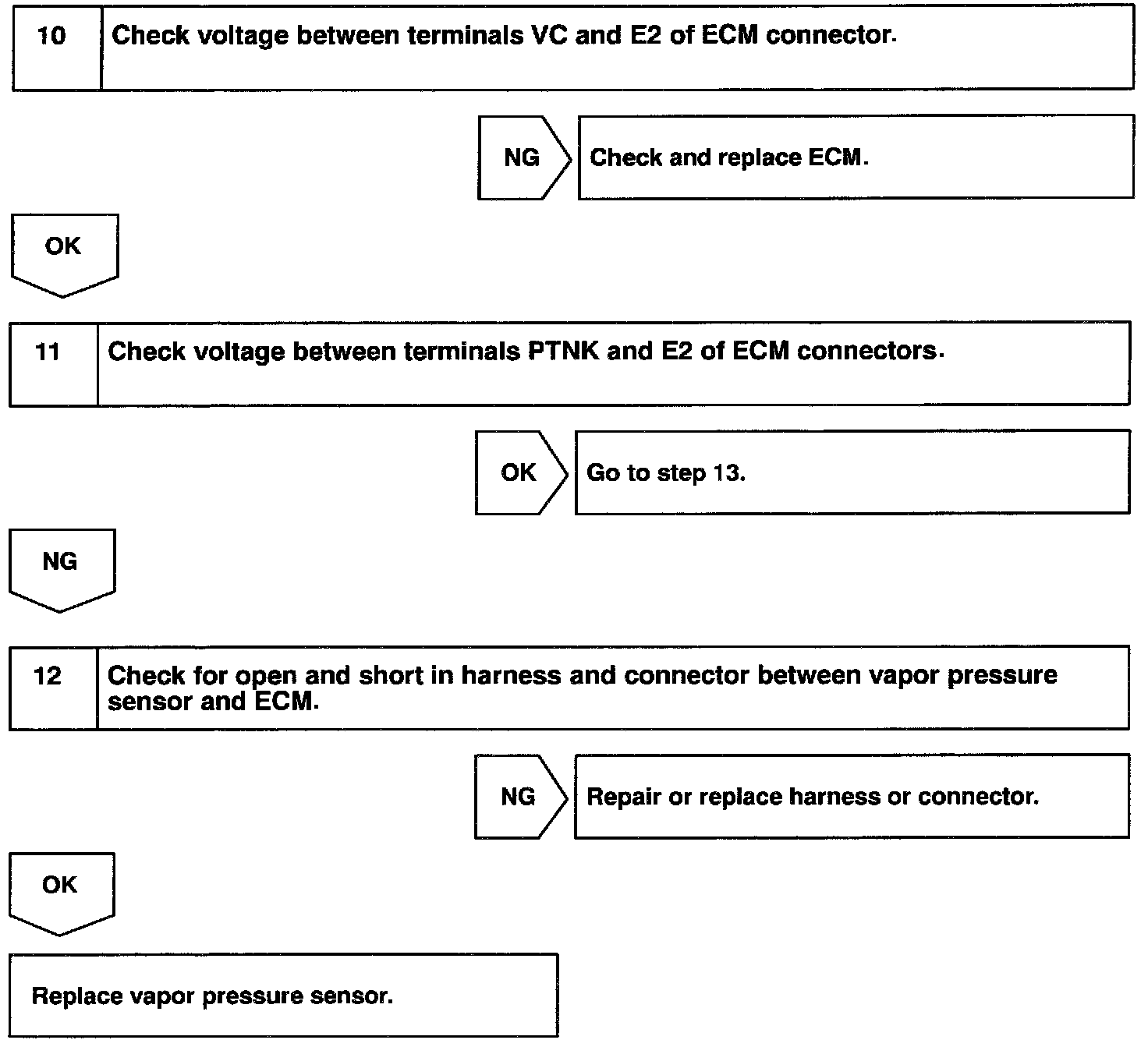

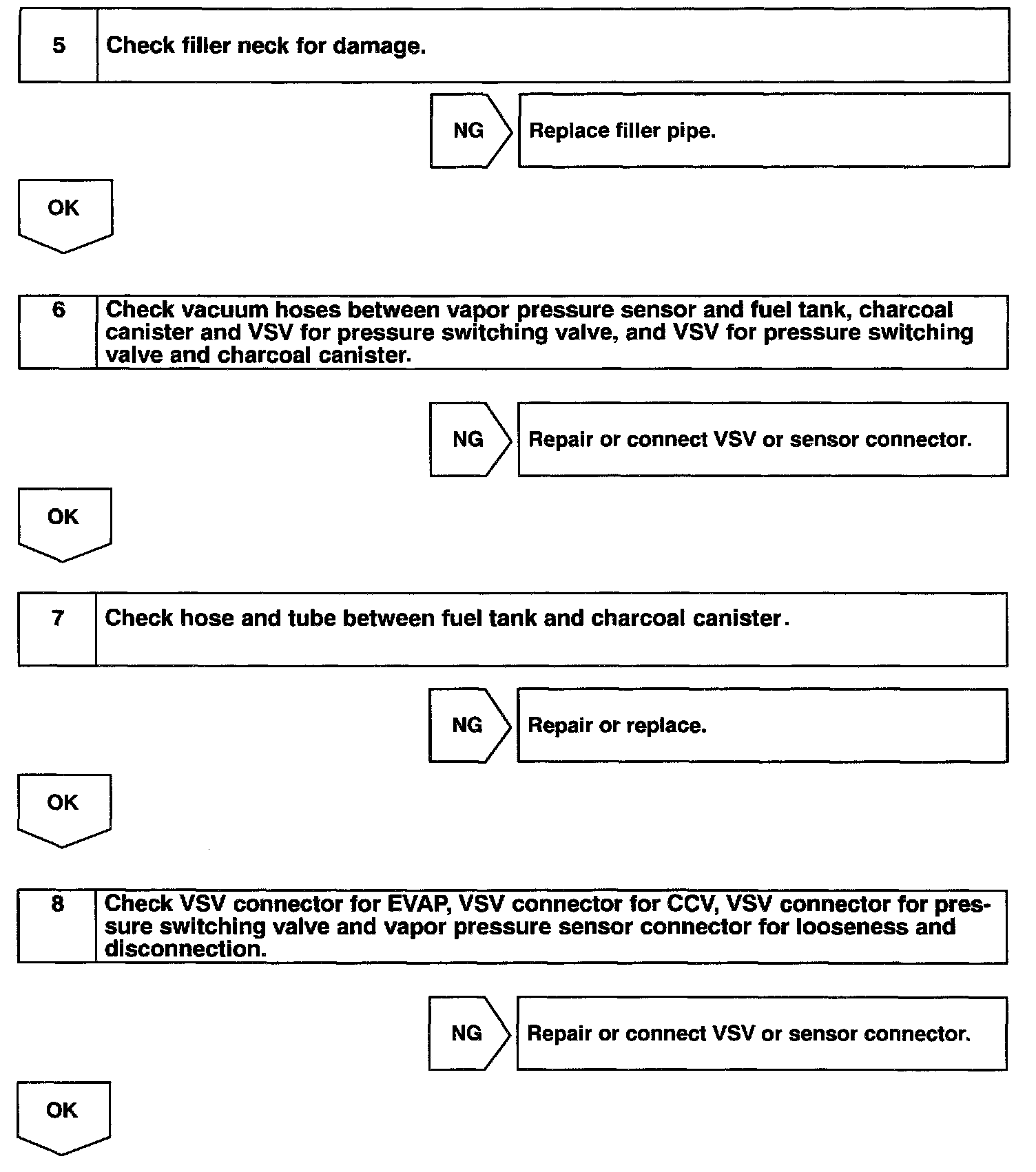

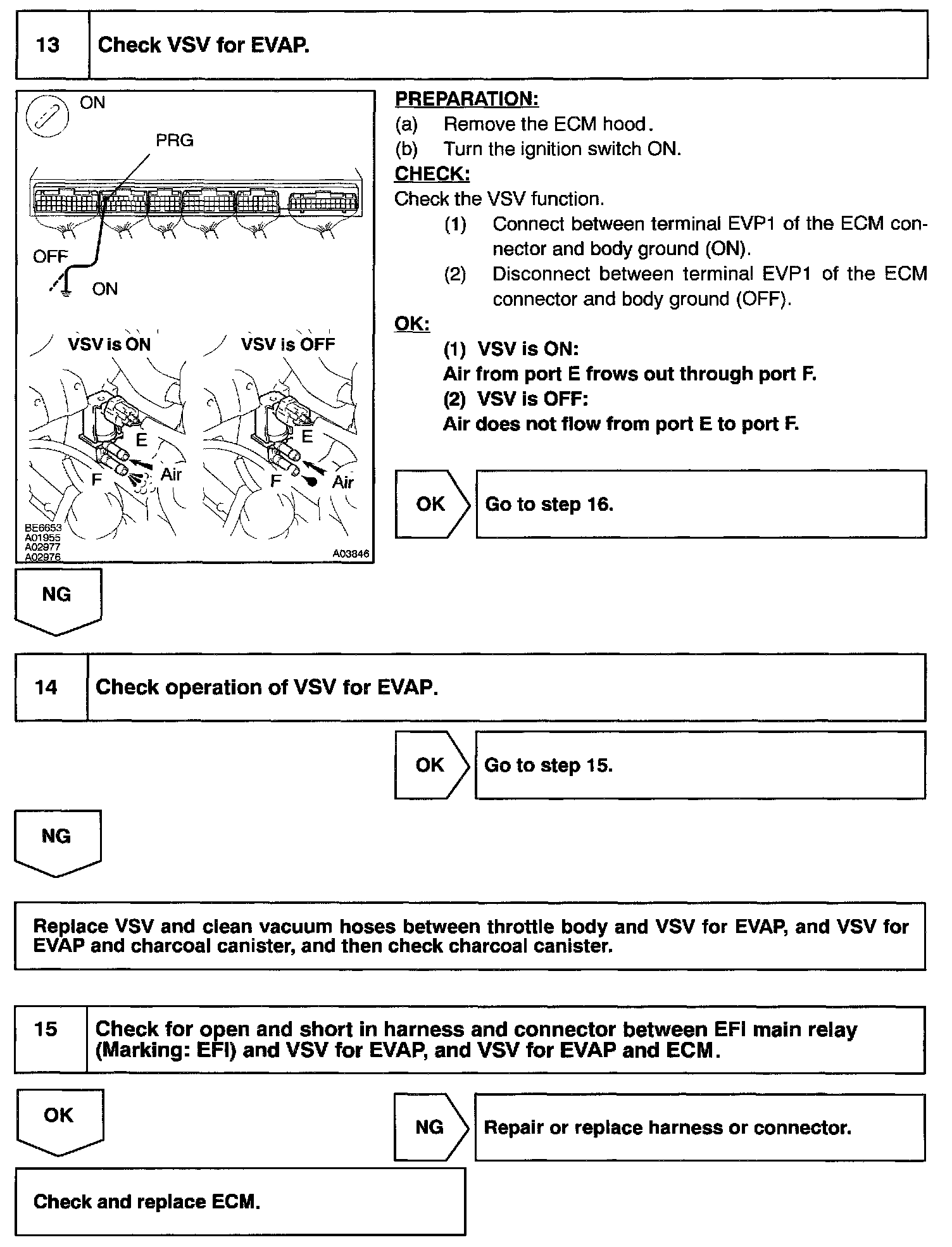

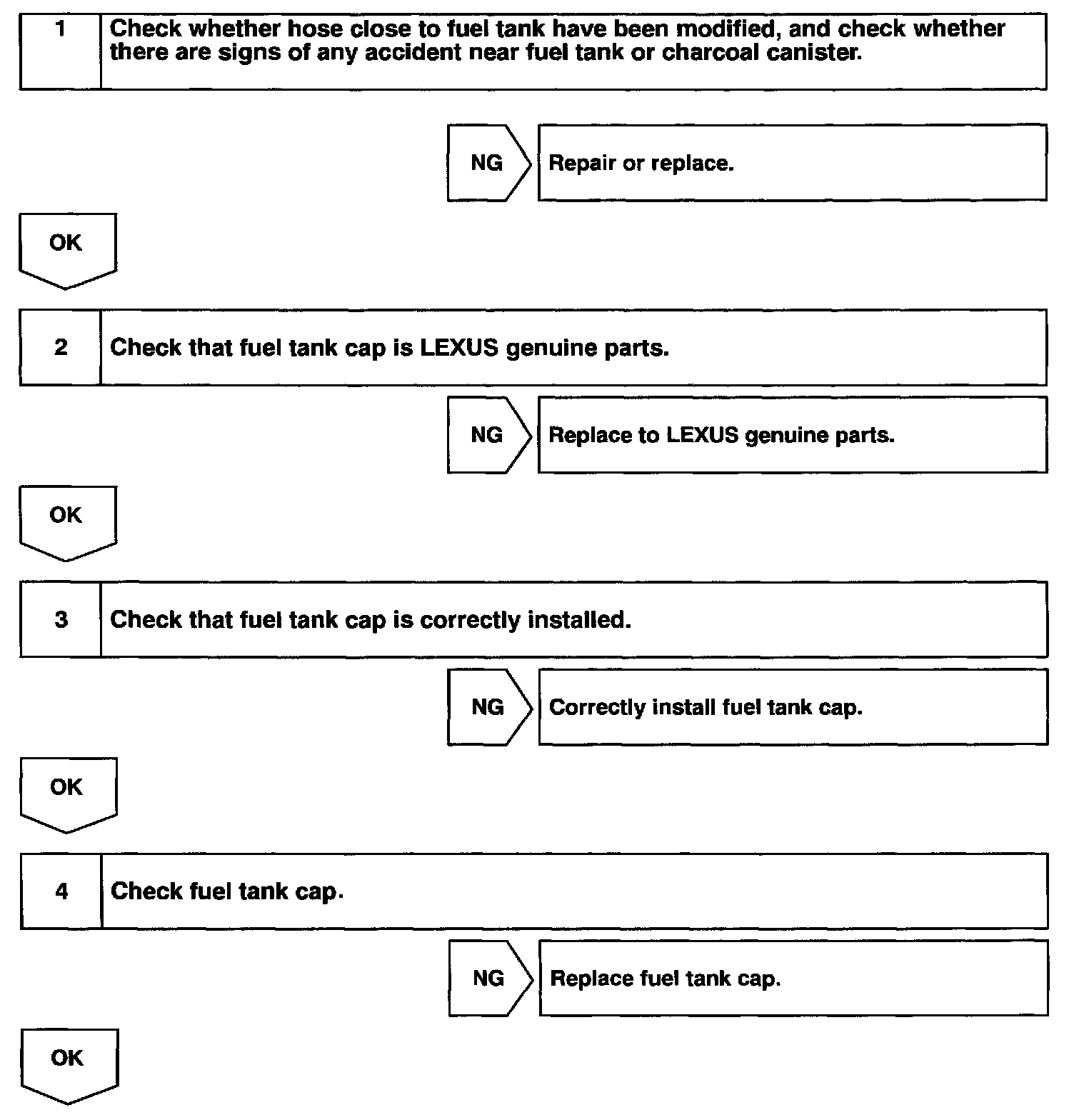

Steps 1 - 5:

Steps 6 - 9:

Steps 10 - 12:

Steps 13 - 15:

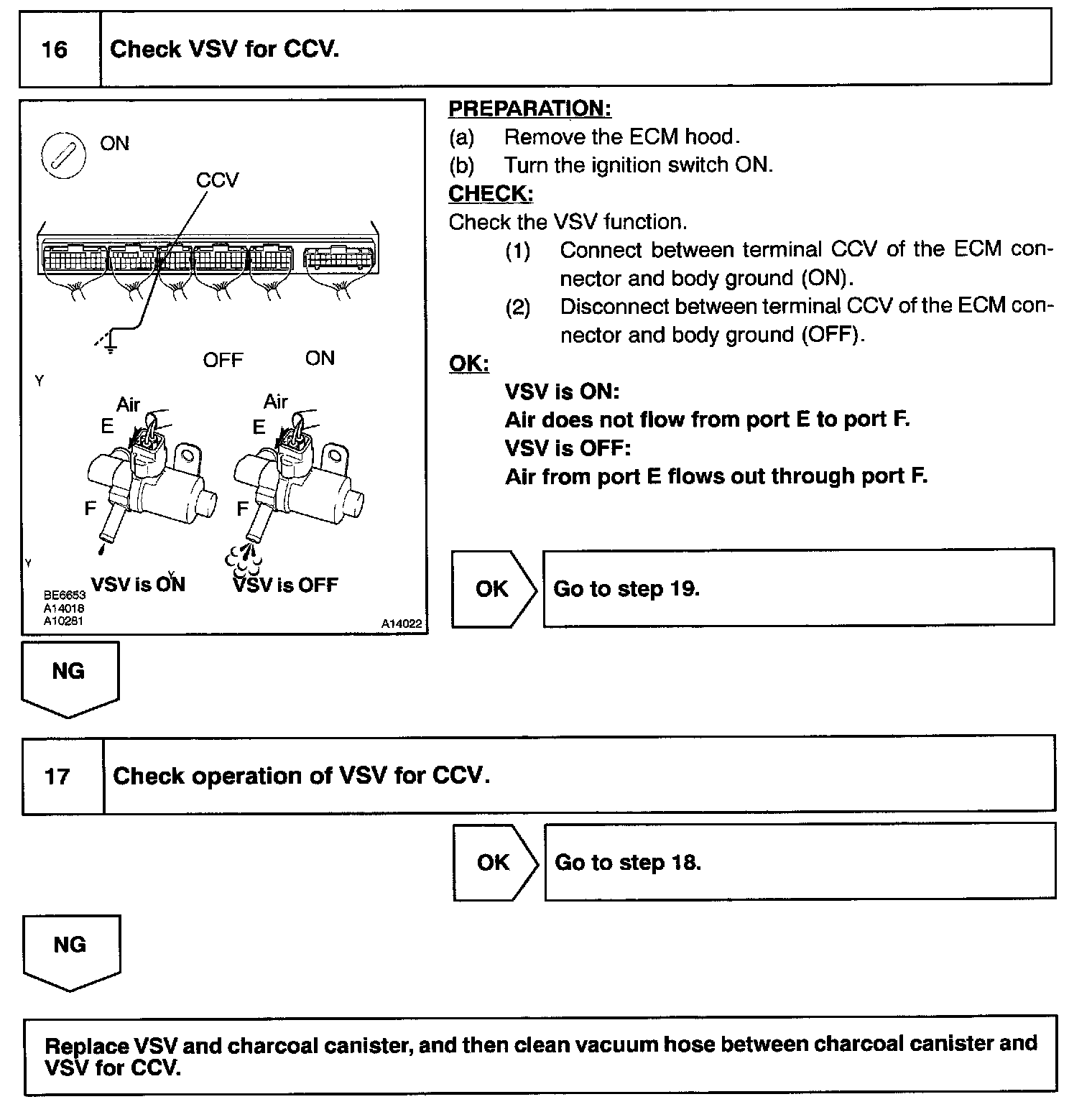

Steps 16 - 17:

Steps 18 - 20:

Steps 21 - 23:

Steps 24:

Steps 25 - 27:

LEXUS hand-held tester

Steps 1 - 4:

Steps 5 - 8:

Steps 9 - 12:

Steps 13 - 15:

Steps 16 - 17:

Steps 18 - 20:

Steps 21 - 22:

OBD II scan tool (excluding LEXUS hand-held tester)
