DTC 93

B1293 / 93 - Gateway ECU Communication Stop

CIRCUIT DESCRIPTION

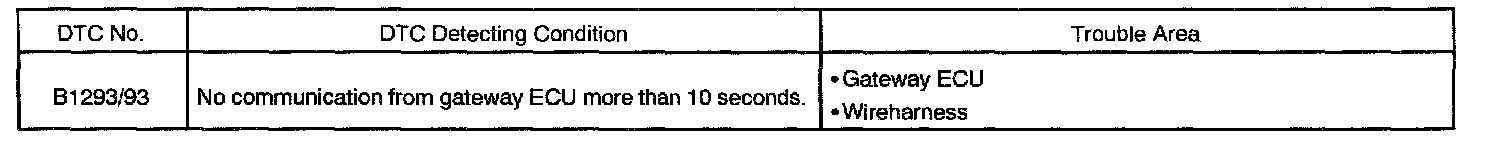

DTC Detecting Condition:

This DTC is output when communication stops between tilt and telescopic ECU, A/C amplifier and gateway ECU.

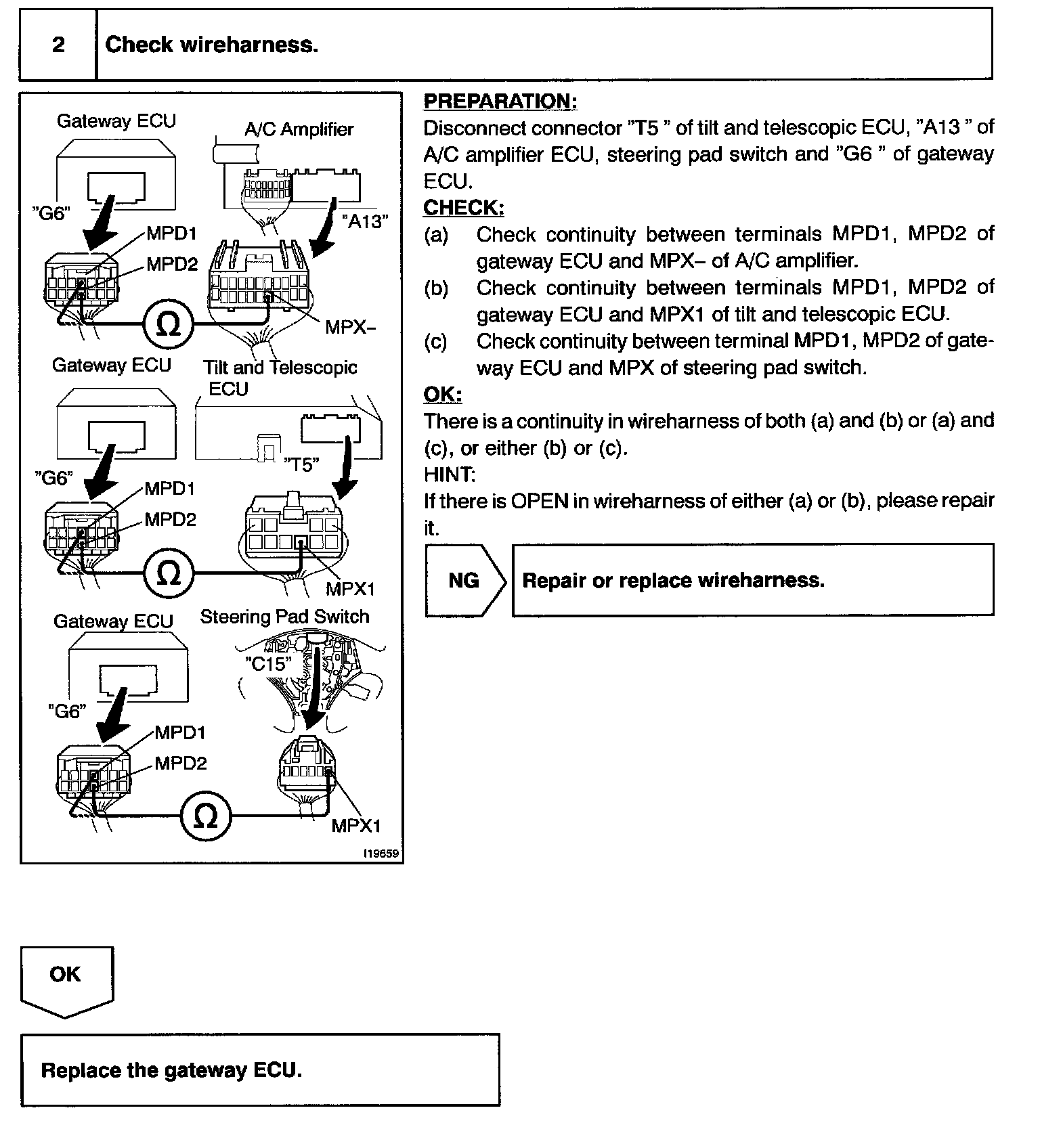

Wiring Diagram:

Step 1:

Step 2:

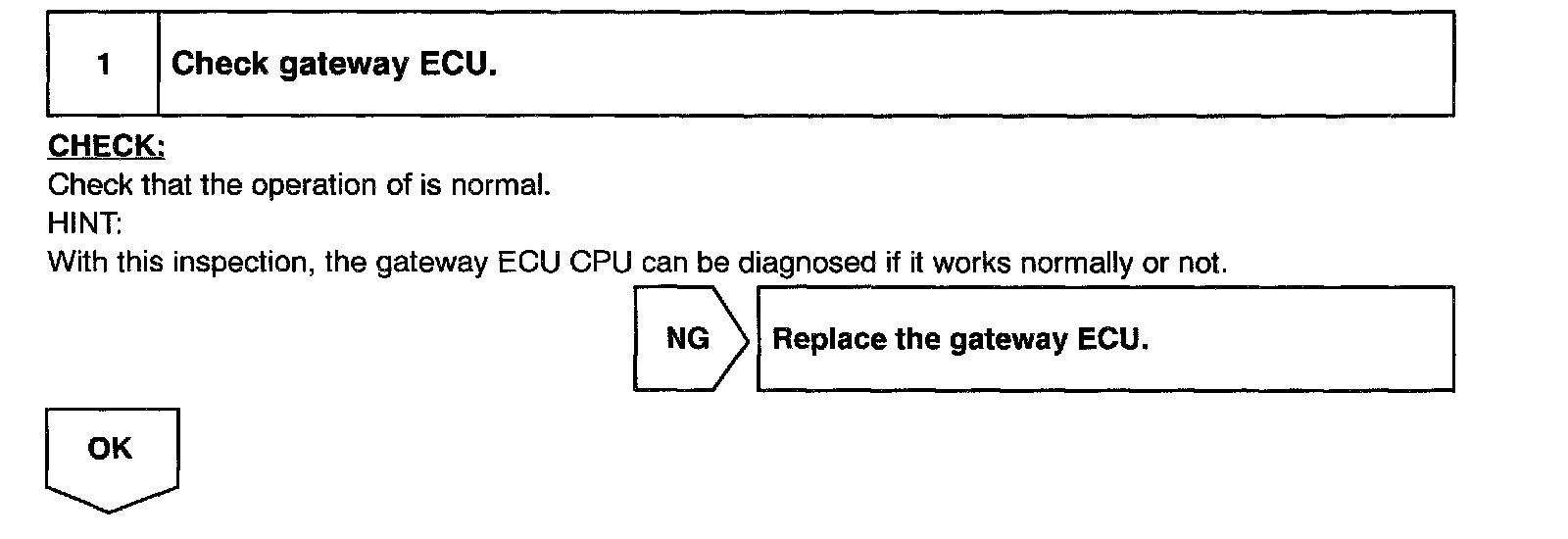

INSPECTION PROCEDURE
