DTC 73

B1273 / 73 - Sliding Roof ECU Communication Stop (W/ Sliding Roof Vehicle Only)

CIRCUIT DESCRIPTION

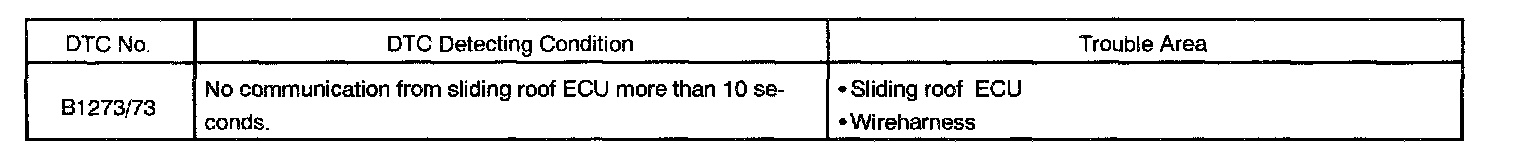

DTC Detecting Condition:

This DTC is output when communication stops between sliding roof ECU and Body ECU No.1.

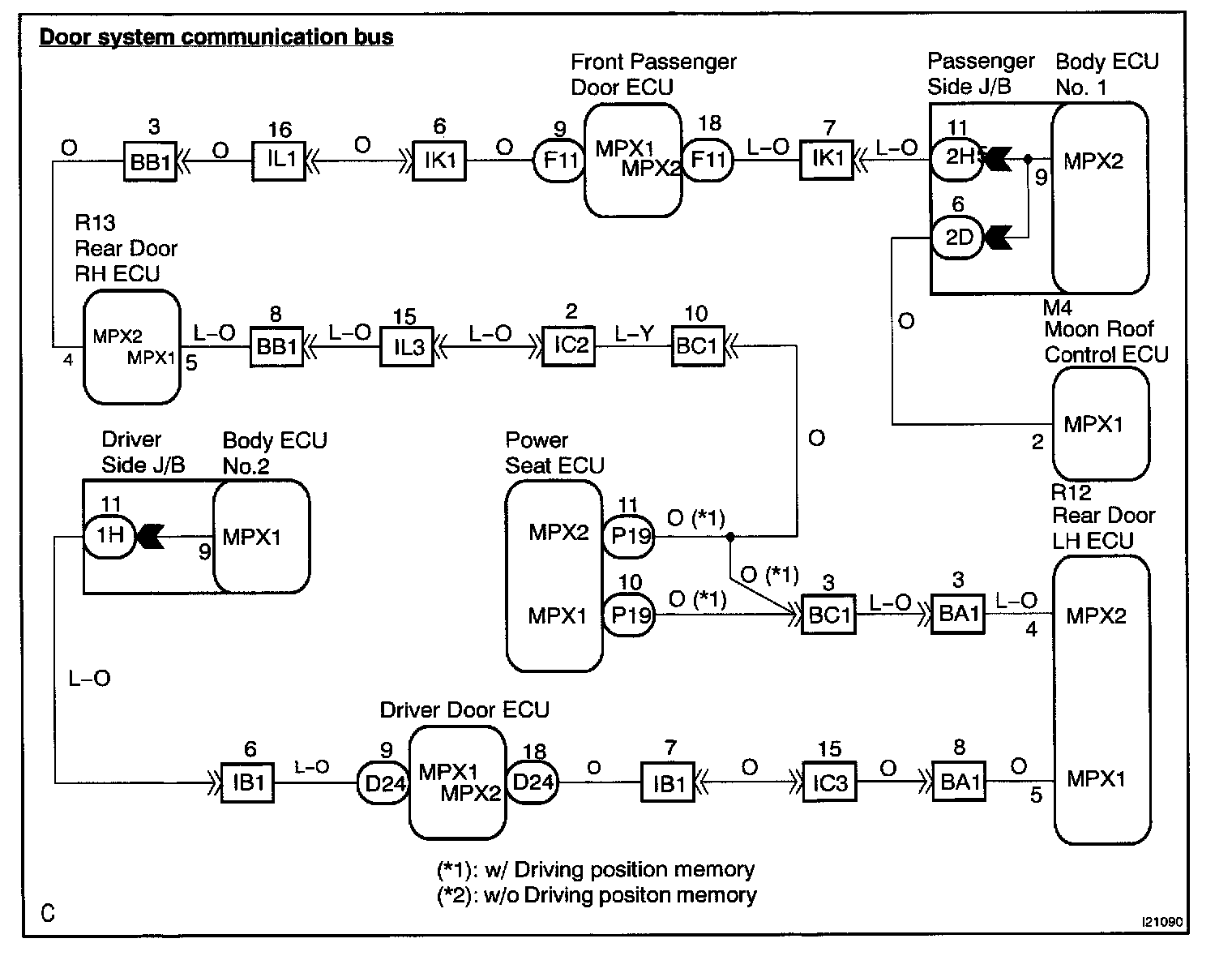

Wiring Diagram:

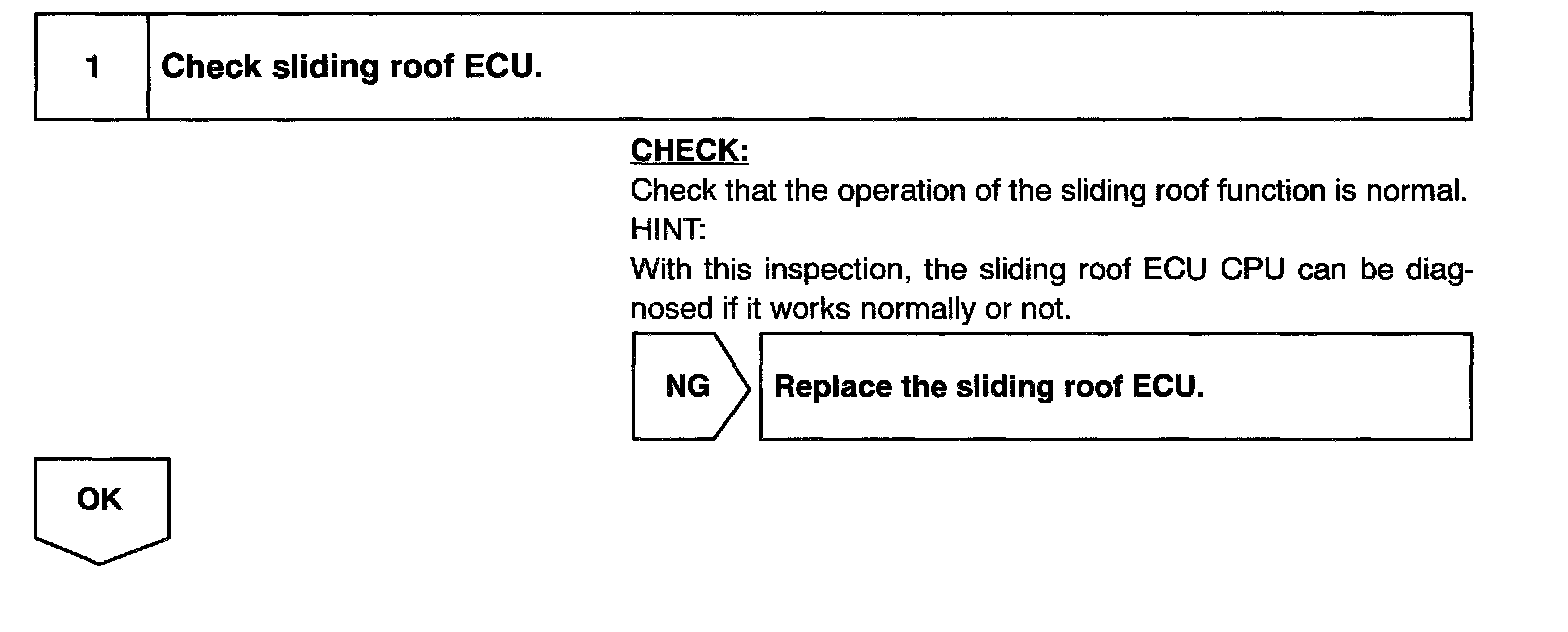

Step 1:

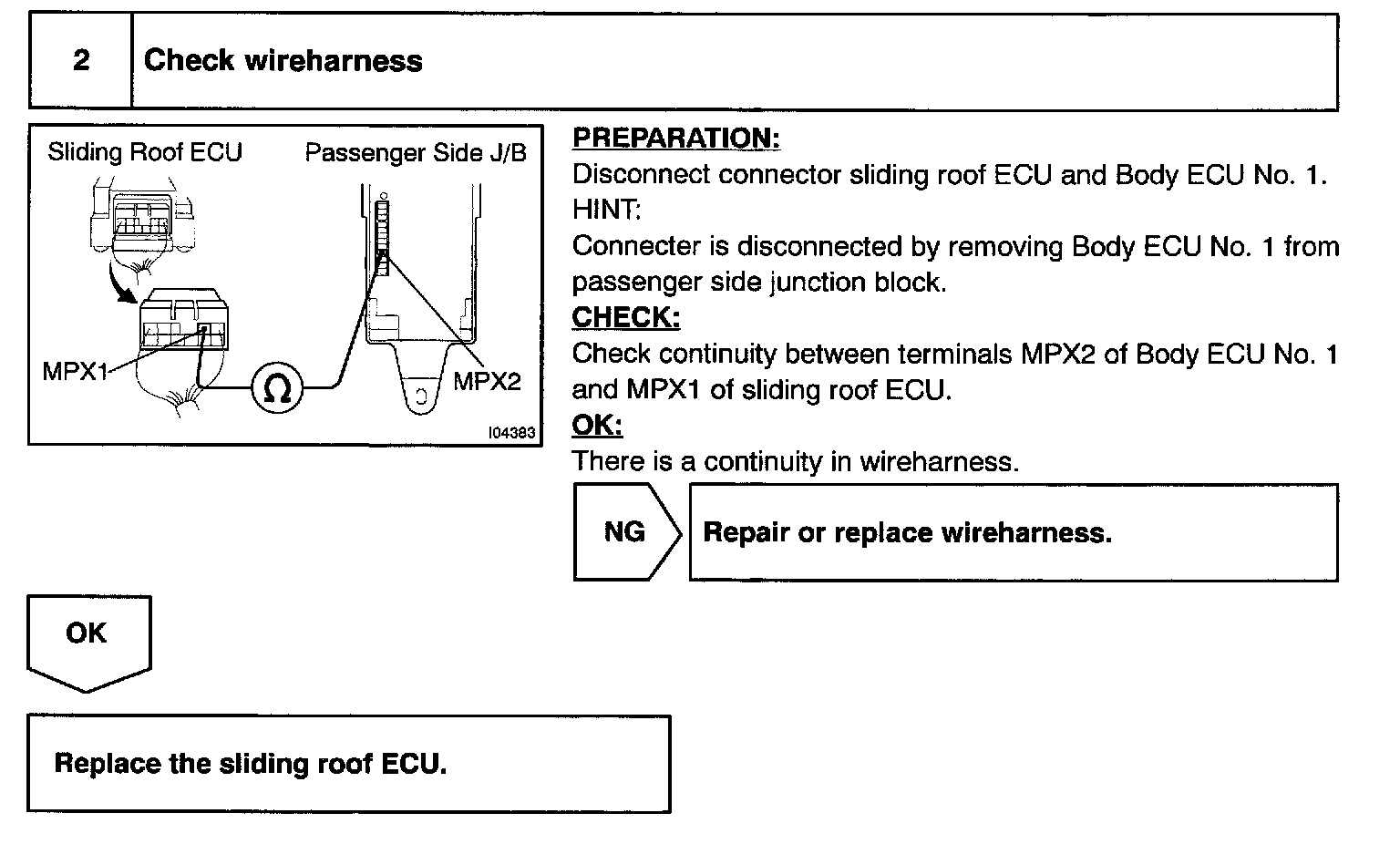

Step 2:

INSPECTION PROCEDURE
