DTC 61

B1261 / 61 - ECM Communication Stop

CIRCUIT DESCRIPTION

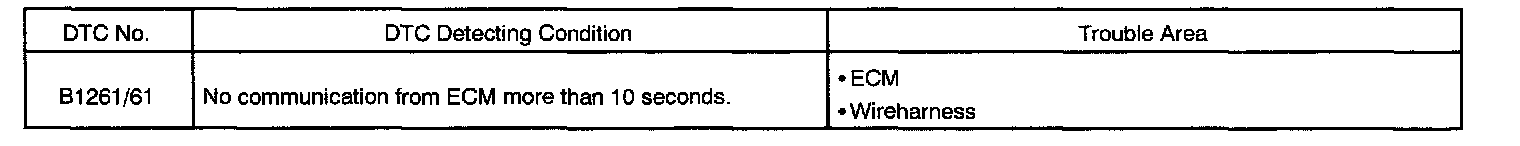

DTC Detecting Condition:

This DTC is output when communication stops between ECM and Body No.1 ECU

Wiring Diagram:

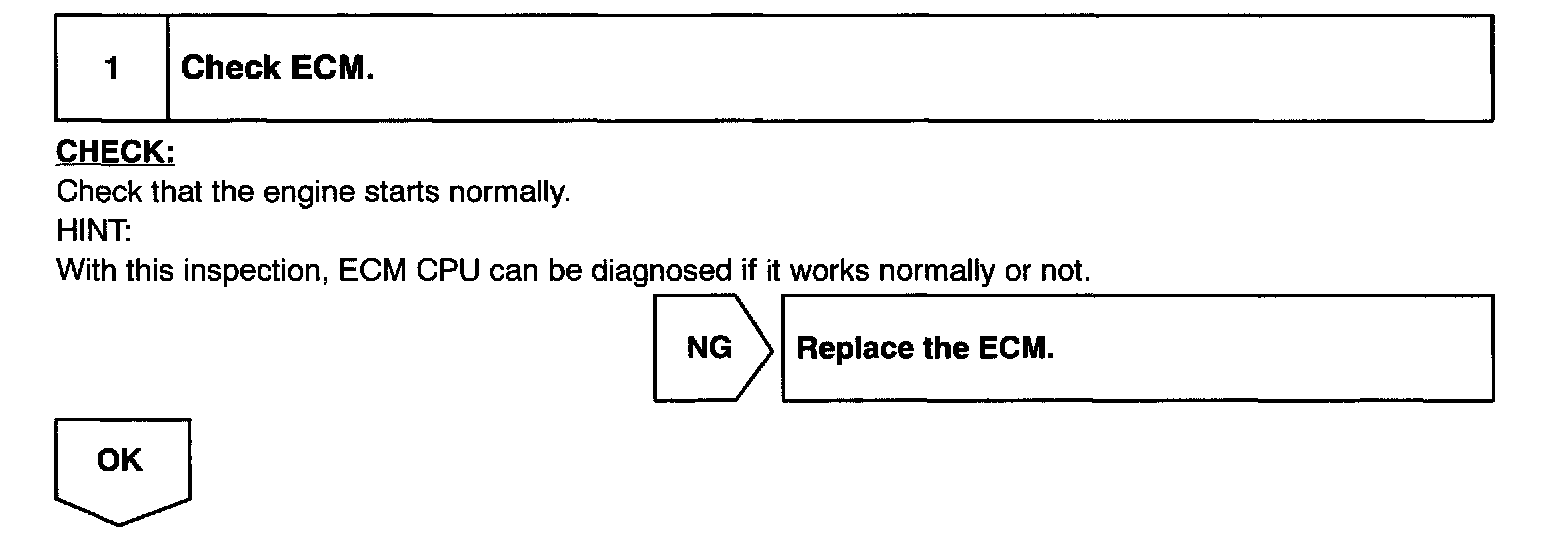

Step 1:

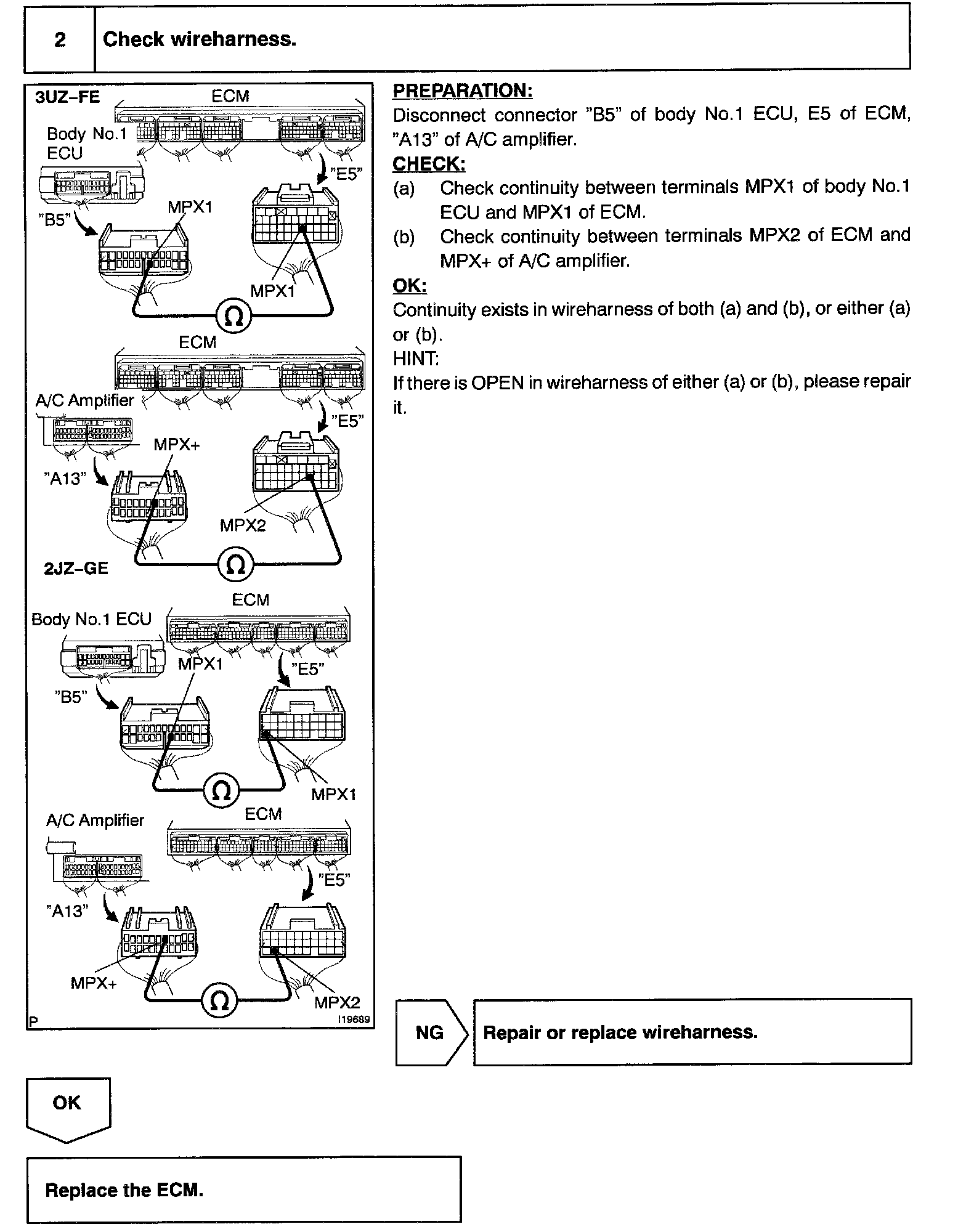

Step 2:

INSPECTION PROCEDURE
