Air Mix Damper Control Servomotor Circuit

B1446 / 46 - Air Mix Damper Control Servomotor Circuit (Driver Side)
B1446 / 46 - Air Mix Damper Control Servomotor Circuit (Passenger Side)
CIRCUIT DESCRIPTION

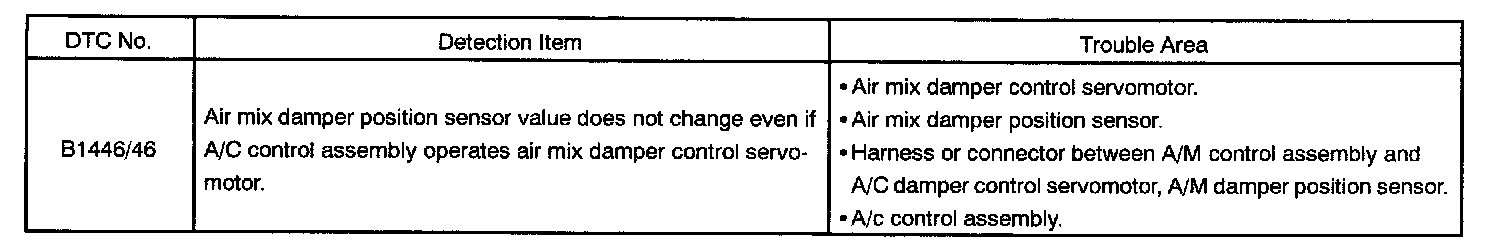

Detection Item:

The air mix damper control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

Wiring Diagram:

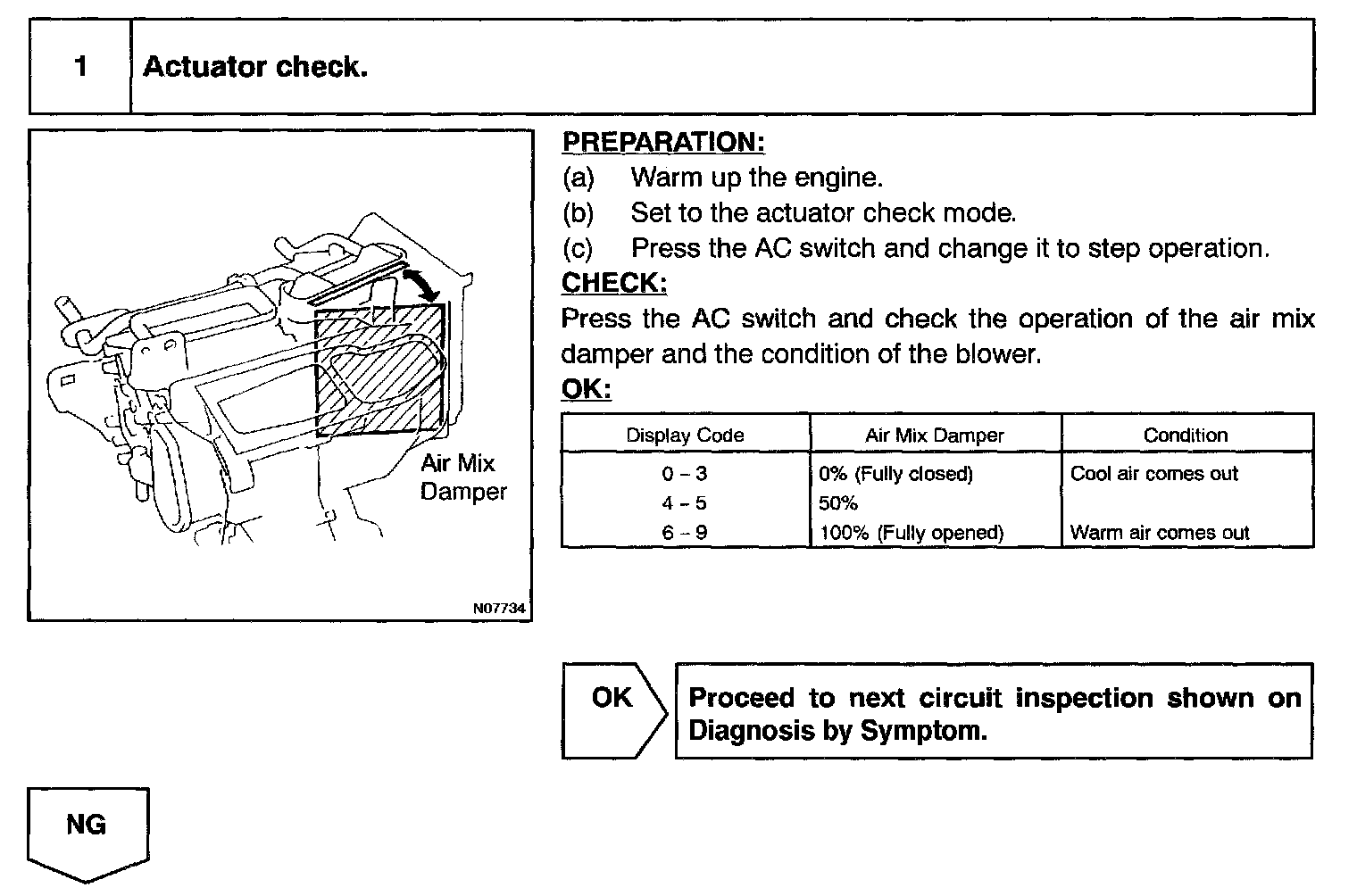

Step 1:

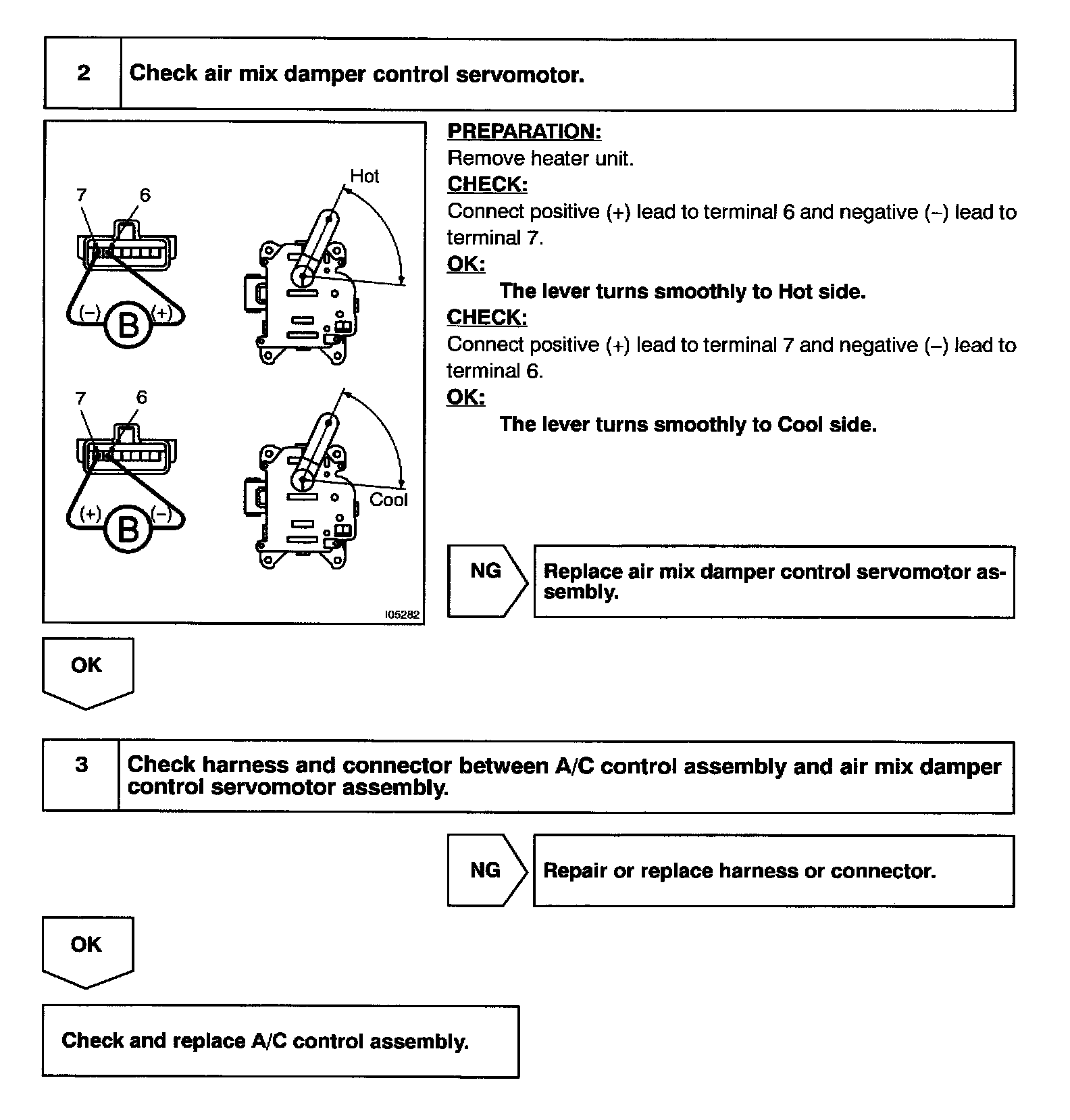

Steps 2 - 3:

INSPECTION PROCEDURE
