DTC 24

B1424 / 24 - Solar Sensor Circuit (Driver Side)

CIRCUIT DESCRIPTION

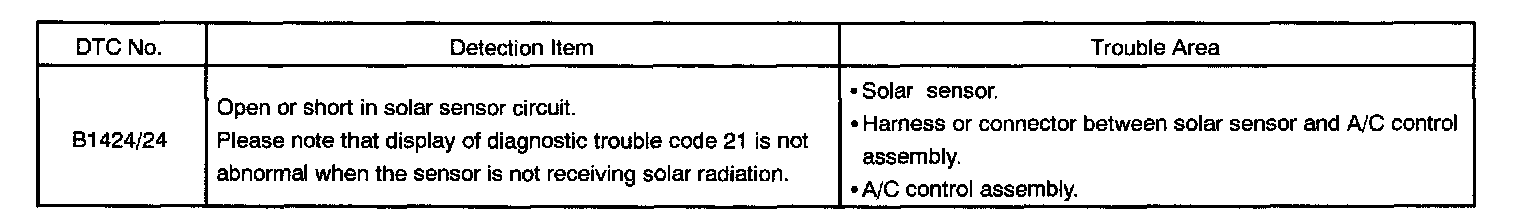

Detection Item:

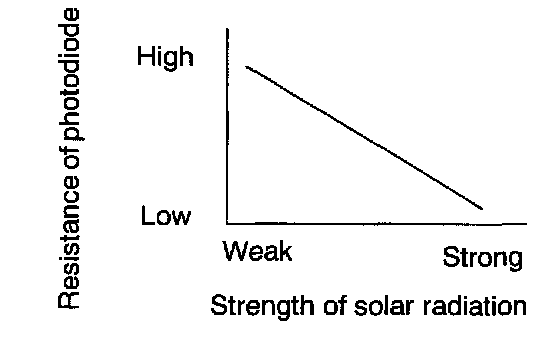

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

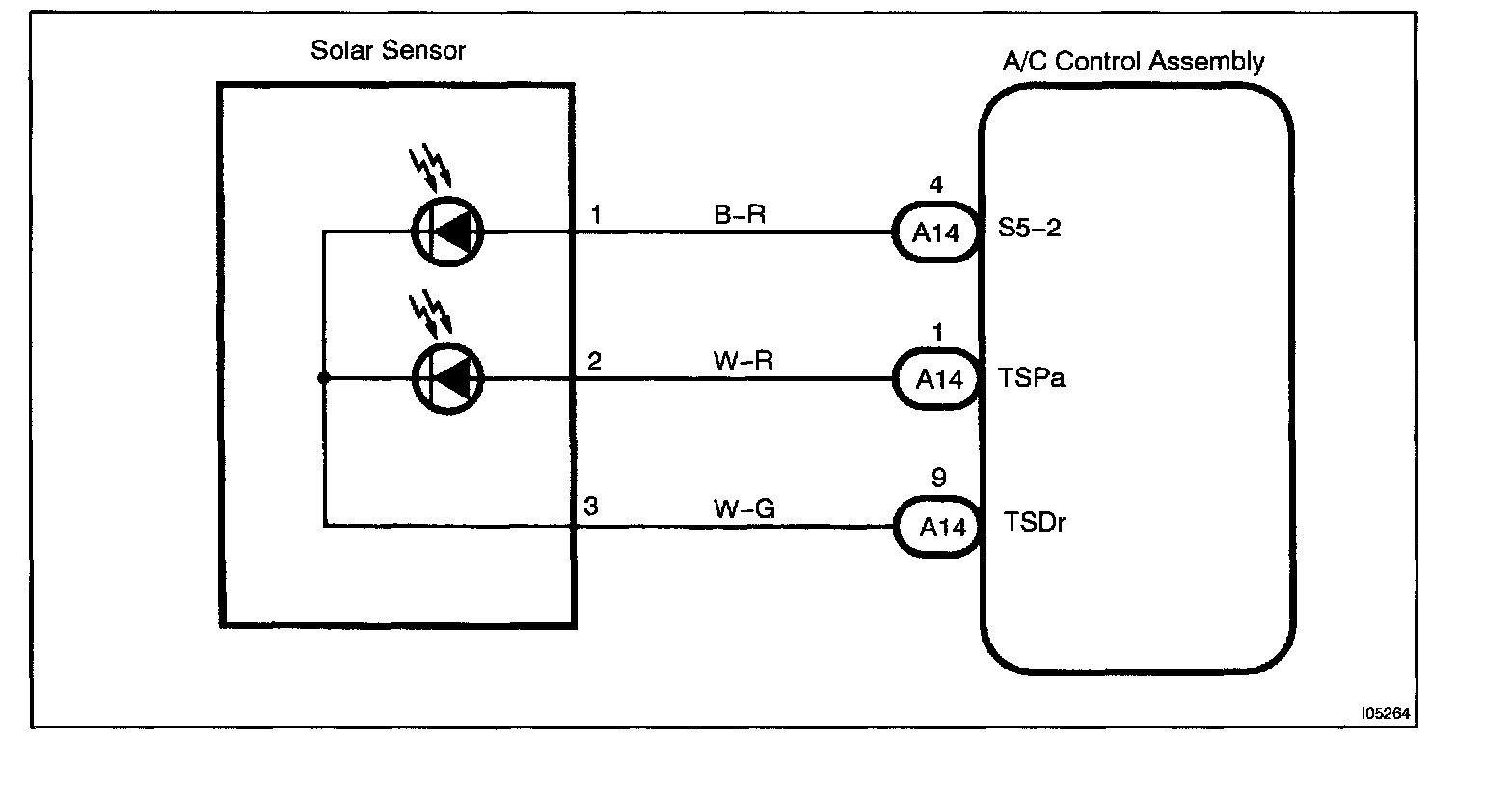

Wiring Diagram:

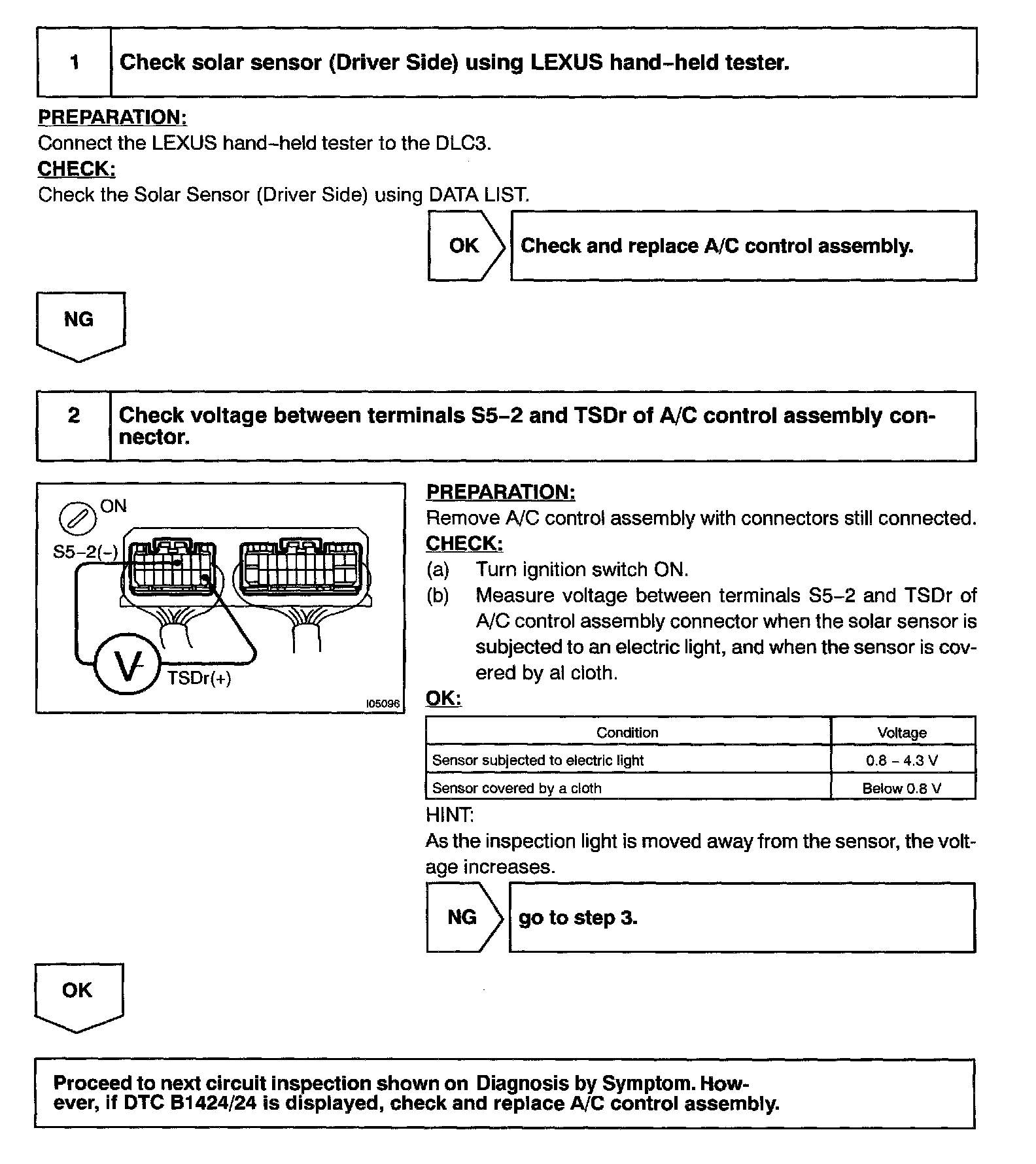

Steps 1 - 2:

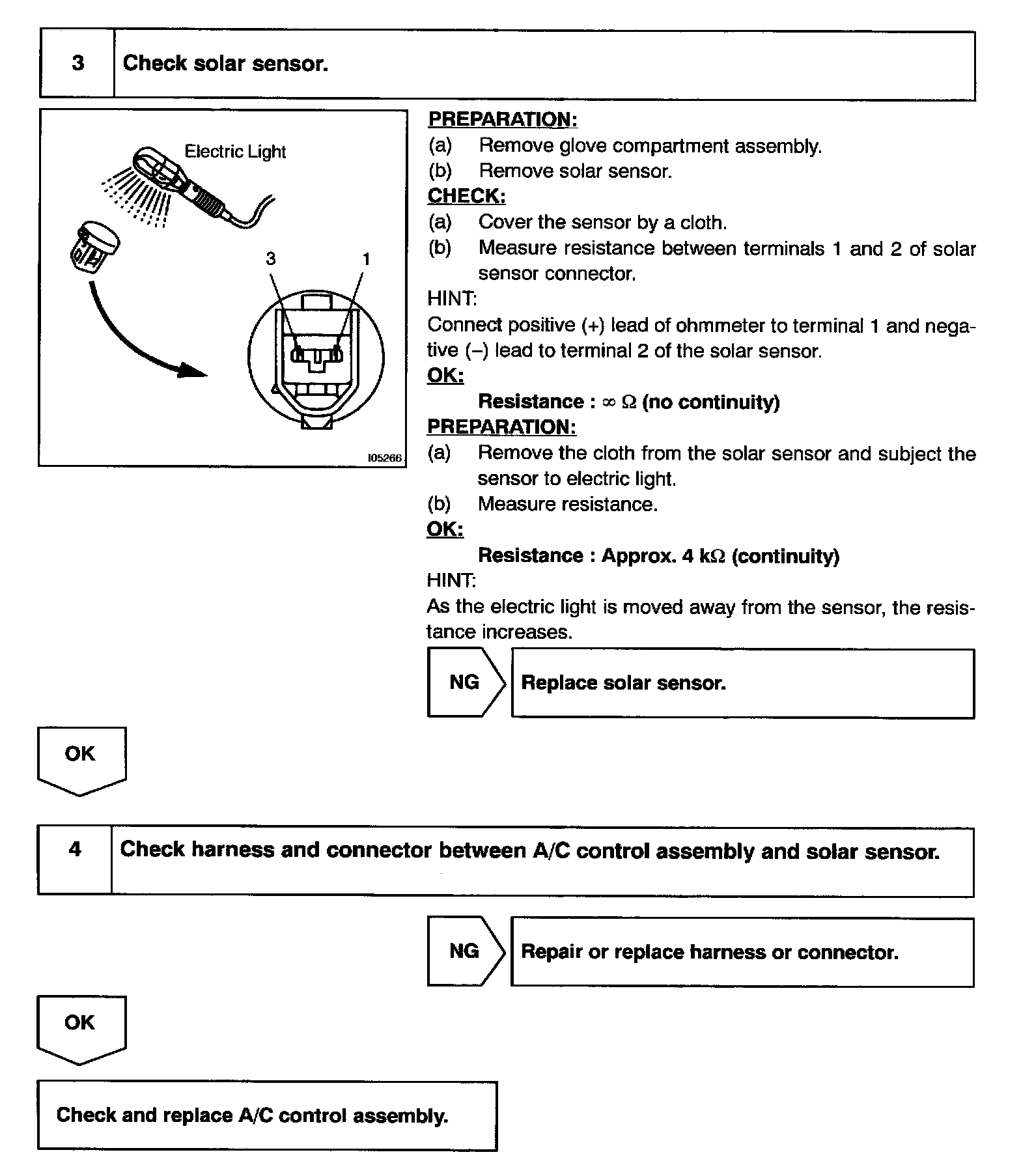

Steps 3 - 4:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
