DTC 22

B1422 / 22 - Compressor Lock Sensor Circuit

CIRCUIT DESCRIPTION

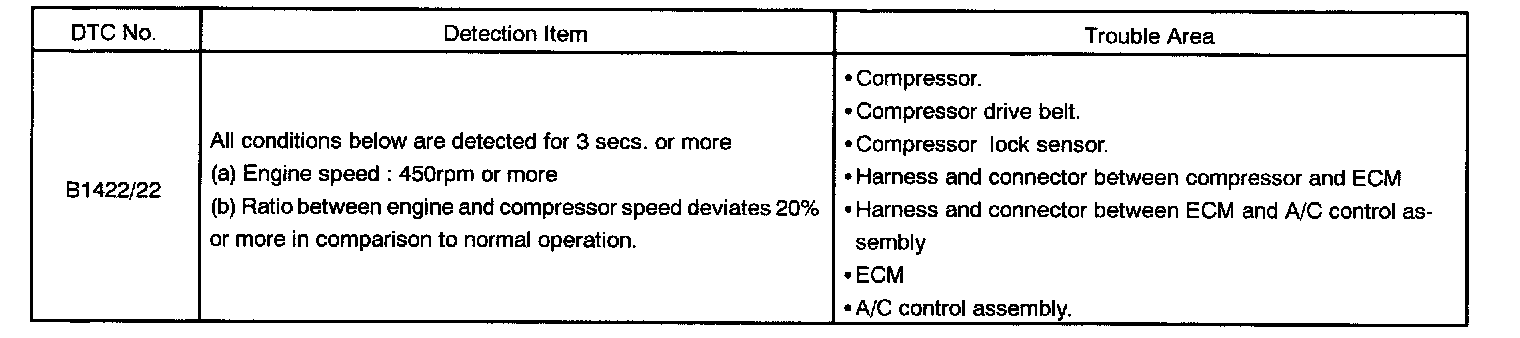

Detection Item:

This sensor sends 4 pulses per engine revolution to the ECM

If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor OFF. And, the indicator flashes at about 1 second intervals

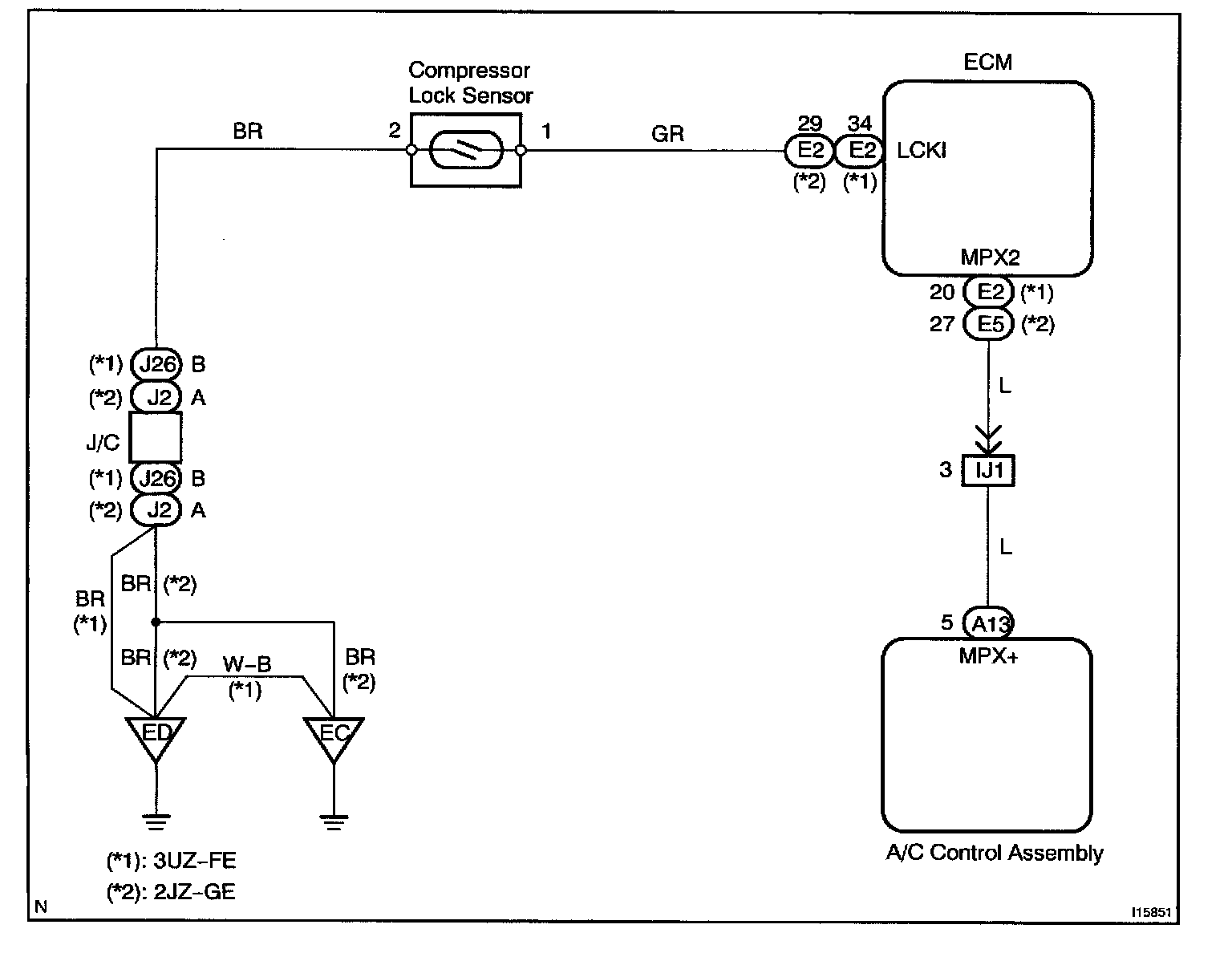

Wiring Diagram:

Steps 1 - 3:

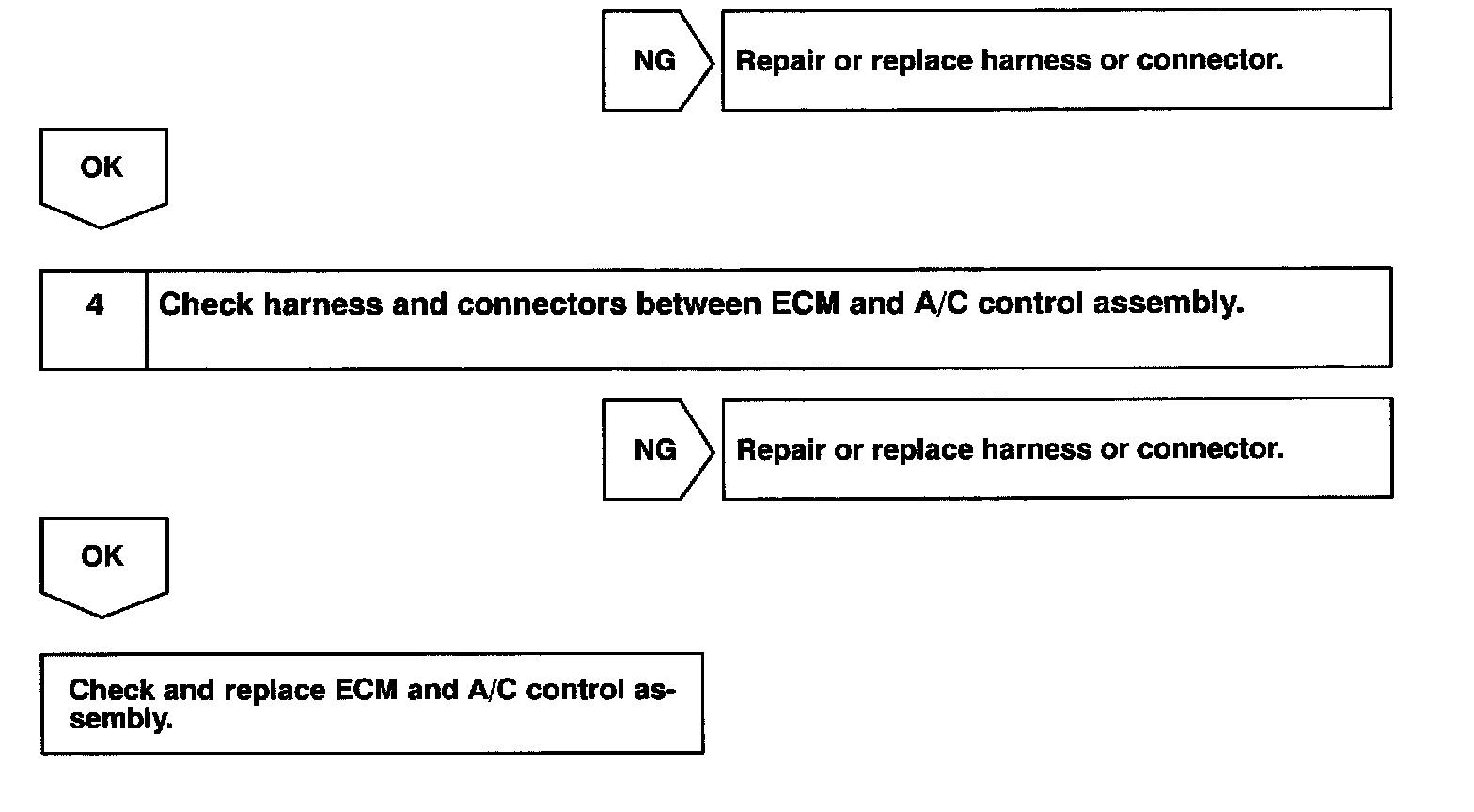

Steps 3 (Continued) - 4:

INSPECTION PROCEDURE
