DTC 44

C1244 / 44 - Deceleration Sensor Circuit

CIRCUIT DESCRIPTION

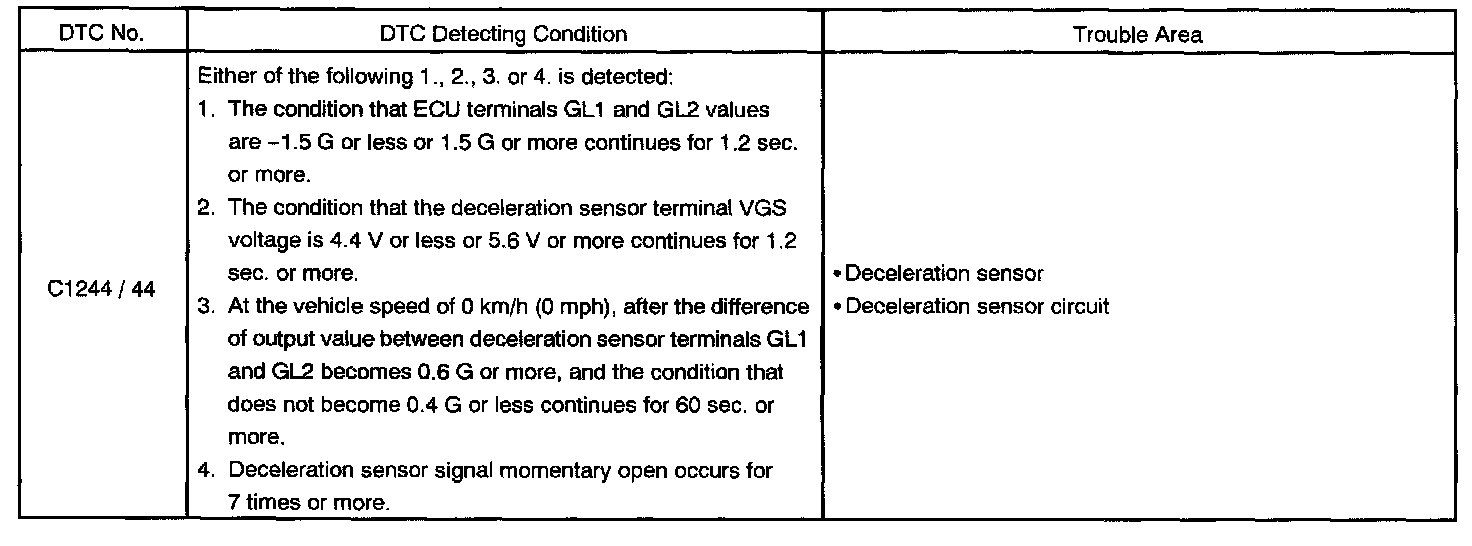

DTC Detecting Condition:

This sensor detects deceleration on the vehicle. The sensor signal is used in ABS & BA & TRAC & VSC control. If the sensor functions abnormally, the ABS warning light comes on.

Wiring Diagram:

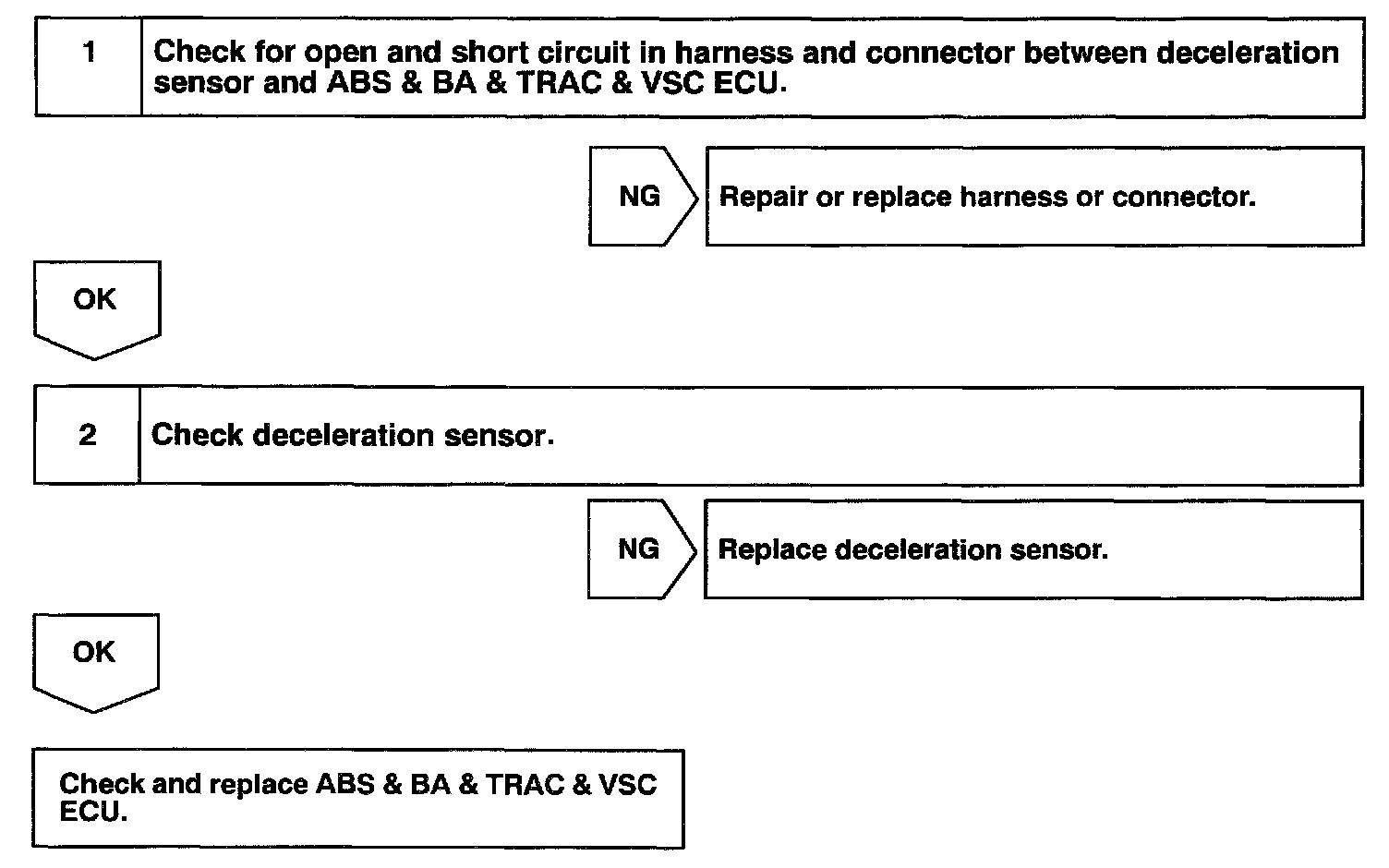

Steps 1 - 2:

INSPECTION PROCEDURE
