DTC 44

C1224 / 44 - NE Signal Circuit

CIRCUIT DESCRIPTION

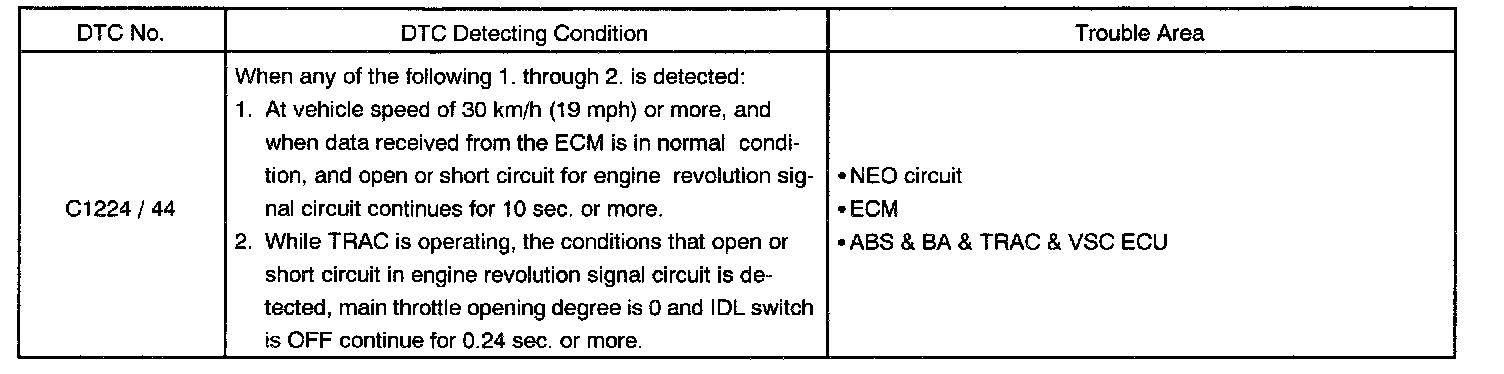

DTC Detecting Condition:

The ABS & BA & TRAC & VSC ECU receives engine revolution speed signals (NE signals) from the ECM.

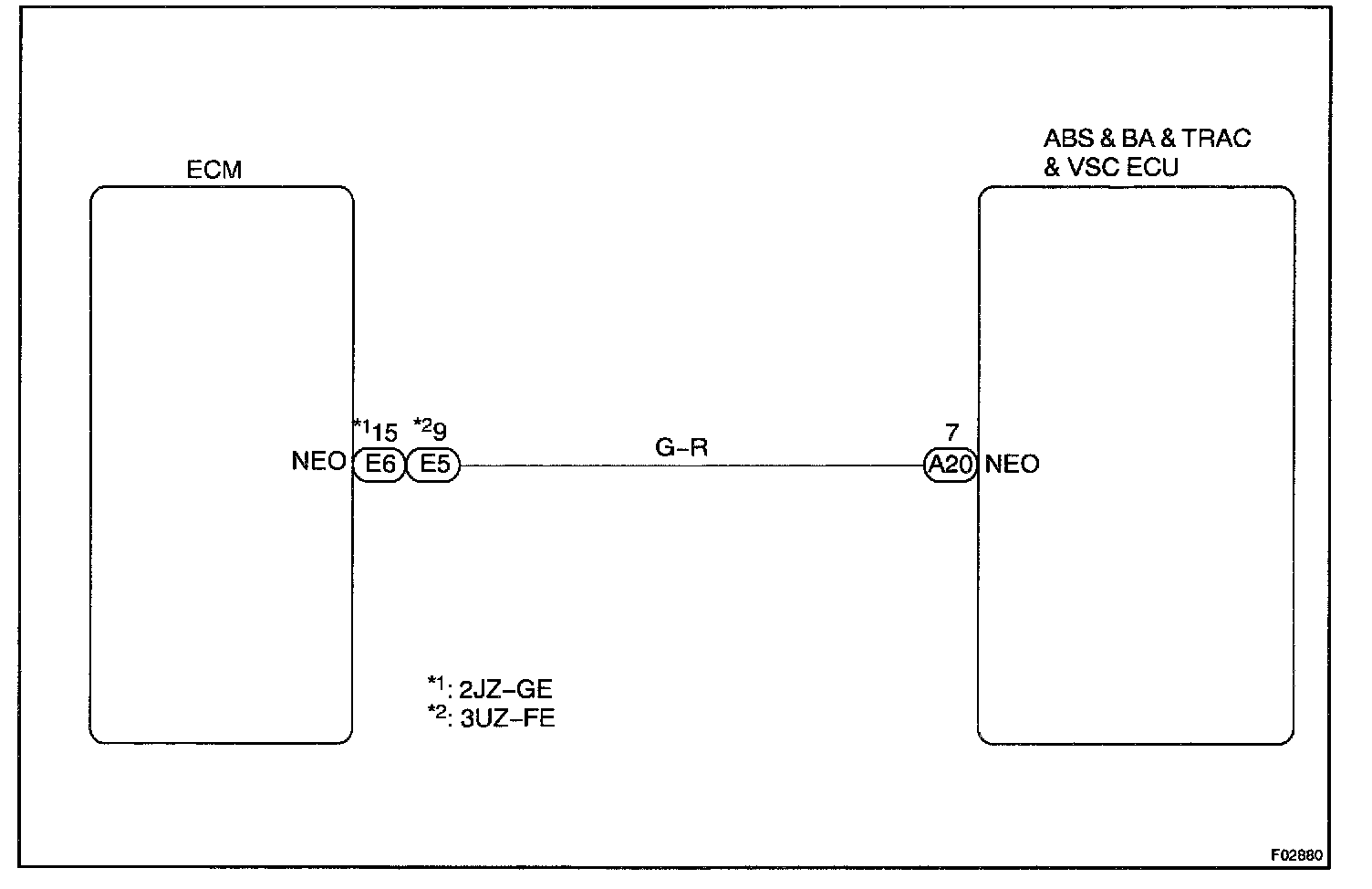

Wiring Diagram:

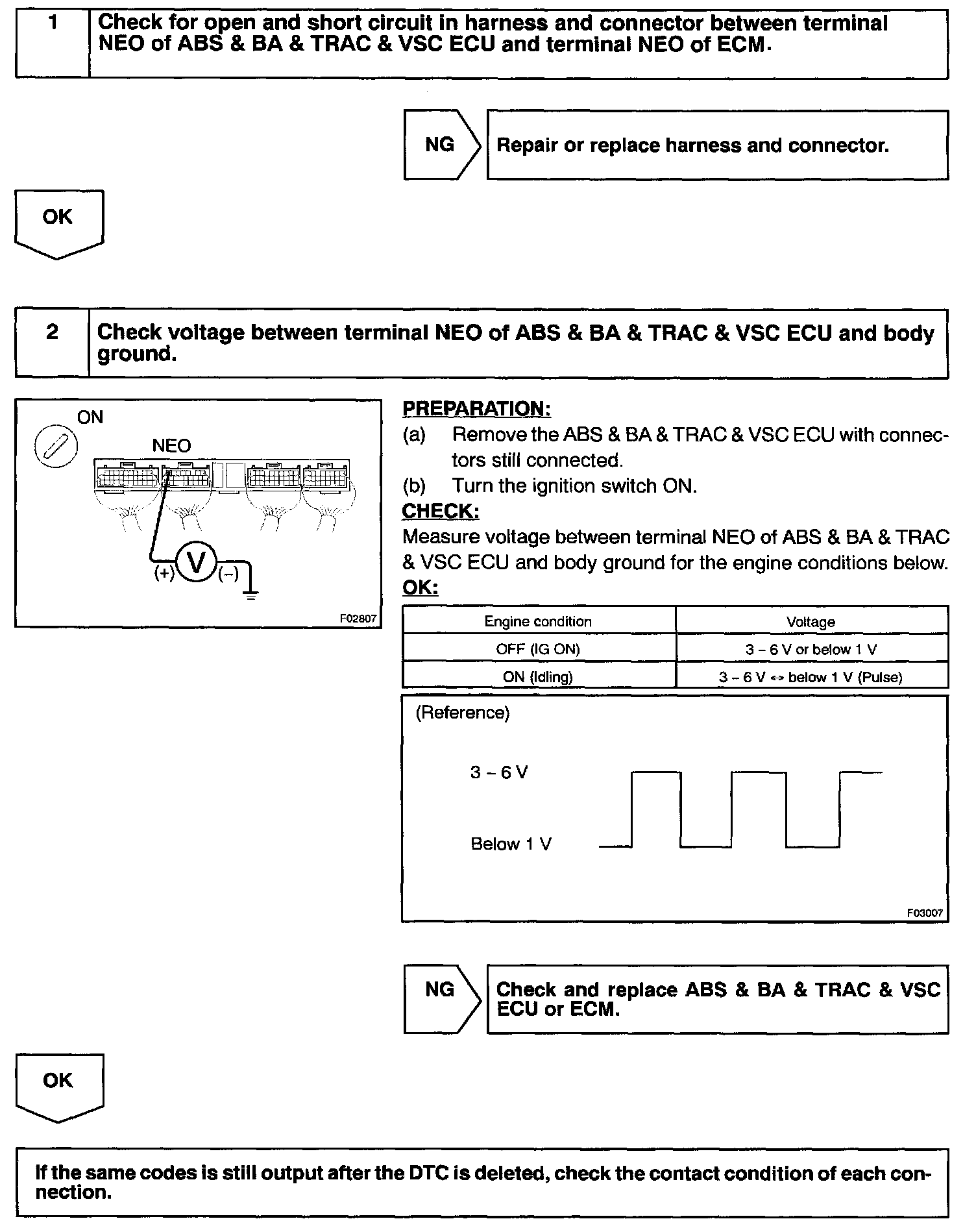

Steps 1 - 2:

INSPECTION PROCEDURE
