FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2001
>>
GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
ABS w/ BA, TRAC, & VSC System
>>
DTC 39
DTC 39
C1336 / 39 - Zero Point Calibration of Deceleration Sensor Undone
DTC Detecting Condition:
CIRCUIT DESCRIPTION

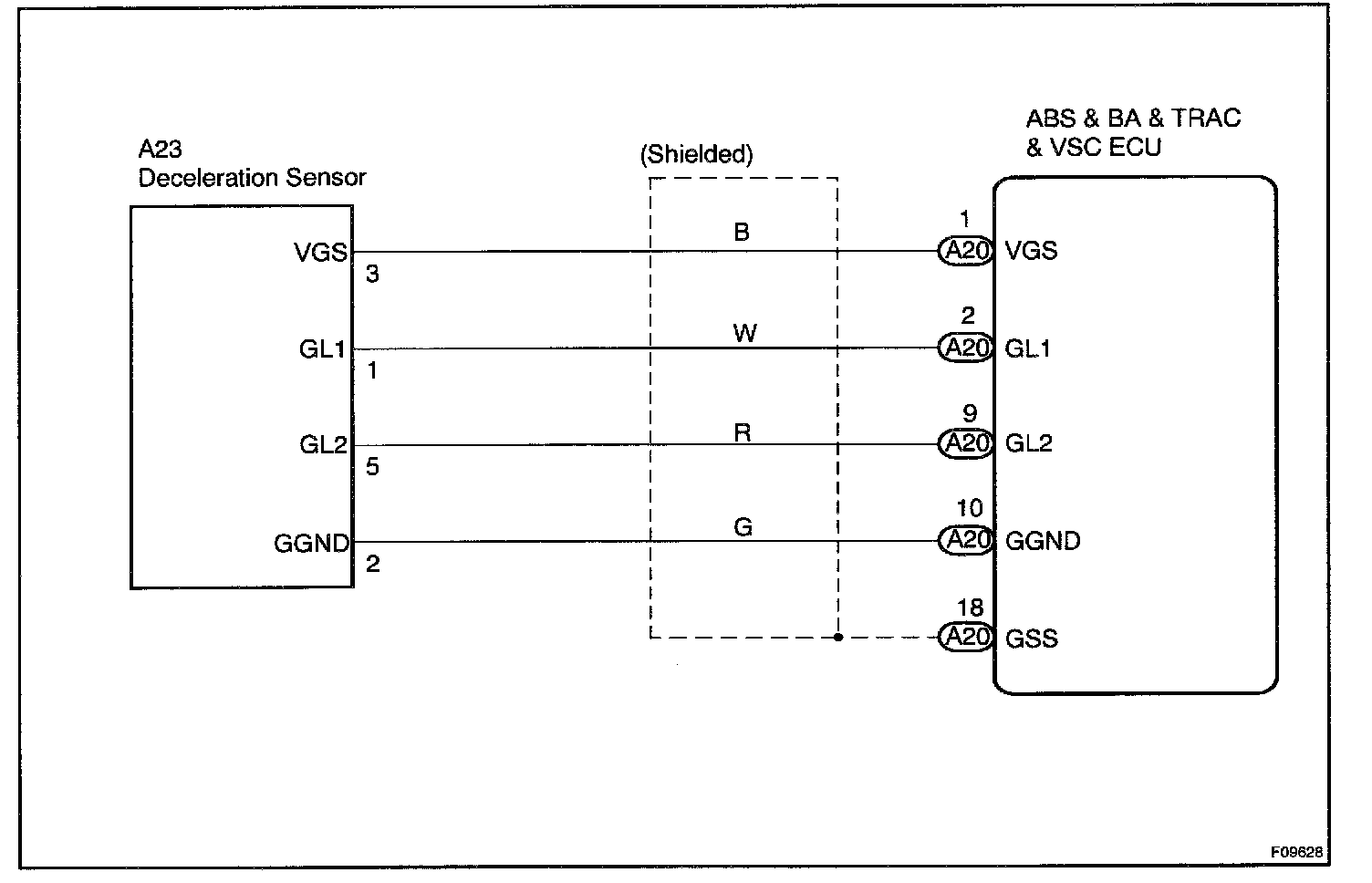

Wiring Diagram:

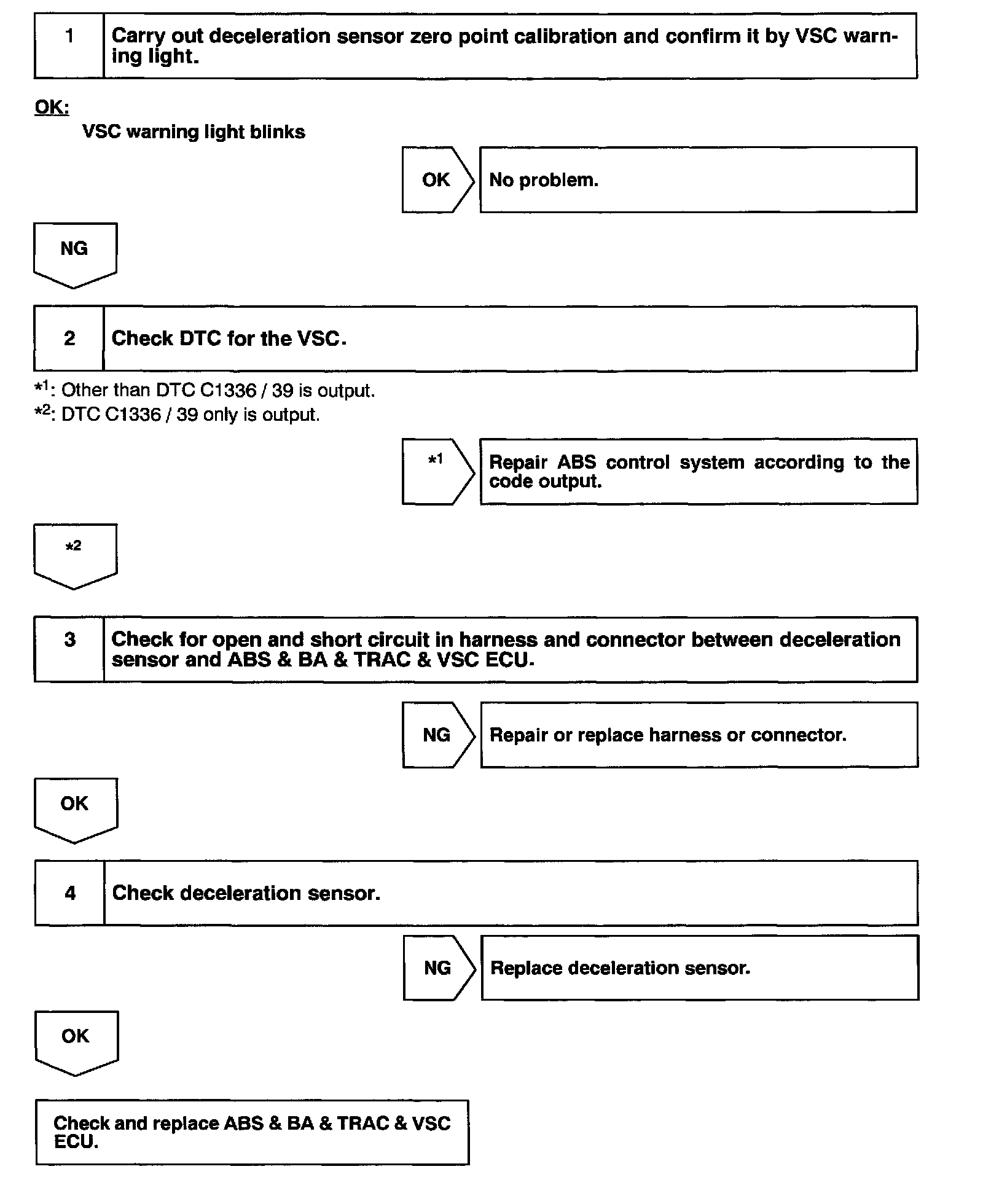

Steps 1 - 4:
INSPECTION PROCEDURE
