DTC 33

C1233 / 33 - Yaw Rate Sensor Circuit

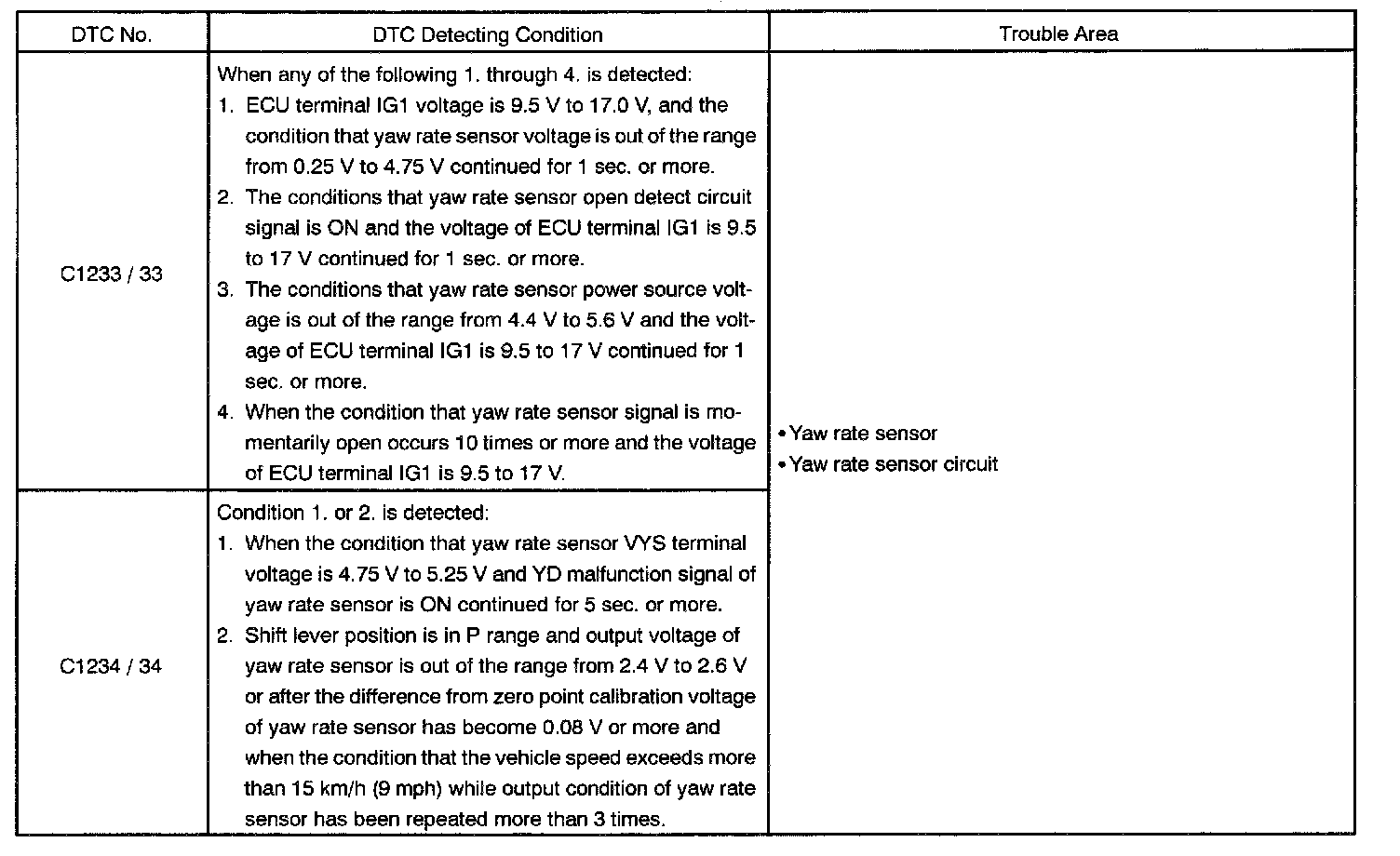

DTC Detecting Condition:

CIRCUIT DESCRIPTION

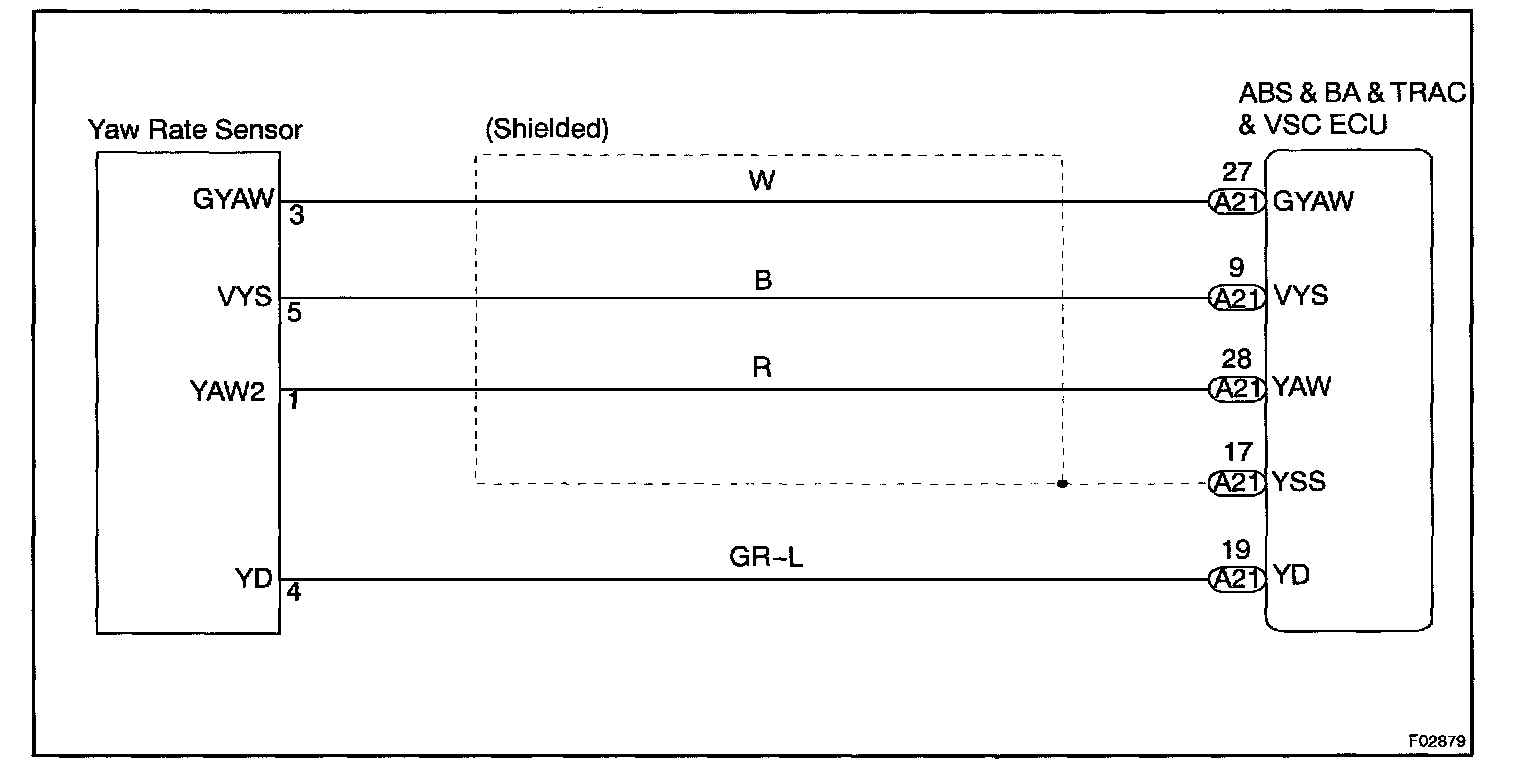

Wiring Diagram:

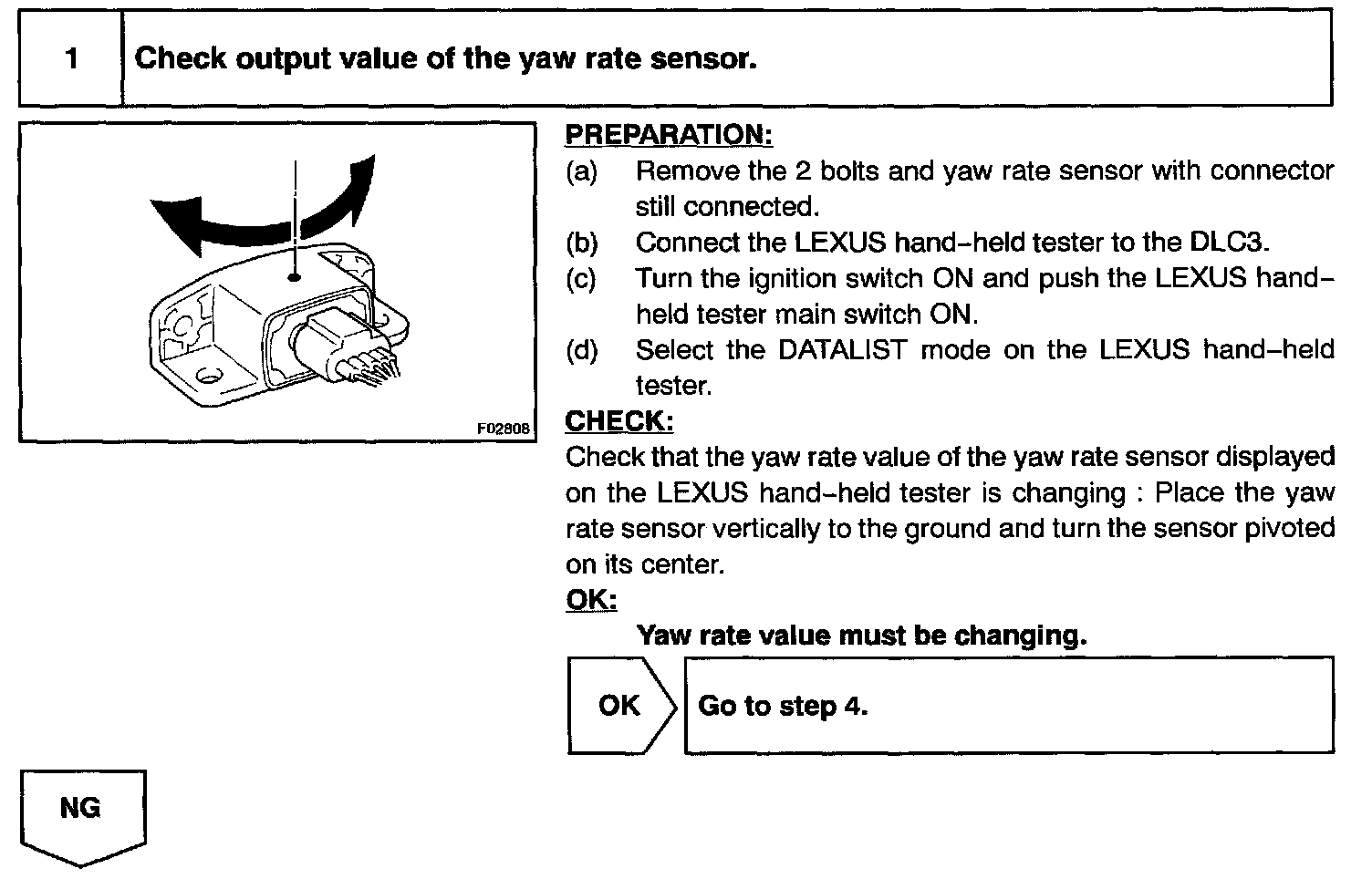

Step 1:

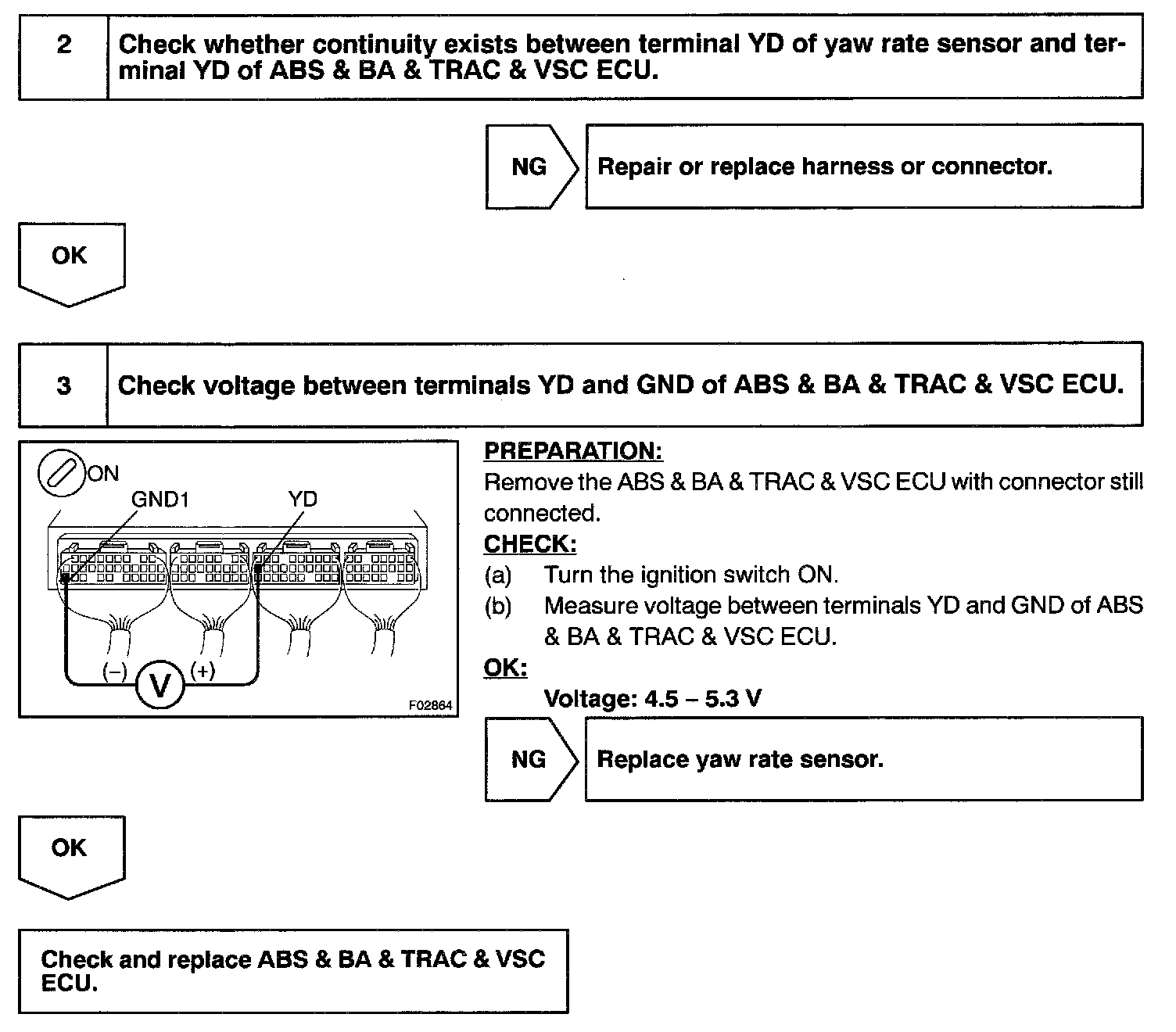

Steps 2 - 3:

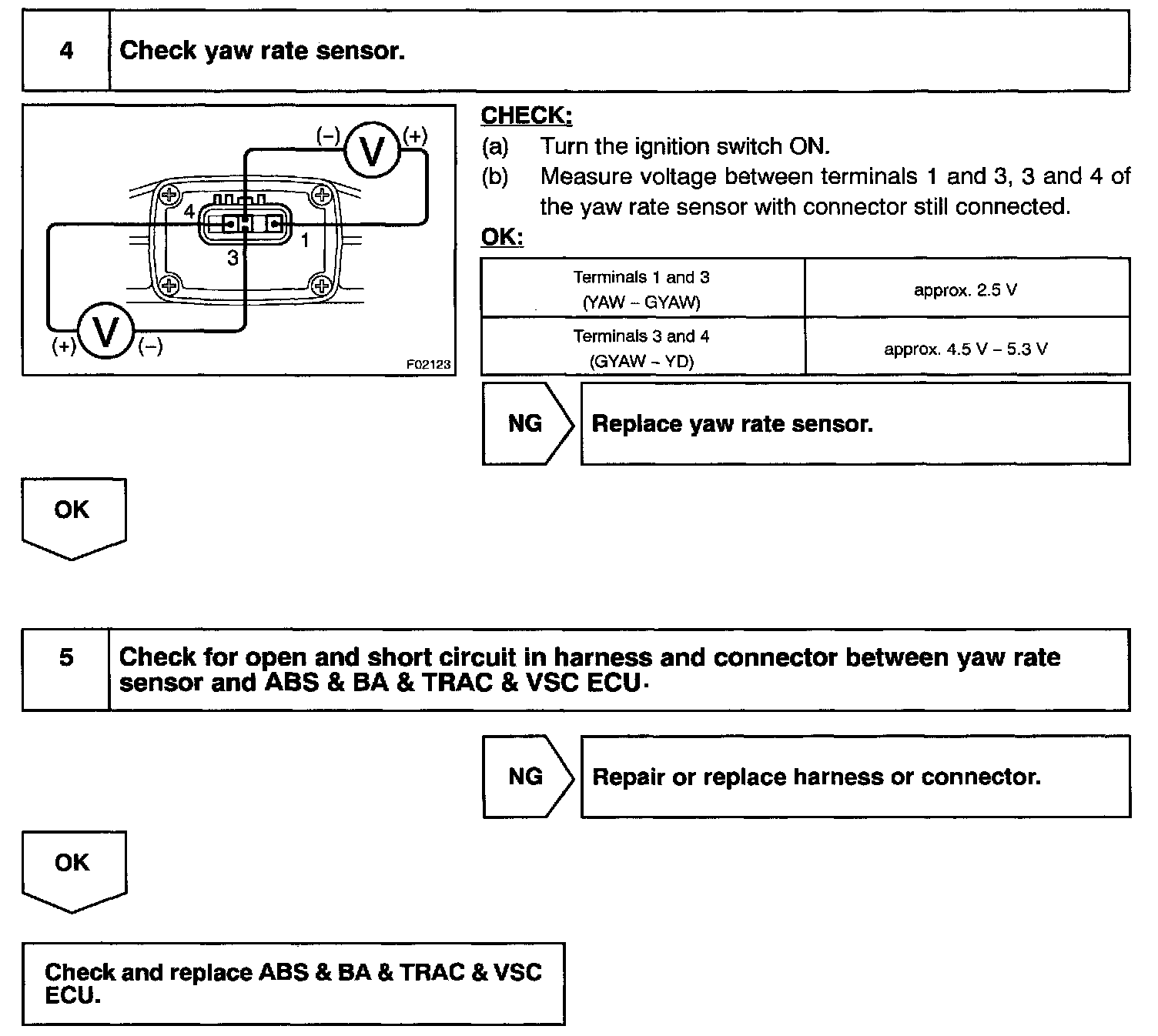

Steps 4 - 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 3 in case of not using the LEXUS hand-held tester.
