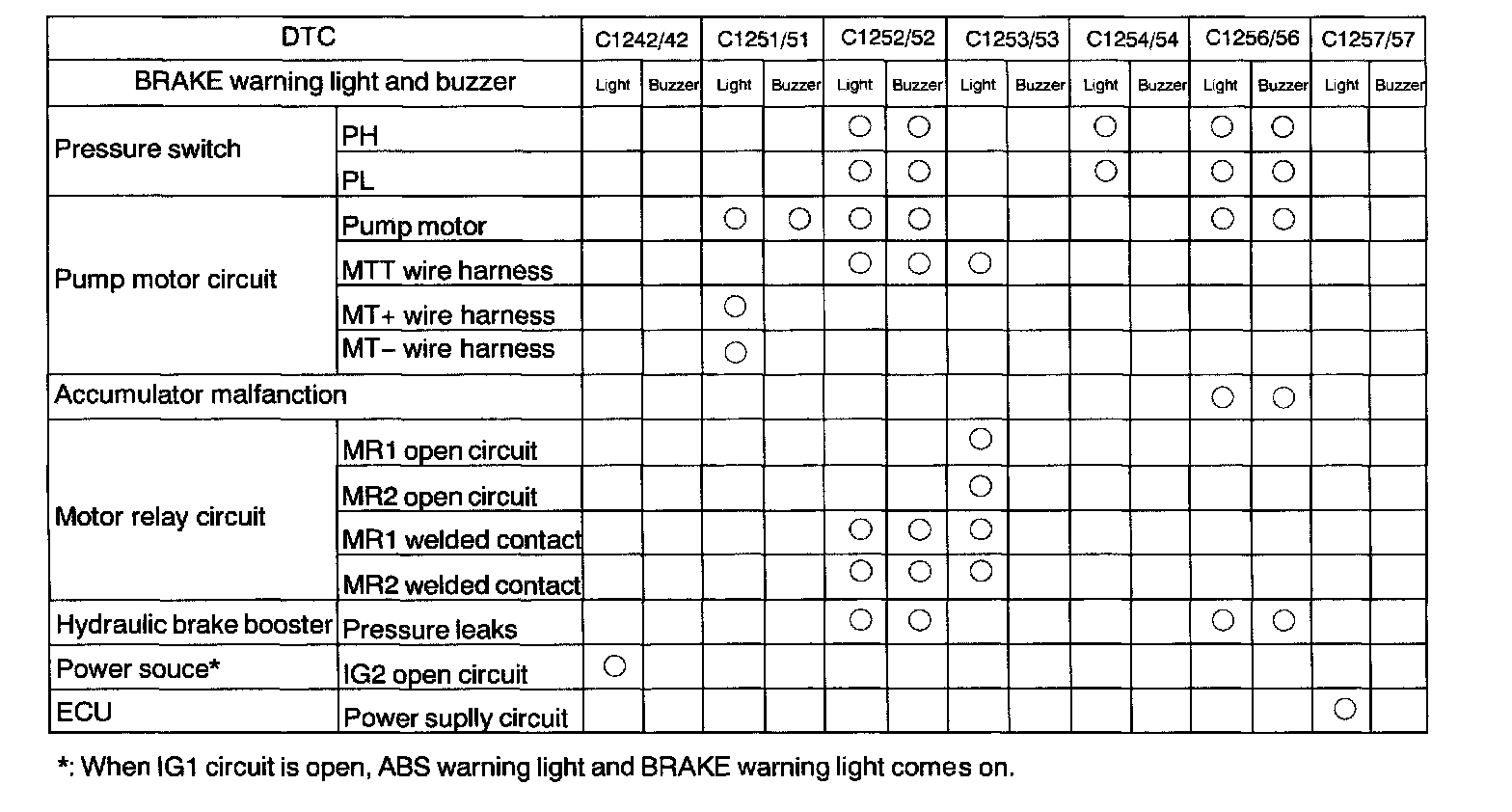

ABS W/Hydraulic Brake Booster Power Supply System

C0200/31 - C1244/44:

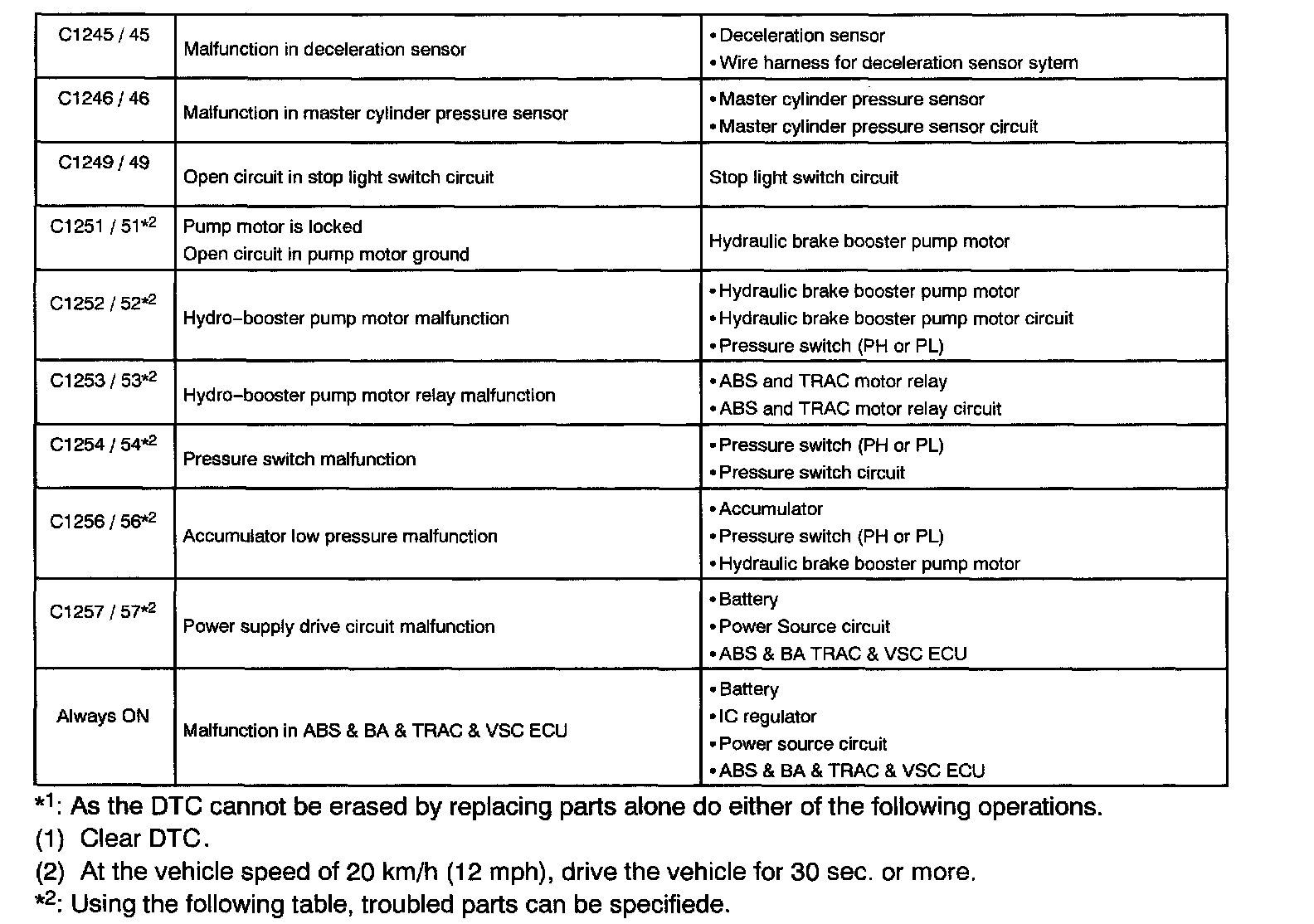

C1245/45 - Always ON:

Sensor Signal Check / C1271/71 - C1281/81:

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1 of DLC1 and remove the short pin of DLC1.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed in that code. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Procedures". Testing and Inspection
